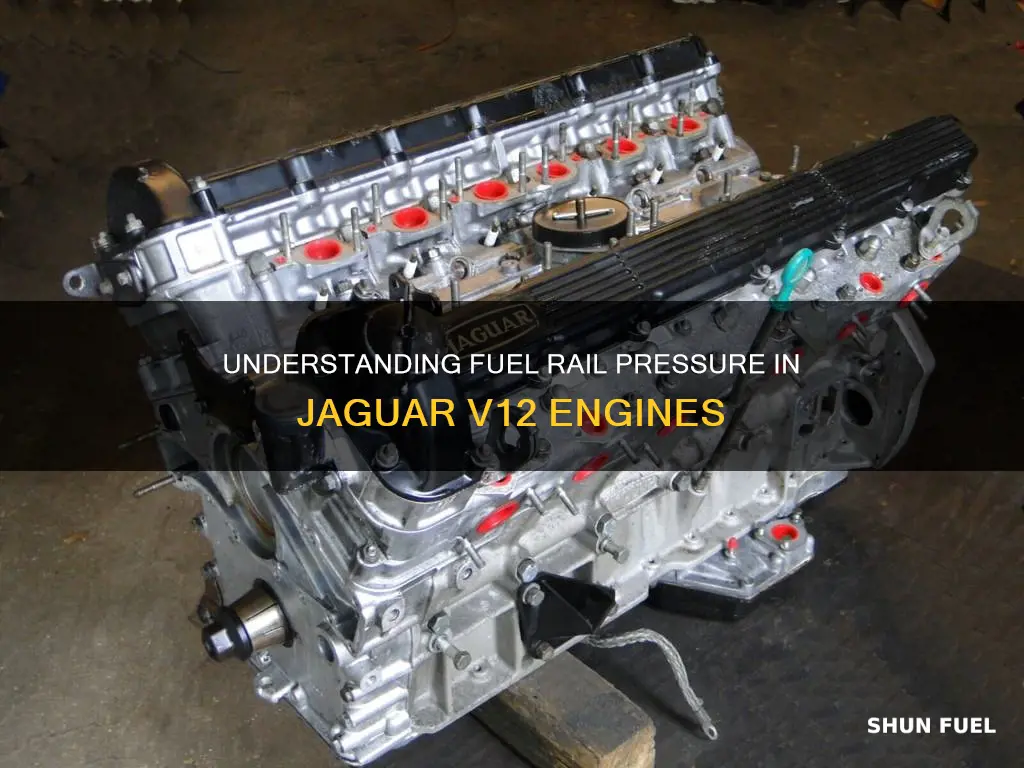

The fuel rail pressure on a Jaguar V12 engine is a topic of interest for many car enthusiasts, especially those who own or admire classic Jaguar models. Fuel injection systems, such as the Bosch D Jetronic system used in Jaguar V12 engines from 1975 to 1980, play a crucial role in delivering fuel to the engine. In this system, the fuel rail pressure is maintained at a constant level, typically around 2 Bar or 30 psi, to ensure stable fuel delivery to the injectors. However, over time, issues with the fuel pressure regulator or other components can lead to fluctuations or leaks, affecting the engine's performance and requiring troubleshooting and potential repairs.
Explore related products
$13.99 $17.89
What You'll Learn
Fuel rail pressure sensor
The fuel rail pressure sensor (FRP sensor) is an important component of a Jaguar's fuel system, ensuring the engine receives a consistent fuel supply. The FRP sensor is designed to maintain constant fuel pressure between the fuel pump and the fuel rail, preventing pressure fluctuations that can impact engine performance.
In Jaguar V12 engines, the fuel rail pressure is typically set at a constant 2 Bar/30 PSI. This pressure is regulated by the fuel pressure regulator (FPR), which is stamped with the pressure rating on its side body. The FPR plays a crucial role in maintaining the desired fuel pressure and preventing excess pressure from reaching the fuel rail.
However, over time, the FPR can fail, leading to erratic fuel pressures. One common issue is the cracking of the FPR rubber diaphragm, which can cause fuel to leak into the engine intake manifold, resulting in hard starting or engine failure to start. To diagnose this issue, you can perform a simple test by removing the rubber vacuum hose from the FPR and checking for fuel leaks. If a leak is detected, the FPR needs to be replaced, along with the rubber vacuum hose.
Additionally, issues with the fuel rail pressure sensor itself can occur. In some cases, the sensor may break, leading to errors such as code P0193 and abnormal engine behaviour. In such situations, replacing the sensor and addressing any wiring issues may be necessary to resolve the problem.
It is important to note that the FRP sensor is just one component of the fuel system, and issues with other parts, such as the fuel pump, injectors, or wiring, can also impact fuel pressure and engine performance. Therefore, comprehensive diagnostics and regular maintenance of the entire fuel system are crucial to ensure optimal performance and longevity.
Fuel Pump Pressure: Factors Affecting Performance and Efficiency
You may want to see also
Explore related products
Fuel pressure regulators
A fuel pressure regulator is an essential component of a vehicle's fuel system, found in some form in virtually all internal combustion engines. It helps maintain a constant fuel pressure to ensure the appropriate atomization of fuel, which is necessary for smooth engine operation. The regulator ensures that the fuel injectors receive the exact amount of pressure required, and the correct fuel-air mixture is achieved.
The fuel pressure regulator consists of a diaphragm with two sides or chambers. One side is under pressure from the fuel rail, while the other is subject to vacuum or boost pressure from the inlet tract. The regulator adjusts the fuel pressure against the air pressure or boost, allowing the fuel injector to maintain the ideal 1:1 ratio between fuel and boost. This, in turn, ensures the engine receives the correct amount of fuel under various operating conditions.
In the Jaguar V12 engine, the fuel system includes two fuel pressure regulators. The A bank FPR is more of a pressure damper, maintaining a constant fuel pressure between the fuel pump and the fuel rail. The B bank FPR controls the fuel pressure delivered through the fuel injectors to the engine, keeping a constant pressure between the injector pintle and the intake manifold vacuum.
A malfunctioning fuel pressure regulator can lead to issues such as fuel leaks, black smoke from the exhaust, and engine performance problems, including misfires, reduced power and acceleration, and decreased fuel efficiency.
Understanding Fuel Pressure for the Classic 1963 Corvair Turbo
You may want to see also
Explore related products
Fuel injector flow testing
Fuel injectors are an essential component of any car, delivering fuel to the engine. Over time, they can become clogged or damaged, leading to poor engine performance or even failure. This is where fuel injector flow testing comes in—it's a process that helps identify and resolve any issues with the fuel injectors, ensuring optimal engine performance. Here's a detailed guide on fuel injector flow testing, specifically for a Jaguar V12 engine:
Understanding the Jaguar V12 Fuel System
The Jaguar V12 engine, renowned for its power and performance, relies on a precise fuel delivery system. This system includes fuel injectors, which spray a fine mist of fuel into the engine's cylinders. Over time, these injectors can become clogged with debris or affected by wear and tear, leading to issues such as poor fuel spray patterns, clogged fuel filters, or leaking injectors.
Symptoms of Fuel Injector Problems
Before performing flow testing, it's essential to recognize the signs of fuel injector problems. These may include decreased engine performance, such as reduced power, poor fuel economy, rough idling, or difficulty starting the engine. Other symptoms could be fault codes related to fuel pressure or fuel trim, or even visible signs like a cloudy fuel filter or fuel leaks around the injectors.
The Flow Testing Process
- Initial Inspection: Start by visually inspecting the fuel injectors and the surrounding components, including fuel lines and connectors. Look for any signs of damage, leaks, or debris accumulation.
- Disconnecting the Injectors: Next, carefully disconnect the fuel injectors from the fuel rail and cylinder heads. This step requires caution to avoid damaging the injectors or fuel system components.
- Cleaning and Preparation: Before testing, it's crucial to clean the injectors and ensure they are free of any debris or residue. This can be done using specialized cleaning solutions and equipment.
- Flow Testing Equipment: Connect the fuel injectors to a flow testing machine, which typically consists of a testing bench and a measurement device. The machine will simulate fuel pressure and flow, allowing you to assess the injector's performance.
- Measuring Fuel Flow: During the test, the machine will measure the fuel flow rate through each injector, typically in pounds per square inch (psi) or cubic centimeters per minute (cc/min). This data will help identify any deviations from the expected flow rate.
- Spray Pattern Analysis: In addition to flow rate, the spray pattern of the injector is also critical. A proper spray pattern ensures that fuel is evenly distributed in the cylinder, promoting efficient combustion. Deviations from the ideal spray pattern can lead to performance issues.
- Identifying Issues: By comparing the test results with the specifications provided by Jaguar, you can identify any issues with the fuel injectors. Common problems include clogged injector nozzles, faulty seals, or internal component wear.
- Cleaning or Replacement: Depending on the severity of the issue, the fuel injectors may require cleaning or, in some cases, replacement. Ultrasonic cleaning is a common method for removing debris and residue from the injectors.
- Reinstallation and Calibration: Once the injectors are cleaned or replaced, they need to be carefully reinstalled, ensuring all connections are secure. The fuel system may also require calibration to ensure optimal performance.
Preventative Maintenance
Regular flow testing and maintenance of your Jaguar V12's fuel injectors can help prevent future issues and maintain the performance and longevity of your engine. It is recommended to have your fuel injectors tested and cleaned periodically, especially if you notice any signs of performance degradation.
Understanding High Fuel Pressure: Causes and Effects
You may want to see also
Explore related products
Fuel system pressure tester
A fuel rail pressure tester is a device used to measure the pressure of fuel in an engine's fuel rail. The fuel rail is the tube that carries fuel from the fuel pump to the injectors, which then deliver the fuel to the engine.
Testing the fuel pressure can help diagnose issues with the engine's performance and identify any problems with the fuel system, such as a faulty fuel pump or a blocked fuel filter. It is also useful when tuning or modifying an engine to ensure that the fuel system is delivering the correct pressure and that the injectors are functioning properly.
There are various types of fuel pressure testers available, from basic mechanical gauges to more advanced digital testers. Some common features of fuel pressure testers include:
- A pressure gauge: This is the main component of the tester and will display the current fuel pressure. Most gauges will have a measuring range of 0-140 PSI, covering the fuel pressure range of most vehicles.
- Adapter fittings: These are used to connect the tester to the fuel rail or a port on the fuel system. They come in various sizes and types to fit different vehicles.
- Hoses: Flexible hoses are used to connect the adapter fittings to the pressure gauge, allowing for easy manoeuvrability and access to the fuel system.
- Carrying case: A case is usually included to store and protect the tester and its components when not in use.
When using a fuel pressure tester, it is important to follow safety precautions as you will be working with pressurised fuel, which can be dangerous if not handled correctly. It is also essential to relieve the fuel system pressure before disconnecting any hoses or components to avoid fuel spraying out.
- Locate the fuel rail or a port on the fuel system where you can connect the tester. The fuel rail is usually found on the top or side of the engine, running parallel to the cylinders.
- Connect the adapter fitting from the tester to the fuel rail or port. Ensure that the connection is secure and tight to prevent fuel leaks.
- Relieve the fuel system pressure by removing the fuel pump fuse or relay and cranking the engine until the pressure drops.
- Observe the pressure gauge on the tester. It should read 0 PSI or the atmospheric pressure in your local area.
- Reconnect the fuel pump fuse or relay and turn on the ignition. Do not start the engine.
- Observe the pressure gauge again. It should read the static fuel pressure, which is the pressure in the fuel system when the engine is off.
- Start the engine and observe the pressure gauge. It should now read the running fuel pressure, which is the pressure when the engine is running.
- Compare the pressure readings to the specifications for your vehicle. If the pressure is too low or too high, it indicates an issue with the fuel system that needs to be addressed.
By following these steps and using a fuel pressure tester, you can effectively test and diagnose issues with your Jaguar V12's fuel system, ensuring optimal engine performance and fuel efficiency.
Selecting the Right Fuel Pump Pressure Regulator for Carburetor Performance
You may want to see also
Explore related products
Fuel pump relay
The fuel pump relay is an important component of the Jaguar V12 engine, ensuring the fuel pump receives the power it needs to function properly. The fuel pump is responsible for delivering fuel from the tank to the engine, and a faulty fuel pump relay can cause issues with fuel delivery and engine performance.
The fuel pump relay is an electrical component that controls the power supply to the fuel pump. It is typically located near the fuel pump, which is usually found in the engine bay, often near the fuel tank or fuel lines. The relay works by receiving a signal from the engine control unit (ECU) when the engine is running, which closes the relay and allows power to flow to the fuel pump. This process ensures that the fuel pump only operates when needed, conserving energy and preventing overheating.
To test the fuel pump relay, one can use a multimeter to check for continuity between the relay's terminals. If the relay is faulty, it may need to be replaced. A faulty fuel pump relay may exhibit symptoms such as a "cranking" engine that fails to start, erratic fuel pressure, or a "no-start" condition. In some cases, a faulty relay may cause the fuel pump to run continuously, leading to premature fuel pump failure.
It is important to note that the fuel pump relay is not the only component that can cause fuel delivery issues in a Jaguar V12 engine. A faulty fuel pump, clogged fuel filter, or problems with the fuel injectors can also lead to similar symptoms. Therefore, comprehensive diagnostics, including checking fuel pressure and testing individual components, may be necessary to identify the root cause of any fuel-related issues.
When replacing the fuel pump relay, it is important to use a compatible part recommended by the manufacturer. Using an incorrect or low-quality relay can lead to unreliable performance and potential damage to the fuel pump or other electrical systems in the vehicle.
Fuel Pump Pressure Essentials for the Classic 73Beetle
You may want to see also
Frequently asked questions
The fuel rail pressure on a Jaguar V12 is constant at around 2 Bar / 30 psi.
The fuel pressure for the A bank FPR is 3 Bar / 43.5 psi.
The fuel pressure for the B bank FPR is 2.5 Bar / 36.25 psi.
The fuel pump delivers approximately 90-100 psi of dead head pressure to the FPR.
The fuel pressure regulator on a Jaguar V12 should be set to 2.5-3 Bar / 30 psi.
