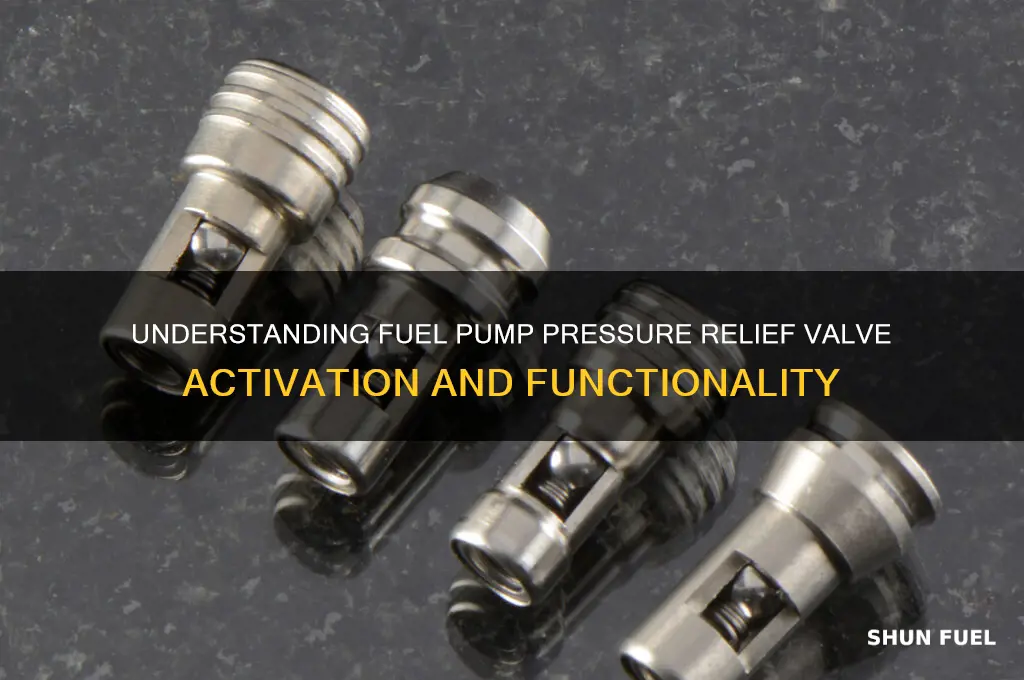

The fuel pump pressure relief valve is a critical component in a vehicle's fuel system, designed to regulate and maintain optimal fuel pressure. When the fuel pump generates excess pressure, often due to system malfunctions or engine shutdown, the pressure relief valve activates to divert the surplus fuel back to the fuel tank, preventing potential damage to the fuel injectors, lines, or pump itself. This mechanism ensures the fuel system operates within safe pressure limits, enhancing reliability and longevity. Understanding when and why this valve activates is essential for diagnosing fuel system issues and maintaining overall engine performance.
| Characteristics | Values |
|---|---|
| Definition | A mechanism that regulates fuel pressure by relieving excess pressure in the fuel system. |
| Primary Function | Prevents over-pressurization of the fuel system, protecting components from damage. |
| Activation Point | Typically activates when fuel pressure exceeds the system's specified limit (e.g., 60-75 PSI). |
| Location | Often integrated into the fuel pump assembly or fuel rail. |
| Operation | Opens to divert excess fuel back to the fuel tank or reservoir. |
| Types | Mechanical (spring-loaded) or electronic (solenoid-controlled). |
| Common Issues | Sticking, leaking, or failure to activate, leading to fuel system issues. |
| Symptoms of Failure | Engine stalling, hard starting, fuel leaks, or abnormal fuel pressure readings. |
| Maintenance | Regular inspection and replacement as part of fuel system maintenance. |
| Relevance in Modern Vehicles | Essential in EFI (Electronic Fuel Injection) and diesel fuel systems. |
| Pressure Relief Range | Varies by vehicle; typically 60-75 PSI for gasoline, higher for diesel. |
Explore related products
What You'll Learn
- Pressure Relief Valve Function: Regulates fuel pressure, prevents system damage from excessive pressure
- Activation Mechanism: Opens at preset pressure to divert excess fuel
- Location in Fuel System: Typically found near fuel pump or fuel rail
- Symptoms of Failure: High fuel pressure, engine performance issues, or fuel leaks
- Maintenance and Testing: Regular inspection, pressure testing to ensure proper operation
Pressure Relief Valve Function: Regulates fuel pressure, prevents system damage from excessive pressure
The fuel system in modern vehicles is a delicate balance of pressure and flow, where the fuel pump pressure relief valve plays a critical role. This valve is designed to regulate fuel pressure within the system, ensuring it remains within safe operational limits. When the fuel pump generates pressure that exceeds the system’s maximum threshold—typically around 60 to 70 psi (pounds per square inch) in most passenger vehicles—the relief valve activates. This activation redirects excess fuel back to the fuel tank, preventing over-pressurization that could otherwise damage fuel lines, injectors, or the pump itself. Without this mechanism, the fuel system would be vulnerable to leaks, component failure, or even catastrophic rupture under extreme conditions.
Consider the analogy of a water hose: if you were to block the nozzle while the water is running, pressure would build until the hose bursts. The pressure relief valve acts similarly, but in a controlled manner, safeguarding the fuel system from such scenarios. For instance, during engine shutdown, the fuel injectors stop spraying fuel, causing pressure to spike momentarily. The relief valve immediately responds by opening, allowing excess fuel to return to the tank and maintaining system integrity. This function is particularly vital in high-performance or turbocharged engines, where fuel pressure demands are higher and the consequences of over-pressurization more severe.
From a maintenance perspective, understanding the pressure relief valve’s role is essential for diagnosing fuel system issues. Symptoms of a malfunctioning valve include erratic fuel pressure readings, engine misfires, or even a "no-start" condition. Technicians often use a fuel pressure gauge to test the system, ensuring the valve activates at the correct pressure threshold. For DIY enthusiasts, it’s crucial to consult the vehicle’s service manual for specific pressure values and testing procedures, as these can vary widely between makes and models. Regular inspection of the fuel system, including the relief valve, can prevent costly repairs and ensure optimal engine performance.
A comparative analysis highlights the evolution of fuel system technology. Older carbureted engines relied on simpler mechanisms to manage fuel pressure, whereas modern fuel-injected systems demand precision and reliability. The pressure relief valve exemplifies this advancement, integrating seamlessly with electronic fuel pumps and engine control units (ECUs) to maintain efficiency and safety. In hybrid or electric vehicles with internal combustion engines, the valve’s role remains unchanged, underscoring its universal importance in fuel management. This consistency across technologies demonstrates the valve’s enduring relevance in automotive engineering.
Finally, practical tips for vehicle owners can enhance the longevity of the pressure relief valve and the fuel system as a whole. Using high-quality fuel and replacing the fuel filter at recommended intervals minimizes contaminants that could clog or damage the valve. In colder climates, ensuring the fuel system is free of water—which can freeze and obstruct flow—prevents unnecessary strain on the valve. For those with modified or high-performance vehicles, upgrading to a higher-capacity relief valve may be advisable to accommodate increased fuel demands. By prioritizing these measures, drivers can maintain a reliable fuel system and avoid the pitfalls of excessive pressure.
Step-by-Step Guide: Removing Fuel Pump from John Deere X475 Mower
You may want to see also
Explore related products
Activation Mechanism: Opens at preset pressure to divert excess fuel
The fuel pump pressure relief valve is a critical component in modern fuel systems, designed to maintain optimal pressure within the fuel lines. Its activation mechanism is both precise and essential: it opens at a preset pressure threshold, typically around 60 to 80 psi (pounds per square inch), depending on the vehicle’s specifications. This action diverts excess fuel back to the fuel tank, preventing over-pressurization that could damage the fuel system or compromise safety. Without this mechanism, the fuel pump could generate pressures far exceeding safe limits, leading to leaks, component failure, or even fire hazards.
Consider the analogy of a pressure cooker: just as a safety valve releases steam to prevent an explosion, the fuel pump pressure relief valve acts as a safeguard for the fuel system. When the fuel pump operates, it builds pressure to deliver fuel to the engine. However, if the engine demands less fuel than the pump supplies—such as during deceleration or idle—pressure can spike. The relief valve’s spring-loaded design is calibrated to respond instantly, opening at the preset pressure and redirecting excess fuel. This not only protects the system but also ensures consistent fuel delivery under varying driving conditions.
For DIY enthusiasts or mechanics, understanding this mechanism is crucial for troubleshooting. If the relief valve fails to activate, symptoms like hard starting, rough idling, or fuel leaks may arise. Testing involves checking fuel pressure with a gauge; if pressure exceeds the manufacturer’s specified range, the valve may be stuck closed or malfunctioning. Replacement typically requires removing the fuel pump assembly, a task that demands caution due to the flammable nature of fuel. Always depressurize the system before servicing and follow safety guidelines, such as working in a well-ventilated area and using non-sparking tools.
Comparatively, older carbureted systems lacked such sophisticated pressure regulation, relying instead on mechanical floats and gravity-fed fuel delivery. The introduction of fuel injection systems, however, necessitated precise pressure control, making the relief valve indispensable. Modern vehicles often integrate this valve into the fuel pump module, housed in the fuel tank, for compactness and efficiency. This design evolution highlights the automotive industry’s shift toward safety, reliability, and performance optimization.
In practical terms, maintaining the fuel pump pressure relief valve is part of routine vehicle care. Regularly inspect fuel lines for signs of wear or damage, as even minor leaks can lead to pressure irregularities. For vehicles with high mileage, consider replacing the fuel pump assembly proactively, as components like the relief valve can degrade over time. Additionally, using high-quality fuel and keeping the fuel tank at least a quarter full can reduce strain on the pump and associated mechanisms. By understanding and respecting this activation mechanism, drivers and technicians alike can ensure the longevity and safety of their vehicle’s fuel system.
DIY Mikuni Fuel Pump Repair Kit Guide: Fix It Easily
You may want to see also
Explore related products
Location in Fuel System: Typically found near fuel pump or fuel rail
The fuel pump pressure relief valve is a critical component in a vehicle's fuel system, and its location is strategically chosen to ensure optimal performance and safety. Typically found near the fuel pump or fuel rail, this valve plays a pivotal role in regulating fuel pressure, preventing potential hazards, and maintaining engine efficiency. Its proximity to these key components allows for immediate response to pressure fluctuations, ensuring that the fuel system operates within safe and efficient parameters.
From an analytical perspective, the placement of the pressure relief valve near the fuel pump or fuel rail is a design choice rooted in fluid dynamics and system efficiency. The fuel pump generates pressure to deliver fuel to the engine, and the fuel rail distributes it to the injectors. By locating the relief valve close to these components, engineers minimize pressure drop and ensure rapid activation in case of overpressure. This setup reduces the risk of fuel system damage and improves overall reliability, particularly in high-performance or turbocharged engines where fuel pressure demands are higher.
For those looking to locate or inspect the pressure relief valve, understanding its typical placement is essential. In most vehicles, the valve is integrated into the fuel pump module or mounted directly on the fuel rail. To access it, start by locating the fuel pump, often found in the fuel tank or near the engine bay in some designs. If the valve is rail-mounted, it will be visible as a small, cylindrical component with a spring-loaded mechanism. Always refer to the vehicle’s service manual for exact location and disassembly instructions, as designs vary across makes and models.
A comparative analysis highlights the advantages of this location over alternative placements. For instance, positioning the valve farther from the fuel pump or rail could introduce delays in pressure regulation, increasing the risk of system failure. Similarly, placing it in less accessible areas would complicate maintenance and diagnostics. The current design standard strikes a balance between functionality and practicality, ensuring the valve can perform its role effectively while remaining accessible for inspection or replacement.
Finally, a practical takeaway for vehicle owners and mechanics is the importance of regular fuel system checks, particularly in older vehicles or those subjected to harsh operating conditions. Over time, the pressure relief valve can wear out or become clogged, leading to erratic fuel pressure and engine performance issues. By knowing its location near the fuel pump or rail, you can include it in routine inspections, ensuring early detection of potential problems. Keep an eye out for symptoms like hard starting, rough idling, or fuel leaks, which may indicate a malfunctioning valve. Timely maintenance not only extends the life of the fuel system but also safeguards against costly repairs or safety risks.
Where to Find the Inline Fuel Pump Fuse in a 98 Ram 1500
You may want to see also
Explore related products
Symptoms of Failure: High fuel pressure, engine performance issues, or fuel leaks
High fuel pressure is often the first red flag indicating a malfunctioning fuel pump pressure relief valve. This valve is designed to regulate fuel pressure within the system, ensuring it remains within optimal limits for engine performance. When the valve fails, pressure can spike, leading to excessive strain on the fuel injectors, fuel lines, and other components. A pressure gauge reading consistently above the manufacturer’s specified range—typically 40 to 60 psi for most vehicles—is a clear symptom. Ignoring this issue can accelerate wear on critical parts, reducing their lifespan and potentially causing costly repairs.
Engine performance issues are another telltale sign of a failing pressure relief valve. When fuel pressure is too high, the engine may receive an over-rich fuel mixture, leading to rough idling, hesitation during acceleration, or even stalling. Conversely, if the valve fails to maintain adequate pressure, the engine may run lean, causing misfires, reduced power, and increased fuel consumption. These symptoms often manifest under load, such as during highway driving or when towing. A diagnostic scan tool can help identify related error codes, but observing these performance anomalies is a practical first step in pinpointing the problem.
Fuel leaks are a more severe and immediate consequence of a faulty pressure relief valve. Excessive pressure can cause seals, hoses, or fittings to rupture, resulting in visible fuel leakage under the vehicle. Even small leaks pose a significant fire hazard and should be addressed immediately. Inspect the fuel lines, pump, and regulator for wet spots or the smell of gasoline. If a leak is detected, stop driving the vehicle and consult a professional mechanic to prevent further damage or safety risks.
To diagnose and address these symptoms, start by checking the fuel pressure with a gauge at the fuel rail. Compare the reading to the vehicle’s specifications, typically found in the service manual. If pressure is abnormally high, inspect the pressure relief valve for clogs, debris, or mechanical failure. Cleaning or replacing the valve may resolve the issue. For persistent problems, consider testing the fuel pump and regulator as a unit, as they often work in tandem. Regular maintenance, such as fuel filter replacements every 30,000 miles, can prevent debris buildup and extend the life of these components.
In conclusion, recognizing the symptoms of a failing fuel pump pressure relief valve—high fuel pressure, engine performance issues, or fuel leaks—is crucial for maintaining vehicle safety and efficiency. Prompt diagnosis and repair not only prevent further damage but also ensure optimal engine operation. Whether you’re a DIY enthusiast or rely on professional services, understanding these signs empowers you to take proactive steps in vehicle care.
Why Your Fuel Pump Beeps: Causes, Solutions, and When to Worry
You may want to see also
Explore related products
Maintenance and Testing: Regular inspection, pressure testing to ensure proper operation
Regular inspection of the fuel pump pressure relief valve is critical to prevent system failures and ensure vehicle safety. Over time, debris, corrosion, or wear can impair the valve’s ability to regulate fuel pressure, leading to engine misfires, reduced performance, or even catastrophic pump failure. Inspect the valve every 30,000 miles or during routine fuel system maintenance, focusing on signs of leakage, physical damage, or contamination. Use a magnifying glass and a bright light to examine the valve’s sealing surfaces and diaphragm for cracks or warping. If the valve shows any defects, replace it immediately to avoid compromising the fuel system’s integrity.
Pressure testing is the definitive method to verify the relief valve’s functionality. Begin by disconnecting the fuel line at the valve and attaching a pressure gauge to the system. Gradually increase the fuel pressure using a hand pump or compressed air, ensuring it reaches the manufacturer’s specified operating range (typically 40–60 PSI for most vehicles). Observe the gauge as pressure rises; the relief valve should activate at the rated pressure, releasing excess fuel back into the tank. If the valve fails to open or sticks open, it indicates a malfunction requiring immediate attention. Repeat the test after cleaning or replacing the valve to confirm proper operation.
Comparing the relief valve’s performance to factory specifications highlights the importance of precision in fuel system maintenance. For instance, a valve that activates 5 PSI above the recommended threshold can overstress the fuel pump, reducing its lifespan by up to 20%. Conversely, a valve that opens prematurely can cause fuel starvation, leading to engine stalling or rough idling. Use a calibrated pressure tester and consult the vehicle’s service manual for exact values. Discrepancies of more than 2 PSI warrant further investigation, such as checking for clogged fuel lines or a failing pump.
Persuasive arguments for proactive maintenance center on cost-effectiveness and safety. Neglecting the relief valve can lead to repairs costing upwards of $500, including parts and labor for a fuel pump replacement. Regular inspections and testing, however, cost less than $100 in tools and take under an hour to complete. Additionally, a malfunctioning valve poses a fire hazard, as excessive fuel pressure can cause leaks near hot engine components. By investing time in maintenance, vehicle owners not only protect their investment but also ensure the safety of themselves and others on the road.
Descriptive insights into the testing process reveal its simplicity and accessibility. Start with the engine off and the ignition disabled to prevent accidental starts. Relieve fuel system pressure by loosening the Schrader valve on the fuel rail, then disconnect the battery to eliminate electrical risks. After attaching the pressure gauge, apply pressure slowly while monitoring the valve’s response. Listen for the distinct "click" of the valve opening, and verify the gauge reading against specifications. Clean the valve with carburetor cleaner and a soft brush if debris is suspected, then retest to ensure restoration of function. This hands-on approach empowers even novice mechanics to diagnose and address issues confidently.
Troubleshooting the 2005 Volvo S60 Fuel Pump: Silent Symptoms Explained
You may want to see also
Frequently asked questions
The fuel pump pressure relief valve is a safety device in a vehicle's fuel system that regulates fuel pressure by releasing excess pressure back into the fuel tank, preventing damage to the fuel pump and other components.
The fuel pump pressure relief valve is activated when the fuel pressure in the system exceeds the predetermined safe limit, typically when the engine is turned off or during periods of high fuel pressure.
The fuel pump pressure relief valve activates due to excessive fuel pressure, which can be caused by a malfunctioning fuel pressure regulator, a clogged fuel filter, or a faulty fuel pump that generates too much pressure.
Symptoms of a faulty fuel pump pressure relief valve include hard starting, stalling, reduced engine performance, and fuel leaks. In some cases, a malfunctioning valve may not relieve excess pressure, leading to potential damage to the fuel system components.
