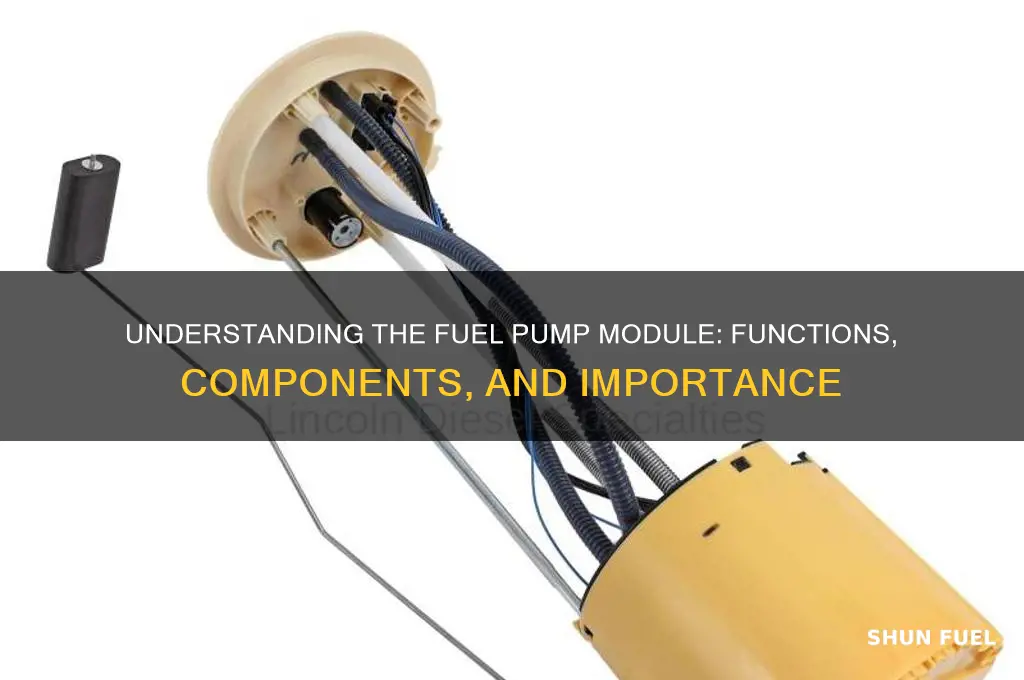

The fuel pump module is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine with precision and efficiency. Typically integrated into the fuel tank, it consists of the electric fuel pump, a sending unit to monitor fuel levels, and often a filter to ensure clean fuel delivery. This compact assembly plays a vital role in maintaining optimal engine performance by providing consistent fuel pressure and flow, adapting to varying driving conditions. Its design prioritizes reliability and safety, incorporating features like check valves to prevent fuel backflow and safeguards against overheating or electrical faults. Understanding the fuel pump module is essential for diagnosing fuel system issues and ensuring the longevity of a vehicle’s powertrain.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump module is an integrated assembly that houses the fuel pump, sending unit, and other components necessary for fuel delivery in a vehicle. |
| Primary Function | Delivers fuel from the fuel tank to the engine at the required pressure and flow rate. |
| Components | Fuel pump, fuel level sender, fuel filter, pressure regulator, electrical connectors, and float. |
| Location | Typically mounted inside the fuel tank (in-tank module) or externally near the tank. |
| Types | In-tank fuel pump module, external fuel pump module, turbine pump module, roller vane pump module. |
| Power Source | Electrical (powered by the vehicle's battery and controlled by the ECU). |
| Pressure Output | Varies by vehicle, typically 30–60 PSI (pounds per square inch) for modern fuel-injected engines. |
| Fuel Compatibility | Designed for gasoline, diesel, or flex-fuel vehicles depending on the model. |
| Lifespan | Typically 100,000–150,000 miles, but varies based on usage and maintenance. |
| Failure Symptoms | Engine stalling, difficulty starting, reduced fuel efficiency, whining noise from the fuel tank. |
| Maintenance | Requires periodic inspection; replacement recommended if faulty to prevent engine damage. |
| Cost | $100–$500 for the part, depending on the vehicle make and model; labor costs extra. |
| Environmental Impact | Must meet emissions standards to prevent fuel leaks and ensure efficient combustion. |
| Advancements | Modern modules include improved durability, quieter operation, and better fuel efficiency. |
Explore related products
What You'll Learn
- Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connections in a single unit
- Function of Fuel Pump Module: Delivers fuel from tank to engine at required pressure and flow rate
- Types of Fuel Pump Modules: In-tank, external, mechanical, and electric modules for different vehicle systems
- Common Fuel Pump Module Issues: Failure symptoms include no start, sputtering, whining noises, or low fuel pressure
- Fuel Pump Module Replacement: Requires tank removal, module disconnection, and installation of a new unit
Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connections in a single unit
The fuel pump module is a critical component in modern vehicles, integrating several essential parts into a single, compact unit. This design not only simplifies installation but also enhances reliability by reducing the number of potential failure points. At its core, the module includes the pump, sender, float, filter, and electrical connections, each playing a distinct role in delivering fuel efficiently from the tank to the engine. Understanding these components is key to diagnosing issues and appreciating the module’s importance in vehicle performance.
Consider the pump, the heart of the module, responsible for drawing fuel from the tank and pressurizing it for delivery to the engine. Modern pumps are often electric, designed to operate quietly and efficiently, even in high-demand situations. The sender unit, another critical component, monitors fuel levels and communicates this data to the vehicle’s dashboard, ensuring drivers are aware of their fuel status. Without an accurate sender, drivers risk running out of fuel unexpectedly, a scenario that can lead to costly repairs or unsafe situations.
The float works in tandem with the sender, rising and falling with the fuel level to provide precise measurements. Typically made of foam or plastic, it is lightweight yet durable, designed to withstand years of exposure to fuel. The filter, often integrated into the module, traps contaminants before they reach the engine, preventing damage and maintaining performance. Over time, filters can become clogged, emphasizing the need for regular maintenance to ensure optimal fuel flow.
Electrical connections tie the entire module together, powering the pump and facilitating communication between the sender and the vehicle’s computer system. These connections must be corrosion-resistant and securely sealed to prevent shorts or failures, especially in harsh environments. A faulty electrical connection can render the entire module inoperable, highlighting the importance of routine inspections.
In practice, diagnosing a failing fuel pump module often begins with symptoms like sputtering, stalling, or inaccurate fuel gauge readings. If you suspect an issue, start by checking the electrical connections for corrosion or damage. Next, inspect the filter for clogs, and consider testing the sender unit’s accuracy. For DIY enthusiasts, replacing the module is feasible with basic tools, but always consult a repair manual for your specific vehicle. Professional installation is recommended for those unfamiliar with fuel system components, as improper handling can lead to leaks or safety hazards. By understanding the interplay of these components, vehicle owners can better maintain their fuel systems and avoid unexpected breakdowns.
BMW E90 Fuel Pump Testing Guide: Step-by-Step DIY Instructions
You may want to see also
Explore related products
Function of Fuel Pump Module: Delivers fuel from tank to engine at required pressure and flow rate
The fuel pump module is a critical component in modern vehicles, serving as the heart of the fuel delivery system. Its primary function is to ensure that fuel is transported from the tank to the engine with precision, meeting the exact pressure and flow rate demands of the engine under various operating conditions. This process is not merely about moving fuel; it involves a sophisticated mechanism that adapts to the engine’s needs, whether idling, accelerating, or cruising. Without this module, the engine would either starve for fuel or receive it inefficiently, leading to poor performance, reduced fuel economy, or even complete failure.
Consider the fuel pump module as a dynamic regulator, akin to a pharmacist dispensing medication in precise doses. Just as a pharmacist adjusts dosages based on a patient’s needs, the module modulates fuel delivery based on engine load, speed, and temperature. For instance, during hard acceleration, the engine demands more fuel, and the module responds by increasing the flow rate and pressure, often up to 50–60 psi in modern fuel-injected systems. Conversely, during idle, it reduces the flow to maintain a steady, efficient burn. This adaptability is crucial for optimizing combustion, ensuring the engine runs smoothly across all driving scenarios.
To understand its operation, imagine a multi-step process. First, the module’s electric pump draws fuel from the tank, where it is typically stored at atmospheric pressure. Next, it pressurizes the fuel, pushing it through a filter to remove contaminants before delivering it to the engine’s fuel rail. The pressure regulator within the module ensures the fuel pressure remains consistent, even as the engine’s demands fluctuate. For example, in a typical passenger car, the module maintains a pressure range of 40–60 psi, depending on the engine’s requirements. This precision is vital, as too little pressure can cause lean running, while too much can lead to inefficiency or damage.
Practical tips for maintaining the fuel pump module include keeping the fuel tank at least a quarter full to prevent the pump from overheating, as it relies on fuel for cooling. Additionally, using high-quality fuel and regularly replacing the fuel filter can prevent debris from clogging the module’s components. For older vehicles, upgrading to a higher-capacity module can improve performance, especially in modified engines with increased fuel demands. Always consult the vehicle’s manual for specific maintenance intervals and recommendations, as neglecting this component can lead to costly repairs or breakdowns.
In comparison to older carbureted systems, which relied on gravity and engine vacuum for fuel delivery, the fuel pump module represents a leap in technology. Its ability to deliver fuel under pressure enables more efficient combustion, better emissions control, and improved overall performance. While carbureted systems were simpler, they lacked the precision and adaptability of modern fuel injection systems. This evolution underscores the module’s role as a cornerstone of contemporary automotive engineering, bridging the gap between fuel storage and engine performance with unmatched efficiency.
Measuring Fuel Pump Amp Draw: A Step-by-Step Guide
You may want to see also
Explore related products
Types of Fuel Pump Modules: In-tank, external, mechanical, and electric modules for different vehicle systems
The fuel pump module is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine at the required pressure and flow rate. Its design and placement vary depending on the vehicle’s system, with in-tank, external, mechanical, and electric modules being the primary types. Each type serves specific functions and is suited to different vehicle architectures, balancing efficiency, reliability, and cost.
In-tank fuel pump modules are the most common in contemporary vehicles, particularly in passenger cars and SUVs. Integrated directly into the fuel tank, these modules combine the pump, fuel level sender, and often a filter into a single unit. This design minimizes fuel line length, reducing the risk of leaks and improving efficiency. In-tank modules are typically electric, powered by the vehicle’s electrical system, and are designed to operate quietly and reliably. For example, in a Toyota Camry, the in-tank module maintains a consistent fuel supply even when the tank is nearly empty, ensuring optimal engine performance. However, accessing these modules for maintenance or replacement requires draining the fuel tank and removing it, which can be labor-intensive.
External fuel pump modules, on the other hand, are mounted outside the fuel tank, often along the chassis or near the engine bay. These are more common in older vehicles or specialized applications like racing cars, where fuel delivery demands are extreme. External pumps are easier to access for maintenance but are more susceptible to damage from road debris or environmental factors. For instance, in a classic muscle car, an external mechanical pump driven by the engine’s camshaft ensures a steady fuel supply, though it may struggle with the high pressures required by modern fuel injection systems.
Mechanical fuel pump modules rely on the engine’s motion to operate, typically driven by a camshaft or eccentric lobe. These pumps are simple, durable, and cost-effective, making them ideal for carbureted engines or backup systems in some aircraft. However, they are less efficient than electric pumps and cannot maintain consistent pressure at varying engine speeds. A practical tip for maintaining a mechanical pump is to regularly inspect the diaphragm and valves for wear, as these components are prone to failure over time.
Electric fuel pump modules dominate modern vehicles due to their precision, adaptability, and compatibility with electronic fuel injection systems. These pumps can be in-tank or external and are controlled by the vehicle’s ECU to deliver fuel at the exact pressure and volume required by the engine. For example, in a turbocharged vehicle like the Subaru WRX, the electric pump adjusts fuel delivery based on boost pressure, ensuring optimal performance and efficiency. Electric pumps are also quieter and more reliable than mechanical pumps but require a stable power supply and proper grounding to function correctly.
In summary, the choice of fuel pump module depends on the vehicle’s design, performance requirements, and maintenance considerations. In-tank modules offer efficiency and integration, external pumps provide accessibility, mechanical pumps deliver simplicity, and electric pumps ensure precision. Understanding these differences allows vehicle owners and mechanics to select the most appropriate system for their needs, ensuring reliable fuel delivery and optimal engine performance.
DIY Guide: Replacing the Fuel Pump on a 1999 Chevy S10 Blazer
You may want to see also
Explore related products
Common Fuel Pump Module Issues: Failure symptoms include no start, sputtering, whining noises, or low fuel pressure
The fuel pump module is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine at the correct pressure and volume. When it fails, the consequences can range from minor inconveniences to complete engine shutdowns. Recognizing the symptoms of a failing fuel pump module is essential for timely diagnosis and repair, preventing potential breakdowns or costly damage.
One of the most obvious signs of fuel pump module failure is a no-start condition. If the pump cannot deliver fuel to the engine, the vehicle simply won’t start, regardless of other systems functioning correctly. This symptom often occurs suddenly, leaving drivers stranded. To troubleshoot, check for fuel pump operation by listening for the pump’s priming noise (a faint hum) when the ignition is turned on. If absent, the module may be faulty. However, other issues like a dead battery or faulty ignition switch can mimic this symptom, so further testing is necessary.
Sputtering or stalling during acceleration or at high speeds is another red flag. This occurs when the fuel pump module struggles to maintain consistent fuel pressure, leading to an uneven fuel-air mixture. Drivers may notice the engine hesitates or loses power, particularly under load. A fuel pressure gauge can confirm if the pressure drops below the manufacturer’s specifications (typically 30–60 psi for most vehicles). If so, inspect the pump, filter, and relay for faults.
Whining noises from the fuel tank area are a telltale sign of a failing fuel pump module. This sound often intensifies as the pump works harder to compensate for wear or clogging. While some noise is normal during startup, persistent or unusually loud whining indicates impending failure. Address this promptly, as continued operation can lead to complete pump failure. Replacing the module before it fails entirely can save drivers from roadside emergencies.
Low fuel pressure is a direct consequence of a failing fuel pump module and can manifest as poor performance, reduced fuel efficiency, or rough idling. This issue may stem from a weak pump, clogged filter, or faulty pressure regulator within the module. Use a pressure gauge to diagnose the problem, and inspect the fuel lines for leaks or restrictions. Regularly replacing the fuel filter (every 30,000–50,000 miles) can prevent debris from damaging the pump and prolong the module’s lifespan.
In summary, understanding the symptoms of fuel pump module failure—no start, sputtering, whining noises, or low fuel pressure—enables proactive maintenance and prevents unexpected breakdowns. Diagnosing these issues requires a combination of observation, testing, and preventive care. By addressing problems early, drivers can ensure their vehicle’s fuel system operates reliably and efficiently.
Mastering Dual Fuel Pumps: Efficient Setup and Operation Guide
You may want to see also
Explore related products
Fuel Pump Module Replacement: Requires tank removal, module disconnection, and installation of a new unit
The fuel pump module is a critical component in modern vehicles, responsible for delivering fuel from the tank to the engine. When it fails, the vehicle’s performance suffers, often leading to stalling or failure to start. Replacing this module is not a straightforward task; it requires meticulous steps to ensure safety and functionality. The process involves removing the fuel tank, disconnecting the faulty module, and installing a new unit—a sequence that demands precision and adherence to safety protocols.
Steps for Replacement: Begin by relieving the fuel system pressure to avoid hazards. Disconnect the battery to prevent electrical accidents. Drain the fuel tank or siphon the fuel to reduce weight and risk during removal. Safely lower the tank, taking care not to damage surrounding components. Once accessible, disconnect the electrical connectors and fuel lines from the module. Remove the retaining ring or bolts securing the module to the tank. Install the new module, ensuring all connections are secure and aligned. Reinstall the tank, refill it with fuel, and check for leaks.
Cautions: Working with fuel systems poses risks, including fire and chemical exposure. Always wear protective gear, such as gloves and safety goggles. Perform the replacement in a well-ventilated area, away from open flames or sparks. Use non-sparking tools if possible. Avoid over-tightening connections, as this can damage seals or components. If unsure about any step, consult a professional to prevent costly mistakes or safety hazards.
Practical Tips: Before purchasing a replacement module, verify compatibility with your vehicle’s make, model, and year. Some vehicles may require specialized tools for tank removal, such as strap wrenches or tank-lowering devices. Keep a fire extinguisher nearby as a precautionary measure. After installation, test the system by starting the vehicle and checking for proper fuel delivery. Address any abnormalities immediately to ensure long-term reliability.
Effective Solutions to Diagnose and Repair Fuel Pump Cavitation Issues
You may want to see also
Frequently asked questions
A fuel pump module is an assembly that includes the electric fuel pump, fuel filter, pressure regulator, and other components, all housed in a single unit. It is typically installed inside the fuel tank and is responsible for delivering fuel from the tank to the engine at the required pressure.
The main components of a fuel pump module include the electric fuel pump, fuel filter, pressure regulator, fuel level sender unit, and a float. These components work together to ensure proper fuel delivery and monitoring of fuel levels in the tank.
Signs of a failing fuel pump module include difficulty starting the engine, sputtering or stalling while driving, reduced fuel efficiency, and unusual noises coming from the fuel tank. If these symptoms occur, it’s important to have the module inspected and replaced if necessary.
