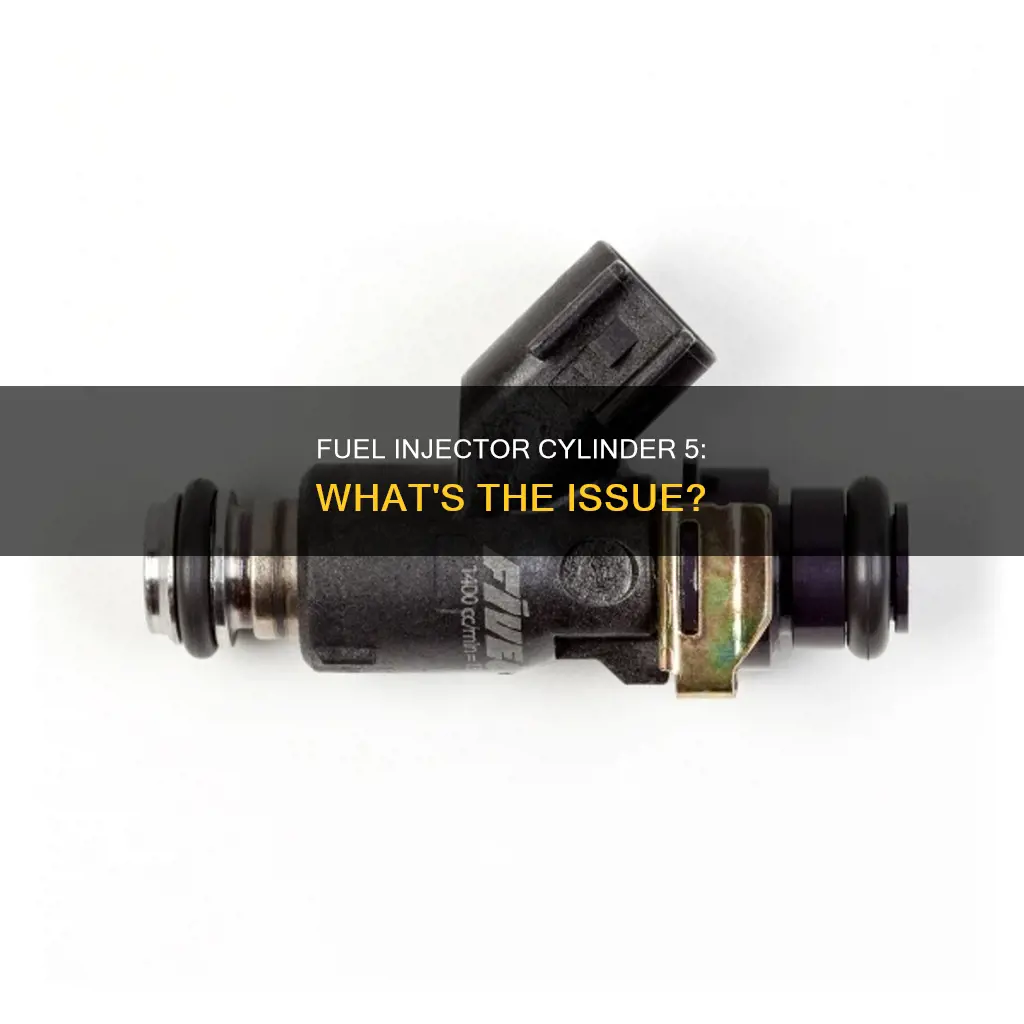

Fuel injectors are solenoids activated by transistors called drivers. They are used to introduce fuel into an internal combustion engine. When the Powertrain Control Module (PCM) or Engine Control Module (ECM) needs a cylinder to add fuel, it grounds one of two terminals, completing a circuit and activating the driver, which causes the solenoid to open the injector. Issues with fuel injectors can cause various problems, such as rough running, stalling, misfiring, and poor fuel economy. In the context of fuel injector cylinder 5, it seems there may be a specific issue with the fuel injector in cylinder 5 of certain BMW 3 series models from 2006-2013, as well as some Dodge Ram models.
| Characteristics | Values |
|---|---|
| Definition | Fuel injectors are solenoids activated by transistors called "drivers" |
| Function | Fuel injection is the introduction of fuel in an internal combustion engine by the means of a fuel injector |
| Activation | When the Powertrain Control Module (PCM) or Engine Control Module (ECM) needs a cylinder to add fuel, it grounds one of two terminals, completing a circuit and activating the driver, which causes the solenoid to open the injector |
| Fault Indication | P0205 and P0206 codes are active, indicating that the vehicle is requesting more fuel to be added to the engine, but that fuel isn't making it in |
| Fault Consequences | Rough running, stalling, misfiring, lean condition or rich condition, poor acceleration, and poor fuel economy |
| Fault Resolution | Get help from an expert for diagnosis as it may require specialty equipment and diagnostic tools |
| Fuel Injection Types | Continuous injection, intermittent injection (sequential, batched, simultaneous, cylinder-individual), multi-point injection, direct injection, common-rail system |
Explore related products
What You'll Learn
Fuel injector circuits
Fuel injectors are solenoids activated by transistors called "drivers". Each cylinder has one injector, which is installed with an insulator and seal at the manifold end to insulate the injector from heat and to prevent atmospheric pressure from leaking into the manifold. An o-ring between the delivery pipe and the injector prevents external fuel leakage.
The injector atomizes and directs fuel into the intake manifold. The Engine Control Module (ECM) or Powertrain Control Module (PCM) adjusts the amount of fuel injected into the engine cylinder to meet a variety of operating conditions. When the PCM needs a cylinder to add fuel, it grounds one of two terminals, completing a circuit and activating the driver, which causes the solenoid to open the injector.
The P0205 and P0206 trouble codes relate to your fuel injector circuits. When these engine light codes are active, it indicates that the PCM has issued a command for the injector to open, but the electrical current has not changed, which may mean that it did not actually fire. This issue can result in various fuel-related problems, like rough running, stalling, misfiring, poor acceleration, and poor fuel economy. Your vehicle may also have a hard-start condition, where it’s difficult to start the car, and may even move to “limp mode” or “limp home mode,” where the top speed is reduced.
The OBD-II code P0201 is a generic diagnostic trouble code that indicates a potential problem with the #1 Fuel Injector Circuit, like a broken wire, loose terminal, burned-out injector coil, or some other circuit interruption issue.
Polaris Sportsman 500HO: Fuel Injector Part Number Guide
You may want to see also
Explore related products
Fuel injector types
Fuel injectors are solenoids activated by transistors called "drivers". When the Powertrain Control Module (PCM) or Engine Control Module (ECM) needs a cylinder to add fuel, it grounds one of two terminals, completing a circuit and activating the driver, which causes the solenoid to open the injector.
There are four main types of fuel injection systems: single-point fuel injection, multi-point fuel injection, sequential fuel injection, and direct fuel injection. Single-point injection, also known as throttle body injection (TBI), is the oldest and simplest form of fuel injection. It replaces the carburettor with one or two fuel-injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. This system is less precise than other forms of fuel injection, but it offers better control and is less expensive and easier to service.
Multi-point fuel injection (MPFI), also known as port injection, devotes a separate injector nozzle to each cylinder, right outside its intake port. Each injector sprays fuel at the same time, and each cylinder receives a more precise volume of fuel, with less possibility of fuel condensation outside the intake manifold. Sequential fuel injection, also called sequential port fuel injection (SPFI) or timed injection, is a type of multiport injection that triggers each injector nozzle independently. This improves efficiency and emissions.
Direct fuel injection, also known as GDI (gasoline direct injection) in petrol engines, places the injector inside the cylinder to directly inject the fuel, bypassing the intake valve or manifold. This system produces maximum fuel economy as all the fuel is directly injected into the cylinder, with no fuel condensation outside the intake manifold. Direct injection is more common in diesel engines but is starting to appear in gasoline engine designs.
Fuel Injectors in Jeep Cherokee: How Many?
You may want to see also
Explore related products
Fuel injector function
A fuel injector is a device that atomizes and injects fuel into an engine's internal combustion chamber, where it is mixed with air and ignited. The combustion chamber is where the chemical energy in diesel, hydrogen, and natural gas is converted into power for the vehicle.
The injector atomizes the fuel and forces it directly into the combustion chamber at the precise point in the combustion cycle. The injector delivers a precise amount of fuel to ensure efficient combustion. The latest technology in fuel injectors helps reduce carbon and greenhouse gas emissions by delivering accurate fueling with optimized air mixing.
In diesel engines, a fuel injector can fire multiple pulses in a single power stroke, which can be used for noise mitigation and emissions control. Diesel fuel injectors require much higher injection pressure than gasoline injectors as diesel is a heavier fuel. Modern diesel engines are direct injection, meaning fuel is delivered directly into the combustion chamber. In the cylinder, air is compressed by the upward movement of the piston. As the piston nears the top of its path, an electrical signal is sent to the solenoid, causing the injector needle to lift, and allowing high-pressure fuel to flow through the nozzle and into the combustion chamber to mix with air.
The Powertrain Control Module (PCM) or Engine Control Module (ECM) controls the fuel injector. When the PCM or ECM needs a cylinder to add fuel, it grounds one of two terminals, completing a circuit and activating the driver, which causes the solenoid to open the injector. When the P0205 and P0206 codes are active, the vehicle is requesting more fuel to be added to the engine, but that fuel isn’t making it in. This issue can result in various fuel-related problems, like rough running, stalling, misfiring, and poor fuel economy.
Fuel Injector Balance Test: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel injector issues
Fuel injectors are solenoids activated by transistors called "drivers". They are an essential part of the engine, ensuring the engine receives the correct mixture of fuel and air. Fuel injector issues can cause significant problems for a vehicle's performance and, if left untreated, can lead to engine failure.
There are several symptoms that indicate a fuel injector issue. Poor engine performance, lousy gas mileage, and rough idling are signs of dirty fuel injectors. The engine light on the dashboard may also illuminate, indicating a problem with the fuel injector. This can be caused by a number of factors, including fuel quality, driving conditions, and injector design. Restricted injectors, for example, can cause high emissions, poor fuel economy, and poor performance. A damaged plunger, poor electrical connection, carbon blockage, or wear on the needle can also cause inconsistent injector performance, leading to an occasional surge during acceleration.
Diagnosing a fuel injector issue can be challenging. A professional shop can perform a spray pattern test to check for problems with how the fuel is delivered into the engine cylinders. A visual inspection of the circuit and various scan tools can also be used to monitor potential issues, including voltage and resistance. It is important to keep up with regular maintenance and cleaning of fuel injectors to prevent issues.
If left untreated, fuel injector issues can lead to engine failure and serious engine damage. The P0205 and P0206 codes, for example, indicate that the vehicle is requesting more fuel to be added to the engine, but the fuel isn't making it in. This can cause rough running, stalling, misfiring, and poor acceleration. Driving a vehicle with these codes active can cause further engine damage and be very expensive to fix.
Valvoline Fuel Injector Cleaner: Steps for Effective Usage
You may want to see also
Explore related products
Fuel injector maintenance
Fuel injectors are solenoids activated by transistors called "drivers". They deliver fuel to the car's combustion chamber by spraying just enough fuel into the chamber for the engine to burn effectively. A fuel injector maintenance kit typically includes a fuel injection cleaning kit, fuel system additives, and new fuel injectors.
When to Clean Your Fuel Injectors
If your vehicle has an internal combustion engine, you must watch out for signs of dirty and clogged fuel injectors. A clogged fuel injector will cause your vehicle's engine to idle roughly, stall, or not start at all. Other signs include burning more gas and worse fuel economy. Usually, the "check engine" light will come on before any serious damage occurs.
How to Clean Your Fuel Injectors
There are a few ways to clean your fuel injectors. The first method involves attaching a pressurized canister with the cleaner and fuel and running it through the fuel rail with the engine running. The second method involves pouring a cleaning solvent into a pressure canister, attaching a compressed air line, and setting the air pressure to what the fuel pump would normally provide. The third method involves removing the fuel pump relay and starting the engine using only the cleaner as the fuel. If that doesn't work, then the injectors may need to be removed and replaced.
When to Replace Your Fuel Injectors
If your fuel injectors are beyond cleaning, you may need to replace them. This is often indicated by various fuel-related problems, such as rough running, stalling, misfiring, lean condition or rich condition, poor acceleration, and poor fuel economy. Your vehicle may also have a hard-start condition, where it is difficult to start the engine.
Fuel Injectors: Gen III Advantages?
You may want to see also
Frequently asked questions
The P0205 code means that there is an issue with the fuel injector in cylinder 5. This could be due to a bad injector, problems with the wiring harness, or an open connection.
The P0205 code can cause various fuel-related problems, such as rough running, stalling, misfiring, lean condition, rich condition, poor acceleration, and poor fuel economy.
If you get the P0205 code, it is not recommended to drive your vehicle as it could cause serious engine damage. You should get help from an expert for diagnosis and repair.
A fuel injector is a component in an internal combustion engine that introduces fuel by atomizing it through a small nozzle under high pressure.
