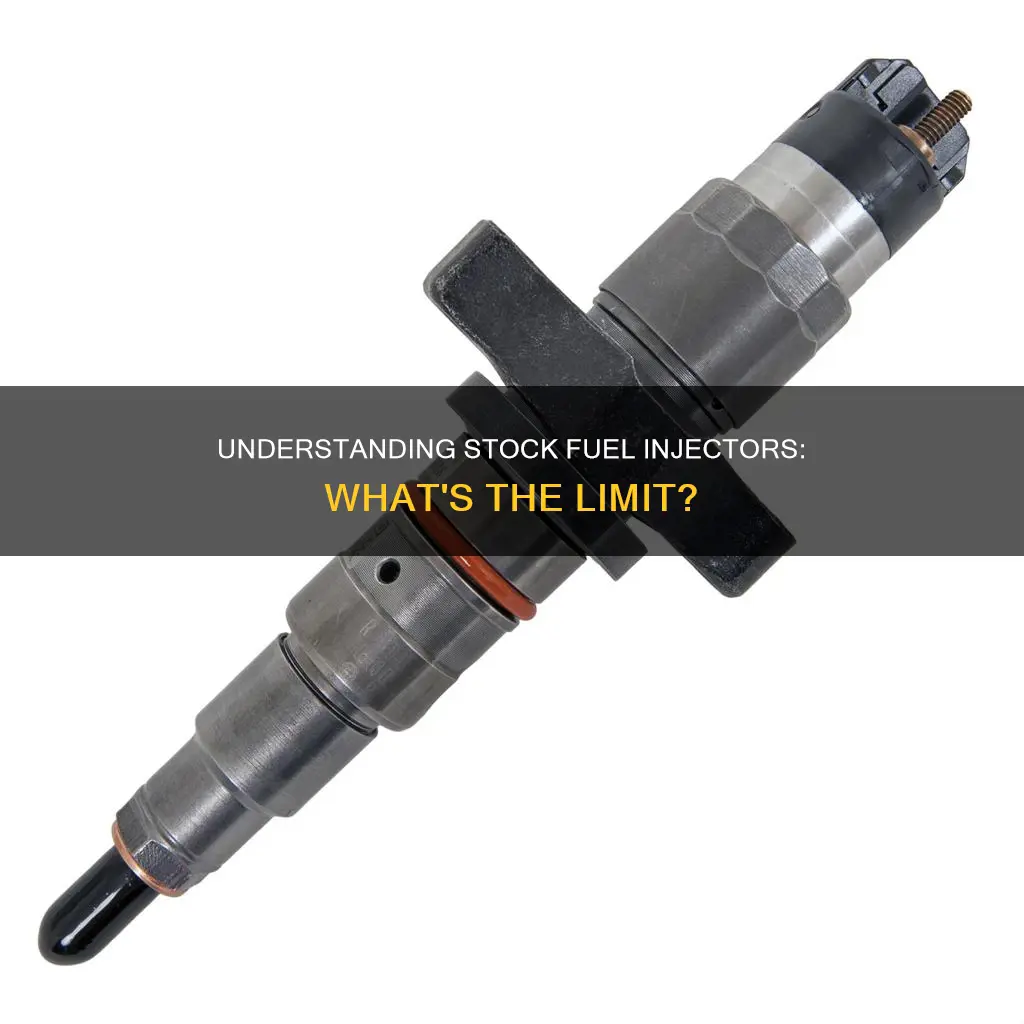

Stock fuel injectors are a type of fuel injector that delivers the right amount of fuel to a stock engine. They are also known as OEM (Original Equipment Manufacturer) injectors. Fuel injectors are a part of the fuel injection system, which is responsible for introducing fuel into an internal combustion engine. The fuel injector itself performs the final stage of this process by spraying pressurised fuel into the engine through a nozzle. There are two main types of fuel injection systems: mechanical and electronic. The type of fuel injector required depends on the type of engine, as diesel engines require different injectors to petrol engines.
| Characteristics | Values |
|---|---|
| Purpose | To introduce fuel into an internal combustion engine |
| Engine Type | Compression-ignition engines (e.g. diesel) and spark-ignition engines (e.g. petrol) |
| Location | Combustion chamber, inlet manifold or throttle body |
| Types | Injection valves, unit injectors, common-rail injection system, single-point injection |
| Function | Spray nozzle that delivers fuel into the engine |
| Fuel Injector Sets | Bosch, FIC Fuel Injector Clinic, GM LS Performance |
| Examples | Bosch 136lb/hr LS1/LS6, FIC Fuel Injector Clinic Injector Set for LS3, LS7, L76, L92, and L99 engines |
Explore related products
What You'll Learn
Fuel Injector Types
Fuel injectors are an essential component of modern engines, and their design has been refined over the years to achieve maximum efficiency. There are four main types of fuel injectors:
Single-Point Fuel Injection
This is the earliest and simplest type of fuel injection system. It replaces the carburettor with one or two fuel injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. This type of injection is also called throttle body injection (TBI). While it offers better control than a carburettor, it can disturb the engine's performance at high RPMs and cause a rough ride due to insufficient fuel supply.
Multi-Point Fuel Injection (MPFI)
In this system, each cylinder in the combustion chamber is given its own injector nozzle, placed right outside its intake port. This design ensures that the fuel is injected more precisely, achieving the desired air-fuel ratio and improving overall performance. MPFI is sometimes referred to as "port injection" because of the location of the injector nozzles.
Sequential Fuel Injection (SPFI)
Sequential fuel injection is a type of multi-port injection that addresses a shortcoming of basic MPFI systems, where fuel may linger around a port when the engine is idling. In SPFI, each injector nozzle is triggered independently, spraying fuel immediately before or as the intake valve opens. This improves efficiency and emissions.
Direct Fuel Injection (DI)
Direct injection takes fuel injection to its logical conclusion by injecting fuel directly into the combustion chambers, bypassing the valves. This type of injection is more common in diesel engines but is also used in petrol engines, where it is known as GDI (gasoline direct injection). DI offers maximum fuel economy and improved power, making it a popular choice for CNG fuel efficiency.
It is worth noting that various manufacturers, including Toyota, Honda, Bosch, and Siemens, produce their own fuel injectors, each with unique characteristics.
Rebuilding Injector Dynamics Fuel Injectors: Is It Possible?
You may want to see also
Explore related products
Fuel Injection Systems
Fuel injection is the introduction of fuel in an internal combustion engine, most commonly automotive engines, by the means of a fuel injector. The term fuel injection is vague and comprises various distinct systems with fundamentally different functional principles. The only thing all fuel injection systems have in common is the absence of carburetion.
Types of Fuel Injection Systems
There are two main functional principles of mixture formation systems for internal combustion engines: internal and external. A fuel injection system that uses external mixture formation is called a manifold injection system. There exist two types of manifold injection systems: multi-point (or port) and single-point (or throttle body) injection.
Internal mixture formation systems can be separated into several different varieties of direct and indirect injection, the most common being the common-rail injection, a variety of direct injection. The types of common-rail systems include air-guided injection and spray-guided injection.
Working of Fuel Injection Systems
In a common-rail system, fuel from the fuel tank is supplied to a common header (called the accumulator), and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator has a high-pressure relief valve to maintain pressure and return the excess fuel to the fuel tank. The fuel is sprayed with the help of a nozzle that is opened and closed with a solenoid-operated needle valve.
In a manifold injection system, air and fuel are mixed outside the combustion chamber so that a mixture of air and fuel is sucked into the engine. The main types of manifold injections systems are multi-point injection and single-point injection. These systems use either a continuous injection or an intermittent injection design. In a continuous injection system, fuel flows at all times from the fuel injectors, but at a variable flow rate.
Fuel Injectors
Fuel injectors are an essential component of fuel injection systems. The fuel injector's role is to deliver precise bursts of fuel to each cylinder, ensuring that the fuel is well-mixed with the air before it enters the chamber. The injector is typically held closed by a spring and opened either by fuel pressure (in mechanical systems) or by an electromagnet (in electronic systems).
Stock Fuel Injectors
Stock fuel injectors refer to standard or OEM (Original Equipment Manufacturer) fuel injectors that are designed to meet the specifications of the vehicle's engine. Companies like AUS Injection and FiveOMotorSport provide stock fuel injector products and services for various automotive applications.
Fuel Injector vs Carburetor: 2003 135 Optimax Edition
You may want to see also
Explore related products
Fuel Injector Functions
Fuel injectors are a critical component of modern automobiles, integral to a vehicle's engine fuel delivery system. They are responsible for delivering the right type and amount of fuel to the engine, at the right time, and in a precise pattern.
Fuel injectors are used to atomize and inject or spray fuel directly into the engine's combustion chamber. The injector atomizes the fuel and forces it directly into the combustion chamber at the precise point in the combustion cycle. The atomized fuel is then mixed with air and ignited, creating power for the vehicle. The combustion chamber is where the chemical energy in diesel, hydrogen, and natural gas is converted into power for the vehicle.
The injector body is responsible for converting the electrical signal from the solenoid into pressure to push the fuel through the nozzle. When the injector is triggered, the solenoid opens, allowing the fuel to flow through the nozzle and into the engine's combustion chamber. The fuel injector nozzle is a precision-machined device with two openings: an inlet and an outlet. As the inlet draws fuel from the fuel tank, the outlet sprays fuel into the combustion chamber. The fuel injection process helps ensure that fuel is delivered most efficiently, providing maximum power while minimizing fuel consumption and reducing pollution.
Fuel injectors also play a key role in the energy transition from fossil fuels to cleaner energy sources. By optimizing fuel consumption in traditional diesel engines and facilitating the operation of alternative fuel engines, fuel injectors contribute to reducing carbon and greenhouse gas emissions.
Unfreezing Fuel Injectors: DIY Guide to Quick Fixes
You may want to see also
Explore related products
Fuel Injector Maintenance
Fuel injectors are responsible for delivering fuel to a car's combustion chamber. They spray fuel into the chamber, which the engine then burns to run effectively. If an injector supplies too much or too little fuel, the engine won't run well or may not run at all. Clogged fuel injectors can cause the engine to idle roughly or stall. This can be caused by carbon buildup, which can also lead to increased fuel consumption. Other causes of clogged injectors include rust from the gas tank and a bad fuel filter.
To maintain fuel injectors, it is important to keep them clean. While some shops offer fuel injection cleaning services, this is not always necessary. Some shops may recommend it as a routine service, but this is often unnecessary and can be an attempt to increase profits. If you are experiencing problems with your car, you can first try adding a fuel injector cleaning product to your gas tank. If that doesn't work, then you can consider having a fuel injection cleaning service performed.
There are also do-it-yourself methods for cleaning fuel injectors. One method involves attaching a pressurized canister with a cleaner and fuel to the fuel rail and running the engine to clean out the injectors. Another method is to remove the fuel injectors from the engine and clean them separately, which allows for a more thorough cleaning. There are also fuel injector cleaning kits available that can be used to clean the injectors without removing them from the engine.
It is important to note that not all fuel systems require routine injector cleaning. To determine if your car requires fuel injection cleaning, you can refer to the car maker's maintenance guide. Additionally, if you are unsure about performing the cleaning yourself, it is recommended to seek advice from a trusted mechanic or auto shop.
Cleaning Fuel Injectors in a 2005 Scion xB: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Injector History
Fuel injectors are a critical component of modern automobiles, delivering the right amount of fuel at the right time. They are responsible for atomizing and injecting fuel into the engine's combustion chamber, ensuring efficient combustion and optimal engine performance. While the concept of injection systems has been around for over a century, the history of fuel injectors in automobiles is a relatively recent development.
The earliest recorded use of fuel injectors dates back to 1902 when French aviator Leon Levavasseur implemented a prototype injection system in his Antoinette 8V aircraft engine. However, it was in the 1920s that fuel injectors gained popularity, with various manufacturers adopting their use in diesel engines. In the late 1930s and early 1940s, mass-produced diesel engines for passenger cars, such as the Mercedes-Benz OM 138, became the first fuel-injected engines for automotive use.
In the early 1950s, fuel injection was introduced in passenger car petrol engines, gradually gaining prevalence until it largely replaced carburetors by the early 1990s. The primary difference is that fuel injection atomizes the fuel through a small nozzle under high pressure, resulting in more efficient combustion and reduced emissions. During this period, throttle body injection (TBI) was one of the first domestic fuel injection systems to enter the market, designed as a simple replacement for carburetors in existing engine designs.
Over time, the technology evolved, and by the 1980s, electronic systems were introduced to control the metering of fuel. More advanced systems, such as the Bosch K-Jetronic system, utilized continuous injection, where fuel flows at all times from the fuel injectors but at variable flow rates. Today, modern fuel injectors are electronic and direct injection, delivering fuel directly into the combustion chamber of each cylinder. These injectors are made of stainless steel and consist of a solenoid, a nozzle, and an injector body. They are connected to an Electronic Control Unit (ECU) that regulates the fuel injection process, ensuring precise fuel delivery and optimal engine performance.
Fuel Injectors: Mercury 150's Cost and Performance
You may want to see also
Frequently asked questions
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, by means of a fuel injector.
A fuel injector is a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body.
Direct injection means that the fuel is injected into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber, so only air is sucked into the engine during the intake stroke.
Single-point injection, also called throttle-body injection, uses one injector in a throttle body. The fuel is mixed with the air before entering the intake manifold.
