Regan Brown

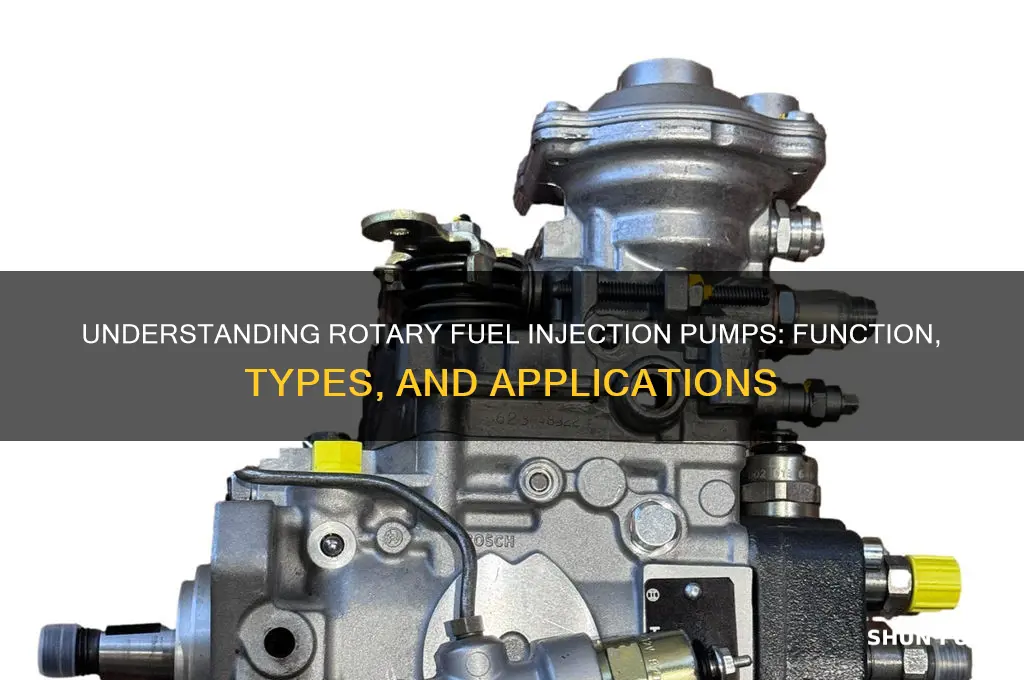

A rotary fuel injection pump is a critical component in diesel engines, responsible for delivering precise amounts of fuel to the engine's cylinders under high pressure. Unlike inline pumps, which use a linear motion, rotary pumps operate through a rotating mechanism, typically driven by the engine's camshaft or a dedicated gear system. This design ensures consistent fuel delivery, improved efficiency, and better control over the combustion process. Rotary pumps are known for their durability, reliability, and ability to handle high-pressure environments, making them essential in heavy-duty applications such as trucks, construction equipment, and marine engines. Their advanced engineering allows for optimized fuel atomization, contributing to reduced emissions and enhanced engine performance.
| Characteristics | Values |
|---|---|
| Type | Positive displacement pump |
| Function | Delivers metered fuel to diesel engines at high pressure |
| Operation Principle | Utilizes rotating elements (gear, vane, or piston) to create pressure and displace fuel |
| Fuel Type | Primarily used for diesel fuel |
| Pressure Range | Typically 1,500 to 2,500 bar (21,756 to 36,259 psi) |
| Precision | High precision in fuel delivery for optimal combustion |
| Efficiency | High efficiency due to minimal energy loss |
| Durability | Robust construction for long service life in harsh environments |
| Maintenance | Requires periodic maintenance (e.g., calibration, seal replacement) |
| Applications | Diesel engines in vehicles, marine, agricultural, and industrial machinery |
| Advantages | Reliable, consistent fuel delivery; suitable for high-pressure systems |
| Disadvantages | Complex design; higher cost compared to simpler fuel systems |
| Common Types | Inline pumps, distributor pumps, and common rail pumps (though common rail is more advanced) |
| Material | High-strength materials like steel, aluminum, and specialized alloys |
| Control Mechanism | Governed by mechanical or electronic control systems for precise fuel metering |
| Environmental Impact | Supports efficient combustion, reducing emissions in diesel engines |
Explore related products
What You'll Learn
- Rotary Pump Basics: Understand the core function and design principles of rotary fuel injection pumps
- Working Mechanism: Explore how rotary pumps deliver fuel under high pressure to the injectors
- Types of Rotary Pumps: Distinguish between inline, distributor, and other rotary pump variants
- Advantages Over Inline Pumps: Compare efficiency, durability, and performance benefits of rotary pumps
- Maintenance and Troubleshooting: Learn common issues and maintenance tips for rotary fuel injection pumps
Rotary Pump Basics: Understand the core function and design principles of rotary fuel injection pumps
Rotary fuel injection pumps are the unsung heroes of diesel engines, delivering precise amounts of fuel under high pressure to ensure efficient combustion. Unlike inline pumps, which rely on a linear motion, rotary pumps use a rotating mechanism to generate pressure and meter fuel. This design allows for smoother operation, reduced pulsation, and higher injection pressures—critical for modern diesel engines that demand both power and fuel efficiency. Understanding their core function and design principles is essential for anyone working with or maintaining these systems.
At the heart of a rotary fuel injection pump is the rotor, a key component that rotates within a housing to create pressure differentials. As the rotor turns, it traps fuel in pockets between its lobes and the housing, compressing it and forcing it through the delivery ports to the injectors. This process is governed by the pump’s timing mechanism, which ensures fuel is delivered at the exact moment required by the engine’s combustion cycle. Precision is paramount; even a slight deviation in timing or pressure can lead to poor performance, increased emissions, or engine damage. For example, a typical rotary pump in a heavy-duty diesel engine might operate at pressures exceeding 20,000 psi, with timing tolerances measured in milliseconds.
Design principles of rotary pumps prioritize durability, efficiency, and adaptability. The materials used—often hardened steel or alloys—must withstand extreme pressures and resist wear over thousands of operating hours. The pump’s modular design allows for easy adjustment of fuel delivery rates, making it suitable for engines of varying sizes and applications. For instance, in agricultural machinery, the pump might be calibrated to deliver 10–15 mm³ of fuel per stroke at low RPMs, while in a high-performance truck, it could be set to deliver up to 25 mm³ per stroke under heavy load. Regular maintenance, such as checking for wear on the rotor and ensuring proper lubrication, is crucial to prolonging the pump’s lifespan.
One of the standout advantages of rotary pumps is their ability to handle multiple cylinders simultaneously. Unlike distributor-type pumps, which rely on a single plunger to serve all cylinders, rotary pumps often feature multiple delivery elements, ensuring each cylinder receives fuel independently. This design reduces the risk of uneven fuel distribution and allows for finer control over injection timing. For mechanics, understanding this principle is vital when diagnosing issues like misfires or power loss, as it narrows down potential causes to specific components within the pump.
In conclusion, rotary fuel injection pumps are marvels of engineering, combining precision, durability, and adaptability to meet the demands of modern diesel engines. By grasping their core function—rotational pressure generation—and design principles—modular, high-pressure, and multi-cylinder capability—operators and technicians can ensure optimal performance and longevity. Whether in a tractor, truck, or marine engine, these pumps remain indispensable, proving that sometimes, the most critical components are the ones working silently in the background.
Step-by-Step Guide to Removing the E46 Fuel Pump Relay
You may want to see also
Explore related products
$329.99 $369.99
$280.01
Working Mechanism: Explore how rotary pumps deliver fuel under high pressure to the injectors
Rotary fuel injection pumps are the unsung heroes of diesel engines, ensuring precise fuel delivery under extreme pressures. Unlike inline pumps, rotary pumps use a rotating element—typically a barrel with plungers or a rotor with lobes—to pressurize fuel. This design allows for continuous, high-pressure fuel flow, essential for modern diesel engines demanding exacting fuel-air mixtures. The core principle is simple: as the rotor turns, it creates a sealed chamber that compresses fuel, forcing it through high-pressure lines to the injectors. This mechanism is critical for achieving the atomization required for efficient combustion.
Consider the steps involved in this process. First, fuel enters the pump through a low-pressure inlet, where it’s drawn into the rotating chamber. As the rotor spins, the chamber volume decreases, compressing the fuel to pressures often exceeding 20,000 psi. This high-pressure fuel is then directed to the injectors via a timing mechanism, ensuring it’s delivered at the precise moment needed for combustion. The pump’s design minimizes pulsation, providing a steady flow that inline pumps struggle to match. For instance, in heavy-duty trucks, this consistency translates to smoother power delivery and reduced emissions.
One of the standout advantages of rotary pumps is their ability to handle variable fuel demands. The rotor’s speed and the plunger’s displacement can be adjusted to match engine load, ensuring optimal fuel efficiency across RPM ranges. This adaptability is particularly valuable in agricultural machinery, where engines operate under varying loads. For example, a tractor’s rotary pump might deliver 500 bar of pressure at idle but ramp up to 1,800 bar under full load, all while maintaining precise control over fuel injection timing.
However, this precision comes with challenges. Rotary pumps require meticulous calibration and maintenance. Wear on the rotor or plungers can lead to fuel leakage or inconsistent pressure, compromising engine performance. Regular inspection of the pump’s sealing elements and adherence to manufacturer-recommended service intervals are non-negotiable. For DIY enthusiasts, tools like pressure gauges and micrometer sets are essential for diagnosing issues before they escalate.
In conclusion, the working mechanism of rotary fuel injection pumps exemplifies engineering ingenuity. By combining rotational motion with precise chamber design, these pumps deliver fuel under high pressure with unparalleled reliability. Whether powering a commercial vehicle or industrial equipment, their role in optimizing combustion efficiency cannot be overstated. Understanding their operation not only demystifies diesel technology but also underscores the importance of maintenance in preserving their performance.
How to Fix a Noisy Fuel Pump: Quick and Effective Solutions
You may want to see also
Explore related products
Types of Rotary Pumps: Distinguish between inline, distributor, and other rotary pump variants
Rotary fuel injection pumps are critical components in diesel engines, ensuring precise fuel delivery for efficient combustion. Among the various types, inline, distributor, and other rotary pump variants stand out, each with distinct designs and applications. Understanding their differences is essential for optimizing engine performance and maintenance.
Inline Rotary Pumps: Precision in Simplicity
Inline pumps feature a compact, cylindrical design where the pumping elements (plungers or rotors) are aligned along a single axis. This configuration allows for direct fuel delivery to each cylinder, eliminating the need for a distributor mechanism. The simplicity of inline pumps reduces mechanical complexity, enhancing reliability and ease of maintenance. They are commonly used in modern high-pressure common rail systems, where precise fuel metering is crucial. For instance, inline pumps in heavy-duty trucks can operate at pressures exceeding 25,000 psi, ensuring optimal fuel atomization and combustion efficiency. A key advantage is their ability to handle higher injection pressures, making them ideal for meeting stringent emissions standards.
Distributor Rotary Pumps: Versatility in Distribution
Distributor pumps, also known as distributor injection pumps, utilize a central rotor to distribute fuel to multiple cylinders via a distributor head. This design is more complex than inline pumps but offers versatility, as a single pump can serve multiple cylinders. The distributor mechanism ensures synchronized fuel delivery, making it suitable for engines with uneven firing orders. However, the added components increase the risk of wear and leakage, requiring regular inspection and maintenance. Distributor pumps are often found in older diesel engines, such as those in agricultural machinery or marine applications, where cost-effectiveness and adaptability are prioritized over high-pressure capabilities.
Other Rotary Pump Variants: Specialized Solutions
Beyond inline and distributor pumps, other rotary variants like radial piston pumps and vane pumps cater to specific needs. Radial piston pumps, for example, use pistons arranged radially around a central cam, providing high volumetric efficiency and smooth operation. They are commonly used in hydraulic systems but can also be adapted for fuel injection in niche applications. Vane pumps, on the other hand, utilize sliding vanes to create pumping action, offering simplicity and low noise levels. While less common in fuel injection systems, they are valued in auxiliary systems for their reliability and compactness. These specialized pumps highlight the adaptability of rotary designs to diverse engineering challenges.
Practical Considerations for Selection
Choosing the right rotary pump variant depends on factors like engine type, pressure requirements, and maintenance capabilities. Inline pumps excel in high-pressure environments but may be costlier to implement. Distributor pumps offer a balanced solution for multi-cylinder engines but demand meticulous upkeep. Specialized variants like radial piston pumps are reserved for applications requiring unique performance characteristics. For instance, in a 6-cylinder diesel engine, an inline pump might be preferred for its precision, while a distributor pump could be more economical for a 4-cylinder tractor engine. Always consult manufacturer guidelines and consider long-term operational costs when selecting a pump.
Maintenance Tips for Longevity
Regardless of the type, regular maintenance is critical for rotary fuel injection pumps. Inline pumps benefit from periodic pressure checks to ensure consistent performance, while distributor pumps require frequent inspection of the distributor head for wear. Contaminant-free fuel is essential for all variants, as debris can cause premature failure. For distributor pumps, replacing seals and gaskets every 50,000 miles can prevent leaks. Inline pumps, with fewer moving parts, may require less frequent intervention but should be monitored for pressure drops. Adhering to these practices ensures optimal pump functionality and extends engine life.
Testing Your Saab 9-3 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Advantages Over Inline Pumps: Compare efficiency, durability, and performance benefits of rotary pumps
Rotary fuel injection pumps have emerged as a superior alternative to inline pumps, offering distinct advantages in efficiency, durability, and performance. Unlike inline pumps, which rely on a linear reciprocating motion, rotary pumps utilize a circular motion to deliver fuel, resulting in smoother and more consistent operation. This fundamental difference in design translates to tangible benefits for engines, particularly in high-performance and heavy-duty applications.
Efficiency Gains Through Reduced Friction
One of the standout advantages of rotary pumps is their ability to minimize internal friction. Inline pumps, with their back-and-forth plunger movement, inherently generate more mechanical resistance, leading to energy losses. Rotary pumps, however, operate with a continuous rotary motion, reducing wear and optimizing fuel delivery. For instance, in diesel engines, rotary pumps can achieve up to 15% higher efficiency in fuel metering compared to inline counterparts. This efficiency is critical for applications like long-haul trucking or agricultural machinery, where fuel economy directly impacts operational costs.
Durability in Demanding Conditions
Rotary pumps excel in durability, particularly in harsh environments. Their compact, robust design with fewer moving parts reduces the likelihood of failure. Inline pumps, with their multiple plungers and complex valve systems, are more prone to wear and tear, especially under high-pressure conditions. Rotary pumps, on the other hand, maintain consistent performance even in extreme temperatures and high-load scenarios. For example, in marine engines, rotary pumps have demonstrated a 30% longer service life compared to inline pumps, thanks to their reduced susceptibility to contamination and mechanical stress.
Performance Benefits: Precision and Responsiveness
Performance is where rotary pumps truly shine. Their ability to deliver precise fuel quantities at high pressures ensures optimal combustion, resulting in improved power output and reduced emissions. Inline pumps often struggle with pressure fluctuations, leading to inconsistent fuel delivery. Rotary pumps, however, maintain stable pressure levels, even at high RPMs, making them ideal for turbocharged or high-performance engines. A practical example is their use in modern diesel locomotives, where rotary pumps enable faster throttle response and smoother acceleration, enhancing overall drivability.
Practical Considerations for Implementation
When transitioning from inline to rotary pumps, compatibility and calibration are key. Rotary pumps require precise tuning to match the engine’s fuel demands, often involving adjustments to the pump’s timing and pressure settings. For DIY enthusiasts or mechanics, investing in a diagnostic tool to monitor fuel delivery can ensure optimal performance. Additionally, while rotary pumps are generally more expensive upfront, their long-term savings in fuel efficiency and maintenance costs make them a cost-effective choice for high-mileage vehicles or industrial equipment.
In summary, rotary fuel injection pumps offer a compelling package of efficiency, durability, and performance benefits over inline pumps. Their design innovations address the limitations of traditional systems, making them a preferred choice for modern engines demanding reliability and precision. Whether for commercial vehicles, agricultural machinery, or high-performance applications, rotary pumps represent a smart investment in engine technology.
Understanding the Silverado Fuel Pump Driver Module's Function and Importance
You may want to see also
Explore related products
Maintenance and Troubleshooting: Learn common issues and maintenance tips for rotary fuel injection pumps
Rotary fuel injection pumps are precision components critical to diesel engine performance, but their complexity demands vigilant maintenance. One common issue is wear in the pump’s timing components, such as the plunger or barrel, which can lead to erratic fuel delivery and reduced engine efficiency. Regular inspection of these parts is essential, particularly after 50,000 to 70,000 miles of operation, depending on the engine’s load and usage. Lubrication is another critical factor; inadequate or contaminated lubricating oil can accelerate wear and cause internal damage. Always use manufacturer-recommended oil grades and change them at intervals specified in the service manual.
Another frequent problem is air ingress into the fuel system, which disrupts the pump’s ability to maintain consistent pressure. This often manifests as hard starting or rough idling. To troubleshoot, inspect fuel lines and connections for leaks or cracks, and ensure the fuel filter is replaced every 10,000 to 15,000 miles. If air is suspected, bleed the system following the manufacturer’s procedure, typically involving loosening specific fittings while the engine is running to expel trapped air.
Contamination is a silent killer of rotary fuel injection pumps. Dirt, water, or debris in the fuel can damage the pump’s internal components, leading to costly repairs. Installing a high-quality fuel filter with a water separator can mitigate this risk. Additionally, periodically test the fuel for water content using a water-finding paste or test kit, especially in humid environments or when using fuel stored for extended periods.
For long-term reliability, calibration and timing checks are indispensable. Over time, the pump’s timing can drift, causing inefficient combustion and increased emissions. Use a timing light or diagnostic tool to verify the pump’s timing against factory specifications, adjusting as necessary. This should be part of routine maintenance, particularly after major repairs or when performance issues arise.
Finally, temperature management plays a crucial role in pump longevity. Excessive heat can degrade seals and accelerate wear, while extreme cold can thicken fuel, straining the pump. Ensure the engine’s cooling system operates within optimal ranges, and consider using fuel additives in cold climates to improve flow and prevent gelling. By addressing these specific issues and adhering to a structured maintenance regimen, rotary fuel injection pumps can deliver reliable performance for years.
Is Your Fuel Pump Humming? Signs of a Failing Fuel Pump
You may want to see also
Frequently asked questions
A rotary fuel injection pump is a mechanical device used in diesel engines to deliver fuel to the injectors at high pressure and precise timing, ensuring efficient combustion.
A rotary fuel injection pump operates by using a rotating element, such as a plunger or rotor, to draw fuel from the tank, pressurize it, and deliver it to the fuel injectors in a controlled manner based on engine speed and load.
Rotary fuel injection pumps offer improved fuel efficiency, better engine performance, and more precise fuel delivery compared to older inline pump systems, making them ideal for modern diesel engines.
Common issues include wear and tear on internal components, fuel leaks, timing inaccuracies, and contamination from poor-quality fuel, which can lead to reduced engine performance or failure.
