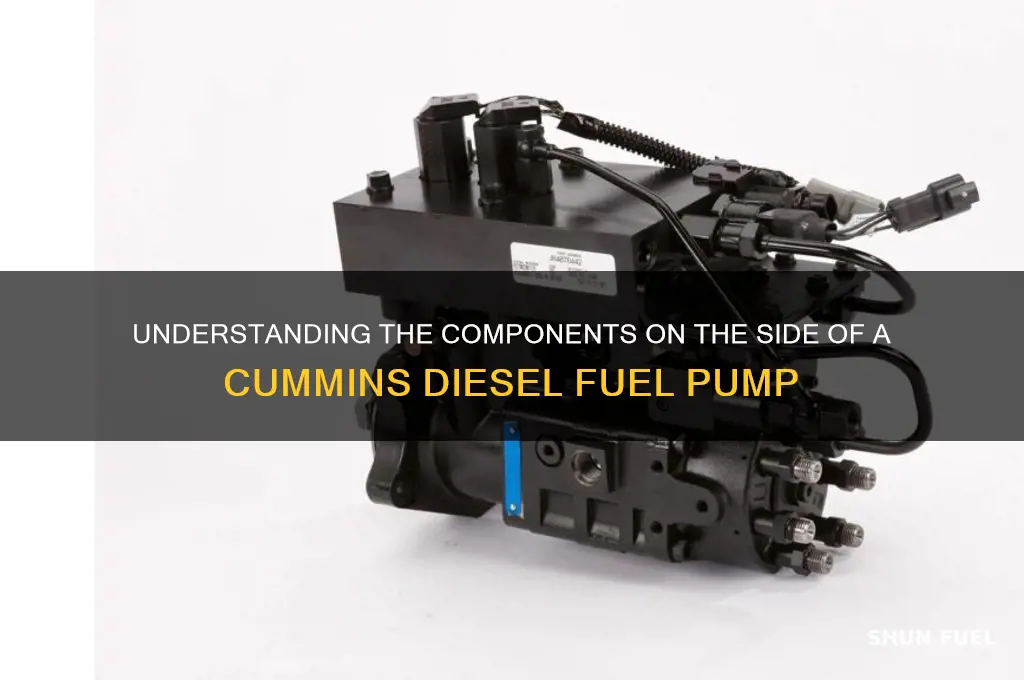

The Cummins diesel fuel pump is a critical component in diesel engines, responsible for delivering fuel from the tank to the injectors under precise pressure and timing. On the side of the Cummins diesel fuel pump, you’ll typically find several key features, including the fuel inlet and outlet ports, which connect to the fuel lines, and mounting points for secure installation. Additionally, some models may have a priming pump or hand primer to remove air from the fuel system, ensuring smooth operation. The side of the pump may also house electrical connectors for sensors or solenoids that monitor fuel pressure and regulate pump operation. Understanding these components is essential for proper maintenance, troubleshooting, and ensuring optimal engine performance.
Explore related products
What You'll Learn
- Fuel Pump Mounting Bracket: Secures pump to engine block, ensures stability during operation
- Fuel Filter Assembly: Cleans diesel before entering pump, prevents contaminants from damaging components
- Fuel Lines & Fittings: Connects pump to engine, ensures proper fuel flow and pressure
- Pump Drive Gear: Transfers power from engine to pump, drives internal mechanisms
- Pressure Relief Valve: Regulates fuel pressure, prevents pump damage from excessive pressure buildup
Fuel Pump Mounting Bracket: Secures pump to engine block, ensures stability during operation
The Cummins diesel fuel pump is a critical component in the engine's fuel delivery system, and its stability is paramount for reliable operation. One often overlooked yet essential element is the fuel pump mounting bracket. This bracket serves as the backbone of the fuel pump assembly, securing it firmly to the engine block. Without it, the pump would be susceptible to vibrations and movements that could compromise its performance and longevity. The mounting bracket is typically made of robust materials like steel or cast iron, designed to withstand the harsh conditions under the hood, including extreme temperatures and constant vibrations.
When installing or replacing a Cummins diesel fuel pump, ensuring the mounting bracket is correctly aligned and tightened is crucial. Start by cleaning the mounting surface on the engine block to remove any debris or old gasket material. Position the bracket carefully, aligning the bolt holes with those on the engine block. Use the manufacturer-recommended torque specifications for the bolts to avoid over-tightening, which can warp the bracket or engine block. A torque wrench is an indispensable tool here, ensuring precision and preventing damage. Proper alignment not only secures the pump but also minimizes stress on the fuel lines and electrical connections.
A common issue with fuel pump mounting brackets is corrosion, especially in vehicles exposed to salty or humid environments. Regular inspection of the bracket for rust or cracks is essential. If corrosion is detected, consider applying a rust-inhibiting primer and paint to extend the bracket’s life. In severe cases, replacing the bracket may be necessary to maintain the pump’s stability. Additionally, check the bracket’s mounting bolts for looseness during routine maintenance, as vibrations can cause them to work loose over time. Tighten them to the specified torque, but avoid over-tightening, which can strip the threads or damage the bracket.
Comparing the fuel pump mounting bracket to other engine components highlights its unique role. Unlike parts that directly influence fuel flow or combustion, the bracket’s function is purely structural, yet its failure can lead to catastrophic pump damage. For instance, a loose pump can cause fuel lines to disconnect or rub against moving parts, leading to leaks or fires. In contrast, a securely mounted pump operates smoothly, ensuring consistent fuel delivery and engine performance. This underscores the bracket’s importance as a silent guardian of the fuel system’s integrity.
In practical terms, upgrading the fuel pump mounting bracket can be a worthwhile investment for high-performance or heavily used Cummins engines. Aftermarket brackets often feature reinforced designs or additional mounting points for enhanced stability. When selecting an upgrade, ensure compatibility with your specific Cummins model and consider the engine’s operating conditions. For example, brackets with vibration-dampening pads can reduce wear on the pump and surrounding components. Always follow the manufacturer’s guidelines for installation and maintenance to maximize the bracket’s effectiveness and the overall reliability of the fuel system.
Rebuilding a 1973 25HP Evinrude Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Fuel Filter Assembly: Cleans diesel before entering pump, prevents contaminants from damaging components
On the side of a Cummins diesel fuel pump, you’ll often find the fuel filter assembly, a critical component designed to safeguard the pump and engine from contaminants. Diesel fuel, despite its efficiency, can carry particles like dirt, rust, and water, which, if left unchecked, can cause abrasive wear or clogging in the pump’s precision components. The fuel filter assembly acts as the first line of defense, ensuring only clean fuel enters the pump. This not only extends the pump’s lifespan but also maintains optimal engine performance.
Analyzing its function, the fuel filter assembly operates on a simple yet effective principle: filtration. As diesel flows from the tank, it passes through a series of filters—typically a primary and secondary stage—that trap particles as small as 5 microns. Water, a common contaminant in diesel, is separated through a water-separator element, which prevents it from reaching the pump. This dual-action filtration is essential because even microscopic particles can lead to injector failure or pump seizure, costly repairs that could have been avoided with proper maintenance.
Practical maintenance tips are key to maximizing the filter’s effectiveness. Cummins recommends replacing the fuel filter every 15,000 to 25,000 miles, depending on fuel quality and operating conditions. When replacing the filter, always prime the system to remove air bubbles, which can cause pump cavitation. Additionally, inspect the filter housing for cracks or leaks during routine checks. For cold climates, consider using a fuel additive to prevent gelling, as clogged filters are more likely to fail in low temperatures.
Comparing it to other systems, the Cummins fuel filter assembly stands out for its robustness and ease of access. Unlike some competitors, Cummins designs its filters with a spin-on or cartridge-style replacement, making maintenance straightforward even for non-mechanics. This user-friendly approach reduces downtime and ensures that even fleet operators can perform replacements without specialized tools. However, it’s worth noting that while the assembly is durable, neglecting regular replacements can lead to filter bypass, allowing contaminants to enter the pump unchecked.
In conclusion, the fuel filter assembly on the side of a Cummins diesel fuel pump is more than just a component—it’s a protector. By cleaning diesel before it enters the pump, it prevents contaminants from causing irreversible damage to expensive parts. Regular maintenance, coupled with an understanding of its function, ensures this assembly continues to perform its vital role, keeping your engine running smoothly and efficiently. Treat it with care, and it will return the favor in reliability and longevity.
Can a Faulty Crankshaft Sensor Prevent Fuel Pump Operation?
You may want to see also
Explore related products
Fuel Lines & Fittings: Connects pump to engine, ensures proper fuel flow and pressure
On the side of a Cummins diesel fuel pump, you’ll find fuel lines and fittings—critical components that bridge the pump to the engine, ensuring fuel flows efficiently under optimal pressure. These elements are not just connectors; they are the lifelines of the fuel system, designed to withstand high pressures, resist corrosion, and maintain a leak-free seal. Without them, even the most robust pump would fail to deliver fuel reliably, leading to performance issues or engine failure.
Consider the fuel lines first. Typically made from durable materials like stainless steel, nylon, or reinforced rubber, they are engineered to handle diesel’s unique properties, including its lubricity and potential for contamination. The diameter of these lines is no accident—it’s calculated to match the pump’s output and the engine’s demand, ensuring consistent flow without restrictions. For instance, a Cummins ISX engine might require lines with a ¾-inch diameter to handle its high fuel consumption, while smaller engines may use ½-inch lines. Always inspect lines for cracks, swelling, or abrasions, as even minor damage can lead to fuel leaks or pressure drops.
Fittings, the unsung heroes of this setup, secure the lines to the pump and engine. Common types include compression fittings, banjo bolts, and quick-connect couplings, each chosen based on the application’s pressure and vibration levels. For example, compression fittings are ideal for high-pressure systems due to their tight seal, while quick-connects offer ease of maintenance. When installing or replacing fittings, use thread sealant (like Loctite 567) on threaded connections to prevent leaks, and torque bolts to manufacturer specifications—overtightening can warp components, while undertightening risks leaks.
Pressure regulation is another critical function of this system. Fuel lines and fittings must maintain the precise pressure required by the engine’s injectors, typically between 5,000 and 30,000 psi in modern Cummins systems. Too little pressure results in poor atomization and incomplete combustion; too much can damage injectors. To diagnose pressure issues, use a mechanical gauge to test flow at idle and full throttle, comparing readings to Cummins’ specifications. If pressure drops, inspect lines for blockages or fittings for leaks, and replace faulty components immediately.
Finally, maintenance is key to longevity. Regularly clean fuel lines to remove debris, and replace them every 5–7 years or 500,000 miles, whichever comes first. For fittings, check for corrosion or wear during every oil change, and tighten connections if necessary. In cold climates, insulate lines to prevent fuel gelling, and consider using anti-corrosion coatings on exposed metal fittings. By treating these components with care, you ensure the Cummins pump operates at peak efficiency, keeping your engine running smoothly for years to come.
Understanding the Silverado Fuel Pump Driver Module's Function and Importance
You may want to see also
Explore related products
Pump Drive Gear: Transfers power from engine to pump, drives internal mechanisms
The pump drive gear is a critical component nestled on the side of a Cummins diesel fuel pump, serving as the vital link between the engine's power and the pump's operation. This unassuming gear is the linchpin that ensures fuel delivery, transforming rotational energy from the engine into the precise movements needed to pressurize and distribute diesel fuel. Without it, the fuel pump would be rendered inert, highlighting its indispensable role in the engine's fuel system.
Consider the mechanics: the pump drive gear is typically driven by the engine's camshaft or a dedicated gear train, depending on the Cummins model. Its teeth mesh seamlessly with those of the fuel pump's internal gear, creating a synchronized dance of power transfer. This direct drive mechanism ensures that the pump operates in harmony with the engine's speed, maintaining optimal fuel pressure across varying RPMs. For instance, in Cummins ISX engines, the drive gear is often integrated into the camshaft assembly, streamlining the power transmission process.
When inspecting or replacing a pump drive gear, precision is paramount. Misalignment or wear can lead to inefficient power transfer, resulting in reduced fuel pressure and engine performance. Technicians should verify gear mesh clearance, typically within 0.002 to 0.006 inches, to ensure smooth operation. Additionally, using high-quality lubricants, such as engine oil meeting Cummins specifications, is essential to minimize friction and prolong gear life. Regular maintenance, including visual inspections for chips or wear, can prevent costly downtime and ensure reliability.
Comparing the pump drive gear to other fuel system components underscores its unique function. While fuel injectors and filters are often in the spotlight, the drive gear operates behind the scenes, quietly enabling their performance. Its role is akin to that of a conductor in an orchestra, orchestrating the engine's power to fuel the symphony of combustion. This analogy highlights why overlooking the drive gear during diagnostics can lead to misattributing performance issues to other parts.
In practical terms, understanding the pump drive gear’s function empowers both mechanics and operators to troubleshoot effectively. For example, if an engine exhibits symptoms like hard starting or erratic fuel pressure, the drive gear should be examined for wear or damage. Replacing a faulty gear can restore fuel system efficiency, often resolving issues without the need for more extensive repairs. By recognizing its significance, one can approach Cummins diesel fuel pump maintenance with a more informed and targeted strategy.
Testing Your OMC Cobra Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Pressure Relief Valve: Regulates fuel pressure, prevents pump damage from excessive pressure buildup
On the side of a Cummins diesel fuel pump, you’ll find a critical component known as the pressure relief valve. This small yet indispensable device serves as the pump’s safeguard against excessive fuel pressure, which can lead to catastrophic damage if left unchecked. Its primary function is to regulate fuel pressure by redirecting excess flow back to the fuel tank when the system pressure exceeds a predetermined threshold, typically around 18,000 to 22,000 psi for Cummins high-pressure common rail systems. Without this valve, the pump, injectors, and fuel lines would be at constant risk of rupture or failure, particularly during sudden engine shutdowns or malfunctions.
To understand its importance, consider the analogy of a pressure cooker: just as a safety valve prevents the cooker from exploding under excessive steam pressure, the pressure relief valve ensures the fuel system operates within safe limits. For Cummins diesel engines, this valve is often integrated into the pump housing or mounted externally, depending on the model. Regular inspection is crucial, as a malfunctioning valve can lead to erratic fuel delivery, reduced engine performance, or even complete pump failure. A telltale sign of a faulty valve includes fuel leaks around the pump or unusual engine knocking sounds under load.
When troubleshooting or maintaining this component, follow these steps: first, disconnect the fuel supply and relieve system pressure to avoid injury. Next, inspect the valve for debris or corrosion, as contaminants can hinder its operation. If the valve fails to open at the specified pressure (check the manufacturer’s specifications), replace it immediately. For Cummins pumps, genuine OEM parts are recommended to ensure compatibility and reliability. Additionally, always test the valve’s functionality after installation by gradually increasing fuel pressure and verifying it activates at the correct threshold.
Comparing the pressure relief valve to other fuel system components highlights its unique role. While filters prevent contamination and injectors control fuel delivery, the valve acts as the system’s emergency brake, preventing over-pressurization. Its design is both simple and ingenious: a spring-loaded mechanism that opens when pressure overcomes the spring force, allowing excess fuel to bypass the pump. This contrasts with more complex components like the fuel pressure regulator, which maintains consistent pressure during normal operation rather than addressing emergencies.
In practical terms, ignoring the pressure relief valve’s condition can lead to costly repairs. For instance, a failed valve on a Cummins ISX engine could result in a $5,000+ repair bill if it causes the high-pressure pump to crack. To avoid this, incorporate valve inspection into routine maintenance every 50,000 miles or annually, whichever comes first. For fleets or heavy-duty applications, consider investing in a portable fuel pressure tester to verify valve functionality during roadside checks. By prioritizing this often-overlooked component, you ensure the longevity and reliability of your Cummins diesel fuel pump.
Jumping Fuel Pump Relay on a 1990 Chevy Truck: DIY Guide
You may want to see also
Frequently asked questions
On the side of a Cummins diesel fuel pump, you will typically find the fuel pump timing pin, which is used to adjust the pump's timing during installation or maintenance.
Yes, some Cummins diesel fuel pumps have a fuel pressure sensor or a fuel pump position sensor mounted on the side to monitor fuel pressure and pump performance.
The lever or actuator on the side of a Cummins diesel fuel pump is often used for manual fuel pump timing adjustments or to control the pump's output during testing or calibration.
No, the fuel filter or strainer is usually located separately in the fuel system, not directly on the side of the Cummins diesel fuel pump.
The side of a Cummins diesel fuel pump often includes identification markings, such as the pump model number, serial number, and manufacturing date, for reference and maintenance purposes.
