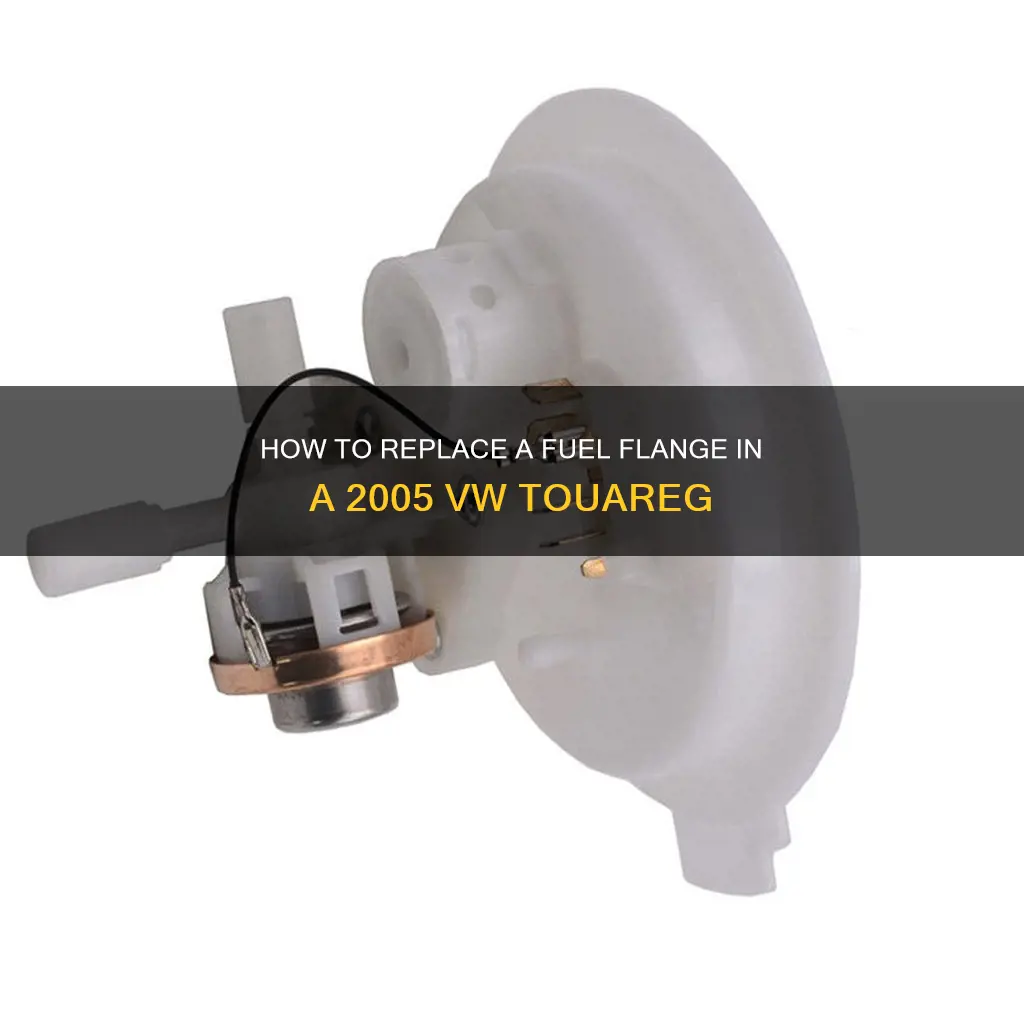

Changing the fuel flange in a 2005 VW Touareg involves a series of steps that require some technical knowledge and tools. The process includes removing the rear seats, cutting the carpet, disconnecting electrical plugs and fuel hoses, and replacing the fuel filter and fuel pumps. It is important to note that there have been reports of issues arising after the fuel pump flange recall, with some car owners experiencing problems such as hesitation, power loss, and rough idling. This has led to some discussions about potential stress on internal hoses during the replacement process.
| Characteristics | Values |
|---|---|
| Vehicle | 2005 VW Touareg |
| Engine | V6, V8 |
| Fuel pump flange replacement time | 3 hours |
| Fuel pump replacement time | 1 hour 5 minutes |
Explore related products
What You'll Learn
- The fuel pumps are located under the rear seat bottom
- The fuel filter is located between the fuel tank and the fuel injector
- The fuel flange recall: the car may start to misfire, lose power and acceleration, and shut off while driving
- The fuel flange is replaced via the recall
- The fuel flange is located under the rear seat
The fuel pumps are located under the rear seat bottom
To access the fuel pumps, you will first need to remove the rear seat backs. Flip the bottom of the seats forward, remove the headrests, and lay the seat backs down flat. Using a T30 Torx driver, remove the bolt that secures the clip in place. Remove the left seat back by leaning the seat forward and then pushing it towards the centre of the car to release it from the mounting pin on the side of the vehicle. Repeat this process for the right seat back.
Next, cut open the carpet to access the fuel tank ports. Notice that the interior carpet is perforated, giving you a guide for where to cut. Remove the seatback bracket using a 10mm triple square driver to take out the four bolts. You will then need to remove the four 10mm nuts from the aluminium lids on both sides.
Now you can start to access the fuel pumps. Remove the electrical connector for the fuel pump using a large flat-blade screwdriver. Pull up on the connector, and if it is difficult to remove, get extra leverage from a 90-degree screwdriver. Remove the vent hose from the fuel filter assembly by pressing down on the small tab at the top of the connector. Pull the fuel filter assembly up by around 3 inches and disconnect the two electrical plugs. Then, remove the two fuel lines from the bottom of the fuel filter assembly. Repeat this process for the passenger side.
Finally, grip the top of the fuel pump and turn it a quarter to the left until the pump is released and can be removed. Be careful, as gas will spill from the pumps.
Trump's Fossil Fuel Agenda: Easing Environmental Restrictions
You may want to see also
Explore related products
The fuel filter is located between the fuel tank and the fuel injector
The fuel filter in a 2005 VW Touareg is located inside the fuel tank, under the rear seat. The fuel tank can be accessed by removing the rear seat backs, cutting the carpet, and removing the seatbelt bracket. The fuel filter is part of the fuel pump assembly, which is secured to the tank with a ring. To replace the fuel filter, the fuel pump assembly must be removed from the tank. This process involves disconnecting electrical connectors, fuel lines, and hoses. Once the fuel pump assembly is removed, the fuel filter can be separated from the assembly and replaced. It is important to note that working with gasoline can be dangerous, so necessary safety precautions should be taken. Additionally, some special tools may be required for this job, such as a triple square driver and a fuel pump flange tool.
The fuel filter is an essential component of the fuel system, located between the fuel tank and the fuel injector. It plays a crucial role in ensuring the fuel entering the engine is clean and free of contaminants. By trapping and filtering out dirt, rust, and other impurities, the fuel filter helps protect the fuel injector and other fuel system components from damage. This, in turn, contributes to optimal engine performance and fuel efficiency.
When replacing the fuel filter, it is recommended to refer to the vehicle's owner's manual or seek guidance from a trusted mechanic or automotive forum. Additionally, it is important to work in a well-ventilated area and take precautions to avoid fuel spills or leaks. Before starting the replacement process, it is advisable to disconnect the battery and relieve the fuel system pressure to minimize the risk of accidents.
In some cases, the fuel filter may be integrated with the fuel pump, forming a single unit. In such cases, it is common for the entire assembly to be replaced rather than just the fuel filter. This is often the case in vehicles with the fuel pump located inside the fuel tank, as accessing the fuel pump and filter can be more challenging.
It is worth noting that the fuel filter is not a regular maintenance item in all vehicles. However, it is essential to monitor its condition and replace it when necessary. A clogged or faulty fuel filter can lead to various issues, including reduced engine performance, difficulty starting the engine, and, in some cases, engine stalling.
For the 2005 VW Touareg, the fuel filter replacement process may vary depending on the engine type (V6 or V8). It is always recommended to consult vehicle-specific repair manuals or seek advice from experienced mechanics or VW Touareg forums for detailed instructions on replacing the fuel filter in this particular model.
Fuel Filter Replacement: Understanding the Cost and Process
You may want to see also
Explore related products
The fuel flange recall: the car may start to misfire, lose power and acceleration, and shut off while driving
The fuel flange recall for the 2005 VW Touareg was issued because the fuel filter flange may crack and allow fuel to leak out. This poses a fire risk, as fuel leaks in the presence of an ignition source can cause fires.
As part of the recall, Volkswagen dealers will inspect the fuel filter flange for cracks and replace it if necessary. If no cracks are found, a protective cover will be installed to prevent oxidization cracks from forming. These repairs will be carried out free of charge.
However, there have been reports from Touareg owners that their vehicles started to experience issues such as misfiring, loss of power and acceleration, and shutting off while driving after the recall service was performed. In some cases, the fuel pumps failed and needed to be replaced. While Volkswagen of America (VWoA) offered to cover the cost of repairs in some instances, other Touareg owners were left to pay for the repairs themselves.
If you experience any issues with your Touareg after the fuel flange recall service, it is recommended to contact VWoA customer service and your local dealer immediately to discuss the problem and possible solutions. It may be necessary to provide documentation and evidence of the issues and to escalate the case if the dealer is uncooperative.
Replacing Your TDI's Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
The fuel flange is replaced via the recall
As part of the recall, Volkswagen dealers will inspect the fuel filter flange for cracks and replace it if necessary. If no cracks are found, a protective cover will be installed to prevent cracks from forming. This work will be carried out free of charge.
However, some owners have reported issues with their vehicles after the recall work was carried out. Several people have reported problems with their fuel pumps after taking their cars in for the fuel flange recall. In some cases, VW has covered the cost of these additional repairs.
How to Change a Fuel Filter in a Ford F150
You may want to see also
Explore related products
The fuel flange is located under the rear seat
To access the fuel flange, you will need to remove the rear seat backs. First, flip the bottom of the seats forward, remove the headrests, and lay the seat-backs down flat. Then, using a T30 Torx driver, remove the bolt that secures the clip in place. Remove the clip by rotating it toward the front of the car.
Next, remove the left seatback. To do this, the seatback needs to be free of the mounting bracket toward the inside of the car. Lean the seat forward, then push it toward the center of the vehicle to release it from the side. Repeat this process for the right seatback.
Now, cut the carpet to access the fuel tank ports. There should be a pre-cut hole to guide you. Then, remove the seatback bracket using a 10mm triple square driver to unscrew the bolts. You will need to move the right seatback around to free it from the bracket.
With the bracket removed, you can now access the fuel flange, which is located under the rear seat.
Replacing Fuel Labs Filter: Step-by-Step Guide for a Smooth Process
You may want to see also
Frequently asked questions
You will need a hammer, a flat head screwdriver, a swivel adapter for the back seat bracket bolts, a 10mm triple square bit, a 10mm socket, and a nice LED headlamp or good lighting.
First, pull the tab on the rear seats and pop them up, then flip them forward. Cut the carpet—there is a pre-cut hole partially present from the stock. Remove the four 10mm triple square head bolts on each seat belt bracket, and the four 10mm nuts from the aluminium lids. Set the lids aside. Vacuum any dirt and debris from the area under the lids. Remove the electric plug and fuel hoses (on both the driver and passenger sides) and tuck them to the side. Keep rags on hand for gas spillage. Use a clamp tool to remove the fuel line or, if you don't have one, use strong fingers. Use a flat head and a hammer to tap the brass ring loose. Set it aside. Pull up the fuel filter assembly 3 inches or so and disconnect the two electrical plugs, then let it drop into the tank. This will give you room to pull the assembly up more. Then, remove the two fuel lines from the bottom of the fuel filter assembly. Don't worry about mixing up the lines as they are two different diameters. Leave the fuel filter assembly set on top because the next step needs to be done in order to free an additional line coming from the fuel filter assembly. Pull up the fuel regulator enough to disconnect the electrical wires and then remove the two fuel lines from the bottom of the regulator. The regulator should come out freely. Set it aside. Disconnect the fuel lines inside the tank, one of which comes from the fuel filter assembly. Disconnect the fuel lines inside the driver's side tank, one of which comes from the passenger side fuel pump. The fuel tank rubber seal needs to be kept as it can be used again. Unclip a black hose from the top of the fuel pump (both driver and passenger sides have this hose with a clip, which are very easy to unclip). Grip the top of the pump and turn it left a quarter of the way until the pump releases and remove it. Be careful, as gas will spill from the pumps.
Some people have reported issues with their car after taking it in for the fuel pump flange recall, including hesitation, decrease in power and acceleration, and the car stuttering or almost dying. Some people have also reported fuel leaks.
