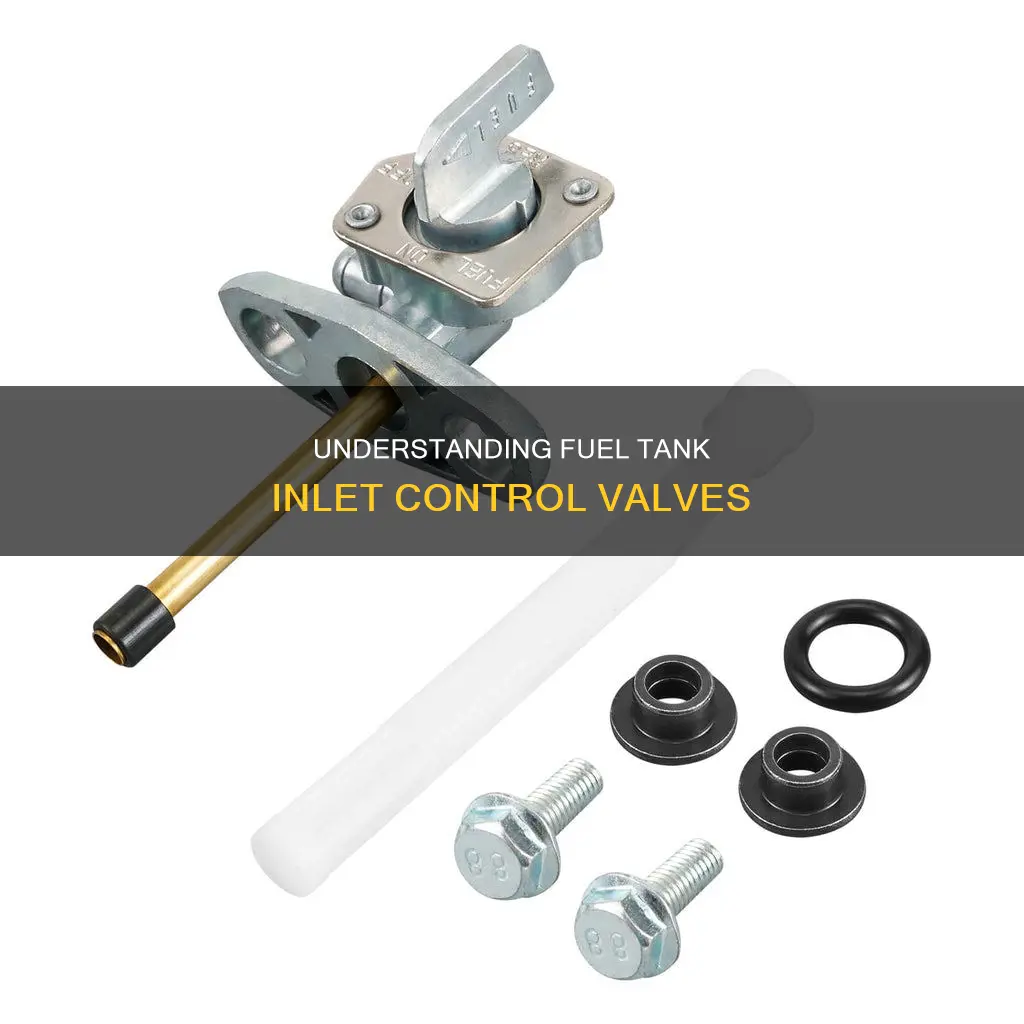

A fuel tank inlet control valve (ICV) is a device used to regulate the flow of fuel into a tank during refueling. ICVs are designed to prevent wellback (the reverse flow of fuel out of the fill hose after refueling) and spitback. These valves are normally closed but open in the presence of fuel running down the fill pipe during refueling. ICVs are available with different hose barb connection angles and can be used with plastic or metal tanks. They are also designed to handle various incoming fuel flow rates, ensuring efficient and safe refueling.
Explore related products
What You'll Learn
- The inlet valve allows proper fuel flow into the tank during refueling
- ICVs prevent spitback and wellback (reverse flow of fuel out of the fill pipe)
- ICVs are designed for use with plastic or metal tanks
- ICVs can be made from machined or cast aluminium
- Fuel control valves deliver the necessary fuel volume to maintain pressure
The inlet valve allows proper fuel flow into the tank during refueling
The inlet control valve is an important component of fuel systems, ensuring proper fuel flow during refueling. This valve is designed to allow fuel to flow into the tank in a controlled manner, maintaining optimal fuel volume and pressure.
During refueling, the inlet valve opens when it senses fuel running down the fill pipe. This enables the tank to be filled safely and efficiently, preventing any reverse flow of fuel back out of the fill pipe, a phenomenon known as "wellback" or "spitback". Wellback and spitback can result in fuel wastage and safety hazards, so the inlet valve plays a critical role in preventing these issues.
Inlet valves are designed to work in conjunction with the fill limit vent valve, ensuring zero spitback and wellback, as well as facilitating automatic nozzle shutoff when the fuel tank reaches full capacity. This coordination between the inlet valve and the fill limit vent valve helps maintain the integrity of the refueling process and protects the fuel system from potential damage caused by overfilling.
The design of inlet valves varies depending on the type of fuel tank. For instance, Perko's "In-Pipe ICV" is designed to fit inside the fuel inlet fitting of plastic or metal tanks, eliminating the need for in-line ICVs and reducing potential leak points. On the other hand, Attwood's Inlet Control Valve supports refueling rates of 4-18gpm and includes built-in safety features such as over-fill and over-pressure relief mechanisms.
Overall, the inlet valve is an essential component in ensuring the safe and efficient refueling of fuel tanks. By controlling the flow of fuel, preventing wellback and spitback, and coordinating with other valves, the inlet valve plays a critical role in maintaining the integrity of the fuel system during refueling.
Fuel Tank Return Pipes: How Do They Work?
You may want to see also
Explore related products
ICVs prevent spitback and wellback (reverse flow of fuel out of the fill pipe)
Inlet Check Valves (ICVs) are designed to prevent spitback and wellback, also known as the reverse flow of fuel out of the fill pipe. ICVs are normally closed valves that open only when fuel runs down the fill pipe during refueling. They are designed to handle incoming fuel flows and ensure zero spitback and wellback, as well as automatic nozzle shutoff.
ICVs can be used with plastic or metal tanks and are recommended for gasoline systems. Perko's "In-Pipe ICV" fits inside the fuel inlet fitting itself, replacing in-line ICVs and eliminating four hose clamps and two potential leak points. This design mounts inside standard 1-1/2" or 2" tank fill inlet fittings and allows for full 18 gpm flow rates.
Another option is Perko's "Flapper Valves", which fit inside the hose itself. These ICVs can be used with standard 1-1/2" or 2" hoses and are available with 0°, 45°, or 90° hose barb connections. They eliminate the need for retooling existing doghouses on plastic tanks and replace in-line ICVs, removing four hose clamps and two leak points.
Installing an ICV in the fill hose and a surge protector in the vent line can significantly reduce spitback and wellback during refueling for most boats. ICVs help to prevent fuel surges and backsplash during refueling, ensuring a safe and efficient refueling process.
Cleaning Rusty Fuel Tanks: DIY Guide
You may want to see also
Explore related products
ICVs are designed for use with plastic or metal tanks
Inlet Check Valves (ICVs) are used to control the flow of fuel into a tank during refuelling. They are designed to prevent spitback and wellback, which is the reverse flow of fuel out of the fill pipe after refuelling. ICVs are normally closed but open in the presence of fuel running down the fill pipe during refuelling.
Perko has been manufacturing fuel system components since 1936 and is well-known for its combination fill vent. Their ICVs are designed to handle incoming fuel flows and prevent spitback and wellback. ICVs support a range of refueling rates, typically between 4 and 18 gallons per minute.
ICVs are an essential component of fuel systems, ensuring safe and efficient refueling. They are designed to work with plastic or metal tanks, providing flexibility in their application and making them a versatile solution for fuel tank inlet control.
Cleaning Your TJ Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
ICVs can be made from machined or cast aluminium
A fuel tank inlet control valve (ICV) is a component of fuel systems that controls the flow of fuel into the tank during refuelling. ICVs are designed to prevent spitback and wellback, which is the reverse flow of fuel out of the fill pipe after refuelling. They are normally closed valves that open in the presence of fuel running down the fill pipe. ICVs are also used to control fuel flow to high-pressure pumps by delivering the necessary fuel volume to maintain pressure in the fuel distribution pipe.
The use of aluminium as the material for ICVs offers several advantages. Aluminium is a lightweight yet durable material, making it ideal for fuel system components. It is also non-corrosive and has excellent thermal properties, which is crucial for withstanding the high temperatures associated with fuel systems. Additionally, aluminium can be easily machined or cast, allowing for the creation of complex valve designs and ensuring a precise fit for the ICV within the fuel system.
The design of ICVs made from machined or cast aluminium typically includes a valve housing, an o-ring, a snap ring, and a tank insert. The valve housing provides structural support and houses the internal components of the ICV. The o-ring, typically made from a polymer material, acts as a seal between the ICV and the fuel tank, preventing fuel leakage. The snap ring securely holds the ICV in place, while the tank insert ensures a proper fit and seal within the fuel tank.
Overall, the use of machined or cast aluminium in ICVs provides a combination of durability, lightweight construction, and corrosion resistance. The versatility of aluminium allows for the creation of ICVs that can be tailored to specific fuel system designs, ensuring proper fuel flow control and preventing fuel leakage.
Eradicating Surface Rust from Your Fuel Tank
You may want to see also
Explore related products
Fuel control valves deliver the necessary fuel volume to maintain pressure
Fuel control valves are an essential component of any diesel system, playing a critical role in maintaining efficiency, safety, and performance. By delivering the necessary fuel volume, these valves ensure that the system operates within safe parameters and that the engine receives just enough fuel to maintain pressure and avoid fuel wastage.
The inlet control valve, for example, ensures proper fuel flow into the fuel tank during refueling. As the tank reaches full capacity, the inlet valve works with the fill limit vent valve to prevent spitback and automatic nozzle shutoff. This prevents overfilling and the associated safety risks and spills.
In diesel systems, flow control valves are particularly important. They regulate the rate at which diesel fuel is delivered, ensuring it is supplied at the correct speed and quantity. This prevents issues such as overfilling and pressure build-up, which could lead to equipment damage.
The inflow control valve, for instance, ensures that fuel enters at a steady rate, protecting the system from overfilling and pressure build-up. This is crucial in diesel storage tanks to avoid safety risks and spills. Similarly, the volume control valve in diesel systems regulates the amount of fuel that enters, ensuring the correct volume reaches the engine or fuel tank.
Overall, fuel control valves are critical in maintaining pressure by delivering the necessary fuel volume. They optimize the fuel delivery process, enhancing system efficiency, reducing operational costs, and ensuring the safe and reliable operation of the engine.
Fuel Tank Capacity: How Much Is Enough?
You may want to see also
Frequently asked questions
A fuel tank inlet control valve, also known as an Inlet Check Valve (ICV), is a normally closed valve that controls the flow of fuel into the fuel tank during refueling. It works in conjunction with the fill limit vent valve to prevent spitback and wellback, ensuring automatic nozzle shutoff when the tank is full. ICVs are designed for use with plastic or metal tanks and can be used in various applications, including PZEV vehicles.
Fuel tank inlet control valves offer several benefits. They help prevent spitback and wellback (the reverse flow of fuel out of the fill pipe after refueling), ensuring a safe and clean refueling process. They also provide over-fill and over-pressure relief safety features when used in certain systems. Additionally, ICVs can eliminate the need for multiple hose clamps and leak points, simplifying the fuel system design and reducing potential leak points.
If you notice any issues with the refueling process, such as spitback or wellback, it may indicate a problem with the inlet control valve. In some cases, a failed fuel filler neck inlet check valve may require replacement. It is recommended to consult a professional technician or refer to the vehicle manufacturer's recommendations to determine if replacement is necessary.
