A fuel tank return pipe, also known as a fuel return line, is a hose that returns unused or excess fuel from the engine back to the fuel tank. This process is necessary for fuel pressure regulation and to prevent fuel leaks and vapor lock. The return line provides nearly constant pressure to the injectors and helps keep gasoline in the fuel lines cool by flushing out any vapour bubbles that might form. However, one drawback of this system is that the fuel returned to the tank is hotter, which can affect the fuel's combustibility and the vehicle's overall efficiency.
Explore related products
What You'll Learn
- The fuel return line is a hose that returns unused fuel from the engine to the tank
- The return line is necessary to prevent vapor lock in the fuel system
- Fuel leaks and vapor lock are signs that the fuel return line is compromised
- Fuel injection systems may or may not have return lines
- Returnless fuel systems are more efficient than return-type fuel systems
The fuel return line is a hose that returns unused fuel from the engine to the tank
The fuel return line is an essential part of a vehicle's fuel system, specifically those with carbureted engines. It is a hose that plays a crucial role in returning unused or excess fuel from the engine back to the fuel tank. This process ensures that the fuel system maintains optimal pressure and temperature, preventing issues such as fuel leaks and vapor lock.
The fuel return line operates in conjunction with the fuel pump, which continuously pumps fuel through the system at a higher rate than required. This continuous flow of fuel serves multiple purposes. Firstly, it helps to keep the gasoline in the fuel lines cool, preventing overheating. Secondly, it flushes out any vapor bubbles that may form, mitigating the risk of vapor lock. By addressing these issues, the fuel return line contributes to the overall safety and efficiency of the engine.
It is important to note that not all fuel systems have a fuel return line. Most carburetors, for instance, do not require one due to their weak electric pump. However, in systems with a return line, it is vital that it functions properly. A faulty fuel return line can lead to fuel leaks and poor engine performance, emphasizing the importance of regular maintenance and prompt replacement if any issues are suspected.
The fuel return line is designed to handle excess fuel, ensuring it does not build up within the engine. This excess fuel is routed back to the fuel tank, maintaining a balanced fuel cycle. Additionally, the return line helps to rid the system of air, further optimizing the engine's performance. By returning the fuel to the tank, the return line contributes to efficient fuel management and helps regulate fuel pressure.
In summary, the fuel return line, present in some vehicle fuel systems, is responsible for returning unused or excess fuel from the engine to the fuel tank. It plays a critical role in maintaining fuel pressure, preventing fuel leaks, and optimizing engine performance. While not all vehicles have a fuel return line, those that do rely on it to ensure the safe and efficient operation of the engine.
Understanding the Working of an RC Fuel Tank
You may want to see also
Explore related products
The return line is necessary to prevent vapor lock in the fuel system
A fuel tank return pipe, or return line, is a component of a fuel system that returns unused fuel from the engine to the tank. The return line is necessary to prevent vapor lock in the fuel system. Vapor lock is a problem caused by liquid fuel turning into vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in a transient loss of power or complete stalling.
Vapor lock is more likely to occur when the vehicle is in traffic, as the under-hood temperature tends to rise. It can also occur when the engine is stopped while hot and the vehicle is parked for a short period, causing the fuel in the line near the engine to heat up and form a vapour. The problem is more likely to occur in hot weather or at high altitudes. The higher the volatility of the fuel, the more likely it is that vapor lock will occur.
The return line helps to prevent vapor lock by keeping the gasoline in the fuel lines cool and flushing out any vapour bubbles that might form. The fuel pump is always moving fuel, and the return line allows this fuel to be returned to the tank, preventing it from heating up and vaporizing in the fuel lines. This also helps to maintain nearly constant pressure to the injectors.
In modern engines, the fuel pump is often located inside the fuel tank, which helps to prevent vapor lock as the entire fuel delivery system is under positive pressure, and the fuel pump runs cooler than it would in the engine compartment. This also prevents vapour lock by removing fuel vapour from the fuel line near the engine, returning it to the fuel tank to be condensed back into a liquid.
Locomotive Fuel Tanks: How Much Fuel Do They Hold?
You may want to see also
Explore related products
Fuel leaks and vapor lock are signs that the fuel return line is compromised
A fuel tank return pipe, also known as a fuel return line, is a hose that transfers excess fuel from the engine back to the fuel tank. This is necessary because the fuel pump is always pumping fuel, and when it is not being used by the injectors, it needs to go back to the tank.
Fuel leaks and vapor lock are two of the most common signs that the fuel return line has been compromised. Fuel leaks can occur if the fuel return hose gets punctured or worn out, causing fuel to accumulate under the car and creating a strong fuel smell. This is a serious issue as a small spark could cause a fire. Even if there is no leak, a kink in the fuel return line can cause the engine to produce strong fuel odours.
Vapor lock occurs when the fuel in the line heats up due to its proximity to the engine, changing from a liquid to a gaseous state. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in transient loss of power or complete stalling. Restarting the engine after vapor lock can be difficult. Performance problems such as misfires, poor acceleration, and reduced fuel efficiency may also occur.
Vapor lock is more likely to occur in older gasoline-fuel systems with low-pressure mechanical fuel pumps driven by the engine. Modern fuel systems are less prone to vapor lock as they often have the fuel pump located inside the tank, keeping the fuel delivery system under positive pressure and preventing the fuel from heating up.
To prevent vapor lock, some fuel delivery systems allow fuel vapour to be returned to the fuel tank to be condensed back into a liquid. Alternatively, an active carbon-filled canister can be used to absorb the fuel vapour.
Using Regular Fuel in Oil Tanks: Safe or Not?
You may want to see also
Explore related products
Fuel injection systems may or may not have return lines
Return lines are high-pressure fuel lines that transfer unused fuel from the engine back to the fuel tank. They are an essential component of a vehicle's engine operation and performance. Return lines help maintain nearly constant pressure in the injectors, irrespective of the demand. They also play a crucial role in keeping the gasoline in the fuel lines cool and preventing vapor lock in the fuel system.
Returnless fuel injection systems, on the other hand, do not have return lines. These systems are often referred to as "On Demand" systems as they use a fuel tank pressure sensor to monitor fuel pressure and adjust the fuel pump's speed accordingly. Returnless systems typically operate at a higher pressure than return-type systems to prevent fuel boiling and vapor lock.
The size of the return line is important. It should be the same size or one size larger than the feed line to ensure proper functioning of the regulator. Upgrading to a larger return line may not provide any benefits and could increase costs and complexity.
Return-type systems have some drawbacks. The continual heating and cooling of fuel in these systems can alter the chemical properties of the fuel, affecting combustibility and overall vehicle efficiency. Return-type systems also increase evaporative fuel vapour emissions.
Fuel Tank Safety: Hazards of External Fuel Storage
You may want to see also
Explore related products
Returnless fuel systems are more efficient than return-type fuel systems
Returnless fuel systems are becoming more common in newer vehicles due to tightening federal environmental regulations. They are more efficient than return-type fuel systems in several ways. Firstly, return-style systems require fuel pumps to work continuously as long as the engine is running, which can shorten the pump's lifespan. In contrast, returnless fuel systems use an in-tank pump and regulator, with a single fuel line exiting the tank and travelling to the engine, making the plumbing system simpler and cheaper to design and build.
Return-style systems also require a separate return line from the regulator to the tank, which is not needed in returnless systems. This reduces the amount of harmful evaporative emissions released from the vehicle. Additionally, returnless fuel systems use a powertrain control module (PCM) to regulate fuel delivery. A fuel pressure sensor mounted on the supply rail of the fuel injectors allows the PCM to monitor fuel pressure. If the fuel pressure and flow decrease due to increased engine speed or load, the PCM compensates by increasing the injector duration or operating speed of the fuel pump.
Another advantage of returnless fuel systems is their ability to maintain nearly constant pressure at the injectors, regardless of actual demand. This is achieved through computer-controlled pressure regulation, which adjusts the pump speed or fuel injector rate accordingly. Furthermore, returnless systems eliminate the need for constant pumping of fuel at a much higher rate than needed, as seen in return-style systems. This constant pumping is necessary in return-style systems to keep the gasoline in the fuel lines cool and to prevent vapor lock by flushing out vapor bubbles.
While return-style systems have their advantages in terms of mechanical simplicity and consistency, returnless fuel systems offer improved efficiency, reduced emissions, and enhanced fuel pressure regulation. These factors make returnless fuel systems a more modern and environmentally friendly choice for vehicles.
Silica Beads: A Safe Fuel Tank Additive?
You may want to see also
Frequently asked questions
A fuel tank return pipe, also known as a fuel return line, is a part that's present in carbureted vehicles. It routes excess fuel from the engine back to the tank.
A fuel tank return pipe is essential for engine operation and performance. It helps to rid the system of air and keeps the gasoline in the fuel lines cool, flushing out any vapour bubbles that might form.
Fuel leaks and vapour lock are two of the most common signs that your fuel tank return pipe is compromised. Poor engine performance could also indicate a faulty fuel return line.

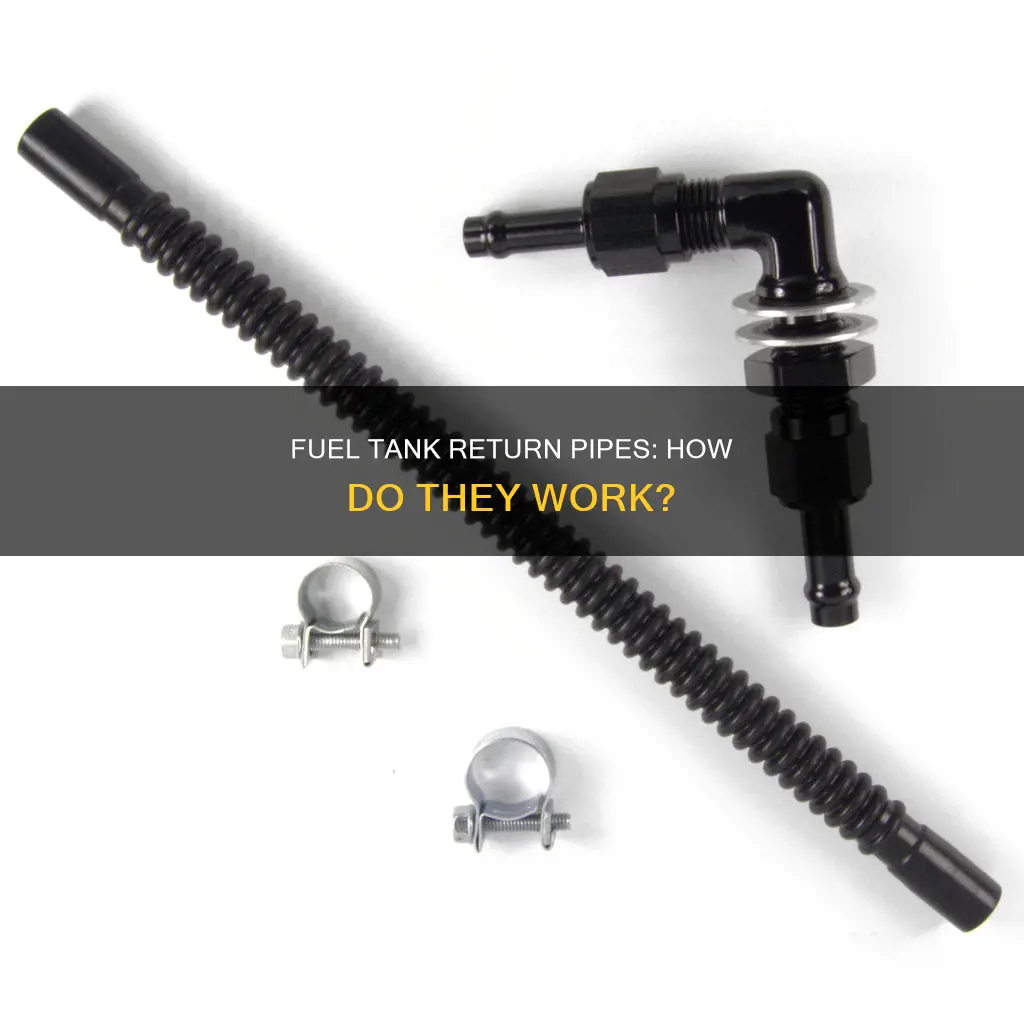

A fuel tank return port kit allows you to return the fuel below the fuel level in tanks that are as deep as 11 inches. It includes EFI-style hose clamps and a bulkhead nut.
