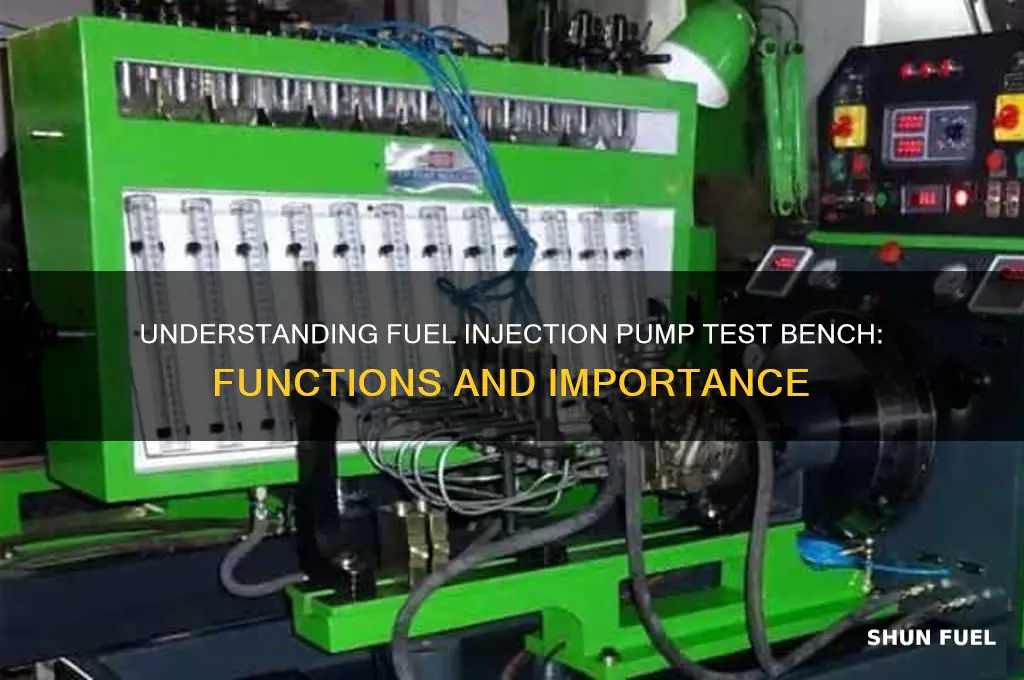

A fuel injection pump test bench is a specialized diagnostic and calibration tool used to evaluate the performance and efficiency of fuel injection pumps, which are critical components in diesel engines. This equipment simulates real-world operating conditions to test the pump's pressure, timing, and fuel delivery accuracy, ensuring it meets manufacturer specifications. By analyzing parameters such as fuel flow rate, injection timing, and mechanical integrity, the test bench helps identify faults, optimize performance, and extend the lifespan of the pump. Widely used in automotive workshops, manufacturing plants, and research facilities, it plays a vital role in maintaining engine reliability, reducing emissions, and improving fuel efficiency.
Explore related products
What You'll Learn
- Test Bench Components: Overview of key parts like sensors, actuators, and control units in the setup
- Calibration Procedures: Steps to adjust fuel injection pump timing and pressure for accuracy
- Performance Testing: Methods to evaluate pump efficiency, flow rate, and fuel delivery under load
- Diagnostic Tools: Use of software and hardware to identify pump faults and malfunctions
- Maintenance Tips: Best practices for cleaning, lubricating, and prolonging test bench lifespan
Test Bench Components: Overview of key parts like sensors, actuators, and control units in the setup
A fuel injection pump test bench is a specialized diagnostic tool designed to evaluate the performance and efficiency of fuel injection pumps, ensuring they meet precise operational standards. At its core, the test bench simulates real-world conditions to assess the pump’s functionality, accuracy, and durability. Central to this setup are its components, each playing a critical role in delivering reliable results. These include sensors, actuators, and control units, which collectively form the backbone of the test bench’s operation.
Sensors are the eyes and ears of the test bench, capturing critical data points such as pressure, temperature, and flow rate. For instance, pressure sensors monitor the fuel delivery pressure, ensuring it aligns with manufacturer specifications, often within a range of 1,500 to 2,500 bar for modern diesel injection pumps. Temperature sensors track the operating temperature, crucial for preventing overheating during prolonged testing. Flow sensors measure the volume of fuel delivered per unit time, typically calibrated to detect deviations as small as 0.1 liters per minute. These sensors feed real-time data to the control unit, enabling precise adjustments and diagnostics.
Actuators serve as the test bench’s muscles, physically manipulating the fuel injection pump to simulate various operating conditions. Common actuators include hydraulic or electric motors that drive the pump, and solenoid valves that control fuel flow. For example, a stepper motor might adjust the pump’s speed from 500 to 4,000 RPM, mimicking engine idle to full load conditions. Actuators must operate with high precision, as even minor deviations can skew test results. Regular calibration, such as checking solenoid response times (ideally under 10 milliseconds), ensures accuracy.
The control unit is the brain of the test bench, orchestrating the interaction between sensors and actuators. It processes incoming data, executes test protocols, and logs results for analysis. Modern control units often feature programmable logic controllers (PLCs) or microprocessors capable of running complex algorithms. For instance, a control unit might simulate a cold start condition by reducing fuel temperature to -10°C and increasing pump speed gradually. Operators should ensure the control unit’s firmware is up-to-date to leverage the latest diagnostic capabilities and compatibility with newer pump models.
In practice, integrating these components requires careful planning. For example, sensors must be positioned to avoid interference from vibrations or heat, while actuators need robust mounting to handle mechanical stress. A well-designed test bench not only diagnoses pump issues but also predicts potential failures, saving time and costs in maintenance. By understanding the roles of sensors, actuators, and control units, technicians can optimize the test bench’s performance, ensuring fuel injection pumps operate at peak efficiency in real-world applications.
Failing Fuel Pump: A Hidden Culprit Behind High NOx Emissions?
You may want to see also
Explore related products
Calibration Procedures: Steps to adjust fuel injection pump timing and pressure for accuracy
Fuel injection pump calibration is a precise art, demanding meticulous attention to timing and pressure adjustments. Even minor deviations can lead to inefficient combustion, reduced power, and increased emissions. A fuel injection pump test bench serves as the crucible for this process, providing a controlled environment to simulate engine conditions and measure the pump's performance.
Imagine a finely tuned orchestra where each instrument must play in perfect harmony. Similarly, the fuel injection pump, the conductor of the engine's symphony, requires precise calibration to ensure optimal fuel delivery.
Step 1: Preparation and Baseline Measurement
Before embarking on calibration, ensure the test bench is properly set up and the pump is securely mounted. Connect the necessary sensors to monitor pressure, timing, and flow rate. Initiate the test bench, allowing it to reach operating temperature. Record baseline readings for timing and pressure at various engine speeds and loads. These initial measurements serve as a reference point for subsequent adjustments.
Step 2: Timing Adjustment: The Dance of Precision
Timing adjustment involves synchronizing the pump's fuel delivery with the engine's piston movement. Using the test bench controls, incrementally advance or retard the pump's timing while monitoring the pressure and flow rate. Aim for a smooth and consistent fuel delivery curve across the entire engine operating range. Refer to the manufacturer's specifications for the optimal timing window, typically expressed in degrees before top dead center (BTDC).
Step 3: Pressure Calibration: Balancing Force and Efficiency
Pressure calibration focuses on achieving the correct fuel pressure for efficient atomization and combustion. Adjust the pump's pressure regulator, gradually increasing or decreasing the pressure while observing the spray pattern and flow rate. Excessive pressure can lead to fuel wastage and injector wear, while insufficient pressure results in poor atomization and incomplete combustion. Target pressure values vary depending on the engine type and fuel used, typically ranging from 2000 to 3000 psi for diesel engines.
Cautions and Considerations:
- Safety First: Always prioritize safety when working with fuel systems. Ensure proper ventilation and wear protective gear.
- Manufacturer Guidelines: Adhere strictly to the manufacturer's recommended procedures and specifications for your specific pump model.
- Incremental Adjustments: Make small, incremental changes to timing and pressure, allowing the system to stabilize before recording measurements.
- Documentation: Meticulously document all adjustments and readings for future reference and troubleshooting.
Calibration is a critical aspect of maintaining optimal engine performance and fuel efficiency. By following these steps and exercising caution, you can ensure your fuel injection pump operates within the desired parameters, contributing to a smoother, more powerful, and environmentally friendly engine. Remember, precision is paramount in this process, and the fuel injection pump test bench is your indispensable tool for achieving it.
Locate the Fuel Pump Relay in Your 1999 CRV Easily
You may want to see also
Explore related products
Performance Testing: Methods to evaluate pump efficiency, flow rate, and fuel delivery under load
Fuel injection pump test benches are critical tools for assessing the performance and reliability of these pumps, which are the heart of any diesel engine's fuel system. Performance testing on these benches goes beyond mere functionality checks; it involves a meticulous evaluation of pump efficiency, flow rate, and fuel delivery under various load conditions. This ensures that the pump can meet the engine's demands across its entire operating range, from idle to full throttle.
Analytical Approach: Understanding Efficiency Metrics
Efficiency in a fuel injection pump is measured by its ability to convert mechanical energy into fuel pressure with minimal losses. Test benches use precision sensors to monitor input power and output pressure, calculating efficiency as a ratio of useful work to energy consumed. For instance, a pump operating at 85% efficiency under full load indicates optimal performance, while deviations may suggest internal wear or calibration issues. Analyzing these metrics helps identify inefficiencies, such as excessive leakage or friction, which can degrade engine performance and fuel economy.
Instructive Method: Flow Rate Testing Under Load
To evaluate flow rate, the pump is subjected to simulated engine loads while measuring fuel delivery volume over time. Technicians adjust the test bench to mimic different RPMs and pressures, ensuring the pump meets manufacturer specifications. For example, a pump designed for a 6-cylinder diesel engine might need to deliver 150 liters of fuel per hour at 2,500 RPM. Deviations from this benchmark could indicate clogged injectors, worn plungers, or faulty timing. Regular flow rate testing ensures consistent fuel supply, critical for preventing engine misfires or power loss.
Comparative Analysis: Fuel Delivery Under Varying Loads
Fuel delivery under load is assessed by comparing pump performance across low, medium, and high-load conditions. Test benches simulate these scenarios using hydraulic or electronic actuators, measuring pressure differentials and response times. For instance, a pump that delivers 200 bar at idle but drops to 180 bar under full load may have insufficient capacity for heavy-duty applications. Comparative testing highlights weaknesses in pump design or maintenance, allowing for targeted repairs or upgrades.
Descriptive Technique: Practical Tips for Accurate Testing
Accurate performance testing requires attention to detail. Ensure the pump is securely mounted on the test bench and all connections are leak-free. Use calibrated instruments to measure pressure, flow, and temperature, as even minor discrepancies can skew results. For example, a temperature variance of 5°C can alter fuel viscosity, affecting flow rate readings. Additionally, document baseline performance during initial testing to establish a reference point for future evaluations. These steps ensure reliable data, enabling precise diagnostics and maintenance decisions.
Persuasive Argument: The Importance of Load Testing
Load testing is not just a technical exercise; it’s a safeguard against costly engine failures. A pump that performs well at idle may falter under stress, leading to reduced power, increased emissions, or even catastrophic damage. By simulating real-world conditions, test benches reveal hidden issues before they manifest on the road or in the field. Investing in comprehensive performance testing ensures longevity, efficiency, and safety, making it an indispensable practice for diesel engine maintenance.
Failing Fuel Pump: Will It Trigger a Diagnostic Trouble Code?
You may want to see also
Explore related products
$39.78 $45.89
Diagnostic Tools: Use of software and hardware to identify pump faults and malfunctions
Fuel injection pump test benches are essential for diagnosing and rectifying issues in diesel engines, ensuring optimal performance and longevity. Among the most critical components of these test benches are diagnostic tools—a blend of sophisticated software and precision hardware designed to pinpoint pump faults and malfunctions with accuracy. These tools are not just about identifying problems; they are about providing actionable insights that can save time, reduce costs, and prevent catastrophic engine failures.
Analytical Insight:
Modern diagnostic tools leverage advanced algorithms and real-time data analysis to assess fuel injection pump performance. For instance, software interfaces can monitor parameters such as injection pressure, timing, and fuel flow rate, comparing them against manufacturer specifications. Hardware components, such as pressure sensors and flow meters, capture precise measurements, ensuring that even minor deviations are detected. This dual approach allows technicians to diagnose issues like worn plungers, sticking injectors, or timing irregularities with surgical precision. For example, a pump delivering fuel at 1,800 bar instead of the required 2,000 bar can be flagged instantly, preventing inefficient combustion and potential engine damage.
Instructive Steps:
To effectively use diagnostic tools, follow these steps: First, connect the hardware components—such as pressure transducers and flow sensors—to the fuel injection pump on the test bench. Ensure all connections are secure to avoid data inaccuracies. Second, initialize the diagnostic software, selecting the specific pump model and engine type from the database. Third, run a series of tests, including idle, mid-range, and full-load simulations, while monitoring the software’s real-time feedback. Fourth, analyze the generated reports, which often include graphs, error codes, and recommendations. For instance, a report might highlight a 10% variance in injection timing, suggesting a calibration adjustment or component replacement.
Persuasive Argument:
Investing in high-quality diagnostic tools is not just a technical necessity but a strategic business decision. The ability to quickly identify and resolve pump malfunctions minimizes downtime, a critical factor in industries reliant on diesel engines, such as trucking, agriculture, and marine operations. For example, a single day of downtime for a commercial truck can cost upwards of $700 in lost revenue. By contrast, a diagnostic tool that identifies a faulty pump in minutes, rather than hours, pays for itself in efficiency gains. Moreover, accurate diagnostics reduce the risk of misdiagnosis, which can lead to unnecessary part replacements and inflated repair costs.
Comparative Analysis:
While traditional methods of pump testing relied on manual inspections and rudimentary gauges, modern diagnostic tools offer unparalleled advantages. For instance, older systems could only detect obvious faults, such as complete pump failure, whereas contemporary software can identify subtle issues like gradual wear or inconsistent fuel delivery. Additionally, modern tools provide historical data tracking, allowing technicians to monitor pump performance over time and predict potential failures before they occur. This proactive approach contrasts sharply with reactive, break-fix methodologies, which are both costly and inefficient.
Practical Tips:
To maximize the effectiveness of diagnostic tools, ensure regular calibration of hardware components to maintain accuracy. Keep the software updated to include the latest pump models and diagnostic algorithms. Train technicians to interpret complex data outputs, as understanding error codes and graphs is crucial for effective troubleshooting. For example, a technician should know that a "P0234" code indicates over-fueling, which could stem from a malfunctioning pressure control valve. Finally, integrate diagnostic tools with maintenance schedules to create a comprehensive pump health management system, ensuring longevity and reliability.
By combining cutting-edge software and hardware, diagnostic tools transform fuel injection pump test benches into powerful instruments of precision and efficiency, safeguarding engines and the operations they power.
Effective Methods to Shut Off Fuel Pump When No Flow Detected
You may want to see also
Explore related products
Maintenance Tips: Best practices for cleaning, lubricating, and prolonging test bench lifespan
A fuel injection pump test bench is a specialized piece of equipment used to diagnose, calibrate, and test the performance of fuel injection pumps in diesel engines. Given its precision and complexity, proper maintenance is critical to ensure accurate results and extend its operational lifespan. Neglecting this can lead to costly repairs or unreliable testing outcomes. Here’s how to keep your test bench in optimal condition.
Cleaning is the cornerstone of test bench maintenance. Dust, debris, and fuel residue can accumulate on sensors, valves, and moving parts, leading to inaccurate readings or mechanical failures. Use a soft, lint-free cloth to wipe down surfaces weekly, focusing on areas prone to buildup. For stubborn residue, apply a mild solvent recommended by the manufacturer—avoid harsh chemicals that could damage seals or coatings. Inspect filters monthly and replace them if clogged, as restricted airflow can strain the system. A systematic cleaning routine not only preserves functionality but also prevents cross-contamination between tests.
Lubrication is equally vital, but it requires precision. Over-lubrication can attract dust and create sludge, while under-lubrication leads to excessive wear. Apply a high-quality, manufacturer-approved lubricant to bearings, gears, and sliding components every 3–6 months, depending on usage frequency. Use a precision applicator to avoid excess, and wipe away any drips immediately. For pneumatic components, ensure the air supply is clean and dry to prevent moisture-related corrosion. Regularly inspect lubricated parts for signs of wear, replacing components as needed to avoid cascading damage.
Prolonging the test bench’s lifespan involves proactive measures beyond routine care. Calibrate the equipment at least annually, or more frequently if used in high-volume testing environments. Keep detailed maintenance logs to track cleaning, lubrication, and calibration schedules, as well as any issues encountered. Store the test bench in a controlled environment—away from extreme temperatures, humidity, and direct sunlight—to prevent material degradation. Finally, train operators to handle the equipment properly, emphasizing the importance of gentle operation and immediate reporting of anomalies.
By adhering to these best practices, you can maximize the accuracy, reliability, and longevity of your fuel injection pump test bench. A well-maintained system not only delivers consistent performance but also reduces downtime and operational costs, making it a sound investment for any diesel engine maintenance facility.
Signs Your Fuel Pump is Failing: What to Look For
You may want to see also
Frequently asked questions
A fuel injection pump test bench is a specialized testing equipment used to diagnose, calibrate, and evaluate the performance of fuel injection pumps, ensuring they operate within specified parameters for optimal engine efficiency.
It is crucial for maintaining fuel injection systems, as it helps identify issues like fuel delivery inconsistencies, pressure deviations, or mechanical faults, ensuring reliable engine performance and fuel efficiency.
The test bench simulates engine operating conditions, measures fuel delivery rates, pressure, and timing, and compares the results against manufacturer specifications to assess the pump's functionality.
It is primarily used by automotive technicians, diesel mechanics, and engineers in workshops, repair centers, and manufacturing facilities to test and calibrate fuel injection pumps for vehicles and machinery.
