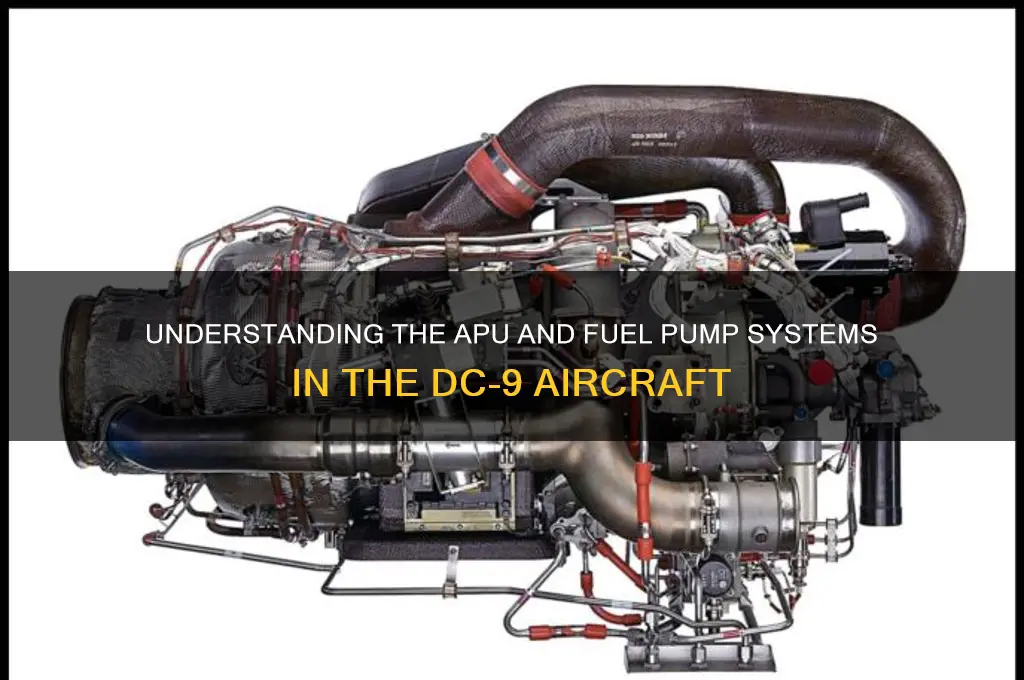

The Douglas DC-9, a pioneering twin-engine jet airliner, introduced several key components that were critical to its operation, including the Auxiliary Power Unit (APU) and the fuel pump. The APU is a small gas turbine engine that provides electrical power and compressed air for the aircraft’s systems when the main engines are not running, enabling ground operations and reducing reliance on external power sources. Complementing this, the fuel pump ensures a consistent and pressurized flow of fuel from the tanks to the engines, maintaining optimal performance during flight. Together, these components played a vital role in the DC-9’s efficiency, reliability, and operational flexibility, making it a cornerstone of short-haul aviation during its era.
| Characteristics | Values |
|---|---|
| APU (Auxiliary Power Unit) | Provides electrical power and pneumatic air when main engines are off. |
| APU Location | Mounted in the rear fuselage of the DC-9. |
| APU Power Output | Typically 40-60 kVA (kilovolt-amperes) for electrical systems. |
| APU Air Output | Supplies pneumatic air for air conditioning and engine starting. |
| APU Fuel Consumption | Approximately 150-200 pounds per hour (varies by model). |
| Fuel Pump Type | Boost pumps and transfer pumps (electrically driven). |
| Fuel Pump Location | Installed in the wing fuel tanks and fuselage. |
| Fuel Pump Function | Maintains fuel pressure to engines and transfers fuel between tanks. |
| Fuel Pump Power Source | Powered by the aircraft's electrical system (28V DC). |
| Fuel Pump Flow Rate | ~100-150 gallons per minute (varies by model and engine demand). |
| DC-9 APU Manufacturer | Allison (now Rolls-Royce) for most DC-9 models. |
| DC-9 Fuel System Capacity | Approximately 4,500-6,000 gallons (varies by model). |
| APU Start Time | Typically 1-2 minutes to reach full operational capacity. |
| Fuel Pump Redundancy | Multiple pumps ensure system reliability and backup functionality. |
| APU Maintenance Interval | ~1,500-2,000 hours between overhauls (varies by usage). |
| Fuel Pump Maintenance | Regular inspections and replacement as part of routine maintenance. |
Explore related products
What You'll Learn
- APU Functionality: Auxiliary Power Unit provides independent electrical and pneumatic power for DC-9 aircraft systems
- Fuel Pump Role: Fuel pumps ensure consistent fuel flow to engines during all flight phases on DC-9
- APU Location: Typically mounted in the rear fuselage of the DC-9 for accessibility and balance
- Fuel Pump Types: DC-9 uses boost and transfer pumps for efficient fuel management and distribution
- Maintenance Considerations: Regular checks on APU and fuel pumps are critical for DC-9 safety and reliability
APU Functionality: Auxiliary Power Unit provides independent electrical and pneumatic power for DC-9 aircraft systems
The Auxiliary Power Unit (APU) on the DC-9 aircraft is a compact, self-contained system that serves as a secondary power source, independent of the main engines. Mounted in the tail section, the APU generates both electrical power and pneumatic (compressed air) power, ensuring critical aircraft systems remain operational during various phases of flight and while on the ground. This dual functionality is essential for maintaining cabin pressurization, powering avionics, and enabling engine starts without reliance on external ground support.
Consider the APU as the DC-9’s onboard power plant. When the main engines are off, the APU’s electrical generator supplies power to lighting, instruments, and communication systems, while its pneumatic output maintains air conditioning and hydraulic system functionality. This independence is particularly critical during ground operations, such as pre-flight checks or passenger boarding, where external power units may not be available or practical. For instance, the APU’s pneumatic power is vital for starting the main engines, as it drives the air turbine starter, eliminating the need for ground-based air carts.
One of the APU’s standout features is its ability to operate at high altitudes, where ambient air density is low. Designed to perform efficiently up to 41,000 feet, the APU ensures uninterrupted power supply during climbs, descents, and cruising. However, pilots must monitor fuel consumption, as the APU burns approximately 200–250 pounds of fuel per hour, depending on load and altitude. This rate underscores the importance of strategic APU usage, especially on longer flights where fuel efficiency is paramount.
Practical tips for APU management include starting it early during pre-flight preparations to allow systems to stabilize and conducting regular maintenance checks to ensure reliability. Operators should also be aware of the APU’s load limits; overloading can lead to premature wear or failure. For example, running high-demand systems like air conditioning at maximum capacity while the APU is powering engine starts can strain the unit. Balancing usage with operational needs is key to maximizing its lifespan.
In comparison to other aircraft systems, the DC-9’s APU stands out for its versatility and reliability. Unlike single-function units found on smaller aircraft, the DC-9’s APU integrates seamlessly with both electrical and pneumatic systems, offering a robust solution for diverse operational scenarios. Its design reflects the era’s engineering priorities, emphasizing redundancy and self-sufficiency, making it a cornerstone of the DC-9’s operational efficiency. Understanding its capabilities and limitations ensures pilots and maintenance crews can leverage the APU effectively, enhancing safety and performance across every flight.
Facet Electric Fuel Pump Amp Draw: Understanding Power Consumption
You may want to see also
Explore related products
Fuel Pump Role: Fuel pumps ensure consistent fuel flow to engines during all flight phases on DC-9
The DC-9, a workhorse of the skies during its operational years, relied on a meticulously designed fuel system to power its engines. At the heart of this system lies the fuel pump, a critical component tasked with a singular, vital mission: ensuring a consistent and uninterrupted flow of fuel to the engines throughout every phase of flight. From the initial taxiing on the runway to the final descent and landing, the fuel pump operates silently yet relentlessly, its performance directly impacting the aircraft's safety and efficiency.
Without this constant flow, engine performance would fluctuate, potentially leading to power loss, stalls, or even engine failure, particularly during critical phases like takeoff and climb.
Imagine the fuel pump as the aircraft's circulatory system, constantly drawing fuel from the tanks and delivering it to the thirsty engines. This process is not as simple as it seems. The pump must overcome the forces of gravity, especially during climbs and maneuvers, ensuring fuel reaches the engines regardless of the aircraft's attitude. It must also maintain the correct pressure and flow rate, as insufficient fuel delivery can lead to engine surge or flameout, while excessive pressure can damage engine components. The DC-9's fuel pumps are typically located within the fuel tanks themselves, submerged in the fuel to prevent cavitation and ensure a constant supply.
These pumps are often electrically driven, drawing power from the aircraft's electrical system, and are designed to operate reliably even in the event of a single pump failure, ensuring redundancy and safety.
The importance of the fuel pump's role becomes even more apparent when considering the DC-9's flight profile. During takeoff, the engines demand a high fuel flow to generate the necessary thrust for ascent. The fuel pump must respond instantly, delivering fuel at a rate that matches the engine's increasing demand. As the aircraft climbs and levels off, the pump adjusts the flow to maintain optimal engine performance while conserving fuel. During descent, the pump continues to supply fuel, ensuring a smooth and controlled approach. Even on the ground, the fuel pump plays a crucial role, providing fuel for engine start and APU operation.
Understanding the fuel pump's function highlights the intricate interplay between various aircraft systems. It underscores the importance of regular maintenance and inspections to ensure the pump's reliability. Pilots and maintenance crews must be vigilant for any signs of pump malfunction, such as unusual engine noises, fluctuations in fuel pressure, or unexpected fuel consumption rates. Prompt identification and resolution of pump issues are paramount to maintaining the DC-9's safety and operational integrity.
Redeem Harris Teeter Fuel Points Effortlessly at the Pump: A Guide
You may want to see also
Explore related products
APU Location: Typically mounted in the rear fuselage of the DC-9 for accessibility and balance
The Auxiliary Power Unit (APU) in the DC-9 is strategically positioned in the rear fuselage, a design choice that balances operational efficiency with structural integrity. This location is not arbitrary; it is a result of careful engineering considerations. By mounting the APU at the rear, engineers ensure that the unit is easily accessible for maintenance and inspections, a critical factor in reducing downtime and operational costs. The rear fuselage provides a dedicated space where technicians can work without interfering with other systems, streamlining routine checks and emergency repairs.
From a balance perspective, the APU’s placement in the rear helps distribute the aircraft’s weight more evenly. The DC-9, being a narrow-body jet, benefits from this arrangement as it minimizes the impact on the center of gravity during flight. This is particularly important during takeoff and landing, where even minor weight imbalances can affect performance and safety. The APU’s location also reduces vibration transmission to the cabin, enhancing passenger comfort and protecting sensitive avionics systems from unnecessary stress.
Consider the practical implications of this design for maintenance crews. The rear fuselage location allows for direct access to the APU without disassembling other components, saving time and labor. For instance, replacing a faulty APU on a DC-9 typically takes 4-6 hours, compared to 8-10 hours in aircraft where the APU is buried deeper within the structure. This accessibility is a significant advantage in busy airport environments, where minimizing turnaround times is crucial for profitability.
However, this placement is not without its challenges. The rear fuselage is exposed to higher temperatures due to its proximity to the engines, which can accelerate wear on the APU. To mitigate this, the DC-9 incorporates thermal shielding and advanced cooling systems. Additionally, the APU’s exhaust is directed away from critical areas, reducing the risk of heat damage to surrounding structures. These measures ensure that the benefits of rear-mounted accessibility outweigh the potential drawbacks.
In summary, the APU’s location in the rear fuselage of the DC-9 is a masterclass in engineering trade-offs. It prioritizes accessibility for maintenance, maintains weight balance for optimal flight performance, and addresses thermal challenges through thoughtful design. For operators, this means a more reliable and cost-effective aircraft, while passengers benefit from smoother flights and reduced delays. Understanding this design choice provides valuable insights into the broader principles of aircraft systems integration.
Can Your Car Operate Without a Fuel Pump? Find Out Here
You may want to see also
Explore related products
Fuel Pump Types: DC-9 uses boost and transfer pumps for efficient fuel management and distribution
The DC-9, a workhorse of the aviation industry, relies on a sophisticated fuel system to ensure efficient operation. Central to this system are two types of fuel pumps: boost pumps and transfer pumps. These pumps work in tandem to manage and distribute fuel effectively, addressing the unique challenges of in-flight fuel dynamics. Boost pumps, typically located in the fuel tanks, provide the initial pressure needed to move fuel to the engine-mounted pumps. Transfer pumps, on the other hand, facilitate the movement of fuel between tanks, ensuring balanced weight distribution and optimal fuel availability during various flight phases.
Consider the operational demands of the DC-9: during takeoff and climb, fuel consumption is high, and the boost pumps must deliver a consistent flow to the engines. These pumps are designed to handle specific pressure requirements, often operating at 30-50 psi, to overcome the resistance of fuel lines and engine-driven pumps. Without boost pumps, the engine-mounted pumps would struggle to draw fuel from the tanks, particularly at high altitudes where air pressure is low. This dual-pump system ensures reliability and redundancy, critical for safety in aviation.
Transfer pumps play a complementary role, particularly during long-haul flights. For instance, as fuel is consumed from the wing tanks, the aircraft’s center of gravity shifts. Transfer pumps move fuel from auxiliary tanks to the wing tanks, maintaining balance and stability. This process is automated, triggered by fuel level sensors and controlled by the aircraft’s fuel management system. The pumps operate at lower pressures, typically 10-20 psi, as their primary function is to relocate fuel rather than supply it directly to the engines.
A practical example illustrates their importance: during a transatlantic flight, a DC-9 might start with full auxiliary tanks and partially filled wing tanks. As fuel is consumed, transfer pumps gradually move fuel forward, ensuring the aircraft remains trimmed for optimal performance. Without this system, pilots would need to manually adjust fuel distribution, increasing workload and risk. The integration of boost and transfer pumps thus exemplifies the DC-9’s engineering focus on efficiency and safety.
In summary, the DC-9’s fuel system is a masterclass in specialized pump design. Boost pumps ensure uninterrupted fuel supply to the engines, while transfer pumps maintain aircraft balance by redistributing fuel. Together, they form a robust mechanism that addresses the complexities of in-flight fuel management. Understanding these components highlights the ingenuity behind the DC-9’s enduring legacy in aviation.
Can Fuel RTV Seal a Fuel Pump Leak? Expert Insights
You may want to see also
Explore related products
Maintenance Considerations: Regular checks on APU and fuel pumps are critical for DC-9 safety and reliability
The DC-9's Auxiliary Power Unit (APU) and fuel pumps are vital systems that demand meticulous attention during maintenance routines. Neglecting these components can lead to catastrophic failures, compromising flight safety and operational efficiency. The APU, a small turbine engine, provides electrical power and compressed air for engine starting, while the fuel pumps ensure a consistent fuel supply to the engines. Both systems operate under extreme conditions, making them susceptible to wear and tear. Regular checks are not just recommended; they are imperative to identify potential issues before they escalate.
Analyzing the APU, its routine inspection should include a thorough examination of the combustion chamber, turbine blades, and starter motor. For instance, carbon buildup in the combustion chamber can lead to inefficient operation, while worn turbine blades may result in reduced power output. Maintenance teams should adhere to the manufacturer’s guidelines, such as replacing the APU oil every 500 hours of operation and conducting borescope inspections annually. Similarly, fuel pumps require checks for leaks, filter clogs, and electrical connectivity issues. A clogged fuel filter can restrict flow, causing engine performance degradation, while a faulty pump can lead to fuel starvation mid-flight.
From a comparative perspective, the DC-9’s APU and fuel pumps share similarities with other aircraft systems but have unique design considerations. Unlike larger aircraft, the DC-9’s compact size limits accessibility, making inspections more challenging. Maintenance crews must use specialized tools and follow precise procedures to avoid damaging adjacent components. For example, when replacing a fuel pump, technicians should ensure the new unit is compatible with the DC-9’s fuel system pressure requirements, typically ranging between 30 to 50 psi.
Persuasively, investing in proactive maintenance of these systems is cost-effective in the long run. A single APU failure can ground a DC-9 for days, resulting in significant revenue loss. Regular checks not only extend the lifespan of these components but also reduce the likelihood of emergency repairs. Airlines should allocate resources for training maintenance staff on DC-9-specific systems and invest in diagnostic equipment tailored to these older aircraft. Additionally, maintaining detailed logs of inspections and repairs can help identify recurring issues and inform future maintenance strategies.
Instructively, maintenance teams should follow a structured checklist for APU and fuel pump inspections. Start with a visual inspection for physical damage or leaks, then proceed to functional tests. For the APU, verify startup times and monitor vibration levels using a tachometer. Fuel pumps should be tested for proper pressure and flow rates, ensuring they meet the DC-9’s operational specifications. Any anomalies should be documented and addressed immediately. By adhering to these steps, airlines can ensure the DC-9 remains a reliable workhorse in their fleet, even decades after its production ceased.
Locate the Fuel Pump Fuse in Your 2002 RAV4 Easily
You may want to see also
Frequently asked questions
The APU (Auxiliary Power Unit) on a DC-9 is a small gas turbine engine located in the tail section of the aircraft. It provides electrical power and compressed air for engine starting, air conditioning, and other systems when the main engines are not running.
The fuel pump on a DC-9 is an electric or engine-driven pump that draws fuel from the aircraft’s tanks and delivers it to the engines at the required pressure and flow rate. It ensures a consistent fuel supply during all phases of flight.
The APU provides electrical power to operate the electric fuel pumps when the main engines are not running. This ensures that fuel is available for engine start and other systems during ground operations or in-flight emergencies.
The APU on a DC-9 is located in the rear fuselage, near the tail section of the aircraft. Its position allows it to provide power and air efficiently while minimizing noise and vibration in the cabin.
The DC-9 cannot operate without the fuel pump, as it is essential for delivering fuel to the engines. While the APU is not required for flight, it is crucial for ground operations and emergency situations. If the APU fails, external power sources can be used as an alternative.
