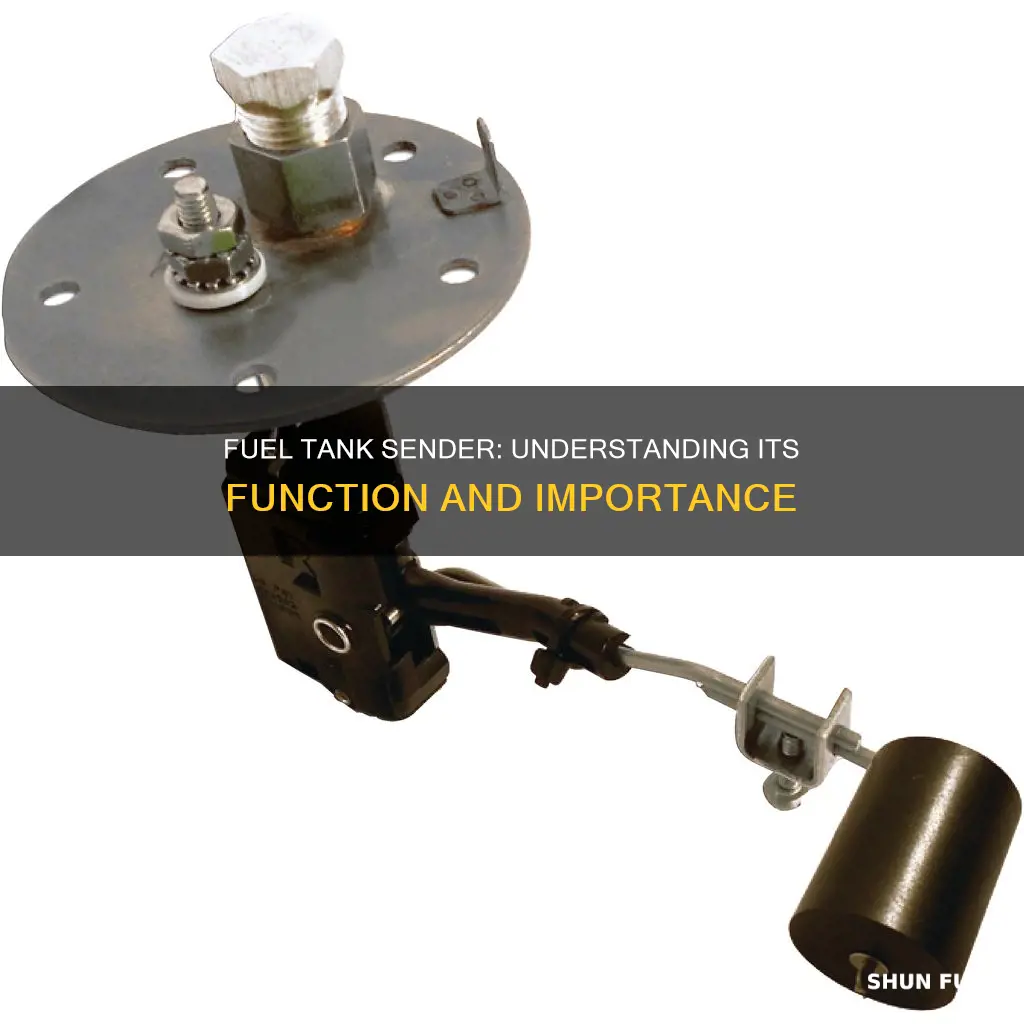

A fuel tank sender, also known as a fuel level sensor or fuel sender unit, is a device used to measure the level of fuel in a tank. It is a critical component in vehicles and aircraft, providing essential information to the fuel gauges so that pilots or drivers can monitor their fuel levels. The fuel sender unit typically consists of a float, electronics, wiring, and a fuel gauge. There are various technologies used in fuel sender units, including capacitance, resistance, ultrasonic principles, and magnetic resonance. When purchasing a fuel tank sender, it is important to consider factors such as the mounting style, signal output, and calibration to ensure accurate readings and compatibility with the fuel tank.
| Characteristics | Values |
|---|---|
| Purpose | Provide information to the fuel gauges to allow monitoring of the fuel level |
| System | Consist of a float, electronics, wiring, and a fuel gauge |
| Technology | Magnetic resonance, capacitance, resistance, or ultrasonic principles |
| Calibration | Customised for unique tank shapes to ensure accurate fuel readings |
| Mounting Style | SAE 5-hole bolt pattern, 1.25” British Standard Pipe thread (BSP), or 1.5” National Pipe Thread (NPT) |
| Ohm Range | American standard (240-33), European standard (0/10-180/190), or custom |
| Signal | Analog or digital (e.g., J1939 or NMEA 2000) |
Explore related products
What You'll Learn
- A fuel sender probe system, also known as a fuel level sensor, uses capacitance, resistance, or ultrasonic principles to measure fuel levels
- Float-based fuel senders provide information to fuel gauges, allowing pilots to monitor fuel levels
- The electrical circuit in a fuel sender system includes the fuel gauge on the dashboard
- The fuel sender unit needs to be calibrated to ensure accurate readings
- The mounting style of the fuel sender unit should be confirmed before purchase
A fuel sender probe system, also known as a fuel level sensor, uses capacitance, resistance, or ultrasonic principles to measure fuel levels
A fuel sender probe system, also referred to as a fuel level sensor, is a device that measures fuel levels in an aircraft's fuel tank. This system relies on capacitance, resistance, or ultrasonic principles to gauge fuel levels.
The capacitance-based fuel sender probe system operates on the principle of capacitance, which involves storing an electric charge between two conductive plates separated by a dielectric material (insulator). The system comprises two main components: the probe assembly inside the fuel tank and the control module located elsewhere in the aircraft. The probe assembly is a long, thin rod or strip made of a non-conductive material, such as plastic or ceramic, and is submerged in the fuel. As the fuel level changes, the capacitance between the conductive probe and the fuel tank walls fluctuates. When more of the probe is immersed in fuel, capacitance increases, and when less of the probe is in contact, capacitance decreases.
The control module, on the other hand, receives the varying capacitance signals from the probe assembly and converts them into electrical signals, typically voltage or frequency. It then processes these electrical signals to determine the fuel level by comparing it to a pre-calibrated table or algorithm that relates capacitance values to fuel levels. This information is then relayed to the aircraft's fuel gauge, providing critical data to the pilot.
In addition to capacitance-based systems, resistance-based and ultrasonic fuel sender probe systems are also employed. These systems utilize different principles to measure fuel levels accurately. It is important to note that fuel sender systems need to be calibrated to ensure accurate readings. Calibration involves setting a range of values corresponding to various fuel levels, ensuring that the fuel gauge accurately reflects the actual fuel level in the tank.
When selecting a fuel sender unit, it is essential to consider factors such as the location of the fuel tank, the available space for mounting the unit, the type of signal output (analog or digital), and the required resistive ohms range. Additionally, the mounting style of the new unit should match the existing setup in the tank to ensure a seamless installation process.
Fuel Tank Sender: Testing and Troubleshooting Guide
You may want to see also
Explore related products
Float-based fuel senders provide information to fuel gauges, allowing pilots to monitor fuel levels
A fuel tank sender, also known as a fuel level sensor or fuel sender unit, is a device used to measure the level of fuel in a tank. There are several types of fuel senders, including float-based senders, probe-based senders, and ultrasonic senders. Float-based fuel senders provide information to fuel gauges, allowing pilots to monitor fuel levels.
Float-based fuel senders consist of a float that sits inside the fuel tank and moves up and down with the fuel level. This float is connected to a measuring device that determines the position of the float and, consequently, the fuel level. The measuring device is part of an electrical circuit that includes the fuel gauge. As the float moves, it changes the electrical signal, and the digital gauge reflects this change. This allows the fuel gauge to display the corresponding fuel level.
The fuel sender system needs to be calibrated to ensure accurate readings. Calibration involves setting a range of values that correspond to various fuel levels. This calibration process ensures that the fuel gauge accurately reflects the actual fuel level in the tank. Proper calibration is crucial for providing accurate information to pilots or drivers.
Float-based fuel senders are commonly used in aircraft fuel tanks, which are typically located in the wings. These senders provide essential information to pilots, enabling them to monitor fuel levels during flight. The system consists of a float, electronics, wiring, and a fuel gauge. Newer technologies, such as magnetic resonance, enhance the accuracy of float-based senders by keeping electronics out of the fuel tank.
When selecting a fuel tank sender, it is important to consider factors such as the mounting style, signal output, and tank shape. The mounting style refers to whether the sender will be top-mounted or side-mounted, depending on the available space and tank configuration. The signal output between the sender and the gauge on the dashboard must also correspond, with options including analog signals, voltage, milliamp, or digital signals. Finally, calibration may be required to ensure accurate readings, especially for unique tank shapes.
Grounding a Fuel Transfer Tank: A Step-by-Step Guide
You may want to see also
Explore related products
The electrical circuit in a fuel sender system includes the fuel gauge on the dashboard
A fuel tank sender, also known as a fuel level sensor or fuel sender unit, is a device used to measure the level of fuel in a tank. This information is then sent to the fuel gauge on the dashboard, providing the driver with a real-time indication of the fuel level. This system is essential for vehicles, especially aircraft, to ensure the safe and efficient operation of the engine.
The fuel sender system typically uses a float-based mechanism, where a float is connected to a measuring device inside the fuel tank. As the float moves up and down with the fuel level, the measuring device detects the change in position and sends an electrical signal through the circuit. This signal is then processed by the control module, which applies the appropriate calibration to determine the corresponding fuel level.
The control module plays a crucial role in the electrical circuit. It receives the electrical signal from the measuring device and converts it into a readable format for the fuel gauge. This module contains circuitry that interprets the signal, typically in the form of voltage or frequency variations. By comparing the signal to pre-calibrated tables or algorithms, the control module can accurately determine the fuel level and ensure the information displayed on the fuel gauge is correct.
The electrical circuit in the fuel sender system is designed to provide an accurate and reliable indication of the fuel level. To ensure precision, the system undergoes calibration, which involves setting the range of values corresponding to various fuel levels. This calibration process is tailored to the unique shape of the fuel tank, ensuring that the fuel gauge reflects the actual fuel quantity present in the tank.
In summary, the electrical circuit in a fuel sender system, including the fuel gauge on the dashboard, is a complex interplay of mechanical and electrical components. This system provides critical information to the driver or pilot, enabling them to make informed decisions about fuel usage and ensuring the safe operation of the vehicle or aircraft.
Cutting into Your Boat: Accessing the Fuel Tank
You may want to see also
Explore related products
The fuel sender unit needs to be calibrated to ensure accurate readings
A fuel tank sender, also known as a fuel level sensor or fuel sender unit, is a device used to measure the fuel level in a vehicle's fuel tank. It is an essential component of the fuel system, providing information to the fuel gauge to indicate the amount of fuel in the tank.
The fuel sender unit typically consists of a float attached to a sensor, which moves up and down with the fuel level. This movement is translated into an electrical signal, which is then sent to the fuel gauge. The gauge is calibrated to interpret this signal and display the corresponding fuel level accurately.
However, over time, or due to various factors such as the installation of new fuel tanks or senders, the fuel sender unit may provide inaccurate readings. To address this, calibration is necessary. Calibration of the fuel sender unit involves setting a range of values that correspond to different fuel levels in the tank. By adjusting the sender unit, the gauge can accurately reflect the actual fuel level.
There are a few methods to calibrate a fuel sender unit. One approach is to use resistors with specific values (such as 20 Ohms, 35 Ohms, 65 Ohms, 105 Ohms, and 222 Ohms) to match the corresponding fuel levels. Alternatively, a variable resistor or potentiometer can be adjusted to fine-tune the calibration. In some cases, the sender unit may need to be removed and adjusted physically, especially if it has plastic components that affect its accuracy.
By properly calibrating the fuel sender unit, drivers can trust the fuel gauge readings and make informed decisions about refuelling, ensuring they don't run out of fuel unexpectedly.
Gladiator Fuel Tank Capacity: How Big Is It?
You may want to see also
Explore related products
The mounting style of the fuel sender unit should be confirmed before purchase
A fuel sender unit, also known as a fuel level sensor, is a device used to measure the fuel level in a vehicle's fuel tank. The unit typically consists of a float, electronics, wiring, and a fuel gauge. The float moves up and down inside the fuel tank, and this movement is translated into an electrical signal that is displayed on the fuel gauge, indicating the fuel level to the driver.
When purchasing a fuel sender unit, it is important to consider the mounting style of the unit to ensure it matches the configuration of your fuel tank. The mounting style refers to the way the unit is physically attached to the fuel tank. There are several standard mounting styles available, including:
- SAE 5 hole bolt pattern: This pattern uses five holes to secure the unit to the tank and is commonly used in aftermarket fuel senders.
- British Standard Pipe thread (BSP): This style uses a 1.25-inch thread to secure the unit, which is a standard size in British plumbing and engineering.
- National Pipe Thread (NPT): This mounting style uses a 1.5-inch thread and is commonly used in North American plumbing and piping systems.
In addition to these standard mounting styles, some manufacturers offer customized heads for the units, such as flange-bolt or bayonet mount options. These options provide flexibility in mounting the unit to your specific fuel tank configuration.
It is important to confirm the mounting style before purchase to avoid compatibility issues. By ensuring that the mounting style of the new fuel sender unit matches the existing configuration in your fuel tank, you can facilitate a seamless installation process and maintain the accuracy of fuel level readings.
Fuel Tank Capacity: Understanding the Reserve
You may want to see also
Frequently asked questions
A fuel tank sender, also known as a fuel level sensor or fuel sender unit, is a device used to measure the fuel level in a tank.
A fuel tank sender typically consists of a float, electronics, wiring, and a fuel gauge. The float moves up and down inside the fuel tank, changing the electrical signal which is reflected on the digital gauge.
There are several types of fuel tank senders, including float-based senders, sender probe systems, and ultrasonic, LiDAR, or radar systems. Float-based senders use a float to measure the fuel level, while sender probe systems use a long, thin rod or strip made of a non-conductive material that extends into the fuel tank. Ultrasonic, LiDAR, or radar systems use sound waves, light waves, or radio waves, respectively, to measure the fuel level.
