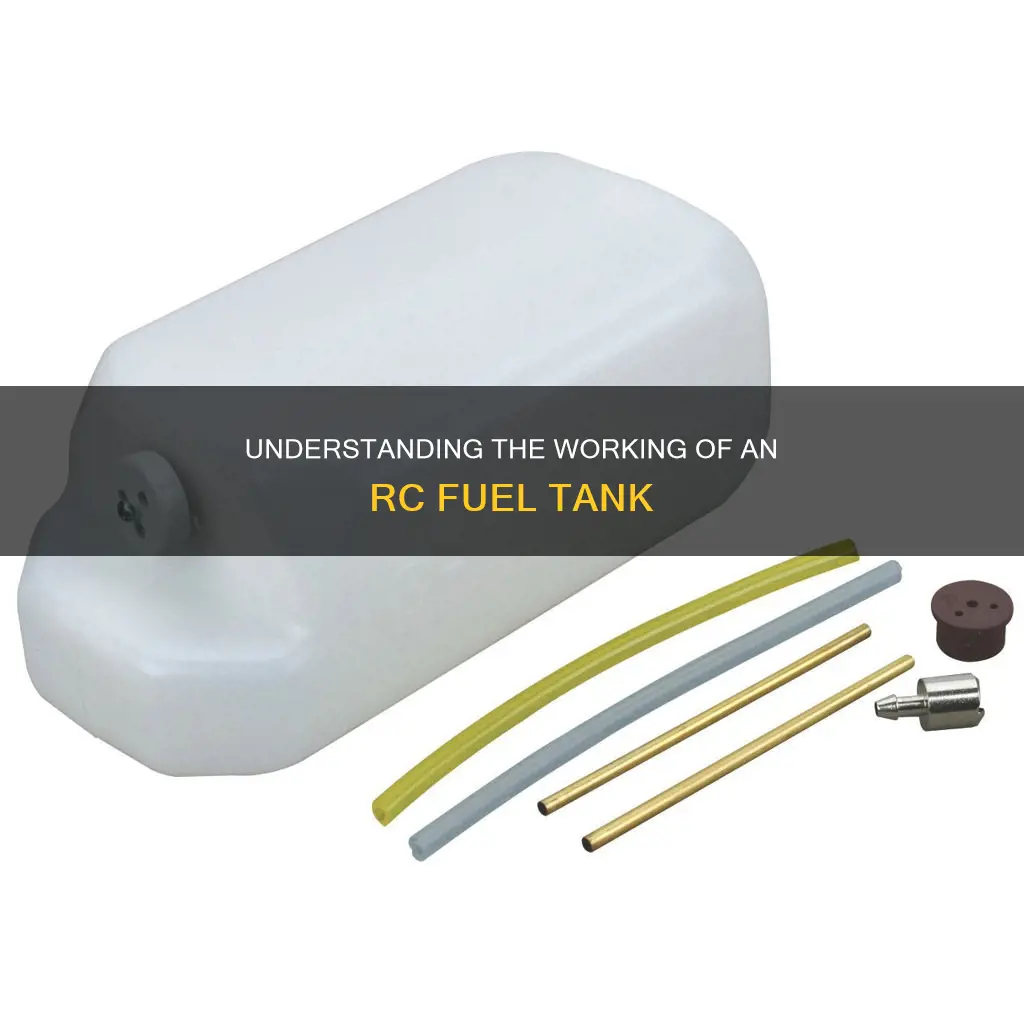

Radio-controlled (RC) vehicles, airplanes, and accessories are popular among hobbyists and enthusiasts. RC fuel tanks are an essential component of these models, and understanding how they work is crucial for optimal performance and safety. The setup and installation of an RC fuel tank involve several key considerations, such as tank positioning, pressure management, and the use of appropriate materials to ensure a secure and functional fuel system. In this discussion, we will delve into the intricacies of RC fuel tanks, exploring their design, assembly, and maintenance to provide a comprehensive guide for enthusiasts seeking to enhance their RC endeavours.
| Characteristics | Values |
|---|---|
| Installation | Relatively simple, but requires basic plumbing skills |
| Location | Instructions for the plane indicate the best position; usually, the centreline is aligned with the engine's centreline |
| Considerations | Effect on CG (centre of gravity); tank location should not alter the handling of the plane |
| Tank Material | Polyethylene plastic; impervious to RC fuels and tougher than the plane |
| Tank Design | Octagonal shape for easy installation; no internal fuel tubing to harden and leak air |
| Assembly | Requires a careful and thorough procedure to ensure a leak-free tank |
| Connections | Flexible fuel tubing connects the clunk to the brass tube of the feed line |
| Clunk | Weighted end on the pickup line to keep it in fuel during rolls and flying inverted |
| Fuel Flow | Fuel is drawn through the pickup and holes in the main shaft; vent line prevents a vacuum state that shuts off fuel flow |
| Maintenance | RotoFlow Fuel Systems require no internal maintenance |
