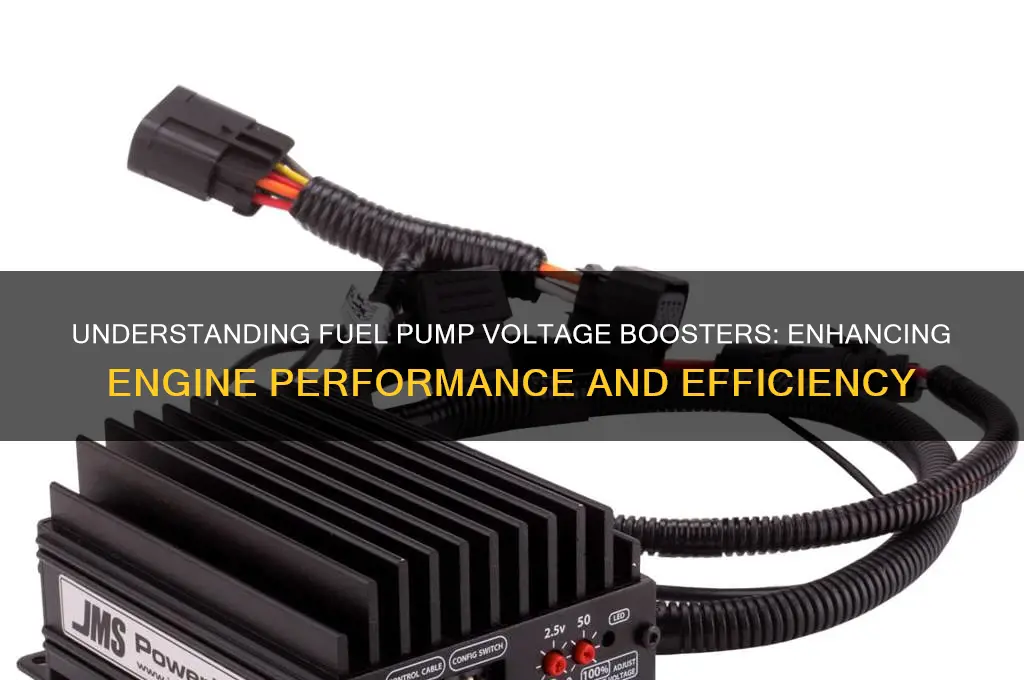

A fuel pump voltage booster is an essential component in modern vehicles, particularly those with high-performance engines or aftermarket fuel systems, designed to ensure the fuel pump receives adequate electrical power for optimal operation. As stock electrical systems may struggle to deliver sufficient voltage under demanding conditions, such as high-boost applications or when using upgraded fuel pumps, the voltage booster steps in to stabilize and increase the voltage supplied to the fuel pump. This not only prevents fuel starvation and engine performance issues but also extends the lifespan of the fuel pump by ensuring it operates within its designed voltage range. Commonly used in turbocharged, supercharged, or high-horsepower vehicles, a fuel pump voltage booster is a critical upgrade for enthusiasts seeking reliability and maximum performance from their fuel delivery system.
| Characteristics | Values |
|---|---|
| Purpose | Increases voltage supplied to the fuel pump to ensure optimal performance. |
| Functionality | Boosts voltage from the vehicle's electrical system to meet fuel pump requirements. |
| Compatibility | Designed for specific fuel pump models or vehicle types. |
| Voltage Output | Typically boosts voltage to 12V or higher, depending on the fuel pump needs. |
| Installation | Inline between the vehicle's electrical system and the fuel pump. |
| Protection Features | May include over-voltage, over-current, or short-circuit protection. |
| Material | Constructed with heat-resistant and durable materials for longevity. |
| Size | Compact design to fit in tight engine compartments. |
| Water Resistance | Often designed to be water-resistant for harsh environments. |
| Compatibility with Fuel Types | Works with gasoline, diesel, and other fuel types. |
| Warranty | Varies by manufacturer, typically 1-3 years. |
| Price Range | $20 to $100, depending on brand and features. |
| Common Brands | Aeromotive, Holley, Painless Performance, etc. |
| Application | Used in high-performance vehicles, racing cars, and fuel-injected systems. |
| Maintenance | Low maintenance, but periodic checks for connections and functionality are recommended. |
Explore related products
What You'll Learn
Function of Voltage Booster
A fuel pump voltage booster serves a critical function in vehicles, particularly those with high-performance engines or aftermarket fuel systems. Its primary role is to stabilize and increase the voltage supplied to the fuel pump, ensuring consistent fuel delivery under varying load conditions. Without this component, voltage drops can occur during high-demand situations, such as acceleration or towing, leading to fuel pump inefficiency or failure. By maintaining optimal voltage, the booster prevents lean fuel mixtures, engine misfires, and potential damage to the fuel system.
Consider the scenario of a vehicle climbing a steep hill or towing a heavy load. The engine demands more fuel, placing increased strain on the fuel pump. In stock configurations, the electrical system may struggle to provide sufficient voltage, causing the fuel pump to operate below its required power. A voltage booster steps in here, drawing power from the battery or alternator and amplifying it to meet the fuel pump’s needs. This ensures the pump delivers fuel at the correct pressure and volume, regardless of the electrical system’s limitations.
From a technical standpoint, a voltage booster acts as a buffer between the vehicle’s electrical system and the fuel pump. It monitors the incoming voltage and adjusts it to a predetermined level, typically around 13.5 to 14.5 volts, which is optimal for most fuel pumps. This process involves a DC-DC converter that steps up the voltage efficiently, minimizing energy loss as heat. Advanced models may include diagnostic features, such as voltage displays or fault indicators, allowing users to monitor system performance in real time.
For enthusiasts upgrading their fuel systems, installing a voltage booster is a practical step to safeguard their investment. Aftermarket fuel pumps often require higher voltage than stock systems can reliably provide. Without a booster, these pumps may underperform or fail prematurely. When selecting a booster, ensure it matches the fuel pump’s voltage and amperage requirements. For example, a pump drawing 20 amps at 14 volts needs a booster capable of handling this load without overheating.
In summary, the function of a voltage booster is to ensure the fuel pump operates at peak efficiency by providing consistent, adequate voltage. It addresses the limitations of a vehicle’s electrical system, particularly under high-demand conditions, and is essential for high-performance or modified setups. By understanding its role and selecting the right unit, vehicle owners can maintain reliable fuel delivery, enhance engine performance, and prolong the life of their fuel system components.
Fixing Your Excursion's Fuel Pump: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Common Symptoms of Failure
A failing fuel pump voltage booster can manifest in several ways, often mimicking symptoms of a weak fuel pump or clogged fuel filter. One of the earliest signs is engine hesitation or stumbling under acceleration. This occurs because the voltage booster, responsible for maintaining consistent power to the fuel pump, is unable to deliver the required voltage, leading to inadequate fuel delivery. Drivers might notice the vehicle feels sluggish or unresponsive, particularly when demanding more power, such as during overtaking or climbing hills.
Another common symptom is difficulty starting the engine, especially in cold conditions. The fuel pump relies on the voltage booster to provide the initial surge of power needed to prime the fuel system. If the booster is failing, the fuel pump may not receive enough voltage to operate effectively, resulting in extended cranking times or a complete failure to start. This issue can be misleading, as it often resembles a weak battery or faulty starter motor, but the root cause lies in insufficient fuel pressure.
Intermittent stalling or rough idling is also a telltale sign of a failing voltage booster. As the booster struggles to maintain voltage, the fuel pump may deliver fuel inconsistently, causing the engine to stall or run unevenly. This symptom is particularly noticeable at low speeds or when the vehicle is idling, as the fuel system is under less demand and minor fluctuations in voltage become more apparent. Drivers may also observe the check engine light illuminating, though this is often a secondary indicator rather than a primary symptom.
In some cases, a failing voltage booster can lead to premature fuel pump failure. Without adequate voltage regulation, the fuel pump may operate outside its optimal range, causing excessive wear or overheating. This not only exacerbates fuel delivery issues but also results in costly repairs, as both the voltage booster and fuel pump may need replacement. Regularly monitoring fuel system performance and addressing voltage irregularities can prevent this cascading failure.
To diagnose a failing voltage booster, start by checking the fuel pump’s voltage output under load using a multimeter. A healthy system should maintain voltage within the manufacturer’s specified range (typically 12–14 volts) during operation. If the voltage drops significantly under load, the booster is likely at fault. Additionally, inspecting the booster for physical damage, corrosion, or loose connections can provide further clues. Replacing the voltage booster promptly can restore fuel system reliability and prevent more severe engine issues.
Priming Your New Electric Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Installation and Wiring Tips
A fuel pump voltage booster is a device designed to increase the voltage supplied to the fuel pump, ensuring optimal performance, especially in high-performance or modified vehicles. Proper installation and wiring are critical to its effectiveness and safety. Here’s how to approach the process with precision.
Step-by-Step Installation: Begin by locating the fuel pump’s power wire, typically found near the fuel pump relay or directly at the pump itself. Disconnect the battery to prevent electrical mishaps. Install the voltage booster inline with this wire, ensuring the input connects to the vehicle’s power source and the output to the fuel pump. Secure all connections with heat shrink tubing or electrical tape to protect against moisture and vibration. Test the system before reassembling components to confirm proper functionality.
Wiring Considerations: Use high-quality, gauge-appropriate wiring to handle the increased current. For most applications, 12-gauge wire suffices, but consult the booster’s specifications for exact requirements. Avoid running wires near hot components like exhaust manifolds or engine blocks. Route them through existing loom pathways or use split loom tubing for added protection. Ground the booster directly to the chassis using a clean, unpainted metal surface to ensure a stable electrical connection.
Cautions and Troubleshooting: Overloading the system can lead to failure or fire hazards. Never exceed the booster’s rated amperage. If the fuel pump operates intermittently or fails post-installation, check for loose connections, frayed wires, or incorrect polarity. A multimeter can verify voltage output at various points in the circuit. Always refer to the manufacturer’s instructions for model-specific guidelines.
Optimizing Performance: For turbocharged or supercharged engines, consider a voltage booster with adjustable output to fine-tune fuel delivery under boost. Pair the booster with a high-flow fuel pump and upgraded fuel lines for maximum efficiency. Regularly inspect the wiring and connections, especially after off-road use or exposure to harsh conditions, to maintain reliability.
By following these installation and wiring tips, you ensure the fuel pump voltage booster enhances your vehicle’s performance safely and effectively, addressing the unique demands of high-performance driving.
Understanding the Functionality of a Small Block 360 Fuel Pump
You may want to see also
Explore related products
Compatibility with Different Vehicles
Fuel pump voltage boosters are not one-size-fits-all solutions. Their compatibility hinges on the electrical architecture and fuel system demands of specific vehicles. Modern vehicles, particularly those with high-performance engines or diesel systems, often require precise voltage regulation to ensure optimal fuel pump operation. A booster designed for a 12V system in a compact car may not suffice for a heavy-duty truck with a 24V system or a turbocharged engine with increased fuel demands. Always verify the booster’s voltage range (e.g., 9-16V or 10-18V) against the vehicle’s operating voltage to avoid underperformance or damage.
Compatibility extends beyond voltage to the fuel pump’s current draw and connector type. For instance, a booster rated for 20A may work for a standard fuel pump but fall short for high-flow pumps in racing or modified vehicles, which can draw up to 40A. Additionally, the physical connector must match the vehicle’s wiring harness—a common issue with older or imported vehicles. Adapters are available, but improper connections can lead to voltage drops or overheating. Always consult the vehicle’s manual or a mechanic to confirm the pump’s specifications before installation.
Diesel vehicles present unique compatibility challenges due to their higher fuel pressure requirements and distinct pump designs. A booster intended for a gasoline engine may lack the capacity to handle the increased load of a diesel fuel pump, which often operates at higher amperages and voltages. For example, a booster rated for 15A may work for a gasoline sedan but fail in a diesel pickup. Look for boosters specifically labeled for diesel applications, which typically support higher current ratings (e.g., 30A or more) and include thermal protection to handle prolonged high-load operation.
Aftermarket modifications, such as turbochargers or larger fuel injectors, further complicate compatibility. These upgrades increase fuel demand, requiring a booster that can deliver stable voltage under higher loads. For instance, a vehicle with a stage 2 turbo kit might need a booster with a 25A capacity and a voltage range of 12-18V to maintain consistent fuel pressure. Always factor in the total current draw of all modifications when selecting a booster, and consider professional installation to ensure seamless integration with the vehicle’s existing systems.
Finally, temperature and environmental factors play a role in compatibility, especially in extreme climates. Boosters with built-in heat sinks or thermal shutdown features are ideal for vehicles operating in hot conditions, as they prevent overheating during prolonged high-load use. Conversely, in cold climates, ensure the booster’s operating temperature range includes sub-zero values to avoid performance degradation. For off-road or marine vehicles, waterproof and vibration-resistant models are essential to withstand harsh conditions. Always prioritize boosters with robust construction and environmental ratings to ensure longevity and reliability across diverse vehicle applications.
Bad Fuel Pump Ballast Resistor: Symptoms, Causes, and Fixes Explained
You may want to see also
Explore related products
Troubleshooting Voltage Issues
Voltage drops across fuel pump circuits can cripple performance, especially in high-performance or modified vehicles. A fuel pump voltage booster acts as a safeguard, ensuring the pump receives consistent voltage under load. However, even with a booster installed, voltage issues can persist, requiring systematic troubleshooting.
Begin by verifying the booster's functionality. Check its input and output voltages with a multimeter under various engine loads. A healthy booster should maintain output voltage within 1-2 volts of its rated value, regardless of input fluctuations. If the booster fails this test, inspect its wiring for loose connections, corrosion, or damaged components.
Next, examine the fuel pump's current draw. Excessive current indicates a failing pump, clogged fuel filter, or restricted fuel lines, all of which can overload the booster. Use a clamp-on ammeter to measure current during cranking and at idle. Compare readings to the pump's specifications; deviations exceeding 10-15% warrant further investigation.
Don't overlook the vehicle's charging system. A weak alternator or faulty voltage regulator can starve the booster of adequate input voltage. Test the alternator's output at various RPMs, ensuring it meets or exceeds the vehicle's electrical demands. A failing alternator will manifest as low voltage readings at the booster's input, even with a healthy booster.
Remember, voltage boosters are not magic bullets. They amplify existing voltage, not generate it. Addressing underlying issues like high-resistance wiring, faulty grounds, or inadequate battery health is crucial for long-term reliability.
How to Check Fuel Pump Voltage: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel pump voltage booster increases the voltage supplied to the fuel pump, ensuring it receives adequate power to operate efficiently, especially in high-performance or modified vehicles where the stock voltage may be insufficient.
A fuel pump voltage booster is necessary to compensate for voltage drops in the electrical system, particularly under high load or when using aftermarket fuel pumps that require more power than the factory wiring can provide.
You may need a fuel pump voltage booster if you experience symptoms like fuel pressure drops under acceleration, engine hesitation, or stalling, especially in vehicles with upgraded fuel systems or high-performance engines.
