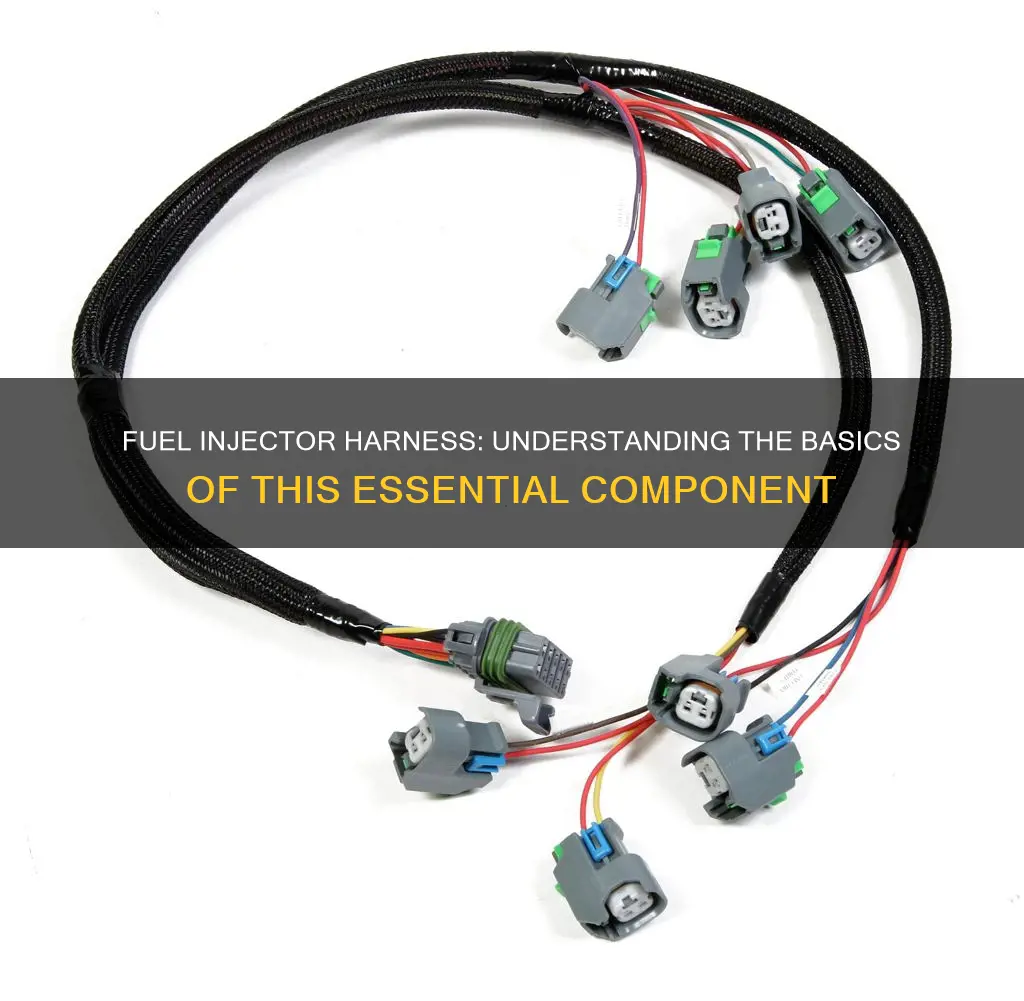

A fuel injector harness is a component of an automobile's fuel injection system. It connects the main harness to the injectors, allowing for compatibility with various injector types and quantities. Fuel injector harnesses are available in both application-specific and universal variants. They are essential for the proper functioning of the fuel injection system, ensuring the injectors receive the necessary electrical connections from the main harness.
Explore related products
What You'll Learn
Injector harness connectors
The injector harness connector plays a critical role in the fuel delivery system by enabling the configuration of the main harness to work with common injector setups, such as the 4-Cylinder Bosch or 8-Cylinder EV6. This adaptability allows for a simple snap-in installation process, making it convenient for vehicle owners and technicians alike.
One notable example of injector harness connectors is the Holley EFI Injector Harness, which seamlessly connects the main harness to the injectors. Holley offers both application-specific and universal harness connectors, catering to a diverse range of vehicle configurations.
Beyond Holley, several other trusted manufacturers, such as Racetronix, offer injector harness connectors. These connectors are designed to meet the specific requirements of different engines, ensuring optimal performance and compatibility. It is always recommended to source injector harness connectors from reputable suppliers to guarantee quality and compatibility with your vehicle's fuel injection system.
In addition to the injector harness connectors themselves, it is worth noting that various adapters and parts are available to facilitate seamless connections. These adapters and parts, often offered by automotive retailers, can aid in adapting the fuel injection system to unique requirements or addressing specific challenges during installation or maintenance.
Fuel Injector Failure: Troubleshooting Bad Code
You may want to see also
Explore related products
Injector harness types
A fuel injector harness is a component of a vehicle's fuel injection system, which delivers fuel to the engine. The injector harness connects directly to the injector connector on the main harness, allowing the configuration of any main harness to work with different injector types and quantities.
There are two main types of injector harnesses: application-specific and universal. The application-specific type is designed for a particular vehicle or engine, ensuring a precise fit and optimal performance. This type of harness is engineered to meet the specific requirements of the vehicle's fuel injection system, including the number and type of injectors, the fuel pressure, and the engine management system.
On the other hand, the universal injector harness is designed to fit a wide range of vehicles and engines. It offers flexibility and adaptability, allowing users to customize the harness to their specific application. This type of harness typically comes with various connectors and adapters, enabling compatibility with different injector configurations.
Additionally, injector harnesses can vary depending on the number of injectors they support. Some harnesses are designed for single-injector applications, while others can accommodate multiple injectors, such as the commonly used 4-cylinder or 8-cylinder configurations.
Furthermore, injector harnesses can be categorized by their connector types. Some common connector types include the Bosch, EV6, and Multi-Purpose connectors. The Bosch connector is often used in 4-cylinder applications, while the EV6 connector is designed for high-performance 8-cylinder engines. The Multi-Purpose connector, as the name suggests, offers versatility and can be used with different injector types.
When selecting an injector harness, it is crucial to consider the specific requirements of your vehicle's fuel injection system, including the number and type of injectors, fuel pressure specifications, and engine management system compatibility.
Fuel Injector Issues: Clogged or Bad?
You may want to see also
Explore related products
Injector harness repairs
A fuel injector harness is a component of a vehicle's fuel injection system, which delivers fuel to the engine. The injector harness connects directly to the injector connector on the main harness, allowing the configuration of the main harness to work with different injector types and quantities. Repairs or replacements of a frayed fuel injector harness are possible and can be done by car owners themselves or with the help of a professional mechanic.
It is important to regularly check the condition of your vehicle's fuel injector harness, as fraying or damage can lead to ignition failure and other engine problems. If you notice any signs of wear and tear, it is recommended to take immediate action to prevent further issues.
One option for repair is to replace the injector plug. This can be purchased online or from auto parts stores and soldered into place using heat shrink tubing to seal it. It is important to note that this repair requires some technical knowledge and skill, and improper installation can lead to further damage.
Additionally, the manifold gaskets and o-rings should be inspected for any damage. If they are broken or loose, it is advisable to replace them along with the injector harness to ensure a proper seal and avoid future leaks.
For those uncomfortable with performing the repair themselves, seeking the assistance of a qualified mechanic is recommended. They will have the necessary tools and expertise to complete the repair safely and effectively.
To prevent future issues with the fuel injector harness, it is suggested to place dryer sheets in strategic places under the hood of the car. This simple trick will deter mice from chewing on the wiring, as they are averse to the smell.
The Ultimate Guide to Installing Injectors, Flex Fuel, and TGV Deletes
You may want to see also
Explore related products
Injector harness parts
A fuel injector harness is a component of a vehicle's fuel injection system, which delivers fuel to the engine. The injector harness connects directly to the injector connector on the main harness, allowing the configuration of any main harness to work with different injector types and quantities.
The injector harness consists of adapters, plugs, sockets, and terminals. These components facilitate the connection between the injector harness and the main harness, ensuring a secure and functional link. The specific parts of an injector harness vary depending on the vehicle and the fuel injection system's design.
Some injector harness parts are designed for specific injector types or applications. For example, the Holley EFI Injector Harness is designed to connect between the main harness and the injectors in Holley EFI systems. There are also universal injector harnesses available that can be adapted to work with various fuel injection systems.
The injector harness plays a crucial role in ensuring the proper functioning of the fuel injection system. By providing a simple snap-in connection, it allows for flexibility and compatibility between different injector configurations, enabling the engine to receive the necessary fuel for combustion.
Filling Up Before Using Fuel Injector Cleaner: Good or Bad?
You may want to see also
Explore related products
$14.99
Injector harness prices
The injector harness connects directly to the injector connector on the main harness and allows you to configure any main harness to work with the most common injector types and quantities. Holley EFI Injector Harnesses, for example, connect between the main harness and the injectors, and are available in both application-specific and universal types.
The price of an injector harness varies depending on the brand, retailer, and features offered. Here are some examples of prices for injector harnesses:
- Amazon offers a range of injector harnesses with prices starting from $24.99, with free delivery on certain orders.
- EFISystemPro.com offers injector harnesses with free shipping, but the prices are not listed.
- O'Reilly Auto Parts offers fuel injection harnesses with prices ranging from $23.49 to $30.12, with free shipping on most orders over $35.
- Advance Auto Parts offers fuel injector harnesses ranging from $50 to $99.99 and $100 and up, with options for store pickup, same-day home delivery, and a 1-year replacement warranty for certain products.
- Dorman offers an injector harness repair kit, while Carquest Premium offers a 1-year replacement warranty for defective products.
Removing Fuel Injectors from Honda D15: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel injector harness is a connector that connects the main harness to the injectors.
It allows you to configure any main harness to work with the most common injector types and quantities.
You can purchase a fuel injector harness from online retailers such as Amazon or specialist automotive websites like EFISystemPro and O'Reilly Auto Parts.
Some examples include the MOT Motorcraft Fuel Injection Harness and the ACDelco Fuel Injection Harness.
Yes, there are application-specific and universal types of fuel injector harnesses available.
