Mercedes Mullins

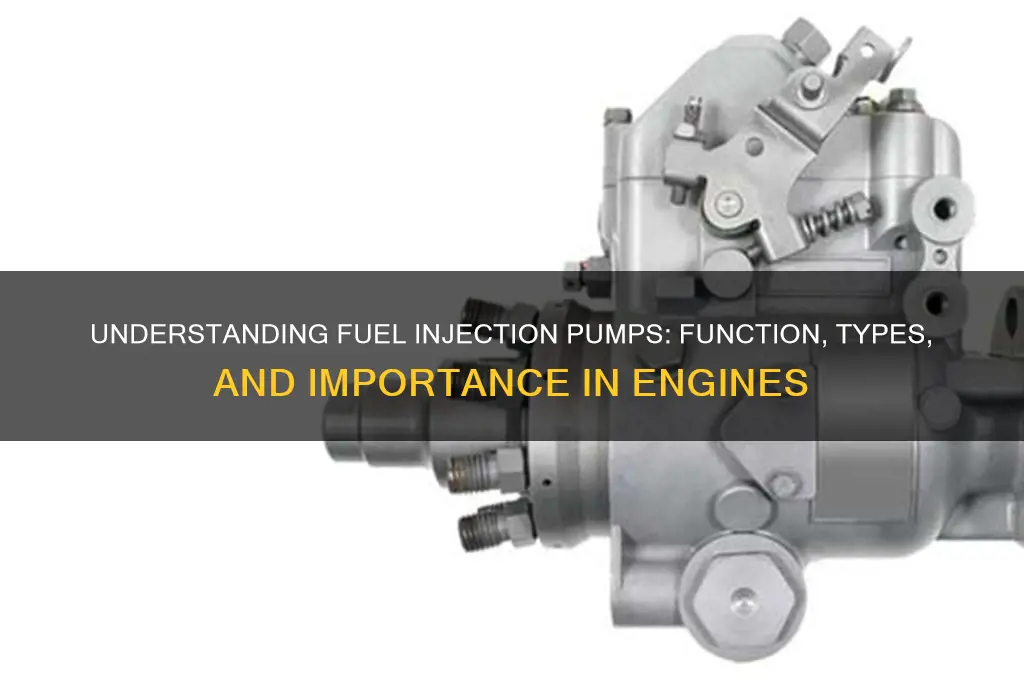

A fuel injection pump is a critical component in diesel engines, responsible for delivering fuel to the engine cylinders under high pressure and at precise timings. Unlike carbureted systems, which mix fuel and air externally, fuel injection pumps ensure a more efficient and controlled combustion process by directly injecting fuel into the combustion chamber. This mechanism enhances engine performance, improves fuel efficiency, and reduces emissions. The pump operates by drawing fuel from the tank, pressurizing it, and metering the exact amount required based on engine load and speed, making it a vital element in modern diesel technology.
| Characteristics | Values |
|---|---|
| Definition | A device used in internal combustion engines to pump and deliver fuel to the cylinders under high pressure. |
| Function | Ensures precise fuel delivery, improves engine efficiency, and reduces emissions. |
| Types | Inline pump, distributor pump, common rail pump, and rotary pump. |
| Fuel Delivery | Delivers fuel at high pressure (up to 2,000+ bar in modern systems). |
| Components | Plunger, barrel, camshaft, delivery valve, and governor. |
| Fuel Type | Primarily used in diesel engines; some variants for gasoline engines. |
| Pressure Regulation | Controlled by a governor or electronic control unit (ECU) for precision. |
| Efficiency | Enhances fuel atomization, leading to better combustion and power output. |
| Maintenance | Requires periodic servicing to ensure longevity and performance. |
| Common Issues | Fuel leaks, worn plungers, air in the system, and timing issues. |
| Modern Systems | Integrated with electronic controls for optimized fuel injection timing. |
| Environmental Impact | Reduces fuel consumption and emissions compared to carbureted systems. |
| Applications | Widely used in diesel vehicles, marine engines, and industrial machinery. |
Explore related products
What You'll Learn
- Function: Delivers precise fuel amounts to engine cylinders under high pressure for efficient combustion
- Types: Includes inline, distributor, and common rail systems, each with unique designs
- Components: Consists of plunger, barrel, camshaft, and fuel valves for operation
- Working Principle: Converts rotational motion into fuel pressure using mechanical or electronic mechanisms
- Maintenance: Requires regular cleaning, calibration, and inspection to ensure optimal performance and longevity
Function: Delivers precise fuel amounts to engine cylinders under high pressure for efficient combustion
The fuel injection pump is the heart of a diesel engine's fuel system, responsible for delivering a precise amount of fuel to each cylinder at the exact moment it's needed. This process is critical for efficient combustion, as it ensures that the fuel-air mixture is optimized for maximum power output and minimal emissions. To achieve this, the pump must operate under high pressure, typically between 1,500 and 3,000 bar, to overcome the resistance of the fuel injectors and deliver the fuel in a fine mist that can be easily ignited.
Consider the timing and dosage of fuel delivery, which are crucial for engine performance. A typical diesel engine requires a specific fuel-to-air ratio, usually around 1:14.7 by weight, to achieve complete combustion. The fuel injection pump must deliver the exact amount of fuel needed for each cylinder, taking into account factors such as engine speed, load, and temperature. For example, a 4-cylinder diesel engine operating at 2,000 RPM might require a fuel delivery rate of 10-15 milliliters per stroke, with each injector receiving a precise dose of 2.5-3.75 milliliters. This level of precision is achieved through a combination of mechanical and electronic controls, which adjust the pump's output based on real-time engine data.
One of the key advantages of a fuel injection pump is its ability to vary the fuel pressure and delivery rate according to engine demand. During acceleration or heavy load conditions, the pump increases the fuel pressure and delivery rate to provide more power. Conversely, during cruising or idling, the pump reduces the fuel pressure and delivery rate to conserve fuel and minimize emissions. This is achieved through a series of valves, springs, and electronic sensors that work together to regulate the fuel flow. For instance, a common rail fuel injection system uses a high-pressure pump to deliver fuel to a common rail, which then distributes the fuel to each injector at the precise moment it's needed.
To ensure optimal performance and longevity of a fuel injection pump, regular maintenance and inspection are essential. This includes checking for leaks, wear, and contamination in the fuel system, as well as replacing worn or damaged components. It's also crucial to use high-quality fuel and lubricants, as poor-quality fuel can cause damage to the pump and injectors. For example, water contamination in diesel fuel can lead to corrosion and wear in the fuel injection system, resulting in reduced performance and increased emissions. By following manufacturer recommendations and best practices, vehicle owners can extend the life of their fuel injection pump and maintain efficient engine operation.
In practice, understanding the function of a fuel injection pump can help vehicle owners and mechanics diagnose and troubleshoot engine problems. Common symptoms of a failing fuel injection pump include rough idling, reduced power, and increased fuel consumption. By analyzing these symptoms and using diagnostic tools, such as pressure gauges and scan tools, mechanics can identify issues with the fuel injection system and take corrective action. For instance, if a vehicle is experiencing hard starting or stalling, a mechanic might check the fuel pressure and delivery rate to determine if the pump is functioning correctly. By addressing these issues promptly, vehicle owners can avoid more serious problems and maintain the efficiency and reliability of their engine.
How a Failing Fuel Pump Causes Engine Overheating: Explained
You may want to see also
Explore related products
Types: Includes inline, distributor, and common rail systems, each with unique designs
Fuel injection pumps are the heart of modern diesel engines, delivering precise amounts of fuel at high pressure to ensure efficient combustion. Among the various types, inline, distributor, and common rail systems stand out for their distinct designs and applications. Each system caters to specific engine requirements, balancing performance, efficiency, and complexity. Understanding these types is crucial for mechanics, engineers, and enthusiasts alike, as it directly impacts engine reliability and fuel economy.
Inline fuel injection pumps are a classic example of simplicity meeting functionality. Integrated directly into the engine block, these pumps feature individual plungers for each cylinder, ensuring precise fuel delivery. This design is common in older diesel engines and smaller applications like agricultural machinery. The inline system’s durability and ease of maintenance make it a reliable choice, though it lacks the high-pressure capabilities of newer systems. For instance, in a 4-cylinder engine, each plunger operates independently, delivering fuel at pressures typically ranging from 1,500 to 2,500 psi, sufficient for basic combustion needs.
Distributor fuel injection pumps, on the other hand, offer a more compact and cost-effective solution. A single plunger in this system distributes fuel to all cylinders via a rotating distributor, reducing the number of moving parts. This design is prevalent in mid-sized diesel engines, such as those found in light trucks and marine applications. While it sacrifices some precision compared to inline systems, it compensates with lower manufacturing costs and reduced weight. However, the distributor’s mechanical complexity can lead to wear over time, requiring periodic maintenance to ensure consistent performance.
Common rail systems represent the pinnacle of fuel injection technology, delivering unparalleled precision and efficiency. Unlike inline and distributor pumps, common rail systems store fuel in a high-pressure accumulator (the "rail") before injecting it into the cylinders. This allows for pressures exceeding 30,000 psi, enabling finer atomization and cleaner combustion. Widely used in modern diesel vehicles, these systems are essential for meeting stringent emissions standards. For example, a common rail pump in a passenger car can adjust injection timing and pressure dynamically, optimizing performance across various driving conditions.
Choosing the right fuel injection pump depends on the engine’s intended use, size, and performance requirements. Inline pumps excel in durability and simplicity, making them ideal for heavy-duty, low-tech applications. Distributor pumps strike a balance between cost and functionality, suiting mid-range engines. Common rail systems, though more expensive, are indispensable for high-performance, eco-friendly vehicles. Each type’s unique design ensures there’s a solution for every diesel engine, from tractors to turbocharged sedans.
Step-by-Step Guide to Testing Your Mikuni Fuel Pump Effectively
You may want to see also
Explore related products
Components: Consists of plunger, barrel, camshaft, and fuel valves for operation
A fuel injection pump is a critical component in diesel engines, responsible for delivering fuel to the cylinders under high pressure and precise timing. Its operation relies on a symphony of carefully engineered parts working in unison. At the heart of this mechanism are four key components: the plunger, barrel, camshaft, and fuel valves. Each plays a distinct role, and their interplay ensures efficient fuel delivery, optimizing engine performance and fuel economy.
Consider the plunger and barrel as the dynamic duo of the fuel injection pump. The plunger, a cylindrical component, moves up and down within the barrel, a precisely machined cylinder. This reciprocating motion, driven by the camshaft, creates pressure differentials. As the plunger descends, it draws fuel into the barrel. Upon its ascent, it compresses the fuel, generating the high pressure necessary for injection. Think of it as a miniature piston-cylinder arrangement, but instead of driving a crankshaft, it propels fuel into the engine.
The camshaft acts as the conductor of this mechanical orchestra. Its lobes, eccentrically shaped, engage with the plunger, dictating its stroke and timing. The camshaft's rotation, synchronized with the engine's crankshaft, ensures that fuel injection occurs at the precise moment required for combustion. This synchronization is crucial for engine efficiency and power output.
Fuel valves, both inlet and outlet, act as gatekeepers within the pump. The inlet valve allows fuel to enter the barrel during the plunger's downward stroke, while the outlet valve, typically a precision-engineered needle valve, controls the high-pressure fuel delivery to the injectors. These valves must operate with pinpoint accuracy, opening and closing at the exact moments dictated by the plunger's movement and engine demands.
A well-maintained fuel injection pump, with its plunger, barrel, camshaft, and fuel valves working in harmony, is essential for optimal engine performance. Regular servicing, including cleaning and lubrication, is crucial to prevent wear and ensure precise operation. Remember, even minor imperfections in these components can lead to inefficient fuel combustion, reduced power, and increased emissions. Understanding the interplay of these components empowers you to appreciate the intricate engineering behind the fuel injection system and highlights the importance of proper maintenance for your diesel engine's longevity.
Understanding the 2004 Volvo S80 Fuel Pump Control Module Functionality
You may want to see also
Explore related products
$340
Working Principle: Converts rotational motion into fuel pressure using mechanical or electronic mechanisms
The fuel injection pump is a marvel of engineering, transforming the simple rotation of a shaft into the precise pressure required to deliver fuel to an engine’s cylinders. At its core, this process relies on the interplay of mechanical or electronic components, each designed to ensure fuel is atomized and injected at the exact moment and pressure needed for combustion. Whether driven by a camshaft in older mechanical systems or controlled by an electronic control unit (ECU) in modern setups, the pump’s primary function remains unchanged: to convert rotational motion into fuel pressure efficiently and reliably.
Mechanical fuel injection pumps operate on a principle of precision timing and force. As the engine’s camshaft rotates, it actuates a plunger within the pump, which forces fuel through a delivery valve into the injection lines. The plunger’s stroke is calibrated to match the engine’s speed and load, ensuring the correct amount of fuel is delivered. For example, in a diesel engine, the pump must generate pressures between 1,500 and 2,500 bar to overcome the resistance of the injectors and achieve proper atomization. This mechanical system, while robust, requires meticulous maintenance to ensure timing and pressure remain accurate.
In contrast, electronic fuel injection pumps leverage sensors and actuators to achieve the same goal with greater flexibility and precision. An ECU monitors inputs like throttle position, engine speed, and temperature to adjust the pump’s output in real time. Solenoid valves or piezoelectric elements control fuel pressure, allowing for microsecond-level adjustments that optimize performance and efficiency. For instance, in a gasoline direct injection (GDI) system, the pump may deliver fuel at pressures up to 200 bar during high-load conditions, while reducing pressure to 50 bar during idle to minimize emissions.
The choice between mechanical and electronic systems often hinges on application and cost. Mechanical pumps are favored in heavy-duty diesel engines for their durability and simplicity, while electronic systems dominate passenger vehicles due to their ability to meet stringent emissions and fuel economy standards. Regardless of type, both systems exemplify the principle of converting rotational motion into fuel pressure, showcasing the ingenuity behind modern engine technology.
To maintain optimal performance, regular inspection of the pump’s components is critical. Mechanical pumps require periodic checks for wear on the plunger and barrel, while electronic systems demand diagnostic scans to ensure sensors and actuators function correctly. Practical tips include using high-quality fuel to prevent contamination and adhering to manufacturer-recommended service intervals. By understanding the working principle of fuel injection pumps, operators can ensure their engines run smoothly, efficiently, and reliably.
Does Walbro Fuel Pump Boost Horsepower? Performance Insights Revealed
You may want to see also
Explore related products
Maintenance: Requires regular cleaning, calibration, and inspection to ensure optimal performance and longevity
A fuel injection pump is a critical component in modern internal combustion engines, responsible for delivering fuel to the cylinders at precise pressures and timings. Its efficiency directly impacts engine performance, fuel economy, and emissions. However, this precision comes with a maintenance requirement that cannot be overlooked: regular cleaning, calibration, and inspection. Without these, even the most advanced fuel injection pump will degrade, leading to poor engine operation or costly failures.
Cleaning is the first line of defense against contaminants that accumulate over time. Dust, debris, and microscopic particles can clog the pump’s internal passages, reducing fuel flow and causing uneven combustion. For diesel engines, water contamination is a particular concern, as it can corrode components and lead to pump seizure. To clean a fuel injection pump, start by draining the fuel tank and replacing the filter to remove larger particles. Use a specialized fuel system cleaner, such as a solvent-based additive, to dissolve internal deposits. For severe cases, disassembly and ultrasonic cleaning may be necessary, but this should only be performed by a trained technician to avoid damaging precision parts.
Calibration ensures the pump delivers the correct amount of fuel under varying engine loads and speeds. Over time, wear and tear can cause the pump’s timing to drift, leading to inefficient fuel delivery and increased emissions. Modern electronic fuel injection pumps often require software-based calibration using diagnostic tools. For mechanical pumps, adjustments involve fine-tuning the plunger or governor settings. For example, a diesel fuel injection pump’s timing should be checked every 50,000 miles or when symptoms like hard starting or rough idling appear. Calibration should always follow the manufacturer’s specifications, as even minor deviations can compromise performance.
Inspection is critical for identifying wear or damage before it escalates. Key components to examine include the pump’s seals, plungers, and delivery valves. Seals that are cracked or hardened can lead to fuel leaks, while worn plungers reduce pressure and efficiency. A visual inspection can often reveal these issues, but pressure testing is essential to confirm the pump’s operational integrity. For instance, a diesel fuel injection pump should maintain a pressure of 20,000 to 30,000 psi under load; any deviation indicates a problem. Regular inspections, ideally during routine service intervals, can prevent sudden failures and extend the pump’s lifespan.
Neglecting maintenance not only shortens the pump’s life but also cascades into broader engine problems. Poor fuel delivery can cause overheating, misfires, and increased wear on other components. For example, a clogged fuel injection pump in a gasoline engine can lead to carbon buildup on valves, reducing efficiency and requiring expensive repairs. Conversely, proactive maintenance—cleaning every 30,000 miles, calibrating as needed, and inspecting annually—ensures the pump operates at peak efficiency, saving fuel and reducing the risk of breakdowns.
In essence, maintaining a fuel injection pump is not just about preserving a single component but safeguarding the entire engine’s health. By adhering to a disciplined maintenance routine, vehicle owners can avoid the pitfalls of neglect and enjoy reliable performance for years to come. Whether you’re a DIY enthusiast or rely on professional mechanics, understanding these maintenance requirements is key to maximizing the pump’s potential.
Locate the Fuel Pump Fuse in Your 1990 Mazda Miata MX5
You may want to see also
Frequently asked questions
A fuel injection pump is a critical component in diesel engines that pressurizes and delivers fuel to the injectors at the correct timing and quantity, ensuring efficient combustion.
A fuel injection pump operates by drawing fuel from the tank, pressurizing it using a plunger or rotor mechanism, and then delivering it to the fuel injectors at precise intervals determined by engine speed and load.
Common signs include hard starting, loss of power, rough idling, engine misfires, and unusual noises from the pump. If left unaddressed, it can lead to complete engine failure.
