When it comes to fuel injectors, selecting the appropriate wire gauge is crucial. The wire gauge refers to the size or thickness of the wire, which is measured in units known as gauges. While gauge indicates the wire's size, it does not reflect its amperage. For fuel injectors, the recommended wire gauge size is typically between 18 and 22 AWG (American wire gauge). The specific gauge chosen depends on factors such as the number of wires per injector and the current draw requirements of the device.
| Characteristics | Values |
|---|---|
| Wire gauge for fuel injectors | 18-22 AWG |
| Wire gauge for coils | 18-20 AWG |
| Wire gauge for sensors | 22-24 AWG |
| Wire gauge for high impedance injectors | 24 AWG |
Explore related products
What You'll Learn
Injector coil wiring sizing
In general, wire gauges commonly used for fuel injectors range from 18 AWG (American wire gauge) to 22 AWG. 18 AWG wire is often used for injector harnesses and provides a good balance between size and ease of use. Smaller wire gauges, such as 20 AWG and 22 AWG, are also commonly used, especially when current draw is not a major concern. These smaller gauges can help keep the overall harness size down, making them a popular choice for custom harnesses.
When working with high impedance injectors, it is recommended to use 24 AWG wire. This finer gauge wire is suitable for the lower current requirements of high impedance injectors. For example, a user building ground-up wiring for a street car with high impedance injectors was advised to use 24 AWG wire.
It is important to note that the choice of wire gauge is not just about the size or current-carrying capacity but also the ease of working with the wire. For instance, while 22 AWG wire is commonly used and provides the benefit of keeping the harness size down, it can become challenging to work with when the wire size goes smaller. Therefore, unless there is a specific need, it is advisable to stick to 18 AWG or larger.
Rebuilding Chevy TPI Fuel Injector: Step-by-Step Guide
You may want to see also
Explore related products
Best wire gauge for fuel injectors
The best wire gauge for fuel injectors depends on the specific application and various factors such as the number of wires per injector, current draw, and physical constraints. Here is a detailed guide to help you choose the best wire gauge for fuel injectors:
When selecting the wire gauge for fuel injectors, it is essential to consider the number of wires per injector. Typically, using one wire per injector or coil, a 20 AWG (American Wire Gauge) wire is sufficient and commonly used. This gauge provides ample capacity for the sensor return and power wires.
However, if you plan to use larger gauge wires for the power and ground connections of the coils, you may consider increasing the size to 18 AWG. This larger gauge can provide increased current-carrying capacity and is often used for the ECU (Engine Control Unit) to engine block ground connections. It is worth noting that 18 AWG wires can be more challenging to work with and may result in bulkier wiring harnesses.
For applications where current draw is not a significant concern, such as sensors and smaller solenoid actuators, a smaller gauge like 22 AWG can be a good choice. This gauge is commonly used in custom wiring harnesses and offers a balance between physical robustness and keeping the overall size of the wiring loom down.
Additionally, when working with high impedance injectors, it is recommended to use even smaller wire gauges. For example, 0.5 mm or 24 AWG is commonly used for the trigger wires in OEM (Original Equipment Manufacturer) applications.
It is important to consider the specific requirements of your fuel injector application and consult with experts or refer to manufacturer guidelines to make an informed decision on the best wire gauge to use.
Fuel Injector Cost for a 2000 Grand Marquis
You may want to see also
Explore related products
Wire gauge and amperage
When it comes to wire gauge and amperage, it is crucial to understand the relationship between these two factors to ensure safe wiring practices. Wire gauge, or size, is measured in thickness or diameter, and it determines the amount of electrical current, or amperage, that a wire can safely carry. The higher the amperage rating, the larger the wire needs to be to prevent overheating, melted wires, and potential electrical fires.
Amperage, or electrical current, is measured in amps, and each wire gauge has a maximum safe carrying capacity. For example, a 12-gauge wire can handle up to 20 amps. Using a wire gauge that is too large is not necessarily dangerous, but it can lead to excess current for the area. Therefore, it is important to consult wire gauge charts to determine the maximum amperage of a wire when buying or working with wires. These charts provide ampacity information for different wire materials, such as copper and aluminum, and their common insulation materials.
In the context of fuel injectors, the wire gauge and amperage requirements may vary depending on the specific application. Some sources suggest using 18-gauge wiring for fuel injector harnesses, as it provides a good balance between size and ease of use. Smaller wire gauges, such as 22 AWG, may be more challenging to work with but are suitable for devices where current draw is not a concern, such as sensors and smaller solenoid actuators.
It is worth noting that the wire gauge and amperage requirements for fuel injectors may depend on other factors, such as the number of injectors, the vehicle's make and model, and the specific engine configuration. Consulting a qualified mechanic or electrician is always recommended to ensure safe and proper wiring practices for fuel injectors and other electrical systems.
Fuel Injector Calibration: Necessary Maintenance or Unnecessary Work?
You may want to see also
Explore related products

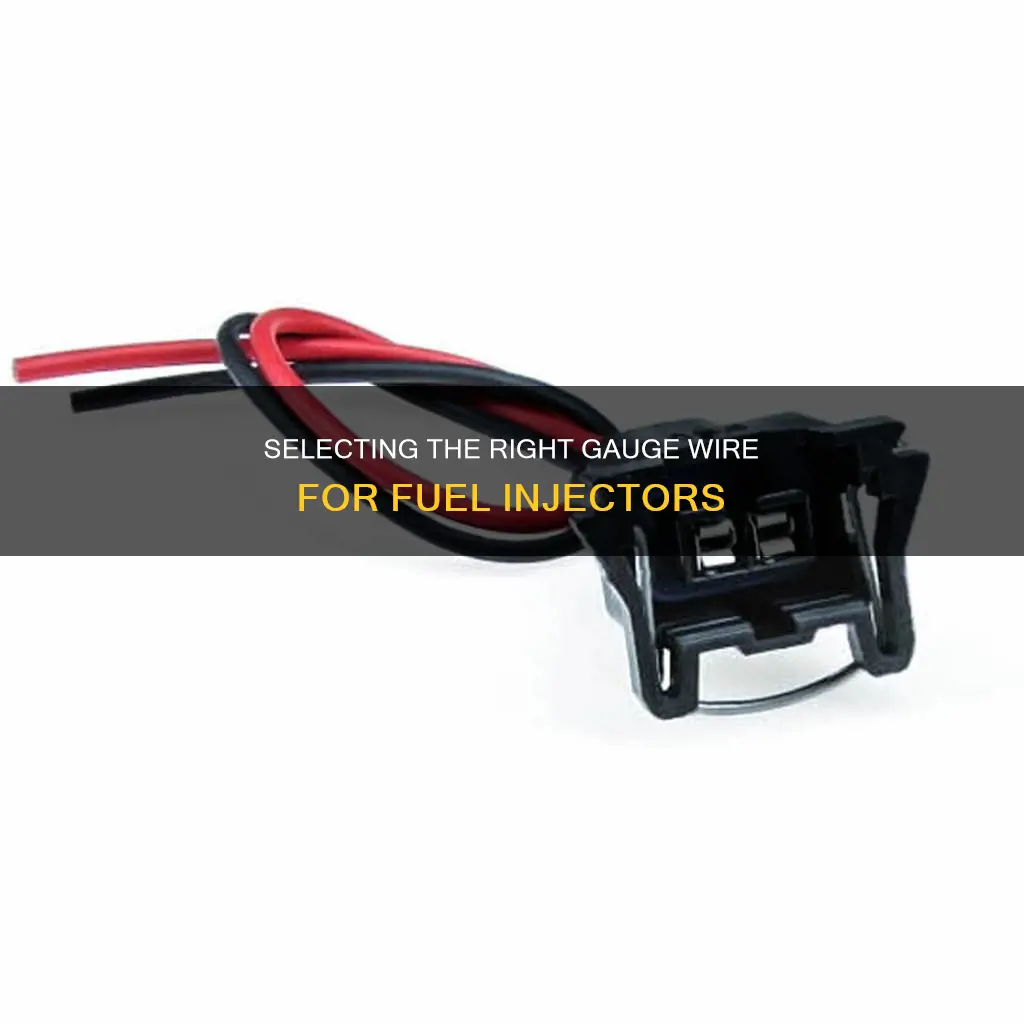

Fuel injector connector wire size
The wire size for fuel injectors is an important consideration for any car enthusiast or mechanic. The gauge of the wire, or its thickness, can impact the performance and safety of the fuel injection system. While there is no one-size-fits-all answer, as different vehicles and fuel injectors may have specific requirements, some common wire sizes are frequently mentioned.
One of the most commonly recommended wire sizes for fuel injector connector wires is 18-gauge (18 AWG). This size is often suggested as a good balance between thickness and ease of use. While smaller wires can be more challenging to work with, 18-gauge wires are relatively easy to handle and provide sufficient current-carrying capacity for most fuel injectors.
Some sources suggest that even smaller wire sizes, such as 20-gauge (20 AWG) or 22-gauge (22 AWG), can be suitable for fuel injector connector wires. These smaller sizes can help keep the overall harness size down, making it easier to work with and route the wires through the vehicle. However, it is important to ensure that the smaller wire size can safely handle the current draw of the fuel injectors.
In some cases, it may be necessary to use larger wire sizes, such as 14-gauge or 12-gauge, especially when dealing with high-performance or high-current fuel injectors. These larger wire sizes can provide increased current capacity and help prevent voltage drops, ensuring the fuel injectors receive adequate power.
It is always important to refer to the specific requirements and recommendations of the fuel injector manufacturer, as well as seek advice from experienced mechanics or automotive electricians, to ensure the correct wire size is selected for the fuel injector connector wires.
Fuel Injector: Why You Should Upgrade Your Engine
You may want to see also
Explore related products
Wiring looms for injectors
When it comes to wiring looms for injectors, there are a few things to consider. The first is the gauge of the wire. Most sources recommend using 18-gauge wire for fuel injectors, as smaller gauges can be harder to work with. However, some people may prefer to use 22-gauge wire to keep the harness from becoming too bulky. It's important to note that the gauge of the wire is just a size and not a measurement of amperage.
Another consideration when creating a wiring loom for injectors is the type of connectors used. Some common connectors used for injectors include the VALTEK Type Plug AMP Super Seal Female and the AMP Superseal Plug. These connectors are often used in LPG autogas systems for plugging valves, temperature sensors, and injectors. Adapters may also be needed to connect different types of injectors.
When building a wiring loom, it's important to consider the current draw of the devices being used. For example, sensors don't carry much current and can be run on smaller-gauge wires, while high-amp devices like fuel pumps and fans will require a relay. It's also important to ground the wiring loom properly. This can be done by grounding the EFI harness to the engine and creating a main star earthing point for the EFI system.
Finally, it's important to test the wiring loom to ensure that it is functioning properly. This can be done using a multimeter to check the consistency of the wires and connections. Additionally, the injectors themselves can be tested electronically to determine if they are operating within specifications.
Cleaning Fuel Injectors in Mazda 3: DIY Guide
You may want to see also
Frequently asked questions
The gauge of wire used for fuel injectors varies depending on the make and model of the car. Some common sizes include 18 AWG (American Wire Gauge), 20 AWG, and 22 AWG.
Yes, it is important to use the correct wire gauge for fuel injectors as it ensures the proper functioning and safety of the fuel injection system. Using a wire that is too small can lead to overheating and potential damage, while using a wire that is too large can make it difficult to work with and may affect performance.
The correct wire gauge for fuel injectors can be found in the vehicle's service manual or by consulting a mechanic or automotive specialist. It is important to provide the year, make, and model of the vehicle when seeking this information.
