The 2002 Lincoln LS, like many vehicles, relies on a network of fuses to protect its electrical systems, including the fuel pump. The fuel pump is a critical component responsible for delivering fuel from the tank to the engine, ensuring proper combustion. In the case of the 2002 Lincoln LS, the fuel pump fuse is typically located in the under-hood fuse box, often labeled as Fuel Pump or FPD (Fuel Pump Driver). This fuse is designed to safeguard the fuel pump circuit from electrical overloads or short circuits, which could otherwise cause damage to the pump or other related components. Identifying and understanding the specific fuse related to the fuel pump is essential for troubleshooting fuel delivery issues, as a blown fuse can result in a non-functional fuel pump, leading to engine stalling or failure to start.
Explore related products
What You'll Learn
- Fuse Box Location: Identify where the fuel pump fuse is located in a 2002 Lincoln LS
- Fuse Rating: Determine the correct amperage for the fuel pump fuse in this model
- Symptoms of Blown Fuse: Recognize signs indicating a blown fuel pump fuse in a 2002 Lincoln LS
- Replacement Process: Steps to replace a faulty fuel pump fuse in the 2002 Lincoln LS
- Related Relays: Understand if any relays are connected to the fuel pump fuse system
Fuse Box Location: Identify where the fuel pump fuse is located in a 2002 Lincoln LS
Locating the fuel pump fuse in a 2002 Lincoln LS is a critical step in diagnosing and resolving fuel system issues. The fuse box in this vehicle is designed to protect various electrical components, including the fuel pump, which is essential for delivering fuel to the engine. Understanding the layout of the fuse box and identifying the specific fuse related to the fuel pump can save time and prevent unnecessary repairs.
The 2002 Lincoln LS has two primary fuse boxes: one in the engine compartment and another in the passenger compartment. The fuel pump fuse is typically located in the engine compartment fuse box, which is situated near the battery on the driver’s side. This fuse box is protected by a plastic cover that must be removed to access the fuses. Once the cover is off, you’ll find a diagram on the underside of the lid or in the vehicle’s owner’s manual, which labels each fuse and its corresponding function.

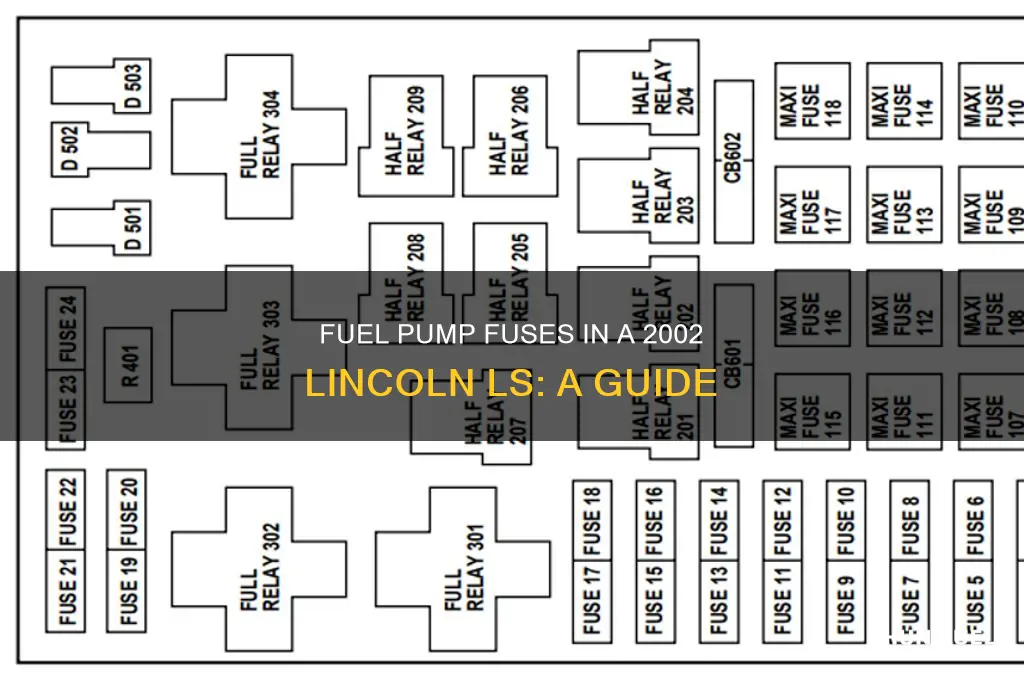

To identify the fuel pump fuse, refer to the diagram and look for the fuse labeled “Fuel Pump” or “FP”. In the 2002 Lincoln LS, this fuse is often a 20-amp fuse, though it’s essential to verify the exact rating using the diagram or manual. The fuel pump fuse is usually located in the second row of the fuse box, but its exact position can vary slightly depending on the vehicle’s configuration. If the diagram is unclear, cross-reference it with the owner’s manual for accuracy.
When inspecting the fuel pump fuse, ensure the vehicle is turned off to avoid electrical hazards. Use a fuse puller or a pair of needle-nose pliers to carefully remove the fuse. Inspect it for signs of damage, such as a broken filament or discoloration, which indicate a blown fuse. If the fuse is blown, replace it with one of the same amperage rating to avoid damaging the electrical system. After replacement, retest the fuel pump’s functionality to confirm the issue is resolved.
In summary, locating the fuel pump fuse in a 2002 Lincoln LS involves accessing the engine compartment fuse box, consulting the fuse diagram, and identifying the specific 20-amp fuse labeled for the fuel pump. This straightforward process can help diagnose fuel system issues efficiently, ensuring your vehicle operates smoothly. Always prioritize safety and accuracy when working with electrical components.
