The 2004 Volkswagen Jetta's fuel pump is a critical component for delivering fuel from the tank to the engine, and its operation relies on a specific fuse to protect the electrical circuit from overloads. Identifying the correct fuse for the fuel pump is essential for troubleshooting issues such as a non-starting engine or poor performance, as a blown fuse can disrupt the pump's functionality. In the 2004 Jetta, the fuel pump fuse is typically located in the vehicle's fuse box, often found in the engine compartment or interior fuse panel, and is usually labeled as Fuel Pump or with a corresponding amperage rating. Consulting the owner's manual or a fuse diagram specific to the 2004 Jetta model can provide precise details on the fuse's location and specifications, ensuring accurate diagnosis and replacement if necessary.
| Characteristics | Values |
|---|---|
| Fuse Location | In the fuse box located in the engine compartment. |
| Fuse Box Name | Engine Compartment Fuse Panel (or Auxilliary Fuse Panel). |
| Fuse Number | Typically Fuse #19 (but verify in the fuse box diagram). |
| Fuse Rating | 15 Amps (check the fuse box cover or diagram for confirmation). |
| Fuse Color | Blue (standard color for 15A fuses, but verify visually). |
| Fuel Pump Relay | May be associated with a relay in the same fuse box (e.g., Relay #303). |
| Year Applicability | 2004 Volkswagen Jetta (may apply to other years, but confirm for accuracy). |
| Additional Notes | Always refer to the vehicle’s manual or fuse box diagram for exact details. |
Explore related products
What You'll Learn

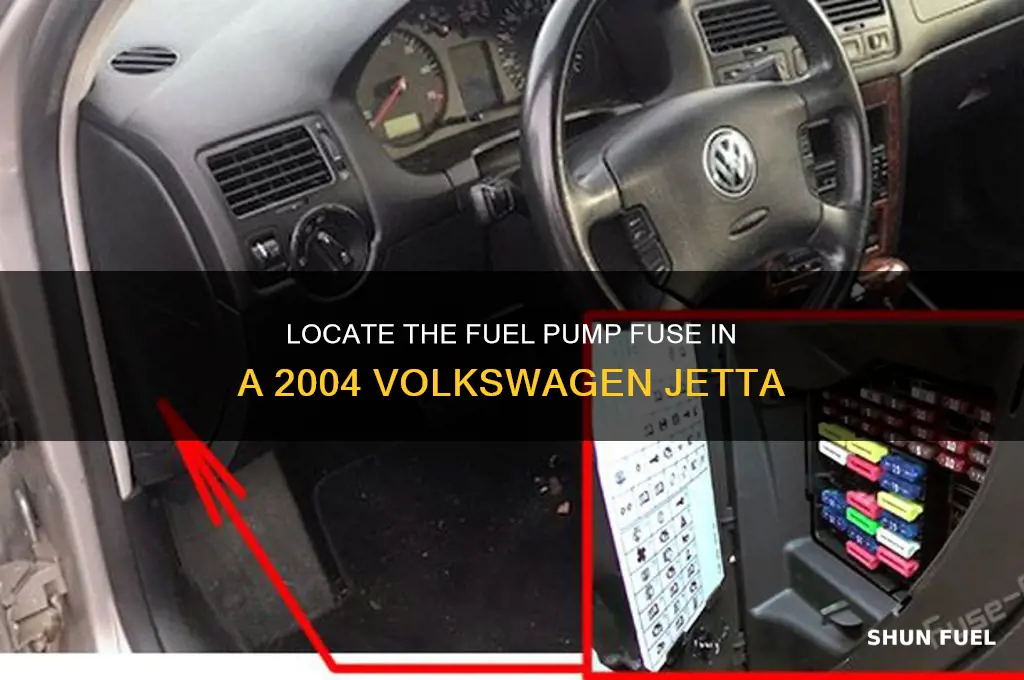

Fuse box location for fuel pump
The 2004 Volkswagen Jetta’s fuel pump fuse is located in the S30 relay plate, which is part of the vehicle’s fuse box system. This relay plate is typically found in the engine compartment, near the battery. Identifying its exact location is crucial for troubleshooting fuel pump issues, as a blown fuse can cause the pump to fail, leading to engine stalling or failure to start. Unlike some vehicles where the fuse box is tucked away in hard-to-reach spots, the Jetta’s design places it in a relatively accessible area, though it may require removing a plastic cover for visibility.
To locate the fuse box, start by opening the hood and identifying the battery on the driver’s side. The S30 relay plate is usually positioned adjacent to the battery, secured by a few screws or clips. Once the cover is removed, you’ll find a diagram on the underside of the lid or in the owner’s manual that labels the fuses and relays. The fuel pump fuse is often labeled as Fuse 19 or Relay 380, depending on the specific model and trim. Always cross-reference with the diagram to ensure accuracy, as slight variations may exist between Jetta configurations.
When inspecting the fuse, use a multimeter to test for continuity, as visual inspection alone may not reveal a blown fuse. If the fuse is faulty, replace it with one of the same amperage rating, typically 10 amps for the fuel pump. However, avoid repeatedly replacing the fuse without addressing the root cause, as this could indicate a more serious issue, such as a short circuit or a failing fuel pump. Regularly checking the fuse box during routine maintenance can prevent unexpected breakdowns and ensure the fuel system operates reliably.
Comparing the 2004 Jetta’s fuse box layout to other Volkswagen models reveals a consistent design philosophy, with critical components like the fuel pump fuse placed in easily accessible areas. This contrasts with some competitors, where fuse boxes are buried deep within the engine bay or cabin. For DIY enthusiasts, the Jetta’s straightforward layout reduces the frustration often associated with automotive electrical troubleshooting. However, if you’re unfamiliar with fuse box mechanics, consulting a professional or a repair manual is advisable to avoid mishandling sensitive components.
In conclusion, understanding the fuse box location for the fuel pump in a 2004 Jetta is a practical skill that can save time and money. By familiarizing yourself with the S30 relay plate’s position, using the correct tools for inspection, and addressing underlying issues, you can maintain your vehicle’s fuel system efficiently. This knowledge not only empowers car owners but also highlights the importance of accessibility in automotive design.
Running on Empty: Can Fuel Pump Damage Occur from Empty Tank?
You may want to see also
Explore related products
$108.5 $128.22
Identifying correct fuse number for pump
The 2004 Volkswagen Jetta’s fuel pump fuse is a critical component, and misidentifying it can lead to unnecessary troubleshooting or even damage. Located in the fuse box, this fuse is typically labeled as "Fuel Pump" or "FPM," but its exact position and number vary depending on the Jetta’s trim level and engine type. For instance, a 2.0L engine model may have the fuel pump fuse in a different slot than a 1.8T variant. Always consult the vehicle’s manual or fuse box diagram, often found on the inside cover of the fuse panel, to pinpoint the correct fuse number. This step is non-negotiable, as relying on memory or guesswork can result in checking the wrong fuse, wasting time, and delaying repairs.
Analyzing the fuse box diagram reveals a systematic approach to identifying the fuel pump fuse. Start by locating the fuse panel, usually under the dashboard on the driver’s side or in the engine bay. The diagram will list fuses by number and function, with the fuel pump fuse often assigned a higher amperage rating, such as 15 or 20 amps, to handle the pump’s power demands. Cross-reference this information with the physical fuse box to ensure accuracy. For example, if the diagram indicates fuse number 12 as the fuel pump fuse, verify that the fuse in slot 12 matches the described amperage. Discrepancies may indicate a previous repair or modification, so inspect the fuse carefully for signs of tampering or damage.
A persuasive argument for double-checking the fuse number lies in the consequences of a blown fuel pump fuse. Symptoms like engine stalling, difficulty starting, or a complete loss of power can mimic other issues, such as a failing fuel pump or clogged fuel filter. However, replacing the correct fuse is a far simpler and cheaper fix. To avoid misdiagnosis, use a multimeter to test the fuse for continuity before assuming it’s the culprit. If the multimeter shows no continuity, replace the fuse with one of the exact same amperage—using a higher-rated fuse can cause electrical damage, while a lower-rated one may blow immediately. This methodical approach ensures you address the root cause without unnecessary part replacements.
Comparatively, identifying the fuel pump fuse on a 2004 Jetta is simpler than on some newer vehicles with more complex electrical systems. Older models often have straightforward fuse layouts, making it easier to locate the correct fuse without specialized tools. However, this simplicity can lead to complacency. For instance, some owners mistakenly assume all Jettas of the same year share the same fuse configuration, overlooking variations between models. Always verify the specific fuse number for your vehicle’s VIN or engine code, as even minor differences can affect fuse placement. This attention to detail distinguishes a successful repair from a frustrating trial-and-error process.
Descriptively, the fuel pump fuse on a 2004 Jetta is a small but mighty component, often a blade-type fuse with a plastic body and metal prongs. Its unassuming appearance belies its importance, as it acts as a safeguard against electrical overloads that could damage the fuel pump or wiring. When inspecting the fuse, look for signs of burning, melting, or discoloration, which indicate it has blown. A functional fuse will appear pristine, with intact prongs and no visible damage. Keep a set of spare fuses in your vehicle, as they are inexpensive and can save you from being stranded if the fuel pump fuse fails unexpectedly. This proactive measure ensures you’re prepared for the most common electrical issue affecting the fuel system.
Effective Tips to Silence Your Holley Electric Fuel Pump Noise
You may want to see also
Explore related products
Symptoms of a blown fuel pump fuse
A blown fuel pump fuse in a 2004 Jetta can manifest in ways that mimic other fuel system issues, making diagnosis tricky. The most immediate symptom is a sudden loss of engine power or a complete stall, often while driving. This occurs because the fuel pump, which delivers fuel from the tank to the engine, ceases operation without power from the fuse. Unlike gradual fuel pump failure, which might cause sputtering or hesitation, a blown fuse results in an abrupt shutdown. If the engine cranks but won’t start, and there’s no fuel pressure at the rail, the fuse is a prime suspect.
To confirm the issue, locate the fuse box in your 2004 Jetta, typically found in the engine bay or interior cabin, and consult the fuse diagram in the owner’s manual. The fuel pump fuse is usually labeled as “Fuel Pump” or “FP” and is often rated at 15–20 amps. Use a multimeter to test the fuse for continuity; a broken circuit indicates a blown fuse. If the fuse appears intact, check for corrosion or loose connections in the fuse slot, as these can disrupt power flow. Replacing the fuse with one of the correct amperage is a straightforward fix, but recurring blows suggest an underlying issue, such as a short circuit or a failing fuel pump drawing excessive current.
Beyond the obvious stall, other symptoms can hint at a blown fuel pump fuse. For instance, the “Check Engine” light may illuminate, though this is nonspecific and requires a diagnostic scan to confirm the cause. Additionally, you might hear the fuel pump fail to prime when turning the ignition on—normally, it produces a faint humming sound for 2–3 seconds. If this sound is absent, the fuse or pump itself could be at fault. However, a blown fuse won’t cause symptoms like fuel odor or leaks, which point to different problems.
Preventive measures can reduce the risk of a blown fuel pump fuse. Regularly inspect the fuse box for signs of overheating or corrosion, especially in older vehicles like the 2004 Jetta. Avoid using fuses with incorrect amperage ratings, as this can lead to overheating and failure. If the fuse blows repeatedly, trace the wiring harness for damage or chafing, which could cause a short circuit. In some cases, upgrading to a higher-quality fuse or adding a fuse with a slight amperage buffer (e.g., 20A instead of 15A, if compatible) can improve reliability, but consult a mechanic if in doubt.
While a blown fuel pump fuse is a common issue, its symptoms can overlap with other fuel system failures. For example, a clogged fuel filter or faulty pump relay can also cause stalling or no-start conditions. To differentiate, test the relay by swapping it with a similar one in the fuse box (e.g., the horn relay) and check if the issue persists. If the fuse is blown but the relay is functional, focus on the fuse and its circuit. Always address recurring fuse failures promptly, as they can strain the electrical system and lead to costlier repairs. A systematic approach—testing, replacing, and inspecting—ensures you tackle the root cause, not just the symptom.
Is Your Fuel Pump Failing? Signs and Solutions to Diagnose the Issue
You may want to see also
Explore related products
Replacing the fuel pump fuse in Jetta
The fuel pump fuse in a 2004 Volkswagen Jetta is a critical component, often located in the fuse box under the hood or in the interior fuse panel. Identifying the correct fuse is essential, as using the wrong one can lead to electrical issues or even damage. For the 2004 Jetta, the fuel pump fuse is typically labeled as Fuse S12 in the under-hood fuse box, rated at 10 amps. Always consult your vehicle’s manual or a reliable diagram to confirm the exact location and rating, as variations may exist based on the model or trim.
Replacing the fuel pump fuse is a straightforward task, but it requires attention to detail. Start by locating the fuse box, which is usually near the battery in the engine compartment. Use a fuse puller or a pair of needle-nose pliers to remove the fuse carefully, avoiding damage to the surrounding components. Inspect the fuse for signs of burning or a broken filament, which indicate a blown fuse. If the fuse appears intact, test it with a multimeter to ensure continuity. Always replace the fuse with one of the same amperage rating to prevent electrical overload.
While replacing the fuse, consider the underlying cause of the failure. A blown fuel pump fuse often results from a malfunctioning fuel pump, a short circuit, or excessive current draw. If the fuse blows repeatedly, avoid replacing it without diagnosing the issue, as this can lead to further damage. Common culprits include a faulty fuel pump relay, clogged fuel filter, or wiring issues. In such cases, consulting a professional mechanic is advisable to address the root cause.
Practical tips can make the process smoother. Keep a spare set of fuses in your vehicle, including the correct 10-amp fuse for the fuel pump. Label the fuses in your storage container for quick identification. When working in the engine bay, ensure the ignition is off and the battery is disconnected to prevent accidental electrical discharge. Finally, test the fuel pump after replacing the fuse by turning the ignition to the "on" position and listening for the pump’s hum, which should last for a few seconds as it primes the system.
In summary, replacing the fuel pump fuse in a 2004 Jetta is a manageable task with the right tools and knowledge. By identifying the correct fuse, following proper procedures, and addressing potential underlying issues, you can restore your vehicle’s fuel system efficiently. Always prioritize safety and accuracy to avoid complications and ensure your Jetta runs smoothly.
Can a Faulty Fuel Pump Trigger a Check Engine Light Code?
You may want to see also
Explore related products
Common causes of fuel pump fuse failure
A blown fuel pump fuse in your 2004 Jetta can leave you stranded, and understanding the culprits behind this failure is crucial for prevention. One common cause is an electrical overload. The fuel pump fuse is designed to protect the circuit from excessive current. If the fuel pump draws more amperage than the fuse can handle, it will blow. This can happen due to a faulty fuel pump motor, a clogged fuel filter restricting flow and increasing pump strain, or even a short circuit within the wiring harness.
Imagine your fuel pump as a runner; a clogged filter is like running with weights, forcing the pump to work harder and potentially overheating the circuit.
Another frequent offender is corrosion and poor connections. Over time, moisture and dirt can accumulate around the fuse and its terminals, leading to corrosion. This corrosion increases resistance in the circuit, causing heat buildup and potentially melting the fuse. Regularly inspecting the fuse box for signs of corrosion and cleaning the terminals with a wire brush can help prevent this issue. Think of it like maintaining good contact points in a battery-powered device; clean connections ensure efficient current flow.
Pro Tip: When replacing a blown fuse, always inspect the surrounding area for corrosion and address it before installing a new fuse.
Age and wear are inevitable factors contributing to fuse failure. Fuses, like all components, have a finite lifespan. Over time, the metal filament within the fuse can weaken, making it more susceptible to blowing even under normal operating conditions. If your 2004 Jetta is racking up the miles, consider proactively replacing the fuel pump fuse as a preventative measure, especially if you've experienced other electrical issues.
Remember: Using a fuse with the correct amperage rating is crucial. Never replace a blown fuse with one of a higher rating, as this can lead to more severe electrical problems.
Lastly, external factors can play a role. Extreme temperatures, both hot and cold, can stress electrical components, including fuses. Additionally, road debris or accidents can damage the wiring harness, leading to shorts and potential fuse blowing. While these factors are less controllable, being aware of them highlights the importance of regular vehicle inspections and maintenance.
Why Do My Lights Dim When I Turn on the Fuel Pump?
You may want to see also
Frequently asked questions
The fuel pump fuse on a 2004 Jetta is typically located in the fuse box and is labeled as "Fuel Pump" or "FPM." It is usually a 20-amp fuse.
The fuse box for the fuel pump is located in the engine compartment. It is usually on the driver’s side, near the battery or along the firewall.
Refer to the fuse box diagram in your owner’s manual. The fuel pump fuse is often labeled as "Fuel Pump," "FPM," or "Relay 109" depending on the model.
If the fuse repeatedly blows, it indicates an electrical issue, such as a short circuit or a faulty fuel pump. Have the wiring and fuel pump inspected by a professional mechanic.
Yes, you can replace the fuse yourself. Locate the fuse box, identify the correct fuse using the diagram, and replace it with a fuse of the same amperage (typically 20 amps). Ensure the car is off before making any changes.
