Mechanical Fuel Pump Operation: Key Components And Driving Forces Explained

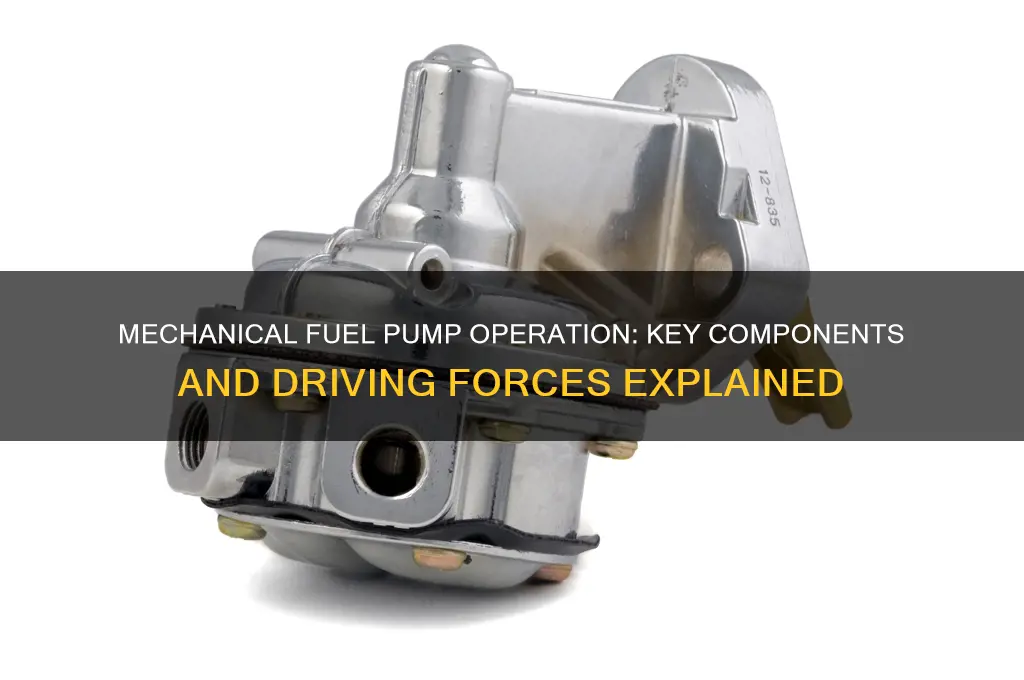

what drives a mechanical fuel pump

A mechanical fuel pump is driven by the motion of the engine, typically through a mechanical connection such as a camshaft lobe or an eccentric wheel on the crankshaft. As the engine runs, this connection causes the pump's diaphragm or plunger to move, creating a vacuum that draws fuel from the tank and pushes it through the fuel lines to the carburetor or fuel injection system. This direct, engine-driven mechanism ensures a consistent fuel supply, making it a reliable and efficient component in many internal combustion engines, particularly in older or carbureted systems.

Characteristics Values
Drive Mechanism Camshaft (most common), Eccentric lobe on crankshaft, Gear train
Operation Direct mechanical linkage, No electricity required
Fuel Delivery Positive displacement, Delivers fuel at a constant pressure relative to engine speed
Pressure Regulation Typically unregulated, Pressure increases with engine RPM
Location Usually mounted on the engine block or near the fuel tank
Fuel Type Compatible with gasoline and diesel (some designs)
Maintenance Generally low maintenance, May require diaphragm replacement over time
Advantages Simple design, Reliable, Cost-effective
Disadvantages Fuel pressure varies with engine speed, Less precise fuel delivery compared to electric pumps
Applications Carbureted engines, Older fuel-injected engines, Some racing applications

shunfuel

Engine Camshaft Operation: The camshaft lobe's rotation directly drives the fuel pump's plunger or diaphragm

The camshaft, a critical component in internal combustion engines, plays a pivotal role in driving mechanical fuel pumps. Its lobes, precisely engineered to match the engine's timing, rotate in sync with the crankshaft. As the camshaft spins, its lobes press against the fuel pump's plunger or diaphragm, creating a rhythmic, high-pressure pulse that forces fuel through the system. This direct mechanical linkage ensures fuel delivery is tightly coupled with engine speed, optimizing performance across RPM ranges. For instance, in carbureted engines, this mechanism maintains a consistent fuel-air mixture, critical for efficient combustion.

Consider the operational dynamics: the camshaft's lobes are not uniform in shape. Their profile—lift, duration, and angle—dictates the plunger's travel and force. A steeper lobe profile generates higher pressure but may wear components faster, while a gentler profile prioritizes longevity over peak performance. In racing applications, camshafts with aggressive lobes are often paired with high-flow fuel pumps to meet extreme fuel demands, though this requires frequent maintenance. Conversely, stock engines use milder lobes to balance efficiency and durability, suitable for daily driving.

To troubleshoot camshaft-driven fuel pump issues, start by inspecting the camshaft lobe for wear or damage. A worn lobe may fail to fully actuate the plunger, leading to insufficient fuel delivery. Symptoms include hard starting, stalling, or rough idling. Next, check the pump's plunger or diaphragm for cracks or leaks, as these compromise pressure. If the camshaft timing is off—a common issue after belt or chain replacements—the pump's operation will be out of sync with engine demands. Use a timing light to verify alignment, ensuring the camshaft and crankshaft marks align within manufacturer tolerances (typically ±1 degree).

For those upgrading their fuel system, selecting a camshaft with the right lobe profile is crucial. Aftermarket camshafts often specify lobe lift (e.g., 0.400 inches) and duration (e.g., 280 degrees at 0.050-inch lift), which directly impact fuel pump performance. Pairing a high-lift cam with a stock fuel pump can overwhelm the pump, while a low-lift cam may underutilize a high-capacity pump. Always consult the engine’s compression ratio and intended use—higher compression engines (e.g., 10:1 or greater) typically require more robust fuel delivery systems.

In practice, maintaining this system involves regular inspection and preventive measures. Lubricate the camshaft lobe and pump contact points with engine oil to reduce friction, but avoid over-lubrication, which can attract debris. Replace the fuel pump every 100,000 miles or sooner if performance degrades. For DIY enthusiasts, installing a mechanical fuel pump with a camshaft-driven design is straightforward: align the pump’s pushrod with the cam lobe, secure it with the provided hardware, and ensure all seals are intact. This direct-drive mechanism, while simple, remains a cornerstone of reliable fuel delivery in many engines.

shunfuel

Plunger Mechanism: A plunger moves up/down, creating suction and pressure to pump fuel

The plunger mechanism in a mechanical fuel pump operates on a simple yet ingenious principle: reciprocating motion. As the plunger moves downward, it creates a vacuum, drawing fuel into the pump chamber through an inlet valve. When it moves upward, the fuel is compressed, forcing the outlet valve open and delivering the fuel to the engine. This cyclical action ensures a steady and reliable fuel supply, critical for the combustion process in internal combustion engines.

Consider the precision required in this mechanism. The plunger’s stroke length and speed are calibrated to match the engine’s fuel demands, typically ranging from 2 to 4 strokes per second in a standard automotive application. The plunger’s sealing surface, often made of durable materials like hardened steel or ceramic, must maintain a tight fit to prevent fuel leakage. Even a minor defect in this seal can reduce pump efficiency by up to 20%, leading to poor engine performance or stalling.

To maintain a plunger-driven fuel pump, regular inspection is key. Check for wear on the plunger and valves every 30,000 miles or if you notice symptoms like hard starting or rough idling. Lubrication is equally critical; ensure the pump housing contains sufficient oil to reduce friction and prolong component life. For DIY enthusiasts, replacing a worn plunger involves disassembling the pump, cleaning the chamber, and installing a new plunger with torque specifications typically ranging from 15 to 25 ft-lbs, depending on the model.

Comparing the plunger mechanism to other fuel pump designs highlights its advantages. Unlike electric fuel pumps, which rely on external power sources, the plunger mechanism is driven directly by the engine’s camshaft or timing gear, ensuring operation even in the absence of electrical power. This mechanical reliability makes it a preferred choice in older vehicles, diesel engines, and high-performance applications where fuel delivery consistency is paramount.

Finally, the plunger mechanism’s adaptability is noteworthy. In diesel engines, for instance, plunger pumps are often paired with injection systems to achieve pressures exceeding 20,000 PSI, essential for efficient fuel atomization. In contrast, gasoline engines use lower-pressure versions, typically operating between 3 to 8 PSI. This versatility underscores the plunger mechanism’s enduring relevance in diverse automotive contexts, blending simplicity with high performance.

shunfuel

Diaphragm Action: A flexible diaphragm expands/contracts, drawing and pushing fuel through the system

The mechanical fuel pump's diaphragm is a marvel of simplicity and efficiency, a thin, flexible membrane that becomes the heart of the fuel delivery system. This diaphragm, typically made of durable materials like nitrile rubber or silicone, is the key to the pump's operation. When the diaphragm expands, it creates a low-pressure zone, drawing fuel into the pump chamber through the inlet valve. This action is akin to inhaling, where the pump 'breathes in' the fuel, ensuring a steady supply for the engine's demands.

The Mechanics of Diaphragm Movement:

Imagine a piston-like motion, but instead of a rigid piston, you have a flexible diaphragm. As the pump's camshaft or lever arm actuates, it causes the diaphragm to move up and down. This movement is precisely controlled, ensuring a consistent fuel flow. During the downward stroke, the diaphragm expands, creating a vacuum that pulls fuel from the tank. The inlet valve opens, allowing fuel to enter, and the diaphragm's flexibility ensures a tight seal, preventing backflow.

Fuel Flow Dynamics:

The beauty of this design lies in its ability to handle various fuel types and pressures. For instance, in a typical automotive application, the diaphragm pump can deliver fuel at a rate of 30-50 liters per hour, depending on engine requirements. This flow rate is crucial for maintaining optimal engine performance, especially during acceleration or high-load conditions. The diaphragm's flexibility allows it to adapt to different fuel viscosities, ensuring efficient pumping regardless of temperature or fuel type.

Maintenance and Longevity:

One of the advantages of diaphragm-driven fuel pumps is their reliability and ease of maintenance. Unlike complex electric pumps, these mechanical pumps have fewer moving parts, reducing potential failure points. Regular inspection and replacement of the diaphragm, typically recommended every 50,000-100,000 miles, can ensure the pump's longevity. It's a simple yet effective system, where the diaphragm's flexibility and durability are key to its success, making it a preferred choice for many classic and modern vehicles alike.

In summary, the diaphragm's action in a mechanical fuel pump is a testament to the elegance of simple mechanical solutions. Its ability to draw and push fuel with precision and reliability makes it an essential component in the automotive world, where consistent fuel delivery is critical for engine performance and efficiency. Understanding this mechanism provides valuable insights into the inner workings of vehicles and the importance of such seemingly simple components.

shunfuel

Fuel Pressure Regulation: A pressure regulator ensures consistent fuel delivery to the carburetor or injectors

Mechanical fuel pumps rely on engine motion to generate fuel flow, but raw output alone isn’t enough. Without regulation, pressure would spike dangerously under acceleration or drop catastrophically at idle. Enter the pressure regulator—a critical component that acts as a gatekeeper, ensuring fuel reaches the carburetor or injectors at a precise, consistent pressure regardless of engine demand. This stability is non-negotiable for efficient combustion, as even minor deviations can lead to lean or rich mixtures, compromising performance and fuel economy.

Consider the regulator’s operation as a dynamic balancing act. It monitors system pressure via a feedback mechanism, often a diaphragm exposed to fuel pressure on one side and a spring or vacuum reference on the other. When pressure exceeds the set point (typically 3–7 psi for carburetors, 40–60 psi for injectors), the regulator opens a bypass, diverting excess fuel back to the tank. Conversely, if pressure drops, the bypass closes, maintaining the required flow. This real-time adjustment is particularly vital in high-performance engines, where sudden throttle changes demand instantaneous response without sacrificing precision.

Installing or adjusting a regulator requires careful attention to compatibility and calibration. For carbureted systems, regulators are often mounted inline near the pump, while EFI setups integrate them into the fuel rail or pump assembly. Always verify the regulator’s pressure rating matches your system’s requirements—using a 58-psi regulator in a 3-psi carbureted setup will starve the engine, while a low-pressure unit in a high-performance EFI system risks fuel boil and vapor lock. Pro tip: Use a fuel pressure gauge to fine-tune the regulator’s set screw, adjusting in 0.5-psi increments until the desired pressure is stable across idle, cruise, and full throttle.

One common oversight is neglecting vacuum or boost reference on regulators in EFI systems. Without this input, pressure won’t scale with engine load, leading to surging or hesitation. For turbocharged or supercharged engines, ensure the regulator’s reference port connects to the intake manifold post-throttle body, allowing pressure to rise with boost. Conversely, naturally aspirated setups should use a ported vacuum source to mimic intake manifold dynamics. Ignoring this step can void the regulator’s effectiveness, turning a precision tool into a liability.

In summary, the pressure regulator is the unsung hero of fuel delivery systems, transforming raw pump output into a controlled, engine-friendly resource. Whether you’re troubleshooting a misfire or upgrading to a high-flow pump, understanding its role and proper integration is essential. Treat it as the final arbiter of fuel pressure, and your engine will reward you with reliability, efficiency, and power.

shunfuel

Drive Mechanism Types: Eccentric, cam-driven, or pushrod systems transfer engine motion to the pump

Mechanical fuel pumps rely on precise engine-driven mechanisms to deliver fuel efficiently. Among the most common drive systems are eccentric, cam-driven, and pushrod setups, each transferring engine motion to the pump with distinct characteristics. Eccentric systems, for instance, use a rotating shaft with an off-center lobe to create reciprocating motion, directly driving the pump diaphragm or plunger. This design is compact and reliable, often found in older carbureted engines where simplicity and durability are prioritized.

Cam-driven systems, on the other hand, leverage the engine’s camshaft to actuate the fuel pump. A lobe on the camshaft presses against a follower, which in turn drives the pump’s internal components. This method ensures synchronization with engine speed, making it ideal for high-performance applications where fuel demand scales with RPM. However, it requires precise timing and alignment, increasing complexity during installation and maintenance.

Pushrod systems operate by connecting the pump to a dedicated pushrod, often driven by a lobe on the camshaft or a separate eccentric shaft. This setup allows for greater flexibility in pump placement but introduces potential for wear and misalignment over time. It’s commonly used in inline engines where space constraints limit other designs. Each system’s effectiveness depends on factors like engine layout, RPM range, and fuel delivery requirements.

When selecting a drive mechanism, consider the engine’s architecture and performance goals. Eccentric systems excel in simplicity, cam-driven setups in precision, and pushrod designs in adaptability. For example, a high-RPM racing engine might benefit from a cam-driven pump’s synchronized fuel delivery, while a classic restoration project could prioritize the reliability of an eccentric system. Proper installation and periodic inspection are critical for all types to ensure consistent fuel supply and prevent mechanical failure.

In practice, diagnosing drive mechanism issues involves checking for symptoms like fuel starvation, irregular pump operation, or unusual noises. For eccentric systems, inspect the lobe for wear; in cam-driven setups, verify camshaft timing and follower condition; and for pushrod designs, ensure the rod is securely seated and free of binding. Understanding these mechanisms not only aids in troubleshooting but also informs upgrades or modifications tailored to specific engine demands.
