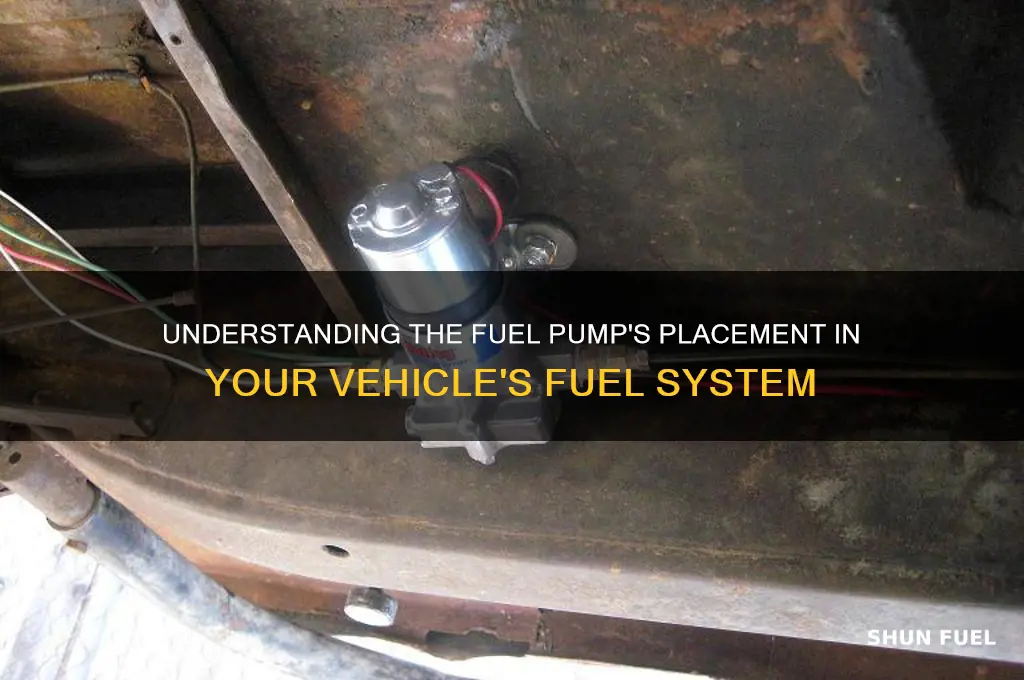

The fuel pump is a critical component of a vehicle's fuel system, responsible for delivering fuel from the tank to the engine. It is typically installed inside the fuel tank in modern vehicles, a design known as an in-tank fuel pump, which helps maintain fuel pressure and ensures a consistent supply. In older or carbureted engines, the fuel pump might be located outside the tank, often mounted on the engine or frame, and is usually mechanical, driven by the camshaft or a separate electric motor. Understanding where the fuel pump is positioned is essential for maintenance, troubleshooting, and ensuring optimal engine performance.
Explore related products
What You'll Learn
Fuel tank location and installation process
The fuel pump is a critical component in a vehicle's fuel system, and its installation is directly tied to the fuel tank's design and location. Modern vehicles typically house the fuel pump inside the fuel tank, a setup known as an in-tank fuel pump. This design immerses the pump in fuel, which helps keep it cool and reduces the risk of vapor lock, a condition where fuel vaporizes and disrupts fuel flow. In older vehicles, external fuel pumps were common, often mounted inline between the tank and the engine. However, in-tank pumps have become the standard due to their efficiency and reliability.
Installing an in-tank fuel pump requires careful preparation and precision. Begin by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize weight and fire hazards. Disconnect the battery to prevent accidental ignition. Access the fuel tank by removing the protective cover or underbody panel, typically located beneath the rear seat or trunk. Use a specialized tool to relieve fuel system pressure before disconnecting any lines to avoid spills or injuries. Once the tank is accessible, lower it carefully or remove it entirely, depending on the vehicle’s design.
With the tank removed, the fuel pump module can be accessed by unlocking the retaining ring or screws holding it in place. Before installing the new pump, inspect the fuel tank for debris or corrosion, cleaning it thoroughly if necessary. Ensure the new pump’s electrical connector and fuel lines align correctly with the tank’s openings. Secure the pump module firmly, reattaching the locking ring or screws. Reinstall the fuel tank, reconnecting all fuel lines and electrical connections. Test the system for leaks and ensure proper operation before driving.
One critical aspect of fuel pump installation is compatibility. Always use a pump designed for your specific vehicle make and model, as variations in design and electrical requirements can affect performance. Aftermarket pumps may offer improved flow rates or durability but verify their compatibility with your fuel system. Additionally, consider replacing the fuel filter and strainer during installation to ensure clean fuel delivery and prolong the pump’s lifespan.
Proper installation not only ensures optimal fuel system performance but also enhances safety. A poorly installed fuel pump can lead to fuel leaks, engine misfires, or even fires. For those unfamiliar with the process, consulting a professional mechanic is advisable. However, with the right tools, precautions, and attention to detail, installing a fuel pump can be a manageable task for experienced DIY enthusiasts. Always refer to the vehicle’s service manual for specific instructions and torque specifications.
Understanding Snowmobile Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Engine bay connection and fuel line routing
The fuel pump's integration into the engine bay is a critical aspect of a vehicle's fuel delivery system, and its connection to the engine bay and fuel line routing is a precise process that ensures efficient fuel delivery and optimal engine performance. This process involves a series of carefully designed components and connections that work together to deliver fuel from the tank to the engine.
Analyzing the Engine Bay Connection
In most vehicles, the fuel pump is located inside the fuel tank, which is typically situated at the rear of the vehicle. However, in some cases, especially in high-performance or racing vehicles, the fuel pump may be relocated to the engine bay for easier access, improved cooling, and reduced fuel line length. When the fuel pump is mounted in the engine bay, it is usually secured to the chassis or a dedicated bracket using bolts or clamps. This setup requires a robust and vibration-resistant mounting system to prevent damage to the pump and ensure reliable operation.
Instructive Guide to Fuel Line Routing
Proper fuel line routing is essential to minimize the risk of leaks, kinks, or damage to the lines. When routing fuel lines in the engine bay, follow these steps: (1) Plan the route: Identify the shortest and most direct path from the fuel pump to the fuel rail or injection system, avoiding sharp bends, moving components, and heat sources. (2) Use appropriate materials: Select fuel lines made from high-quality materials, such as stainless steel, nylon, or PTFE, that can withstand the pressure, temperature, and chemical properties of the fuel. (3) Secure the lines: Use clamps, brackets, or zip ties to secure the fuel lines to the chassis or engine components, ensuring they are not loose or rubbing against other parts. (4) Test for leaks: After installation, pressurize the fuel system and inspect all connections for leaks, tightening or replacing components as necessary.
Comparative Analysis of Fuel Pump Mounting Locations
Mounting the fuel pump in the engine bay offers several advantages, including easier maintenance, improved cooling, and reduced fuel line length. However, this setup also presents challenges, such as increased noise, vibration, and heat exposure. In contrast, in-tank fuel pumps are more common and offer benefits like reduced noise, better fuel cooling, and protection from external elements. When deciding between engine bay and in-tank mounting, consider factors like vehicle application, performance requirements, and maintenance accessibility.
Descriptive Overview of Fuel System Components
A typical fuel system consists of several key components, including the fuel tank, fuel pump, fuel filter, fuel lines, and fuel injectors or carburetor. In an engine bay-mounted fuel pump setup, additional components like a fuel pressure regulator, return line, and check valve may be required to maintain proper fuel pressure and prevent fuel from flowing back into the tank. These components work together to deliver a consistent and reliable fuel supply to the engine, ensuring optimal performance and efficiency. To maintain the fuel system, it is recommended to replace the fuel filter every 20,000-30,000 miles and inspect the fuel lines and connections periodically for signs of wear or damage.
Practical Tips for Engine Bay Fuel Pump Installation
When installing a fuel pump in the engine bay, consider the following tips: use a high-quality fuel pump with a flow rate and pressure rating suitable for your engine's requirements; ensure the fuel pump is compatible with the type of fuel being used (e.g., gasoline, diesel, or E85); and install a fuel pressure gauge to monitor fuel pressure and diagnose potential issues. Additionally, be mindful of local regulations and safety standards regarding fuel system installations, and always follow manufacturer guidelines and best practices to ensure a safe and reliable setup. By carefully planning and executing the engine bay connection and fuel line routing, you can achieve a high-performance and efficient fuel delivery system that meets your vehicle's specific needs.
Locating the Fuel Pump on a 1965 Mustang: A Guide
You may want to see also
Explore related products
Fuel pump module assembly components
The fuel pump module assembly is a critical component in modern vehicles, housing the fuel pump, sender unit, and other essential parts within the fuel tank. This integrated system ensures efficient fuel delivery to the engine while maintaining safety and reliability. Understanding its components is key to diagnosing issues and appreciating its role in vehicle performance.
Components and Their Functions
At the heart of the fuel pump module assembly is the electric fuel pump, which draws fuel from the tank and delivers it to the engine under precise pressure. The sender unit, often combined with the pump, monitors fuel levels and relays this information to the fuel gauge. A float arm moves with the fuel level, while a resistor adjusts the electrical signal to reflect the tank’s fullness. The fuel filter, integrated into the module, traps contaminants to prevent engine damage. Lastly, the reservoir or dampener reduces fuel slosh and ensures consistent pump operation, especially during hard braking or cornering.
Installation and Compatibility
Installing a fuel pump module assembly requires precision. The module is typically suspended within the fuel tank via a locking ring or flange, ensuring a secure fit. Compatibility is critical; modules vary by vehicle make, model, and year, with differences in pump flow rates, sender unit resistance ranges, and filter specifications. For example, a high-performance vehicle may require a pump delivering 60–80 liters per hour, while a compact car might need only 30–50 liters per hour. Always verify part numbers and consult vehicle manuals to avoid mismatches.
Maintenance and Troubleshooting
Regular maintenance involves inspecting the module for leaks, corrosion, or electrical faults. A failing pump may exhibit symptoms like sputtering, stalling, or reduced power. If the fuel gauge reads inaccurately, the sender unit or float may be faulty. Replacement typically requires draining the fuel tank, lowering it from the vehicle, and carefully removing the module. Caution: Work in well-ventilated areas, use non-sparking tools, and disconnect the battery to prevent hazards. Professional installation is recommended for those unfamiliar with fuel system repairs.
Advancements and Innovations
Modern fuel pump modules incorporate turbine or gerotor pump designs for quieter operation and higher efficiency. Some feature in-tank brushes to reduce electrical contact resistance, extending lifespan. Advanced modules may include pressure regulators or check valves to maintain optimal fuel pressure. For hybrid vehicles, the module often integrates with the battery management system to optimize fuel usage during regenerative braking. These innovations highlight the module’s evolution from a simple pump to a sophisticated fuel management system.
Practical Tips for Longevity
To extend the life of your fuel pump module, keep the fuel tank at least a quarter full to prevent the pump from overheating due to lack of coolant fuel. Use high-quality fuel to minimize contaminants that could clog the filter. Periodically inspect the wiring harness for damage, as electrical faults are a common failure point. For vehicles in harsh climates, consider a fuel additive to prevent moisture buildup in the tank. Lastly, address any check engine light or fuel system warnings promptly to avoid cascading issues.
Measuring Fuel Pump PSI Using an OBD2 Tool: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel filter integration and placement
The fuel pump's housing often incorporates the fuel filter, a critical component that ensures clean fuel reaches the engine. This integration is a design choice with significant implications for vehicle performance and maintenance. By combining these parts, engineers create a compact, efficient system where the pump draws fuel through the filter, removing contaminants before delivery. This setup is common in modern vehicles, particularly those with in-tank fuel pumps, where space optimization is crucial.
Design Considerations: When integrating a fuel filter into the pump assembly, several factors come into play. The filter's micron rating, typically between 10 and 100 microns, determines its effectiveness in capturing particles. A finer filter (lower micron rating) provides better filtration but may restrict fuel flow, affecting pump performance. Therefore, engineers must balance filtration needs with flow requirements, ensuring the pump can maintain adequate pressure and volume. Additionally, the filter's capacity and durability are essential, as frequent replacements can be inconvenient and costly.
Installation and Maintenance: Proper placement of the integrated fuel pump and filter unit is vital. In most vehicles, this assembly is submerged in the fuel tank, allowing the fuel to cool the pump and provide a consistent supply. During installation, technicians must ensure the unit is securely mounted and all connections are tight to prevent leaks. Regular maintenance involves monitoring fuel pressure and flow, as a clogged filter can lead to pump strain and reduced engine performance. Replacing the filter at recommended intervals, often every 20,000 to 40,000 miles, is essential to maintain optimal fuel system health.
A comparative analysis reveals the advantages of this integrated design. Traditional external fuel filters, often located along the fuel line, require additional plumbing and can be more susceptible to damage or contamination during replacement. In contrast, the in-tank integrated filter is protected and simplifies the fuel system's layout. However, accessing the filter for maintenance may be more challenging, requiring fuel pump removal in some cases. This trade-off highlights the importance of considering both performance and serviceability in fuel system design.
For vehicle owners and mechanics, understanding this integration is key to troubleshooting fuel-related issues. Symptoms like engine sputtering, reduced power, or hard starting could indicate a clogged filter or pump strain. In such cases, inspecting the fuel pressure and replacing the integrated unit might be necessary. Regular maintenance and using high-quality fuel can extend the life of these components, ensuring the engine receives clean, uninterrupted fuel supply. This knowledge empowers individuals to make informed decisions about their vehicle's care, emphasizing the significance of fuel filter integration in overall engine health.
Locate Your Ford 351 Fuel Pump: A Quick Guide
You may want to see also
Explore related products
$235.99
Electrical wiring and relay connections
The fuel pump's electrical wiring and relay connections are critical for ensuring reliable fuel delivery to the engine. These components form the backbone of the fuel pump's operation, requiring precise installation and maintenance to prevent malfunctions. The wiring harness, typically composed of 16 to 18 gauge wires, must be routed away from heat sources and sharp edges to avoid damage. Relays, acting as high-current switches, are essential for managing the power supply to the fuel pump, often drawing 10 to 20 amps during operation. Proper grounding is equally vital, as poor connections can lead to voltage drops, causing the pump to run inefficiently or fail altogether.
When installing or troubleshooting these connections, start by verifying the relay’s pin configuration, which varies by vehicle make and model. For example, a typical 5-pin relay includes two control pins (85 and 86), two power pins (30 and 87), and a ground pin (87a). Connect pin 87 to the fuel pump’s positive terminal and pin 30 to the battery’s positive feed, ensuring the relay is energized when the ignition is on. Use a multimeter to test continuity across the relay’s contacts and check for voltage at the pump’s connector. If the relay clicks but the pump doesn’t activate, inspect the wiring for breaks or corrosion, particularly at the pump’s connector, which is prone to moisture damage.
A common mistake is overlooking the importance of fuse protection. Always install a fuse rated for the pump’s current draw (e.g., a 15-amp fuse for a 12-amp pump) in the power feed to prevent electrical fires in case of a short circuit. Additionally, consider using heat-shrink tubing to insulate spliced connections and waterproof them, especially in vehicles exposed to harsh weather conditions. For aftermarket fuel pump installations, ensure the relay is compatible with the pump’s amperage requirements and that the wiring gauge is sufficient to handle the load without excessive voltage drop.
Comparing OEM and aftermarket wiring setups highlights the importance of quality materials. OEM harnesses often include thicker insulation and more robust connectors, while aftermarket kits may require upgrades to meet high-performance demands. For instance, upgrading to a 14-gauge wire can improve reliability in systems with high-flow pumps. Always consult the vehicle’s wiring diagram to identify the correct relay location and wiring paths, as misrouting can lead to interference from other electrical components.
In conclusion, mastering electrical wiring and relay connections for the fuel pump involves attention to detail, from selecting the right components to ensuring secure and protected installations. Regular inspections and adherence to best practices will minimize the risk of failures, ensuring consistent fuel delivery and engine performance. Whether working on a stock vehicle or a high-performance build, understanding these principles is key to a reliable fuel system.
Diagnosing Fuel Pump Issues in Your 2005 Acura TL: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump is typically installed into the fuel tank of a vehicle.
In some older vehicles or specific designs, the fuel pump may be mounted externally, often near the fuel tank or along the fuel line.
Inside the fuel tank, the fuel pump is connected to a sending unit and a filter to ensure proper fuel delivery and prevent contaminants from entering the system.
No, the fuel pump does not go into the engine. It is part of the fuel delivery system and is located either inside the fuel tank or along the fuel line leading to the engine.
