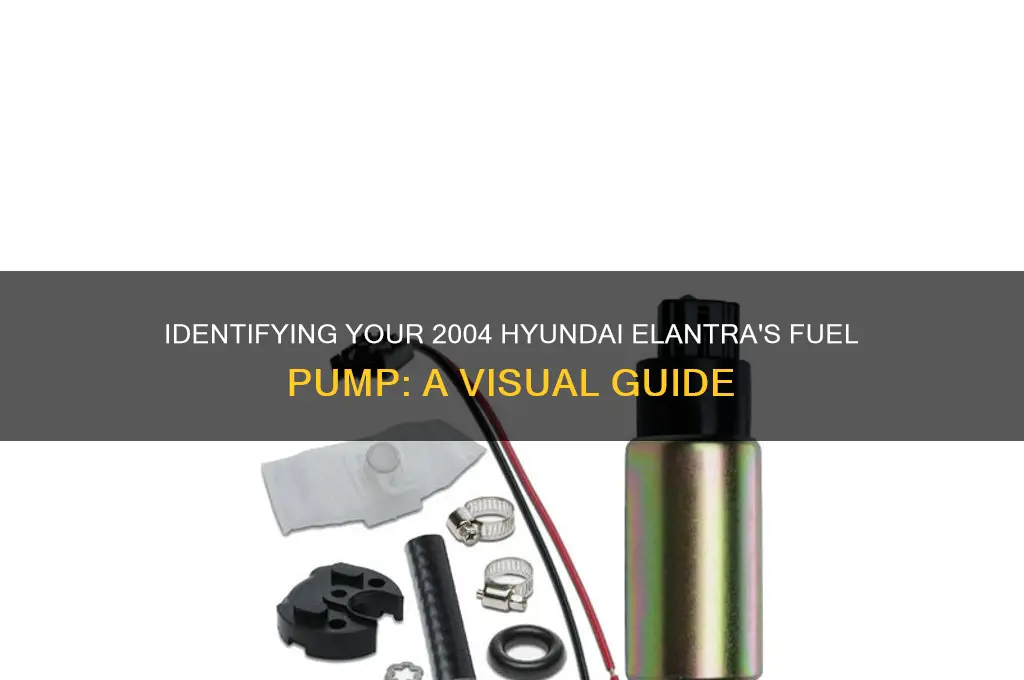

The fuel pump in a 2004 Hyundai Elantra is a crucial component of the vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Typically located inside the fuel tank, this electric pump is often cylindrical in shape and connected to a sending unit that monitors fuel levels. Accessing it usually requires removing the rear seat or a dedicated access panel, depending on the specific model. If you're unsure about its appearance or location, consulting the vehicle's manual or seeking guidance from a professional mechanic can provide clarity and ensure safe handling.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Shape/Design | Cylindrical or rectangular housing with electrical connectors and fuel lines |
| Color | Typically black or dark plastic |
| Size | Approximately 3-4 inches in diameter and 5-6 inches in length |
| Mounting | Secured to the fuel tank with a locking ring or bracket |
| Electrical Connector | Multi-pin connector for power and signal transmission |
| Fuel Lines | Inlet and outlet ports for fuel flow |
| Compatibility | Specific to 2004 Hyundai Elantra models (1.8L or 2.0L engines) |
| Manufacturer | OEM (Original Equipment Manufacturer) or aftermarket replacements available |
| Part Number | Varies by manufacturer (e.g., Hyundai OEM part number: 31110-25000) |
| Function | Delivers fuel from the tank to the engine under pressure |
| Material | Durable plastic and metal components |
| Access | Requires dropping the fuel tank for inspection or replacement |
| Common Issues | Whining noise, fuel delivery problems, or pump failure |
Explore related products
What You'll Learn
Fuel pump location in 2004 Hyundai Elantra engine bay
The 2004 Hyundai Elantra's fuel pump is nestled within the fuel tank, a design choice that enhances safety and efficiency by reducing the risk of fuel line leaks and maintaining consistent fuel pressure. Unlike external fuel pumps found in older vehicles, this in-tank configuration is a hallmark of modern automotive engineering. To access the fuel pump, you'll need to remove the rear seat cushion and the fuel pump access panel, a process that requires basic hand tools and a methodical approach.
Locating the fuel pump in the engine bay is a common misconception, as the 2004 Elantra’s fuel pump is actually submerged in the fuel tank, located beneath the rear seat inside the vehicle. This placement is intentional, as it helps keep the fuel cool and reduces the chance of vapor lock, a condition where fuel vaporizes and disrupts engine performance. If you’re searching the engine bay, you’ll only find the fuel rail and injectors, which are part of the fuel delivery system but not the pump itself.
For DIY enthusiasts, understanding this distinction is crucial. Attempting to locate the fuel pump in the engine bay will lead to frustration and wasted time. Instead, focus on the rear seat area. Start by disconnecting the negative battery terminal to prevent electrical hazards, then remove the rear seat bottom by pulling the release tabs. Beneath, you’ll find the fuel pump access panel, secured by a few bolts. Once removed, the fuel pump module will be visible, though replacing it requires additional steps, including relieving fuel system pressure and disconnecting electrical connectors.
Comparatively, this in-tank design differs from earlier models or other vehicles where the fuel pump might be mounted externally, often near the fuel tank or in the engine bay. The 2004 Elantra’s approach prioritizes safety and performance, but it also means that fuel pump replacement is more involved. While the process is manageable for those with intermediate mechanical skills, it’s essential to follow a repair manual or video guide to avoid mistakes like damaging the fuel tank or misinstalling the pump.
In summary, the 2004 Hyundai Elantra’s fuel pump is not located in the engine bay but inside the fuel tank, accessible via the rear seat area. This design optimizes fuel system efficiency and safety, though it requires specific steps to access and replace. Knowing this distinction saves time and prevents unnecessary disassembly of the engine bay, making it a critical piece of knowledge for anyone troubleshooting or maintaining this vehicle.
Locating the Fuel Pump on a 1977 Triumph Spitfire
You may want to see also
Explore related products
Identifying the fuel pump assembly components visually
The fuel pump assembly in a 2004 Hyundai Elantra is a critical component nestled within the fuel tank, often requiring a visual inspection for diagnosis or replacement. To identify its components, start by locating the fuel tank, typically beneath the rear seat or trunk area. The assembly itself is a cylindrical or rectangular unit, usually made of durable plastic or metal, housing the electric fuel pump, sending unit, and filter. The pump is the heart of the assembly, responsible for drawing fuel from the tank and delivering it to the engine. Its compact design is optimized for efficiency, with electrical connectors and fuel lines attached for operation.
Visually, the fuel pump module is distinguished by its integrated components. The sending unit, often a float mechanism, is attached to the top or side, measuring fuel levels for the gauge. The fuel filter, a small cylindrical or inline component, is usually located near the pump to ensure clean fuel delivery. Electrical connectors, typically color-coded or labeled, provide power to the pump and sending unit. These connectors are crucial for diagnostics, as damage or corrosion here can mimic pump failure. Inspect these areas for signs of wear, leaks, or disconnection.
When examining the assembly, note the fuel lines and their connections. The inlet line draws fuel from the tank, while the outlet line delivers it to the engine. These lines are secured with clamps or quick-connect fittings, which should be intact and free from cracks. The assembly’s mounting flange or bracket, often secured with bolts or screws, holds it in place within the tank. Loose or damaged mounting hardware can cause vibration or failure, so ensure all fasteners are tight and undamaged.
For a practical tip, use a flashlight and mirror to inspect hard-to-see areas, especially if the tank is not removed. Look for fuel stains, corrosion, or debris around the assembly, as these indicate potential issues. If replacing the pump, compare the new unit to the old one to ensure compatibility, as aftermarket parts may vary slightly in design. Always disconnect the battery before handling fuel system components to prevent electrical hazards.
In summary, identifying the fuel pump assembly components visually involves recognizing the pump, sending unit, filter, electrical connectors, and fuel lines. Each part plays a specific role, and their condition directly impacts performance. A thorough inspection, coupled with practical tools and precautions, ensures accurate diagnosis and safe maintenance of your 2004 Hyundai Elantra’s fuel system.
Step-by-Step Guide to Replacing a 1992 Cadillac Deville Fuel Pump
You may want to see also
Explore related products
Common signs of a failing fuel pump in 2004 Elantra
A failing fuel pump in a 2004 Hyundai Elantra can manifest in several distinct ways, often starting subtly before escalating into more noticeable symptoms. One of the earliest signs is a sudden loss of power or acceleration, especially during high-speed driving or when climbing uphill. This occurs because the fuel pump struggles to deliver sufficient fuel to the engine under increased demand. If you notice your Elantra hesitating or sputtering during these scenarios, it’s a strong indicator that the fuel pump may be on its way out.
Another common symptom is difficulty starting the vehicle, particularly after it has been sitting for a while. A failing fuel pump may not generate enough pressure to push fuel from the tank to the engine, resulting in extended cranking times or a complete failure to start. If you find yourself turning the key multiple times before the engine catches, or if the starter sounds normal but the engine doesn’t fire, the fuel pump could be the culprit. Keep in mind that this issue can sometimes be mistaken for a weak battery or faulty starter, so it’s crucial to rule out those components first.
Unusual noises coming from the fuel tank area are also a telltale sign of a failing fuel pump. A whining or buzzing sound, particularly during startup or when the fuel tank is low, suggests that the pump’s internal components are wearing out. This noise is often more pronounced when the fuel level is low because the pump has to work harder to draw fuel from the tank. If you hear such sounds, it’s advisable to have the fuel pump inspected immediately to prevent a complete failure.
Lastly, a failing fuel pump can cause the "Check Engine" light to illuminate on the dashboard. While this light can indicate a variety of issues, it often appears when the fuel system isn’t operating correctly. Modern vehicles like the 2004 Elantra have sensors that monitor fuel pressure and delivery, and if the pump isn’t performing as expected, the system will trigger the warning light. Using an OBD-II scanner to retrieve error codes can help pinpoint whether the fuel pump is the source of the problem.
In summary, recognizing the signs of a failing fuel pump in a 2004 Hyundai Elantra involves paying attention to performance issues, starting difficulties, unusual noises, and warning lights. Addressing these symptoms promptly can prevent a sudden breakdown and potentially save you from costly repairs down the road. If you suspect your fuel pump is failing, consult a mechanic to diagnose and resolve the issue before it worsens.
Does Your Fuel Pump Make a Hissing Noise? Causes and Fixes
You may want to see also
Explore related products
Tools needed for inspecting or replacing the fuel pump
Inspecting or replacing the fuel pump in a 2004 Hyundai Elantra requires a specific set of tools to ensure the job is done safely and efficiently. The fuel pump in this model is located inside the fuel tank, which means you’ll need tools to access and remove the tank, as well as specialized equipment to handle the pump itself. Here’s a breakdown of the essential tools you’ll need for this task.
Step 1: Accessing the Fuel Tank
To begin, you’ll need a jack and jack stands to safely lift the vehicle and access the underside. A wrench or socket set (typically 10mm to 14mm) is required to remove the bolts securing the fuel tank straps. A flathead screwdriver or pry tool can help loosen any stubborn clips or brackets. Additionally, a siphon pump or fuel transfer pump is crucial to drain the tank safely, as working on a full tank is hazardous and unnecessary. Always ensure the vehicle is on a level surface and the ignition is off before starting.
Step 2: Removing the Fuel Pump Assembly
Once the tank is lowered, you’ll need a specialized fuel line disconnect tool to safely release the quick-connect fittings without damaging them. A torque wrench is essential for reassembly to ensure connections are tightened to factory specifications. For the electrical connector, a small flathead screwdriver or pick tool can help release the locking tab. Keep a clean container nearby to catch any residual fuel that may spill during disassembly.
Cautions and Practical Tips
Working with fuel systems carries inherent risks, so safety should be your top priority. Always wear safety goggles and nitrile gloves to protect against fuel exposure. Work in a well-ventilated area, and avoid open flames or sparks. If you’re unsure about any step, consult a repair manual or seek professional guidance. For the 2004 Hyundai Elantra, the fuel pump is part of a module that includes the sending unit, so replacing the entire assembly is often more practical than repairing individual components.
With the right tools and precautions, inspecting or replacing the fuel pump in a 2004 Hyundai Elantra is a manageable task for a DIY enthusiast. Investing in quality tools and taking your time will ensure a successful and safe repair. Always double-check your work before reassembling the system to avoid leaks or electrical issues.
Gravity's Impact on Fuel Pump Efficiency: A Comprehensive Analysis
You may want to see also
Explore related products
Differences between OEM and aftermarket fuel pumps for 2004 Elantra
The 2004 Hyundai Elantra’s fuel pump is typically located inside the fuel tank, requiring tank removal for access. Its OEM (Original Equipment Manufacturer) version is designed specifically for the vehicle, ensuring compatibility and performance aligned with Hyundai’s standards. Aftermarket fuel pumps, while often more affordable, vary widely in quality and fitment, making selection critical for reliability. Understanding these differences is essential for informed decision-making when replacement is necessary.
Analyzing the construction and materials reveals key distinctions. OEM fuel pumps are built with components and tolerances specified by Hyundai, ensuring durability and efficiency tailored to the Elantra’s fuel system. Aftermarket pumps, particularly budget options, may use lower-grade materials or deviate from OEM specifications, potentially leading to premature failure or reduced fuel efficiency. For instance, the OEM pump’s motor and impeller are calibrated for the Elantra’s 2.0L engine, while some aftermarket units may lack this precision, affecting performance.
Installation considerations further highlight the OEM vs. aftermarket divide. OEM fuel pumps come with exact-fit connectors and mounting hardware, simplifying the replacement process and reducing the risk of leaks or electrical issues. Aftermarket pumps often require adapters or modifications, especially if they are universal-fit models. For the 2004 Elantra, this could mean splicing wires or adjusting the pump’s mounting bracket, adding complexity and potential failure points.
Cost is a driving factor for many, but it’s crucial to weigh long-term value. OEM fuel pumps are generally more expensive upfront but offer peace of mind with guaranteed compatibility and warranty coverage. Aftermarket pumps can save money initially, but opting for mid-tier or premium brands with positive reviews can mitigate risks. For the Elantra, reputable aftermarket brands like Delphi or Airtex provide reliable alternatives, though research is essential to avoid subpar products.
In conclusion, choosing between OEM and aftermarket fuel pumps for a 2004 Hyundai Elantra depends on priorities. OEM pumps offer precision and reliability but at a higher cost, while aftermarket options provide flexibility and affordability with varying degrees of quality. For DIYers or budget-conscious owners, a mid-range aftermarket pump with positive reviews and exact-fit specifications can be a practical compromise. Always verify compatibility and consider the vehicle’s age and intended use before making a decision.
Are Electronic Fuel Pump Kits a Worthwhile Upgrade for Your Vehicle?
You may want to see also
Frequently asked questions
The fuel pump in a 2004 Hyundai Elantra is typically a small, cylindrical or rectangular module located inside the fuel tank. It is usually made of plastic and metal components, with an electric motor and a fuel filter integrated into the unit.
The fuel pump in a 2004 Hyundai Elantra is located inside the fuel tank, which is situated beneath the rear seat or trunk area of the vehicle.
To identify the fuel pump, you’ll need to access the fuel tank. Once the tank is removed or accessed, the fuel pump module will be visible as a unit with electrical connectors and fuel lines attached to it.
Yes, the fuel pump in a 2004 Hyundai Elantra includes a built-in strainer or filter to prevent debris from entering the fuel system and damaging the engine.
Common signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling while driving, reduced fuel efficiency, and unusual noises (like whining) coming from the fuel tank area.
