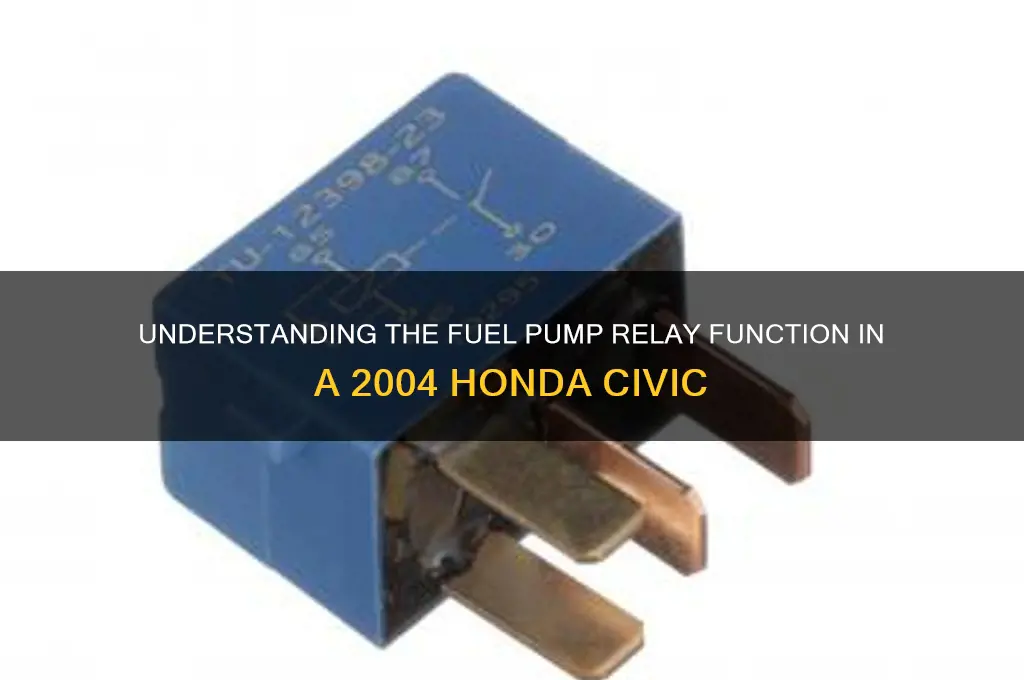

The fuel pump relay in a 2004 Honda Civic plays a crucial role in the vehicle's fuel delivery system by controlling the power supply to the electric fuel pump. Located in the under-hood fuse box, this relay acts as a switch, allowing the engine control module (ECM) to activate the fuel pump when the ignition is turned on. By doing so, it ensures that fuel is delivered to the engine at the appropriate pressure and timing, which is essential for proper combustion and engine performance. If the fuel pump relay fails, it can lead to symptoms such as difficulty starting the engine, stalling, or a complete loss of power, making it a critical component to diagnose and maintain for reliable vehicle operation.
| Characteristics | Values |
|---|---|
| Function | Controls the power supply to the fuel pump in the 2004 Honda Civic. |
| Location | Typically found in the under-hood fuse/relay box or near the battery. |
| Operation | Activates the fuel pump when the ignition is turned on. |
| Power Source | Receives power from the battery and ignition switch. |
| Safety Feature | Shuts off the fuel pump in case of an accident or when the engine is off. |
| Diagnostic Role | Helps diagnose fuel pump or electrical issues if the relay fails. |
| Replacement Cost | Approximately $10 to $30 (part only), depending on the brand. |
| Common Symptoms of Failure | No start condition, engine stalling, or fuel pump not priming. |
| Compatibility | Specific to 2004 Honda Civic models; check part number for exact fit. |
| Testing Method | Can be tested using a multimeter to check for continuity and proper switching. |
Explore related products
What You'll Learn
- Relay Function: Controls power to fuel pump, ensuring it operates only when engine is running
- Location: Found under the dashboard or near the fuse box in the 2004 Civic
- Symptoms of Failure: Engine stalls, no start, or fuel pump runs continuously without the relay
- Testing the Relay: Use a multimeter to check for continuity and proper switching
- Replacement Process: Disconnect battery, swap relay, and reconnect to restore fuel pump operation
Relay Function: Controls power to fuel pump, ensuring it operates only when engine is running
The fuel pump relay in a 2004 Honda Civic is a critical component that acts as a gatekeeper for the fuel pump’s electrical supply. Its primary function is to control when the fuel pump receives power, ensuring it operates only when the engine is running or being started. This design prevents the fuel pump from running continuously, which could lead to unnecessary wear, overheating, or safety hazards such as fuel leaks. By activating the fuel pump only when needed, the relay optimizes efficiency and protects the vehicle’s fuel system.
Consider the relay as a switch that responds to specific signals from the engine control unit (ECU). When you turn the ignition key, the ECU sends a signal to the relay, allowing power to flow to the fuel pump. This activates the pump, delivering fuel to the engine for combustion. Once the engine starts and stabilizes, the relay continues to supply power to the pump, maintaining fuel delivery. If the engine stalls or is turned off, the relay cuts power to the pump, stopping fuel flow immediately. This precise control is essential for both performance and safety.
One practical benefit of this system is its role in reducing fuel consumption and emissions. Without the relay, the fuel pump might run constantly, wasting energy and increasing the risk of fuel vapor buildup in the system. By limiting pump operation to active engine states, the relay ensures fuel is delivered only when required, contributing to better fuel efficiency. Additionally, this function aligns with modern vehicle standards aimed at minimizing environmental impact.
However, a malfunctioning fuel pump relay can cause noticeable issues. Symptoms of a faulty relay include difficulty starting the engine, stalling, or a complete failure to start. If the relay fails to engage, the fuel pump won’t receive power, and the engine won’t get the fuel it needs. Conversely, if the relay remains stuck in the "on" position, the pump may run continuously, draining the battery and potentially causing fuel system damage. Regular inspection and timely replacement of the relay are crucial to avoid these problems.
In summary, the fuel pump relay in a 2004 Honda Civic is a small but vital part that ensures the fuel pump operates only when necessary. Its role in controlling power delivery enhances safety, efficiency, and overall vehicle performance. Understanding its function and recognizing signs of failure can help owners maintain their vehicle’s reliability and address issues before they escalate. Always consult a repair manual or professional mechanic when diagnosing or replacing this component to ensure compatibility and proper installation.
