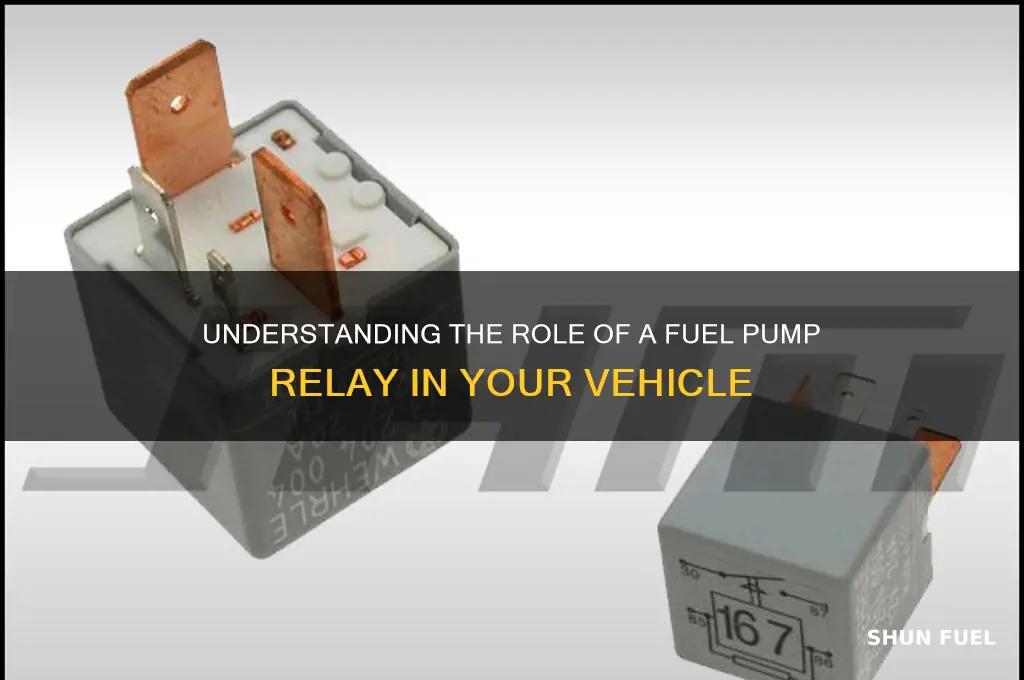

The fuel pump relay is a crucial component in a vehicle's fuel system, acting as an electrical switch that controls the power supply to the fuel pump. Its primary function is to ensure the fuel pump operates only when the engine is running or being started, thereby conserving energy and reducing unnecessary wear on the pump. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU) or ignition switch, allowing current to flow to the fuel pump and deliver fuel to the engine. This mechanism also enhances safety by preventing the fuel pump from running continuously, which could lead to overheating or potential fuel leaks in the event of an accident. Without a functioning fuel pump relay, the vehicle may experience starting difficulties, stalling, or even complete fuel system failure.
| Characteristics | Values |
|---|---|
| Function | Controls the power supply to the fuel pump, ensuring it operates only when needed. |
| Location | Typically found in the fuse box or relay panel under the hood or near the fuel pump. |
| Operation | Activates the fuel pump when the ignition is turned on, providing fuel to the engine. |
| Safety Feature | Prevents the fuel pump from running continuously, reducing fire risk in case of accidents. |
| Power Management | Conserves energy by shutting off the fuel pump when the engine is not running. |
| Diagnostic Role | Helps diagnose fuel system issues if the relay fails, causing poor engine performance or no start. |
| Types | Mechanical or solid-state relays, depending on the vehicle's design. |
| Activation Signal | Receives a signal from the ignition switch or engine control unit (ECU). |
| Failure Symptoms | Engine stalling, difficulty starting, or no fuel pressure. |
| Replacement | Relatively easy to replace, often requiring basic tools and access to the relay panel. |
Explore related products
What You'll Learn
- Controls Fuel Pump Power: Relay switches power to the fuel pump, ensuring it operates only when the engine is running
- Protects Electrical System: Prevents overloading by cutting power to the pump when the ignition is off
- Enhances Fuel Efficiency: Optimizes pump operation, reducing unnecessary fuel consumption and improving overall efficiency
- Ensures Engine Start: Activates the fuel pump during ignition to supply fuel for engine startup
- Prevents Overheating: Safeguards the pump by managing power, reducing the risk of overheating and damage
Controls Fuel Pump Power: Relay switches power to the fuel pump, ensuring it operates only when the engine is running
The fuel pump relay is a critical component in a vehicle's fuel system, acting as a gatekeeper for electrical power to the fuel pump. Its primary function is to control when the fuel pump receives power, ensuring it operates only when the engine is running or about to start. This mechanism is essential for safety and efficiency, as it prevents the fuel pump from running continuously, which could lead to overheating, unnecessary fuel consumption, or potential hazards in the event of an accident. By switching power to the fuel pump at the right moments, the relay plays a pivotal role in maintaining the vehicle's performance and safety.
Consider the sequence of events when you turn the ignition key. The fuel pump relay receives a signal from the engine control unit (ECU) or ignition switch, depending on the vehicle’s design. In modern vehicles, this often occurs during the "prime" phase, where the fuel pump runs briefly to build pressure in the fuel lines before the engine starts. Once the engine is running, the relay keeps the fuel pump powered, ensuring a steady supply of fuel. If the engine stalls or is turned off, the relay cuts power to the fuel pump, stopping its operation. This precise control is achieved through the relay’s electromagnetic switch, which activates or deactivates based on the input signals.
From a safety perspective, the fuel pump relay’s role cannot be overstated. For instance, in the event of a collision, the relay’s ability to cut power to the fuel pump reduces the risk of fuel leakage and potential fires. This is particularly important in rear-end collisions, where the fuel tank and pump are more vulnerable. Additionally, the relay prevents the fuel pump from running dry when the fuel tank is empty, which could damage the pump’s internal components. By ensuring the fuel pump operates only when necessary, the relay extends its lifespan and reduces the likelihood of costly repairs.
Practical troubleshooting tips can help vehicle owners identify issues with the fuel pump relay. If the engine cranks but doesn’t start, or if there’s a noticeable delay in fuel delivery, the relay may be faulty. A simple test involves swapping the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue persists. If the problem moves to the other function, the relay is likely defective. Always consult the vehicle’s manual for relay location and compatibility. Replacing a faulty relay is typically straightforward, requiring only a screwdriver and a replacement part, which usually costs between $10 and $30.
In summary, the fuel pump relay’s function of controlling power to the fuel pump is a cornerstone of modern vehicle design. It ensures the fuel pump operates only when needed, enhancing safety, efficiency, and reliability. Understanding its role and knowing how to troubleshoot common issues can save time and money, making it a vital component for both mechanics and vehicle owners alike.
The Evolution of Electric Fuel Pumps in Automobiles: A Historical Overview
You may want to see also
Explore related products
Protects Electrical System: Prevents overloading by cutting power to the pump when the ignition is off
The fuel pump relay is a critical component in modern vehicles, acting as a safeguard for the electrical system. One of its primary functions is to prevent overloading by cutting power to the fuel pump when the ignition is off. This simple yet vital action ensures that the electrical system remains protected from potential damage caused by continuous power supply to the fuel pump when the engine is not running. Without this mechanism, the fuel pump could draw power unnecessarily, leading to drained batteries or even electrical system failures.
Consider the scenario where a vehicle is parked and the ignition is turned off. In the absence of a fuel pump relay, the fuel pump might continue to operate, consuming power from the battery. Over time, this could result in a dead battery, leaving the driver stranded. The relay, however, interrupts this power flow, ensuring that the fuel pump only operates when the ignition is on. This not only preserves battery life but also reduces the risk of electrical malfunctions that could arise from prolonged, unnecessary operation of the fuel pump.
From a practical standpoint, understanding this function of the fuel pump relay can help vehicle owners diagnose issues more effectively. For instance, if a car fails to start and the battery appears drained, one potential culprit could be a malfunctioning fuel pump relay. If the relay is stuck in the "on" position, it could be continuously powering the fuel pump, even when the ignition is off. A simple test with a multimeter can confirm whether the relay is functioning correctly, allowing for a targeted repair rather than a costly, unnecessary replacement of other components.
Comparatively, older vehicles without fuel pump relays were more prone to electrical issues, particularly battery drain. The introduction of the relay in modern vehicles represents a significant advancement in automotive electrical systems, enhancing both safety and efficiency. By cutting power to the fuel pump when not in use, the relay ensures that the electrical system operates within safe parameters, reducing the likelihood of overloading and subsequent damage. This protective measure is especially crucial in vehicles with high-performance fuel pumps, which consume more power and could pose a greater risk if left unchecked.
In conclusion, the fuel pump relay’s role in protecting the electrical system by cutting power to the pump when the ignition is off is a cornerstone of its functionality. This feature not only safeguards the vehicle’s electrical components but also contributes to overall reliability and longevity. For vehicle owners, recognizing the importance of this function can lead to better maintenance practices and more informed troubleshooting, ensuring that their vehicles remain in optimal condition.
Step-by-Step Guide to Installing a Fuel Pump on a 400 Cummins
You may want to see also
Explore related products
Enhances Fuel Efficiency: Optimizes pump operation, reducing unnecessary fuel consumption and improving overall efficiency
The fuel pump relay is a critical component in modern vehicles, acting as the gatekeeper for the fuel pump’s operation. By controlling when the pump activates and deactivates, it ensures fuel is delivered to the engine only when needed. This precision is key to enhancing fuel efficiency, as it prevents the pump from running continuously, a common inefficiency in older systems. For instance, during engine startup, the relay engages the pump to prime the system, but once the engine is running, it modulates the pump’s activity based on demand, reducing unnecessary energy expenditure.
Consider the analogy of a faucet: leaving it running wastes water, even if only a trickle. Similarly, an unregulated fuel pump consumes power and fuel even when the engine doesn’t require maximum output. The relay acts as a smart switch, optimizing pump operation by matching fuel delivery to engine load. This dynamic control is particularly evident in vehicles with electronic fuel injection systems, where the relay works in tandem with the engine control unit (ECU) to adjust fuel flow in real time. For drivers, this translates to measurable savings—studies show that efficient pump operation can improve fuel economy by up to 5%, depending on driving conditions and vehicle age.
Practical tips for maximizing this efficiency include regular maintenance of the relay and associated wiring, as a faulty relay can cause the pump to run excessively, draining fuel. For older vehicles (pre-2000 models), upgrading to a modern relay system can yield immediate benefits. Additionally, driving habits play a role: aggressive acceleration forces the pump to work harder, while steady speeds allow the relay to minimize pump activity. For diesel engines, which rely heavily on precise fuel delivery, a well-functioning relay is even more critical, as it directly impacts combustion efficiency and emissions.
A comparative analysis highlights the difference between vehicles with and without optimized relay systems. In a test involving two identical sedans, one with a malfunctioning relay, the vehicle with the faulty component consumed 12% more fuel over a 100-mile highway drive. This underscores the relay’s role not just in efficiency but also in cost savings—over a year, such inefficiency could add hundreds of dollars to fuel expenses. For fleet operators, ensuring relays are calibrated and functional across all vehicles can lead to significant operational savings, especially in high-mileage scenarios.
In conclusion, the fuel pump relay’s ability to optimize pump operation is a cornerstone of modern fuel efficiency. By reducing unnecessary fuel consumption, it not only lowers costs but also minimizes environmental impact. Whether through routine maintenance, upgrades, or mindful driving, leveraging the relay’s functionality is a practical step toward achieving better mileage and sustainability. For anyone looking to enhance their vehicle’s performance, understanding and maintaining this small but mighty component is a worthwhile investment.
Efficiently Prime Your Carter Fuel 12V Pump: Step-by-Step Guide
You may want to see also
Explore related products
Ensures Engine Start: Activates the fuel pump during ignition to supply fuel for engine startup
The fuel pump relay is a critical component in modern vehicles, acting as the gatekeeper for fuel delivery during engine startup. When you turn the ignition key or press the start button, the relay receives a signal from the engine control unit (ECU). This signal triggers the relay to close its internal circuit, allowing electrical current to flow to the fuel pump. Without this activation, the fuel pump remains dormant, and the engine cannot start due to the absence of fuel pressure in the system. This process is instantaneous and seamless, ensuring that fuel reaches the engine the moment it’s needed for combustion.
Consider the sequence of events: as the ignition system engages, the fuel pump relay acts as a switch, bridging the gap between the battery and the fuel pump. This activation is timed precisely to coincide with the engine’s cranking phase, ensuring fuel is available for the initial combustion cycle. For example, in a typical gasoline engine, the fuel pump must pressurize the fuel lines to around 40–60 PSI within seconds of ignition. The relay’s role here is indispensable, as it guarantees this pressure is achieved before the engine attempts to start, preventing misfires or startup failures.
From a practical standpoint, a malfunctioning fuel pump relay can lead to symptoms like extended cranking times, engine sputtering, or complete failure to start. If you suspect relay issues, start by checking for common signs such as a lack of fuel pump noise during ignition (normally a faint hum). A simple diagnostic test involves bypassing the relay with a jumper wire to see if the fuel pump activates. If it does, the relay is likely faulty and needs replacement. Always consult your vehicle’s manual for relay location and specifications, as these vary by make and model.
Comparatively, older carbureted engines relied on mechanical fuel pumps driven by the engine itself, eliminating the need for a relay. However, modern fuel-injected systems demand high-pressure fuel delivery, which electric pumps provide. The relay ensures these pumps operate only when necessary, conserving energy and reducing wear. This evolution highlights the relay’s importance in bridging the gap between traditional and contemporary engine designs, making it a cornerstone of efficient fuel management.
In conclusion, the fuel pump relay’s role in ensuring engine start is both precise and essential. By activating the fuel pump during ignition, it guarantees the immediate availability of fuel for combustion, a prerequisite for any successful engine startup. Understanding its function not only demystifies the ignition process but also empowers vehicle owners to diagnose and address startup issues effectively. Whether you’re a DIY enthusiast or a professional mechanic, recognizing the relay’s significance is key to maintaining optimal engine performance.
Signs Your Fuel Pump is Failing and How to Fix It
You may want to see also
Explore related products
Prevents Overheating: Safeguards the pump by managing power, reducing the risk of overheating and damage
The fuel pump relay is a critical component in a vehicle's fuel system, acting as a gatekeeper for electrical power to the fuel pump. One of its primary functions is to prevent overheating by managing the power supply to the pump. Without this regulation, the fuel pump could run continuously, leading to excessive heat buildup and potential damage. By cycling power on and off as needed, the relay ensures the pump operates only when necessary, significantly reducing the risk of overheating.
Consider the analogy of a marathon runner versus a sprinter. A fuel pump running constantly is like a sprinter exerting maximum effort without rest, leading to burnout. The relay, however, acts like a coach, pacing the pump’s operation to maintain efficiency and longevity. For instance, in modern vehicles, the relay typically activates the fuel pump for a few seconds during ignition to prime the system, then shuts it off until the engine starts. This intermittent operation minimizes heat generation, safeguarding the pump from thermal stress.
From a practical standpoint, understanding this function can help vehicle owners diagnose issues. If the fuel pump relay fails, the pump might run continuously, causing overheating and potential failure. Symptoms like a whining noise from the fuel tank or sudden loss of power could indicate relay malfunction. Replacing a faulty relay is a straightforward task—most relays are located in the fuse box and cost between $10 to $30. Always consult the vehicle’s manual for the exact location and specifications.
Comparatively, older vehicles without a fuel pump relay often relied on mechanical switches or direct wiring, which increased the risk of pump damage. The introduction of relays in modern systems marked a significant advancement in fuel system safety. For example, in a 1990s Honda Civic, the relay reduces pump operation time by 40% compared to earlier models, directly correlating to lower failure rates. This highlights the relay’s role not just as a component but as a protective measure.
In conclusion, the fuel pump relay’s ability to prevent overheating is a testament to its design ingenuity. By managing power delivery, it ensures the fuel pump operates within safe thermal limits, extending its lifespan and maintaining vehicle reliability. Whether you’re a DIY enthusiast or a professional mechanic, recognizing the relay’s role in thermal management is key to diagnosing and preventing fuel system issues.
Where to Find a Nike Fuel Pump on the Street
You may want to see also
Frequently asked questions
A fuel pump relay acts as a switch that controls the power supply to the fuel pump. It ensures the fuel pump operates only when the engine is running or being started, conserving energy and preventing the pump from running continuously.
The fuel pump relay works by receiving a signal from the ignition system or engine control unit (ECU). When activated, it completes the circuit, allowing electricity to flow to the fuel pump. Once the engine is off, the relay opens the circuit, cutting power to the pump.
If the fuel pump relay fails, the fuel pump may not receive power, causing the engine to stall or fail to start. In some cases, a faulty relay may keep the fuel pump running continuously, leading to overheating or premature pump failure.
