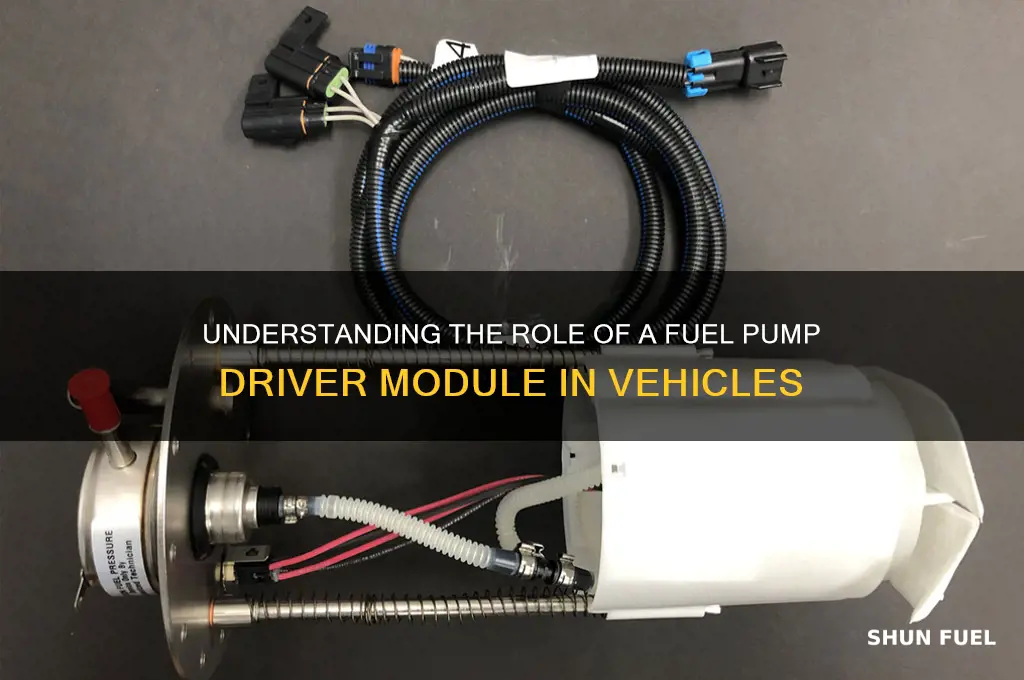

A fuel pump driver module (FPDM) is a critical component in modern vehicles, responsible for controlling the operation of the fuel pump to ensure optimal fuel delivery to the engine. It acts as an intermediary between the vehicle’s computer system (ECU) and the fuel pump, regulating voltage and current to prevent overheating or damage to the pump. The FPDM monitors fuel demand based on engine load, speed, and other factors, adjusting the pump’s speed to maintain consistent fuel pressure. Additionally, it often includes diagnostic capabilities to detect faults, such as short circuits or open circuits, and can shut down the pump in case of malfunctions to enhance safety. By efficiently managing fuel delivery, the FPDM plays a vital role in improving engine performance, fuel efficiency, and overall vehicle reliability.
| Characteristics | Values |
|---|---|
| Function | Controls and regulates the operation of the fuel pump in a vehicle. |
| Primary Role | Ensures the fuel pump delivers the correct amount of fuel to the engine. |
| Power Supply | Provides regulated power to the fuel pump motor. |
| Voltage Regulation | Maintains consistent voltage to the fuel pump for optimal performance. |
| Current Control | Limits excessive current to prevent damage to the fuel pump. |
| Pulse Width Modulation (PWM) | Uses PWM signals to adjust fuel pump speed and fuel delivery. |
| Diagnostics | Monitors fuel pump operation and detects faults or malfunctions. |
| Communication | Communicates with the Engine Control Module (ECM) for coordinated operation. |
| Protection Features | Includes overcurrent, overvoltage, and thermal protection. |
| Location | Typically mounted near the fuel tank or within the fuel pump assembly. |
| Compatibility | Designed to work with specific fuel pump types and vehicle systems. |
| Failure Symptoms | Engine stalling, hard starting, or no fuel pressure if the module fails. |
| Maintenance | Generally requires replacement if faulty, as it has no serviceable parts. |
Explore related products
What You'll Learn
- Controls Fuel Pump Operation: Regulates fuel pump speed and pressure for optimal engine performance
- Monitors Fuel System: Detects faults and ensures proper fuel delivery to the engine
- Adjusts Fuel Pressure: Modulates pressure based on engine load and driving conditions
- Protects Fuel Pump: Prevents overheating and damage by managing pump activation
- Integrates with ECU: Communicates with the engine control unit for precise fuel management
Controls Fuel Pump Operation: Regulates fuel pump speed and pressure for optimal engine performance
The fuel pump driver module (FPDM) is the unsung hero of modern fuel injection systems, acting as the brain behind the fuel pump's operation. Its primary role is to ensure the engine receives the precise amount of fuel it needs, neither more nor less. This is achieved through meticulous regulation of the fuel pump's speed and pressure, a task that directly impacts engine performance, efficiency, and longevity. By controlling these parameters, the FPDM ensures that the engine operates within its optimal range, regardless of driving conditions or load demands.
Consider the fuel pump as the heart of the fuel system, continuously circulating fuel from the tank to the engine. The FPDM, in this analogy, is the pacemaker, dictating the rhythm and intensity of the pump's operation. For instance, during idle or low-load conditions, the FPDM reduces the pump speed to conserve energy and minimize wear. Conversely, under high-load scenarios like acceleration or towing, it increases the pump speed and pressure to deliver more fuel, ensuring the engine doesn’t starve. This dynamic adjustment is critical for maintaining power, reducing emissions, and improving fuel economy.
One practical example of the FPDM’s role is its ability to modulate fuel pressure based on engine demand. Modern engines often require fuel pressures ranging from 40 to 80 psi, depending on the load. The FPDM uses input from sensors like the mass airflow (MAF) and manifold absolute pressure (MAP) sensors to determine the exact pressure needed. If the pressure is too low, the engine may run lean, causing misfires or reduced power. If it’s too high, fuel efficiency suffers, and the system risks overworking. The FPDM’s precision in this area is what keeps the engine running smoothly across all operating conditions.
A key takeaway for vehicle owners is the importance of maintaining the FPDM and its associated components. Symptoms of a failing FPDM include erratic engine performance, difficulty starting, or a sudden drop in fuel efficiency. Regular diagnostics, especially in older vehicles, can catch issues early. For DIY enthusiasts, monitoring fuel pressure with a gauge during different driving conditions can provide insights into the FPDM’s health. However, replacing or repairing the module typically requires professional expertise due to its integration with the vehicle’s electronic control unit (ECU).
In conclusion, the fuel pump driver module is a critical yet often overlooked component in modern vehicles. Its ability to regulate fuel pump speed and pressure ensures that engines perform optimally, balancing power, efficiency, and emissions. Understanding its function not only highlights its importance but also empowers vehicle owners to recognize and address potential issues before they escalate. Whether you’re a mechanic or a car enthusiast, appreciating the FPDM’s role is essential for maintaining peak engine performance.
