The 530i fuel pump M5 fuse plays a critical role in the vehicle's fuel delivery system, specifically in BMW models equipped with the M5 fuel pump. This fuse acts as a protective device, safeguarding the fuel pump circuit from electrical overloads or short circuits that could damage the pump or other components. Located typically in the fuse box, it ensures the fuel pump operates efficiently by maintaining a stable electrical supply. If the fuse blows, the fuel pump may fail to function, leading to engine stalling or difficulty starting the vehicle. Understanding its location, function, and how to diagnose issues related to it is essential for maintaining optimal performance and reliability in the 530i's fuel system.
| Characteristics | Values |
|---|---|
| Fuse Designation | M5 (specific to BMW 530i models) |
| Primary Function | Protects the fuel pump circuit from electrical overloads or short circuits |
| Location | Typically found in the fuse box, often in the engine bay or trunk |
| Amp Rating | Usually rated at 15-20 amps (varies by model year and configuration) |
| Component Protected | Fuel pump, ensuring proper fuel delivery to the engine |
| Symptoms of Failure | Engine stalling, difficulty starting, or no fuel pressure |
| Related Systems | Fuel injection system, engine management system |
| Diagnostic Method | Check fuse for continuity or visual damage (blown fuse) |
| Replacement Procedure | Replace with a fuse of the same amp rating; consult manual for specifics |
| Model Applicability | BMW 530i (specific years may vary; confirm for exact model) |
| Importance | Critical for engine operation and vehicle drivability |
Explore related products
What You'll Learn
- Fuse Location: Identifies where the M5 fuse for the 530i fuel pump is located
- Function: Explains the role of the M5 fuse in the fuel pump system
- Symptoms of Failure: Lists signs indicating a blown M5 fuse in the 530i
- Replacement Process: Steps to replace the M5 fuse for the 530i fuel pump
- Preventive Maintenance: Tips to avoid issues with the M5 fuse in the 530i

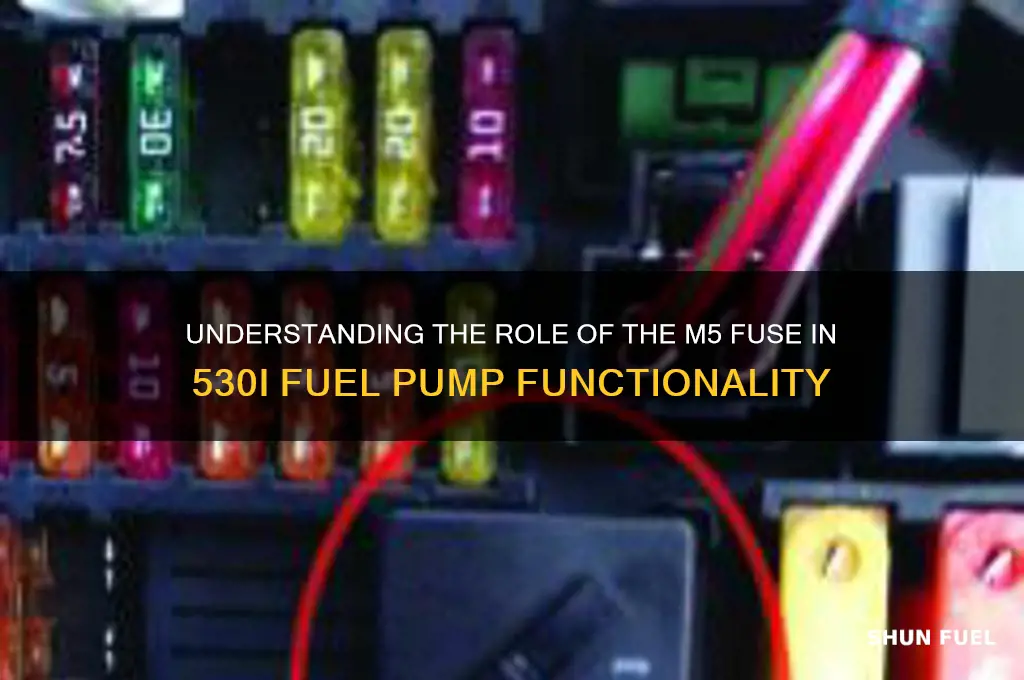

Fuse Location: Identifies where the M5 fuse for the 530i fuel pump is located
The M5 fuse for the 530i fuel pump is a critical component in ensuring your vehicle’s fuel system operates smoothly. Located in the fuse box, its position varies depending on the model year and configuration of your BMW 530i. For most 2001–2007 E60 models, the M5 fuse is situated in the glove compartment fuse panel. To access it, open the glove compartment, remove the cover by pressing the side clips, and locate the fuse labeled "M5" or "Fuel Pump." This fuse typically has a rating of 15–20 amps, designed to protect the fuel pump circuit from electrical surges.
Identifying the correct fuse box is the first step in troubleshooting fuel pump issues. In some BMW 530i models, particularly pre-2001 versions, the M5 fuse may also be found in the trunk fuse panel near the battery. This secondary location is less common but worth checking if the glove compartment panel does not yield results. Always consult your vehicle’s manual for precise diagrams and labeling, as BMW’s fuse layouts can differ slightly across model years and regional specifications.
When replacing the M5 fuse, ensure the ignition is off to prevent electrical hazards. Use a fuse puller tool to extract the old fuse and inspect it for signs of damage, such as a broken filament or discoloration. Replace it with a fuse of the exact same amperage rating—using a higher-rated fuse can compromise the circuit’s safety. If the new fuse blows immediately, this indicates an underlying issue, such as a short circuit or a faulty fuel pump, requiring further diagnosis.
Understanding the M5 fuse’s location is not just about replacement; it’s a diagnostic tool. A blown fuse can explain symptoms like engine stalling, difficulty starting, or a complete loss of power. By checking the M5 fuse first, you can rule out a simple electrical issue before pursuing more complex and costly repairs. Keep a spare fuse in your vehicle for emergencies, as fuel pump failures can leave you stranded without warning.
In summary, the M5 fuse for the 530i fuel pump is typically found in the glove compartment fuse panel for most models, with some variations in older vehicles. Knowing its location, amperage, and replacement procedure empowers you to address fuel pump issues efficiently. Always prioritize safety, consult your manual, and investigate further if the problem persists after replacing the fuse.
