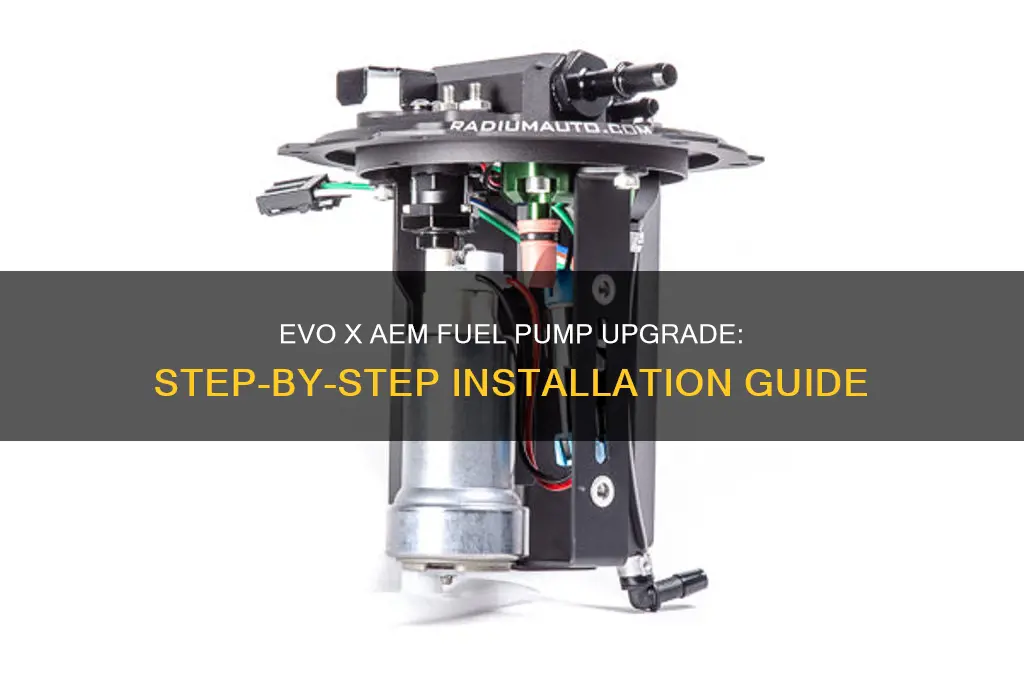

Upgrading the fuel pump on a Mitsubishi Evo X using an AEM fuel pump is a popular modification for enthusiasts seeking to enhance their vehicle's performance, especially in high-performance or turbocharged applications. The AEM fuel pump is known for its reliability and high flow rate, making it an excellent choice for supporting increased power outputs. This process involves carefully removing the stock fuel pump, installing the AEM unit, and ensuring proper electrical connections and fuel line compatibility. Proper installation is crucial to avoid fuel delivery issues and to maximize the pump's efficiency, ensuring your Evo X can handle the demands of aggressive driving or tuning. Whether you're aiming for better throttle response, higher boost levels, or simply future-proofing your fuel system, this upgrade is a worthwhile investment for any Evo X owner looking to push their car's limits.
Explore related products
What You'll Learn
- Fuel Pump Selection: Choose AEM pump compatible with Evo X's fuel system requirements and performance goals
- Installation Steps: Detailed guide on mounting, wiring, and securing the AEM fuel pump in Evo X
- Wiring Diagram: Correct electrical connections for AEM pump integration with Evo X’s fuel system
- Priming the Pump: Steps to ensure proper fuel delivery and pump functionality post-installation
- Testing & Tuning: Verify pump operation and adjust fuel pressure for optimal Evo X performance
Fuel Pump Selection: Choose AEM pump compatible with Evo X's fuel system requirements and performance goals
Selecting the right AEM fuel pump for your Evo X is a critical decision that hinges on understanding the vehicle’s fuel system demands and your performance objectives. The Evo X’s 4B11 or 4B11T engine, depending on the model, requires a pump capable of delivering consistent fuel pressure under high-load conditions, especially if you’ve upgraded the turbo or added tuning. AEM’s fuel pumps are renowned for their reliability and flow rates, but not all models are created equal. For instance, the AEM 50-1200 E85-Compatible High Flow In-Tank Fuel Pump is a popular choice for Evo X owners due to its 340 liters per hour (LPH) flow rate at 40 PSI, which exceeds the stock pump’s capacity and supports moderate to aggressive tuning setups.
When evaluating compatibility, consider the Evo X’s fuel system design. The stock pump operates at around 220 LPH, which is sufficient for factory power levels but falls short for stage 2+ builds. AEM’s pumps, such as the 50-1000 (290 LPH) or 50-1200 (340 LPH), offer scalable options depending on your fuel demands. For E85 users, the 50-1200’s ethanol compatibility is a significant advantage, as E85 requires approximately 30% more fuel volume compared to gasoline. However, ensure your fuel lines, regulator, and injectors are also upgraded to handle the increased flow, as the pump alone won’t maximize performance without a holistic system upgrade.
A practical tip for installation is to verify the AEM pump’s physical dimensions against the Evo X’s in-tank housing. While AEM pumps are designed for universal fitment, minor modifications like spacer adjustments or wiring harness extensions may be necessary. Additionally, always install a pre-pump filter to protect the pump from debris, especially if your tank is older or has been used with low-quality fuel. AEM’s pumps are durable, but preventative measures extend their lifespan and ensure consistent performance.
From a performance standpoint, the AEM 50-1200 is a persuasive choice for Evo X owners aiming for 400+ wheel horsepower. Its flow rate supports larger turbo setups and aggressive tuning while maintaining stable fuel pressure. However, if your build is closer to 300-350 wheel horsepower, the 50-1000 offers a cost-effective alternative without overkill. Pairing either pump with a fuel pressure regulator like the AEM 20-2010R ensures precise control, allowing you to fine-tune delivery for optimal power and efficiency.
In conclusion, choosing the right AEM fuel pump for your Evo X requires balancing your vehicle’s fuel system requirements with your performance goals. Whether you opt for the 50-1000 or 50-1200, ensure compatibility with your fuel type, system upgrades, and power targets. Proper installation and maintenance will maximize the pump’s effectiveness, delivering the reliability and performance AEM is known for. This decision isn’t just about upgrading a component—it’s about unlocking your Evo X’s full potential.
Does Your Fuel Pump Run When Parked? Facts and Myths Explained
You may want to see also
Explore related products
Installation Steps: Detailed guide on mounting, wiring, and securing the AEM fuel pump in Evo X
Mounting the AEM fuel pump in your Evo X begins with selecting the optimal location. The Evo X’s fuel tank design accommodates high-flow pumps, but placement is critical for efficiency and safety. Position the pump near the center of the tank to ensure consistent fuel pickup and minimize the risk of cavitation. Use the factory mounting bracket as a reference, but modify it if necessary to fit the AEM pump’s dimensions. Secure the pump with stainless steel hardware to prevent corrosion, especially in areas exposed to fuel vapors. Double-check clearance around the pump to avoid contact with the tank’s interior components, which could lead to damage or leaks.
Wiring the AEM fuel pump requires precision to ensure reliability under high-performance conditions. Start by disconnecting the battery to prevent electrical mishaps. Route the pump’s power wire directly from the battery, using a relay to handle the high current draw. Fuse the circuit with a 20-amp inline fuse within 12 inches of the battery terminal for safety. Connect the ground wire to a clean, unpainted chassis point to ensure a solid electrical connection. If your Evo X has a factory fuel pump controller, bypass it and wire the AEM pump directly to the relay for consistent power delivery. Test the wiring with a multimeter before reassembly to confirm proper voltage and ground.
Securing the AEM fuel pump is as crucial as mounting and wiring. Use a high-quality fuel-resistant hose for the inlet and outlet lines, ensuring tight clamps to prevent leaks. Apply a thin layer of thread sealant to all fittings to enhance sealing without over-tightening, which can damage the threads. Install a pre-filter at the pump’s inlet to protect against debris, especially if your Evo X is modified for higher horsepower. Once installed, perform a pressure test by pressurizing the fuel system to 60 psi for 10 minutes to check for leaks. Address any issues immediately before finalizing the installation.
After installation, calibrate the AEM fuel pump to match your Evo X’s fuel demands. Use a wideband O2 sensor and logging software to monitor air-fuel ratios under various load conditions. Adjust the pump’s duty cycle as needed to maintain stoichiometric ratios, typically 11.0:1 for gasoline. If running E85, increase the fuel flow by 30-40% to compensate for the lower energy density. Regularly inspect the pump and wiring for signs of wear or damage, especially after track days or aggressive driving. Proper calibration and maintenance ensure the AEM pump delivers consistent performance, maximizing your Evo X’s potential.
Ford Expedition 2004: Fuel Pump Driver Module Explained
You may want to see also
Explore related products
Wiring Diagram: Correct electrical connections for AEM pump integration with Evo X’s fuel system
Integrating an AEM fuel pump into an Evo X’s fuel system requires precise electrical connections to ensure reliability and performance. The wiring diagram serves as the blueprint for this integration, mapping out how the pump’s power, ground, and signal wires interface with the vehicle’s existing harness. Start by identifying the AEM pump’s primary power wire, typically a thick gauge (10-12 AWG), which must connect directly to the battery’s positive terminal via a relay. This ensures the pump receives uninterrupted power, especially under high-demand conditions.
Next, focus on the ground connection. The AEM pump’s ground wire should be securely attached to a clean, unpainted metal surface on the vehicle’s chassis. Poor grounding can lead to voltage drops, causing the pump to underperform or fail. Use a multimeter to verify continuity between the ground point and the battery’s negative terminal, ensuring a solid connection. Avoid daisy-chaining grounds or using existing grounds that may already be under load.
The relay setup is critical for controlling power delivery to the pump. Connect the relay’s 87 terminal to the AEM pump’s power wire, and the 30 terminal to the battery’s positive terminal. The 85 terminal should be wired to a switched 12V source, such as the fuel pump fuse in the Evo X’s fuse box, ensuring the pump activates only when the ignition is on. The 86 terminal is connected to ground. This configuration prevents excessive current draw through the fuse box and protects the pump from running continuously.
For added safety, incorporate a fuse between the battery and the relay’s 30 terminal. A 20-amp fuse is typically sufficient for most AEM pumps, but consult the pump’s specifications to confirm. This fuse acts as a failsafe, protecting the wiring harness from damage in case of a short circuit. Additionally, consider using a fuel pump controller if the Evo X’s stock ECU does not support the AEM pump’s flow rate, ensuring proper fuel pressure regulation.
Finally, test the system thoroughly before driving. With the ignition on, verify that the relay clicks and the pump primes. Use a fuel pressure gauge to confirm the pump is delivering the correct pressure. If the pump fails to activate or pressure is inconsistent, recheck all connections and ensure the relay is functioning. Proper wiring not only maximizes the AEM pump’s performance but also safeguards the Evo X’s fuel system from potential electrical issues.
Does the 1994 Crown Victoria Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Priming the Pump: Steps to ensure proper fuel delivery and pump functionality post-installation
Proper priming of a newly installed AEM fuel pump in an Evo X is critical to prevent dry-running, which can lead to premature failure. The pump relies on fuel for lubrication and cooling, so ensuring it’s fully submerged in fuel before operation is non-negotiable. Start by confirming the fuel tank is at least ¼ full—this provides sufficient volume for priming without risking air pockets. If the tank is empty, add 5-10 gallons of fuel before proceeding.
Next, locate the fuel pump relay in the Evo X’s fuse box (typically labeled "FP" or "FUEL PUMP") and remove it. With the ignition on but the engine off, jump power directly from the battery to the fuel pump’s positive terminal using a fused wire. This bypasses the relay, activating the pump to begin drawing fuel into the lines. Run the pump for 10-15 seconds, then reconnect the relay. This method ensures fuel reaches the pump and eliminates air from the system, a common culprit for post-installation issues.
While priming, monitor the fuel pressure gauge (if installed) to confirm pressure builds to the pump’s specified range—typically 40-60 PSI for AEM pumps. If pressure fluctuates or fails to stabilize, inspect for leaks or disconnected lines. A common oversight is neglecting the fuel filter or regulator, which can restrict flow if clogged or improperly installed. Use a catch container to verify fuel is flowing smoothly from the pump outlet, ensuring no blockages exist.
Finally, after priming, start the engine and let it idle for 2-3 minutes. This allows the pump to circulate fuel through the entire system, ensuring all components are lubricated and pressurized. Listen for unusual noises—a whining or grinding sound indicates air in the system or a dry-running pump, requiring a repeat of the priming process. Once the engine runs smoothly, rev it gently to test fuel delivery under load, confirming the pump operates as expected.
Priming isn’t just a step—it’s a safeguard. Skipping it risks damaging a $300+ pump within minutes. By methodically bypassing the relay, monitoring pressure, and verifying flow, you ensure the AEM pump functions optimally from the start. Treat this process as mandatory, not optional, to protect your investment and maintain reliable fuel delivery in your Evo X.
BMW R1200RT Fuel Pump Removal Guide: 2005 Model DIY Steps
You may want to see also
Explore related products
Testing & Tuning: Verify pump operation and adjust fuel pressure for optimal Evo X performance
Proper fuel pump operation is critical for the Evo X’s high-performance engine, ensuring consistent fuel delivery under extreme conditions. Begin by verifying the AEM fuel pump’s functionality with a static pressure test. Disconnect the fuel line at the rail, attach a gauge, and key the ignition to the "on" position without starting the engine. The pump should produce a baseline pressure of 43.5 to 55 psi (3 to 3.8 bar), depending on your setup and elevation. If pressure falls outside this range, inspect the pump’s wiring, ground, and relay for faults. A malfunctioning pump risks lean conditions, misfires, or detonation, compromising both performance and engine longevity.
Once operation is confirmed, fine-tune fuel pressure for your Evo X’s specific needs. Use the AEM fuel pressure regulator to adjust pressure in 0.5 psi increments, referencing a wideband O2 sensor to monitor air-fuel ratios. For stock or lightly modified engines, target a stoichiometric ratio of 14.7:1 under idle and cruise. Turbocharged setups with higher boost levels may require richer mixtures (11.5:1 to 12.5:1) to prevent knock. Log data during wide-open throttle pulls to ensure the pump maintains pressure without drop-off, which could indicate flow limitations. Adjustments should be made incrementally, with a 24-hour settling period between changes to account for temperature and fuel system dynamics.
Advanced tuning demands a comparative approach, balancing fuel pressure against other variables like injector duty cycle and ignition timing. High-flow injectors, for instance, may necessitate lower base pressure to avoid over-fueling. Conversely, larger turbo kits often require increased pressure to meet elevated fuel demands. Use a load-based fuel pressure map in your ECU software to optimize delivery across the entire RPM range. For example, a 5 psi increase at 5,000 RPM can mitigate fuel starvation during hard acceleration. Always cross-reference adjustments with knock sensor data to avoid pre-ignition, especially in ethanol blends or high-boost applications.
Practical tips streamline the testing and tuning process. Invest in a quality fuel pressure gauge with a Schrader valve for quick connections. Keep a log of baseline settings before modifications to simplify troubleshooting. For Evo X owners running E85, note that its lower energy density requires a 30-35% increase in fuel flow, demanding higher pump pressure and larger injectors. Finally, perform all adjustments with a cool engine to avoid false readings. Consistent testing and iterative tuning not only maximize power but also safeguard the engine against the risks of improper fueling.
Testing Your Riding Mower's Vacuum Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The AEM High-Flow In-Tank Fuel Pump (Part #50-1000) is a popular choice for Evo X applications, as it provides sufficient flow and pressure for both stock and moderately modified engines.
Installation involves removing the stock fuel pump, replacing it with the AEM pump, and ensuring proper electrical connections. It’s recommended to use a fuel pump installer tool to avoid damaging the locking ring. Always follow the AEM installation guide for specific steps.
Depending on your setup, you may need a fuel pump controller (like the AEM FIC) to adjust fuel pressure, upgraded fuel lines, and a high-flow fuel filter. For turbo or high-performance builds, consider a larger fuel pump and a surge tank for consistent fuel delivery.
