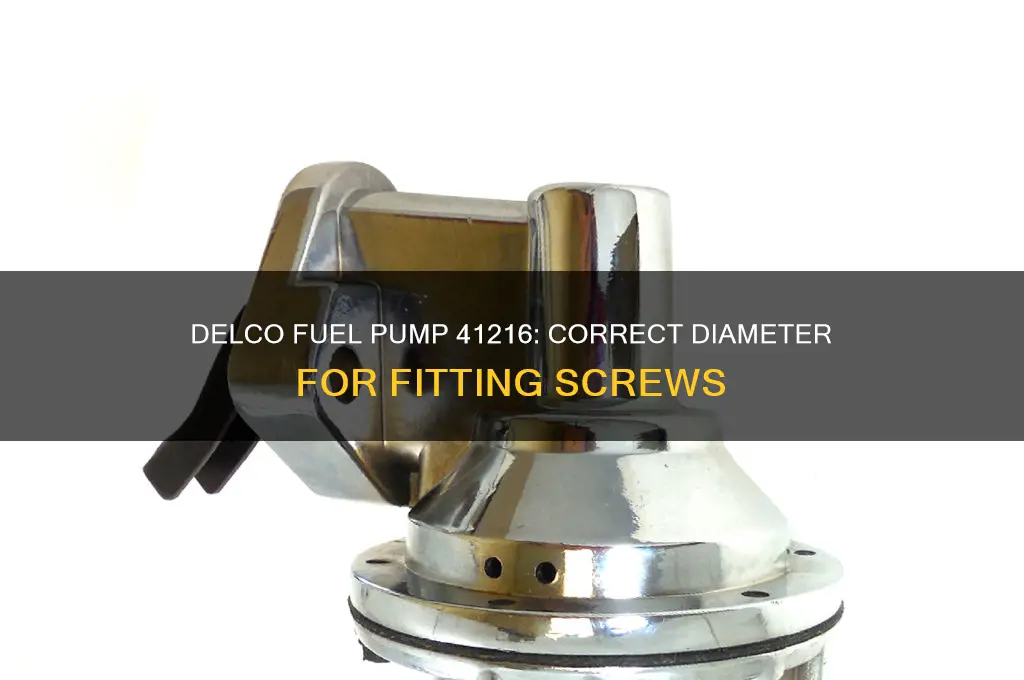

The Delco fuel pump model 41216 is a commonly used component in various vehicle fuel systems, and understanding the correct fitting screw diameter is essential for proper installation and maintenance. This specific fuel pump requires a precise screw size to ensure a secure and leak-free connection, which is crucial for the pump's efficient operation. Determining the exact diameter of the fitting screw is the first step in sourcing the appropriate hardware, as using an incorrect size can lead to performance issues or even damage to the fuel pump. By identifying the right screw specifications, vehicle owners and mechanics can ensure a reliable and long-lasting repair or replacement.
Explore related products
What You'll Learn
- Screw Thread Type: Identifying the specific thread type required for Delco fuel pump 41216 fittings
- Diameter Measurement: Determining the exact diameter of the screw that fits into the pump
- Material Compatibility: Selecting screw materials compatible with Delco fuel pump 41216 components
- Thread Pitch: Understanding the thread pitch needed for a secure fit in the pump
- Replacement Sources: Locating suppliers or stores offering screws compatible with Delco fuel pump 41216
Screw Thread Type: Identifying the specific thread type required for Delco fuel pump 41216 fittings
The Delco fuel pump 41216, a staple in many classic and vintage vehicles, relies on precise fittings to ensure optimal fuel delivery. Identifying the correct screw thread type for its fittings is crucial for maintenance and repairs. This pump typically uses a 1/8-inch NPT (National Pipe Tapered) thread for its inlet and outlet connections. NPT threads are standard in automotive fuel systems due to their self-sealing properties when tightened, preventing leaks under pressure.
To verify the thread type, start by inspecting the fitting’s diameter and thread pitch. Use a thread pitch gauge or caliper to measure the outer diameter of the male fitting, which should be approximately 0.450 inches for a 1/8-inch NPT thread. Additionally, count the number of threads per inch (TPI); 1/8-inch NPT has 27 TPI. If the fitting is damaged or unclear, consult the pump’s manual or cross-reference with a Delco parts catalog to confirm compatibility.
When replacing or installing fittings, ensure the threads are clean and free of debris. Apply a small amount of Teflon tape or pipe sealant to the male threads to enhance the seal, but avoid over-tightening, as this can strip the threads or damage the pump. For threaded connections exposed to vibration, consider using threadlocker to prevent loosening over time.
While 1/8-inch NPT is the most common thread type for the Delco 41216, variations exist depending on the pump’s specific model or aftermarket modifications. If unsure, disassemble the fitting and compare it to known NPT standards or consult a professional mechanic. Using the wrong thread type can lead to leaks, reduced fuel efficiency, or even engine damage, making accurate identification essential for long-term reliability.
In summary, the Delco fuel pump 41216 typically requires 1/8-inch NPT threads for its fittings. Proper measurement, cleaning, and sealing techniques ensure a secure connection. Always verify the thread type through physical inspection or reference materials to avoid costly mistakes and maintain the pump’s performance.
Understanding the DW300 Fuel Pump: Features, Benefits, and Applications
You may want to see also
Explore related products
Diameter Measurement: Determining the exact diameter of the screw that fits into the pump
The Delco fuel pump 41216, a staple in many classic vehicles, relies on a specific screw for secure mounting. Determining the exact diameter of this screw is crucial for a proper fit, preventing leaks and ensuring optimal pump performance.
Analyzing the Thread Pattern: The screw’s diameter isn’t solely about the shaft width; it’s intricately tied to its thread pattern. Delco fuel pumps typically utilize standard SAE (Society of Automotive Engineers) thread sizes. Common candidates include #6-32, #8-32, or #10-24, each denoting a specific diameter and threads per inch. A thread gauge, readily available at hardware stores, becomes your primary tool here. Carefully align the screw threads with the corresponding gauge slots until you achieve a snug fit. This reveals the thread size, which directly correlates to the screw’s diameter.
Measuring Directly: For a more hands-on approach, a digital caliper offers precise diameter measurements. Gently place the screw on a flat surface and carefully measure the widest point of the threaded portion. Remember, accuracy is paramount; even a slight deviation can lead to a loose or overly tight fit.
Consulting Resources: Don’t underestimate the power of community knowledge. Online forums dedicated to classic car restoration often house a wealth of information. Search for threads discussing the Delco 41216 pump, specifically those addressing screw sizes. Additionally, Delco service manuals, if available, provide detailed specifications, including screw diameters.
The Importance of Precision: Using the wrong diameter screw can have detrimental consequences. A screw too small may not provide sufficient holding power, leading to pump vibration and potential failure. Conversely, a screw too large can strip the pump’s threads, necessitating costly repairs. Taking the time to accurately determine the correct diameter ensures a secure and long-lasting installation.
Locating the Fuel Pump Relay in a 2001 Kenworth W900L
You may want to see also
Explore related products
Material Compatibility: Selecting screw materials compatible with Delco fuel pump 41216 components
The Delco fuel pump 41216, a staple in many automotive systems, demands precision in every component, including the screws that secure its fittings. Selecting the right screw material is not just about ensuring a tight fit; it’s about preventing corrosion, maintaining fuel integrity, and ensuring long-term reliability. Fuel systems operate in harsh environments, exposed to volatile chemicals, temperature fluctuations, and mechanical stress. A mismatch in material compatibility can lead to leaks, system failure, or even safety hazards.
Consider the chemical resistance of the screw material to gasoline, ethanol, and additives commonly found in modern fuels. Stainless steel, particularly 316-grade, is often recommended for its corrosion resistance and durability. However, in systems with high ethanol content, brass or aluminum screws may be unsuitable due to their susceptibility to dezincification or galvanic corrosion. For such cases, titanium or nickel alloys offer superior resistance but come at a higher cost. Always verify the fuel composition and consult the pump’s specifications before making a selection.
Another critical factor is the galvanic compatibility between the screw material and the pump’s components. Pairing dissimilar metals without proper insulation can create a galvanic couple, accelerating corrosion. For instance, using a steel screw in an aluminum fitting without a dielectric washer can lead to rapid degradation. To mitigate this, apply anti-seize compounds or select screws with coatings like zinc or cadmium plating. However, ensure these coatings are fuel-resistant to avoid contamination.
Temperature and mechanical stress further complicate material selection. Screws must withstand the thermal expansion and contraction of the pump housing without loosening or warping. High-strength alloys like Inconel or Monel are ideal for high-temperature applications but may be overkill for standard passenger vehicles. For most automotive fuel pumps, 18-8 stainless steel strikes a balance between strength, corrosion resistance, and cost-effectiveness. Always torque screws to the manufacturer’s specifications to avoid over-tightening, which can deform the threads or damage the pump.
Finally, consider the environmental impact and regulatory compliance of the screw material. Lead-free materials are increasingly required by legislation, ruling out traditional leaded brass alloys. Additionally, recyclable materials like stainless steel align with sustainability goals. While the initial cost may be higher, the longevity and reduced maintenance of compatible materials often justify the investment. Always prioritize materials that meet industry standards, such as ASTM or SAE specifications, to ensure reliability and safety.
Diagnosing Fuel Pump Issues in Your 2010 Honda Civic: A Guide
You may want to see also
Explore related products
Thread Pitch: Understanding the thread pitch needed for a secure fit in the pump
Thread pitch is a critical specification when selecting a fitting for the Delco fuel pump 41216, as it determines the distance between threads and directly impacts the tightness and security of the connection. A mismatch in thread pitch can lead to leaks, compromised performance, or even damage to the pump. For instance, a common thread pitch for fuel pump fittings is 1/8 NPT (National Pipe Tapered), which has 27 threads per inch. However, without verifying the exact pitch required for the Delco 41216, assuming compatibility could be a costly mistake.
To identify the correct thread pitch, start by consulting the pump’s manual or manufacturer specifications. If these resources are unavailable, use a thread pitch gauge to measure the threads on the pump’s inlet or outlet port. Align the gauge’s teeth with the threads—the correct pitch will fit seamlessly without gaps. For tapered threads like NPT, ensure the gauge matches both the pitch and the angle of the taper. If the pump’s threads are damaged or worn, consider replacing the port or using a thread repair kit before installing a new fitting.
When selecting a fitting, ensure it matches both the diameter and thread pitch of the pump’s port. For example, a 1/8 NPT fitting with a 1/4-inch outer diameter (OD) may fit the port’s diameter but fail to secure properly if the thread pitch is incorrect. Always verify compatibility by threading the fitting by hand before tightening it with a wrench. Over-tightening can strip the threads, so use thread sealant like Teflon tape or pipe dope to ensure a leak-free seal without excessive force.
Comparing thread pitch standards can highlight why precision matters. Metric threads, such as M6 or M8, have a different pitch than their imperial counterparts, making them incompatible even if the diameter appears similar. For the Delco 41216, focus on imperial measurements, particularly NPT or SAE (Society of Automotive Engineers) standards. If working with older or international pumps, cross-reference the thread pitch to avoid confusion between systems.
In practice, understanding thread pitch is as much about prevention as it is about installation. A secure fit prevents fuel leaks, which can pose safety hazards or reduce engine efficiency. For DIY enthusiasts, investing in a thread pitch gauge and familiarizing oneself with common automotive thread standards can save time and money. Professionals should document the pump’s specifications for future reference, ensuring consistent and accurate repairs. By prioritizing thread pitch, you safeguard the pump’s performance and longevity.
Understanding TDI VW Injection Pump Fuel Metering Control Valve Function
You may want to see also
Explore related products
Replacement Sources: Locating suppliers or stores offering screws compatible with Delco fuel pump 41216
The Delco fuel pump 41216, a staple in many classic vehicles, often requires specific screws for proper fitting. Identifying the correct diameter is crucial, but equally important is knowing where to source these screws. Here’s a focused guide on locating suppliers and stores that offer compatible screws.
Step 1: Start with Specialty Auto Parts Stores
Specialty auto parts stores, particularly those catering to classic or vintage vehicles, are prime sources. Stores like *O’Reilly Auto Parts* or *Advance Auto Parts* often stock or can order screws for older models. For a more niche approach, explore *RockAuto* or *Jegs*, which specialize in hard-to-find components. When inquiring, provide the pump model (41216) and the confirmed screw diameter to streamline the search.
Step 2: Leverage Online Marketplaces
Platforms like *eBay* and *Amazon* are treasure troves for obscure parts. Search using specific terms like “Delco 41216 fuel pump screws” or “Delco fuel pump screw [diameter]”. Sellers often list parts salvaged from dismantled vehicles or sourced from bulk suppliers. Verify seller ratings and product descriptions to ensure compatibility and quality.
Step 3: Contact Manufacturer or Distributor Networks
While Delco (now part of ACDelco) may not produce the exact pump anymore, their distributor networks or authorized dealers might still carry compatible screws. Reach out to ACDelco customer service or check their online catalog. Alternatively, distributors like *NAPA Auto Parts* often have access to OEM-compatible components.
Caution: Avoid Generic Hardware Stores
While tempting, generic hardware stores like *Home Depot* or *Lowe’s* rarely stock screws specific to automotive fuel pumps. The threads, material, and diameter required for the Delco 41216 are often too specialized for general hardware aisles. Stick to automotive-focused suppliers for precision.
Pro Tip: Salvage Yards and Forums
Salvage yards, particularly those specializing in classic cars, can be goldmines for original parts. Additionally, online forums like *The H.A.M.B.* (The Jalopy Journal’s forum) or *Classic Car Forum* often have members willing to sell or trade parts. Post a detailed request with the screw specifications to tap into this community.
By combining these strategies, you’ll increase your chances of finding the exact screws needed for the Delco fuel pump 41216, ensuring a reliable and safe repair.
Understanding Chainsaw Fuel Pumps: Functionality and Operation Explained
You may want to see also
Frequently asked questions
The Delco fuel pump 41216 typically uses a 1/4-inch diameter fitting for the fuel line connection.
The fitting for Delco fuel pump 41216 is usually threaded, requiring a compatible threaded fuel line or adapter.
Using a different diameter fitting is not recommended, as it may cause leaks or improper fuel flow. Stick to the 1/4-inch diameter fitting.
Yes, adapters are available to convert the 1/4-inch fitting to other sizes, but ensure compatibility with your fuel system.
Measure the existing fitting or consult the pump’s specifications to confirm the 1/4-inch diameter is correct for your model.
