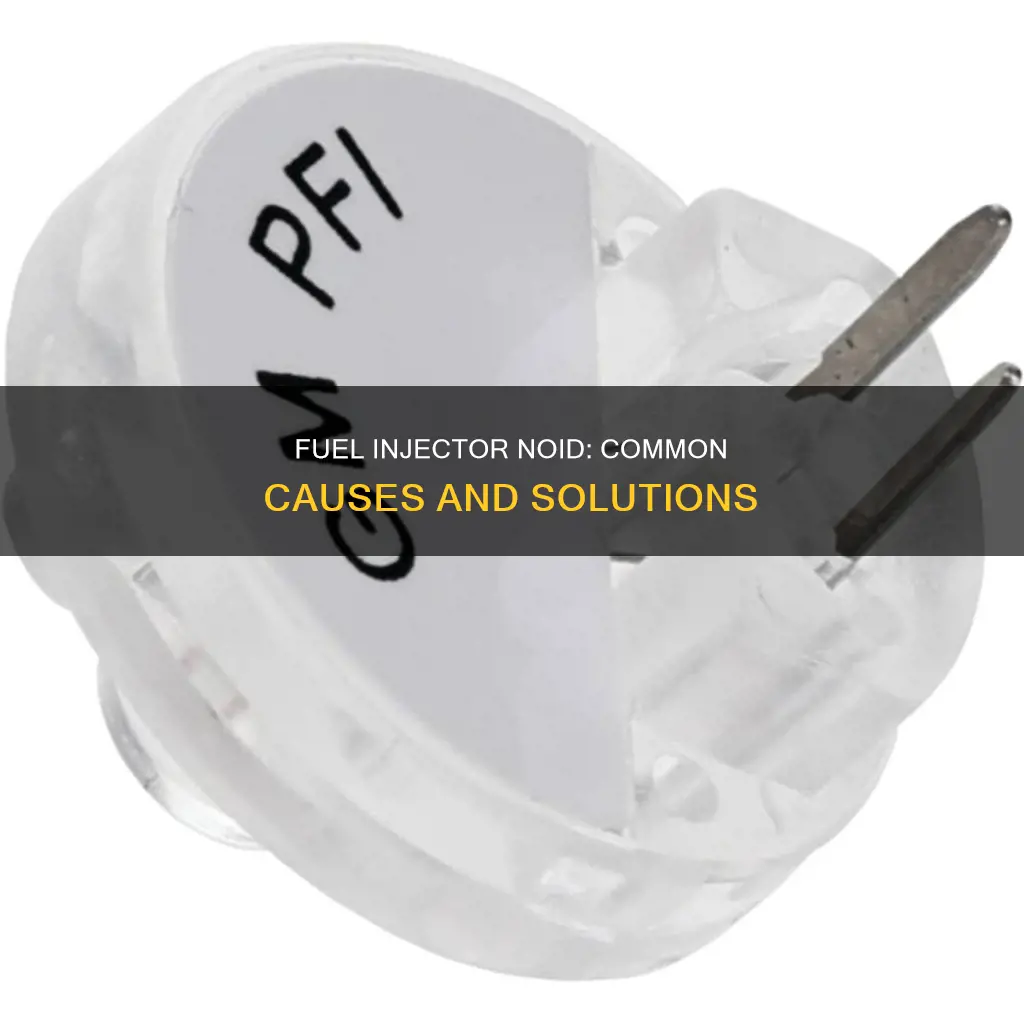

Fuel injectors are a vital part of a car's fuel management system. They are responsible for atomizing the fuel and delivering it to the engine. When issues arise with fuel injectors, it can cause the car to fail to start. To diagnose these issues, a Noid light kit can be used. This kit contains lights that can be attached to the fuel injector connectors to test if the computer is pulsing the injectors and identify any faulty connections. The Noid light will flash on and off when the engine is cranking, indicating that the fuel injector is receiving power and pulse signals from the fuel injection computer. If the Noid light does not flash, it indicates that electrical power is not reaching the fuel injector or that the fuel injection computer is not delivering the pulse signals.
| Characteristics | Values |
|---|---|
| What is a Noid Light? | A light that tests for an electrical signal at the fuel injector |
| What does it do? | Detects whether the fuel injector is receiving power and a switching signal from the fuel injection computer |
| How does it work? | The light's leads are connected to a specific circuit and its behaviour is observed. A flashing light indicates a pulsed signal, while a consistently lit lamp shows a continuous voltage. |
| What does it help with? | Troubleshooting a misfire, no-start and other fuel-related issues |
| What are fuel injectors? | A vital part of a complex fuel management system, they are spray nozzles that atomize the fuel and deliver it to the engine |
| What happens if they don't work? | Engine misfiring or failure to start |
Explore related products
What You'll Learn
Noid light kits can be used to test fuel injectors
Noid light kits are an essential tool for testing fuel injectors and diagnosing issues with fuel-injected vehicles. They are designed for quick and easy performance testing of electronic signals for fuel injectors. The kits contain Noid lights that fit into the fuel injector connectors, allowing users to visually confirm if the injectors are receiving power and pulse signals from the fuel injection computer.
Noid lights work by connecting the light's leads to a specific circuit and observing its behaviour. A flashing light indicates a pulsed signal, while a consistently lit lamp shows continuous voltage. This simple visual cue helps pinpoint whether the fuel injector is receiving the proper electrical signal. If the Noid light flashes on and off on all connectors, it indicates that the fuel injector is functioning correctly.
To use a Noid light kit to test fuel injectors, follow these steps: First, focus on the fuel injector you want to test and disconnect it from its electrical connector. Then, insert the Noid light into the fuel injector. Ensure that the Noid light fits easily into the connector, and do not force it. If you encounter resistance, try another Noid light from the kit.
Once the Noid light is inserted, step away to a safe distance from the engine, and ask someone else to crank the engine. During this process, the Noid light should flash on and off. If the engine starts, the Noid light should continue flashing as the engine runs. Repeat this process for all connectors on the fuel injector. If the Noid light flashes identically on all connectors, it confirms that the fuel injector is receiving power and pulse signals.
Noid light kits are an invaluable tool for mechanics and car owners, providing a straightforward and efficient way to troubleshoot fuel injector issues and diagnose fuel-related problems in vehicles.
Fuel Injector Failure: Why Your Car Won't Start
You may want to see also
Explore related products
Noid light tests can determine if the computer is pulsing the injectors
Noid light kits are an effective way to troubleshoot fuel injector issues. They can be used to test if the computer is pulsing the injectors and identify faulty connections. Noid light kits contain lights for the different fuel injector connectors as not all cars use the same type.
The Noid light test is a straightforward process. It involves connecting the light's leads to a specific circuit and observing its behaviour. A flashing light indicates a pulsed signal, while a consistently lit lamp shows a continuous voltage. These simple visual cues quickly pinpoint whether a component is receiving the proper electrical signal.
To perform the test, first focus on the fuel injector that you want to test and disconnect it from its electrical connector. There may be a metal clip securing the connector to the fuel injector. Press the clip to unlock and remove the connector. Alternatively, there may be a plastic locking tab integrated into the connector, and you may have to press it as you gently pull the connector out. After removing the connector, insert the Noid light into the fuel injector. The Noid light should fit into the injector easily, do not force it. Step away to a safe distance from the engine, from where you are able to watch the Noid light easily. Have another person crank the engine. Normally, the Noid light should be flashing on and off all the time the engine was cranking. If the engine is started, the Noid light should flash on and off all the time the engine was running.
If the Noid light flashes on and off and performs identically on all the connectors on the fuel injector, then the results indicate the fuel injector is receiving both power and pulse signals from the fuel injection computer. Therefore, this test result eliminates the fuel injector circuit as being the cause of the problem of the misfiring. If the Noid light did not flash, the result indicates that electrical power is not reaching the fuel injector. It could also be that the fuel injection computer is not delivering the pulse signals to the fuel injector. Therefore, this test result confirms that the electrical part of the circuit related to the fuel injector is the cause of the fault.
Fuel Injector Upgrade: 4-Hole vs. OEM
You may want to see also
Explore related products
A flashing Noid light indicates a pulsed signal
Noid light kits are a simple yet effective way to test various circuits and components within a vehicle's electrical system. They are used to troubleshoot fuel injector issues and identify faulty connections. Not all cars use the same fuel injector connector type, so it is important to select a Noid light kit that matches the fuel injector connectors in your car.
To test a fuel injector using a Noid light, first disconnect the fuel injector from its electrical connector. Then, insert the Noid light into the fuel injector. The Noid light should fit easily, and if you encounter resistance, select another Noid light from the kit. Step away to a safe distance from the engine and ask another person to crank the engine. If the Noid light flashes on and off while the engine is cranking, this indicates that the fuel injector is receiving a pulsed signal.
If the Noid light does not flash, it indicates that electrical power is not reaching the fuel injector, or that the fuel injection computer is not delivering the pulse signals to the fuel injector. In this case, the electrical part of the circuit related to the fuel injector may be the cause of the fault.
Fuel Injector Repairs: UK Cost and Maintenance Guide
You may want to see also
Explore related products
A Noid light kit will not fit all car models
Fuel injectors are a vital part of a car's fuel management system. They are responsible for atomizing the fuel and delivering it to the engine. When there is a problem with the fuel injection system, it can cause the car to fail to start.
A Noid light kit is a useful tool for mechanics to test fuel injectors and diagnose performance issues. The Noid light is inserted into the fuel injector connector to test if the computer is pulsing the injectors and identify faulty connections. The light will flash on and off if the injector is receiving power and pulse signals from the fuel injection computer. If the light does not flash, it indicates that electrical power is not reaching the fuel injector or that the fuel injection computer is not delivering the pulse signals.
While Noid light kits are a helpful tool for troubleshooting fuel injection problems, they may not fit all car models. Different car brands, such as Ford, Chevrolet, and Nissan, use different types of connectors on their fuel injectors. Therefore, it is important to select a Noid light kit that is compatible with the specific car model being worked on. Some Noid light kits come with various lights that can match a large variety of connectors, increasing the likelihood that they will fit the car being tested.
It is important to carefully follow the manufacturer's instructions when using a Noid light kit and to ensure that the correct test points are used to prevent damage to the vehicle's electrical system.
Testing Fuel Injector Plugs: Power Check Methods
You may want to see also
Explore related products
Noid lights can be purchased online
Noid lights are an effective tool for testing fuel injectors. They can help diagnose common issues with the fuel system, such as misfires, no-starts, and other fuel-related problems. The lights indicate whether the fuel injectors are receiving power and pulse signals from the fuel injection computer.
Noid light kits are available for purchase online from retailers such as Harbor Freight, Walmart, and NAPA Auto Parts. These kits typically contain multiple Noid lights to accommodate different fuel injector connectors, as not all cars use identical connectors. The kits also include instructions and, in some cases, additional tools like IAC testers and fiber optic extension cables.
When purchasing a Noid light kit online, it is important to ensure that the kit is compatible with your vehicle's fuel injector connector. For example, some kits are designed for use with specific systems, such as GM TBI, GM SCPI, and Ford TBI.
By following the manufacturer's instructions and selecting the appropriate Noid light from the kit, you can easily test your fuel injectors and identify any potential issues. This process can help streamline the repair process by providing reliable readings and reducing the risk of incorrect diagnoses.
Locating the Cylinder One Fuel Injector: Where is it?
You may want to see also
Frequently asked questions
A fuel injector noid light is a tool used to test vehicle electronic fuel injectors and Idle Air Control Valves for proper on-off signal function.
The noid light is connected to a specific circuit and its behaviour is observed. A flashing light indicates a pulsed signal, while a consistently lit light shows a continuous voltage.
A fuel injector noid light test checks if the fuel injector is receiving power and a switching signal from the fuel injection computer.
