Most cars have one fuel pump, but some have two. This second pump can be significantly beneficial, especially for high-performance vehicles. The fuel pump is a critical component of a car's fuel delivery system, transferring fuel from the tank to the engine. It also removes impurities and debris from the fuel, preventing engine contamination and potential damage. While one pump is usually located inside the fuel tank, some cars have an additional pump closer to the engine.
Cars with 2 Fuel Pumps
| Characteristics | Values |
|---|---|
| Examples of Cars with 2 Fuel Pumps | Nissan Primera P12, 1977 GMC Vandura RV |
| Reason for 2 Fuel Pumps | Applications that prioritize high-performance capabilities, such as diesel engines, require dual pump systems to meet specific fuel delivery demands and requirements. |
| Types of Fuel Pumps in Diesel Engines | Lift pump and high-pressure injection pump |
| Function of Lift Pump | Transferring fuel toward the injection pump and ensuring consistency and accuracy in fuel flow |
| Function of Fuel Pumps | Draw fuel from the tank, mix it with air, and combust it to generate power for the vehicle's operation |
| Secondary Function of Fuel Pumps | Remove impurities and debris from the fuel to prevent engine contamination and potential damage |
| Power Source of Fuel Pumps | Electric motor |
| Activation of Fuel Pumps | When the vehicle's ignition is engaged, the fuel pumps receive an electrical signal from the car's computer, activating the motor |
Explore related products
What You'll Learn
Electric vs. mechanical pumps
The function of a fuel pump is to transfer fuel from the tank to the engine, allowing the engine to power up and run. In modern vehicles with internal combustion engines, there are two main types of fuel pumps: electric and mechanical.
Electric Fuel Pumps
Electric fuel pumps use an electric motor to push gasoline or diesel fuel from the storage tank to the engine. The pump is usually located inside the fuel tank or very close to it and is connected to the fuel tank by a fuel line. When the engine is started, the engine's computer sends a signal to the pump to turn on, creating a vacuum in the fuel line that draws the fuel into the pump. The pump then pushes the fuel into the engine. When the engine is stopped, the computer sends another signal to the pump to turn off.
Mechanical Fuel Pumps
Mechanical fuel pumps were the first type of fuel pump and are still found in many cars and trucks today. They use an internal spring-loaded diaphragm or a piston to push the fuel from the tank to the engine. One advantage of mechanical pumps is that they don't require any additional plumbing or wiring, and they don't make any noise. However, they require more frequent maintenance and upkeep than electric fuel pumps.
The choice between an electric and a mechanical fuel pump depends on the specific needs and preferences of the vehicle owner. Both types of pumps have their own set of pros and cons, and sometimes the decision comes down to practicality. For example, while mechanical pumps are usually quieter, electric pumps are generally more efficient and economical, which is why they are more commonly found in modern vehicles. Consulting a professional mechanic or auto parts specialist can help vehicle owners make the best decision for their specific needs.
Fuel Injected Cars: Naturally Aspirated or Turbocharged?
You may want to see also
Explore related products
Dual pump systems

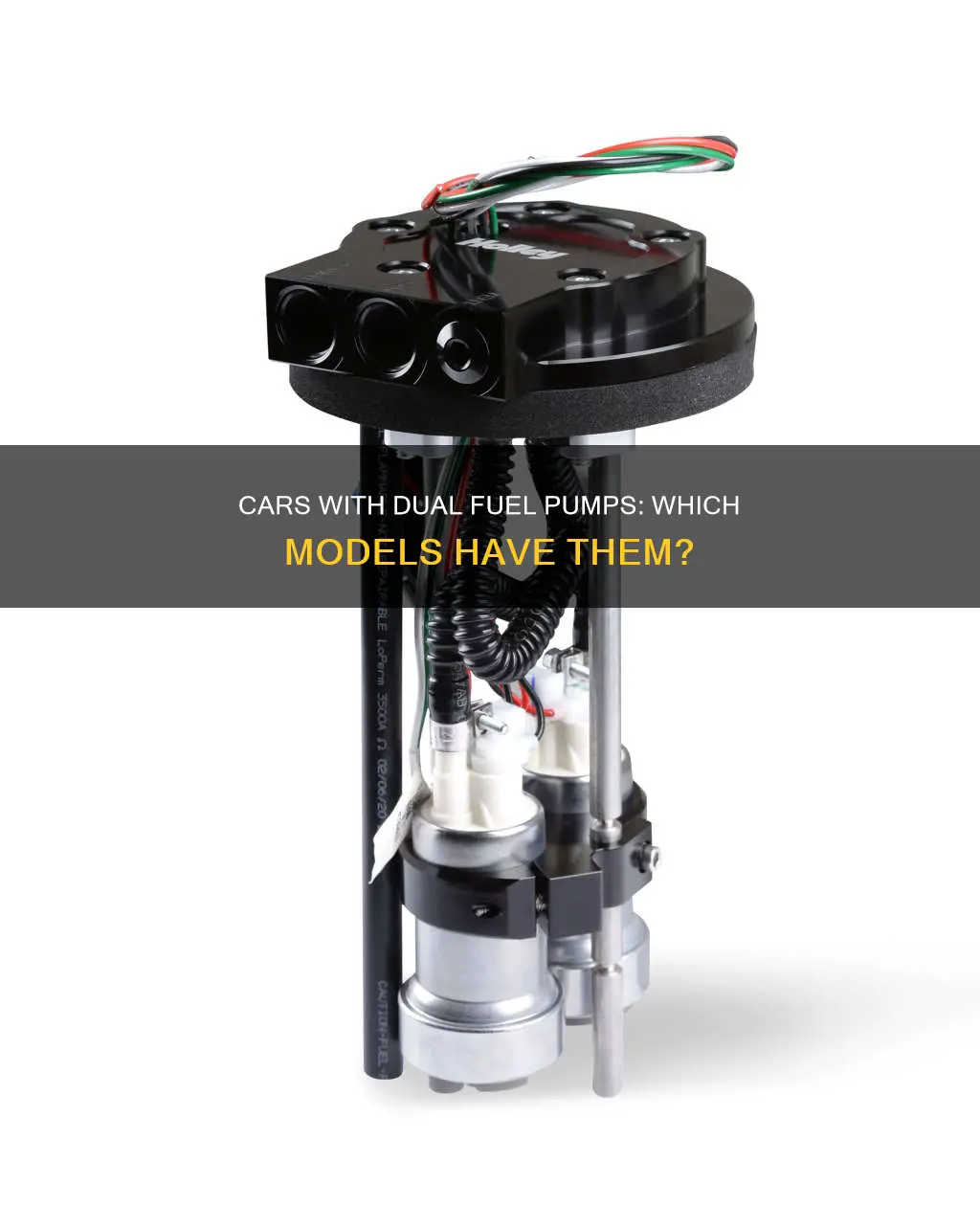

Some cars have dual pump fuel systems, where there are two fuel pumps in the car. One is usually located closer to the fuel tank, and the other is closer to the engine. This configuration is common in cars with GDI (Gasoline Direct Injection) engines. In such cases, one pump is a low-pressure or lift pump, while the other is a high-pressure pump, with one running on 12 volts and the other powered by the engine.
Dual pump fuel systems offer several benefits and are often installed for redundancy. For instance, if one pump fails, the second pump ensures that fuel can still be drawn from the tank. Additionally, in high-performance engines with high-pressure pumps, the pump can get very hot. Submerging the pump in fuel helps to keep it cooler, extending its life, and reducing noise.
When upgrading to a dual pump fuel system, there are several considerations to keep in mind. Firstly, a fuel source must be selected, and the return-style fuel regulator must return fuel to the same tank. Secondly, most vehicles have a shared fuel level gauge, so it is necessary to simultaneously switch the fuel source, fuel return, and fuel level sender. Finally, it is important to prevent fuel from being pumped into the non-operating pump when only one pump is running. This can be achieved by using one-way valves on the outlet of the pumps and wiring them to separate circuits.
Dual pump fuel systems can be found in various vehicles, including the Nissan Primera P12 and GMC Vandura RV.
Fuel Usage in NHRA Funny Cars: How Much Is Enough?
You may want to see also
Explore related products
Fuel pump locations
Fuel pumps are indispensable components of a car, transmitting fuel from the tank to the injectors while maintaining a specific pressure. They are usually located inside the fuel tank, although some are mounted externally.
The primary (low-pressure) fuel pump is part of an assembly that includes the fuel level float, level sensor, and related components. It pulls fuel through a filter at the bottom of the tank and transfers it to the outlet tube, which routes fuel toward the engine.
In vehicles with GDI (Gasoline Direct Injection) systems, there is a secondary, high-pressure pump mounted near the fuel rail within the engine compartment. This pump increases fuel pressure to the extremely high levels required by GDI systems, allowing for more precise fuel delivery directly into the combustion chamber.
Some cars may have two fuel pumps, with one located closer to the fuel tank and the other closer to the engine. One example is the Nissan Primera P12, which has been reported to have two fuel pumps.
It is important to note that fuel pumps can vary significantly in appearance and location depending on the vehicle's design and fuel injection system.
Fuel Cell Cars: Functioning or Fictional?
You may want to see also
Explore related products
Fuel pump functions
The primary function of a fuel pump in a car is to pump fuel from the tank to the engine's combustion chamber. This is achieved through either an injection system or a carburetor system. In an injection system, the fuel pump moves fuel from the tank to the injector, while in a carburetor system, it delivers fuel to the carburetor.
Fuel pumps can be mechanical or electric. Mechanical fuel pumps are typically driven by the camshaft or a special shaft driven by the crankshaft. They are commonly used in carburetor systems found in older cars, lawnmowers, and power tools. These pumps operate at a relatively low fuel pressure of 10-15 psi (0.7-1.0 bar). The two main types of mechanical pumps are diaphragm pumps and plunger pumps. Diaphragm pumps work by using an actuating lever that moves up and down constantly, pulling the diaphragm down to refill the pump chamber. The return spring then pushes the diaphragm up to deliver fuel to the carburetor. Plunger pumps, on the other hand, use a machined plunger without seals. The movement of the plunger controls the amount of fuel pumped, and they are often mounted on the side of the injection pump.
Electric fuel pumps, on the other hand, are typically found in modern fuel-injected engines. They are usually located inside the fuel tank, and their position can vary between the engine and the fuel tank since they don't rely on mechanical power from the engine. Electric fuel pumps can be further divided into two subtypes: those that use a platinum diaphragm and those found in ordinary injection system cars.
In addition to transferring fuel, fuel pumps also play a role in engine cooling and fire prevention. By submerging the pump in fuel at the bottom of the tank, the surrounding fuel helps to cool the pump and reduce the risk of fire. This is because liquid fuel, without oxygen present, is not flammable.
Hydrogen-Powered Toyota's Fuel Tank Range Explored
You may want to see also
Explore related products
Fuel pump maintenance
First, it is important to identify the location of your fuel pumps. One pump is usually located closer to the fuel tank, while the other is typically found nearer to the engine. In some cars, like the Nissan Primera P12, the pump closer to the engine is a high-pressure pump, while the other is a low-pressure or lift pump. GDI (Gasoline Direct Injection) engines will have this configuration.
To maintain the fuel pumps, it is recommended to regularly check for any signs of wear or damage. Over time, fuel pumps can become clogged with debris or rust, particularly if your car has been sitting idle for a long period. To prevent this, it is advisable to install a filter between the tank and the pump to catch any contaminants before they reach the pump. This is especially important if your car has an electric pump, which is often added as a temporary fix for a weak or non-functioning main pump.
If your car is having trouble starting or is stalling, it could be an indication of a faulty fuel pump. In this case, it is recommended to consult a mechanic or a repair manual for guidance on repairing or replacing the pump.
Additionally, it is important to keep the area around the fuel pump clean and free of any debris. This includes ensuring that the fuel filter is regularly replaced, as a clogged fuel filter can impact the performance of the pump.
By following these maintenance tips, you can help ensure that your car's fuel pumps are functioning optimally and prolong their lifespan.
Car Smoking: Faulty Fuel Pump Seal?
You may want to see also
Frequently asked questions
Most cars have one fuel pump, but two can be beneficial or even necessary for high-performance applications. Diesel engines, for example, typically have a lift pump and a high-pressure injection pump.
A fuel pump transfers fuel from the tank to the engine, ensuring a consistent and steady flow of fuel, which is essential for maintaining engine performance and efficiency.
Yes, they also remove impurities and debris from the fuel to prevent engine contamination and potential damage.
Fuel pumps are typically powered by an electric motor. Once the vehicle's ignition is engaged, the fuel pump receives an electrical signal from the car's computer, activating the motor.
The fuel pump is usually located inside the fuel tank.
