Fuel injection is a system for introducing fuel into an internal combustion engine, usually in an automobile. The first mass-produced fuel-injected engines for passenger cars were diesel engines, which became available in the late 1930s and early 1940s. Fuel injection systems gradually gained prevalence in petrol engines in the 1950s, eventually replacing carburetors in most new petrol-engined cars by the early 1990s. The primary difference between carburetion and fuel injection is that fuel injection atomizes the fuel through a small nozzle under high pressure, while carburetion relies on suction created by intake air. The term fuel injection encompasses a variety of distinct systems, including multi-point, single-point, direct, and indirect injection. These systems have revolutionized engine efficiency and performance, providing more accurate fuel metering and quicker response. As concerns about vehicle emissions and fuel efficiency have grown, fuel injection systems have become increasingly important in automotive technology.
| Characteristics | Values |
|---|---|
| Replaced car part | Carburetor |
| First mass-produced system to use digital electronics | Bosch Motronic multi-point fuel injection system |
| First mass-produced petrol direct injection system for passenger cars | 1997 Mitsubishi 6G74 V6 engine |
| First common-rail system for a passenger car diesel engine | 1999 Alfa Romeo 156 1.9 JTD model |
| Most common automotive continuous injection system | Bosch K-Jetronic system |
| Main advantage of multi-port fuel injection | More accurate fuel metering and quicker response |
| Type of fuel injection | Mechanical fuel injection and electronic fuel injection |
Explore related products
What You'll Learn
- Fuel injection systems replaced carburetors
- Fuel injection is more efficient and accurate
- Single-point injection replaced carburetors with one or two fuel-injector nozzles
- Multi-port fuel injection has a separate injector nozzle for each cylinder
- Fuel injection systems are promising, with advancements enhancing capabilities

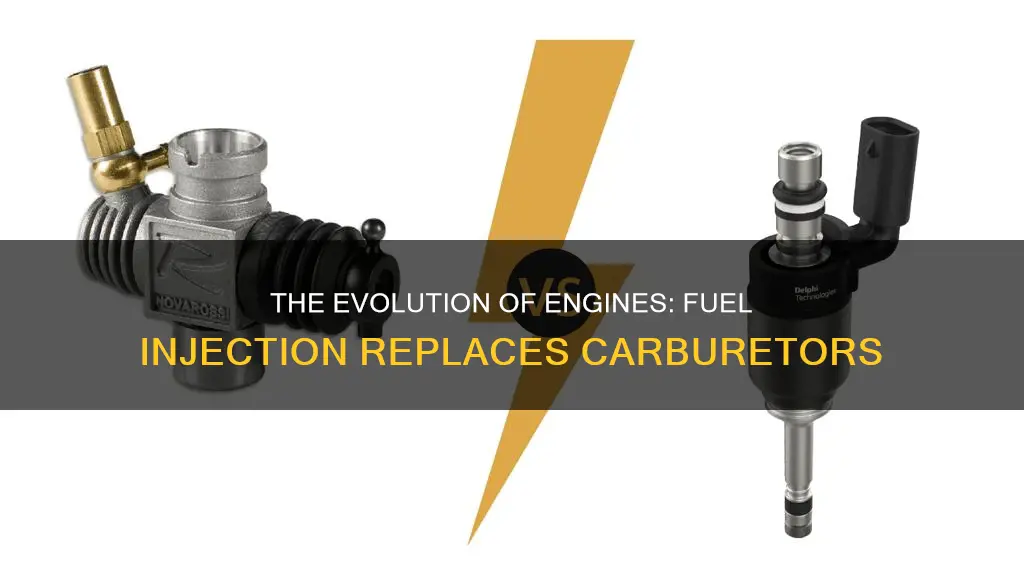

Fuel injection systems replaced carburetors
Fuel injection systems have replaced carburetors in most new petrol-engined cars sold in developed countries since the early 1990s. The primary difference between carburetion and fuel injection is that fuel injection atomizes the fuel through a small nozzle under high pressure, while carburetion relies on suction created by intake air.
The first mass-produced fuel injection systems used analogue electronics for the control system. The Bosch Motronic multi-point fuel injection system was the first mass-produced system to use digital electronics. The Ford EEC-III single-point fuel injection system, introduced in 1980, was another early digital fuel injection system. These and other electronic manifold injection systems became more widespread through the 1980s.
There are two main types of manifold injection systems: multi-point (or port) and single-point (or throttle body) injection. Multi-port fuel injection, also known as port, multi-point, or sequential fuel injection, has a fuel injector for each cylinder, usually located so that they spray directly at the intake valve. These systems provide more accurate fuel metering and quicker response. Single-point injection is the earliest and simplest type of fuel injection, replacing the carburetor with one or two fuel-injector nozzles in the throttle body, which is the throat of the engine's air intake manifold.
Internal mixture formation systems can be separated into several different varieties of direct and indirect injection, the most common being the common-rail injection, a variety of direct injection. Direct injection takes the fuel injection concept about as far as it can go, injecting fuel directly into the combustion chambers, past the valves. More common in diesel engines, direct injection is starting to appear in gasoline engine designs, sometimes called DIG for direct-injection gasoline.
Butane Cars: A Viable Fuel Alternative?
You may want to see also
Explore related products
Fuel injection is more efficient and accurate
Fuel injection is a system designed to control the amount of air and fuel in an engine to achieve a stable ratio as it runs. It is the introduction of fuel in an internal combustion engine, most commonly automotive engines, by the means of a fuel injector. The term "fuel injection" is vague and comprises various distinct systems with fundamentally different functional principles. The only thing all fuel injection systems have in common is the absence of carburetion.
Fuel injection systems are more efficient and accurate than carbureted engines at tempering air-fuel ratios in different vehicles. They atomize the fuel through a small nozzle under high pressure, while carburetors rely on suction created by intake air. This allows fuel injection systems to provide more accurate fuel metering and quicker response. Direct injection systems have revolutionized the efficiency and performance of internal combustion engines, injecting fuel directly into the combustion chamber rather than the intake manifold.
There are two main functional principles of mixture formation systems for internal combustion engines: internal and external. A fuel injection system that uses external mixture formation is called a manifold injection system. There are two types of manifold injection systems: multi-point (or port) and single-point (or throttle body) injection. Internal mixture formation systems can be separated into several different varieties of direct and indirect injection, the most common being the common-rail injection, a variety of direct injection. The term electronic fuel injection refers to any fuel injection system controlled by an engine control unit (ECU).
The ECU is the computer that controls all of the electronic components on an engine. It sees the throttle valve open and increases the fuel rate in anticipation of more air entering the engine. The ECU can also adjust the injection for each cylinder individually. This allows for more precise control of the air-fuel ratio, resulting in increased efficiency and reduced emissions.
The first mass-produced petrol direct injection system for passenger cars was introduced in the 1997 Mitsubishi 6G74 V6 engine. Since then, many petrol engines have switched to direct injection, sometimes in combination with separate manifold injectors for each cylinder. Ongoing advancements in fuel injection systems aim to enhance their capabilities, with innovations such as higher-pressure injection systems, more precise control algorithms, and integration with electric propulsion systems on the horizon. These developments promise even greater efficiency, reduced emissions, and enhanced performance, paving the way for a more sustainable and technologically advanced automotive landscape.
Choosing the Right Fuel Type for Your Car
You may want to see also
Explore related products
Single-point injection replaced carburetors with one or two fuel-injector nozzles
The single-point injection system, also known as throttle-body injection, was the earliest and simplest type of fuel injection. It replaced carburetors with one or two fuel-injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. This system was a relatively low-cost way for automakers to comply with tightening emissions regulations and improve "driveability" (easy starting, smooth running, and no engine stuttering). Single-point injection was a stepping stone for some automakers to transition to the more complex multipoint system.
Single-point injection systems are less precise than the multipoint system, but they still meter fuel with better control than carburetors. They are also less expensive and easier to service. In a single-point injection system, the fuel is mixed with air before entering the intake manifold. This mixture is then drawn into the engine's cylinders, where it is combusted to release energy and power the vehicle.
The primary difference between carburetors and fuel injection systems is how they deliver fuel to the engine. Carburetors rely on suction created by intake air, while fuel injection systems atomize the fuel through a small nozzle under high pressure. This makes fuel injection systems more efficient and accurate at maintaining the desired air-fuel ratio, which is crucial for optimising engine performance and reducing emissions.
Over time, the single-point injection system has been replaced by more advanced fuel injection systems, such as multipoint injection and direct injection. These newer systems provide even greater precision in metering fuel, resulting in improved engine performance and reduced emissions. However, single-point injection played a crucial role in the transition from carburetors to modern fuel injection systems, marking a significant step forward in automotive technology.
Using 93 Octane in a Flex Fuel Car: Is it Possible?
You may want to see also
Explore related products
Multi-port fuel injection has a separate injector nozzle for each cylinder
The car part that was replaced by fuel injection is the carburetor. Carburetors were used in cars before the introduction of fuel injection systems in the early 1950s. By the early 1990s, fuel injection systems had largely replaced carburetors in most new petrol-engined cars sold in developed countries.
Multi-port fuel injection, also known as port, multi-point, or sequential fuel injection, is a type of fuel injection system that has a separate injector nozzle for each cylinder. This is in contrast to single-point or throttle body injection, which replaces the carburetor with one or two fuel injector nozzles in the throttle body.
Multi-port fuel injection systems provide more accurate fuel metering and a quicker response compared to carburetors or single-point injection. In these systems, fuel is injected into the intake ports just upstream of each cylinder's intake valve, rather than at a central point within an intake manifold. This ensures that the fuel vapor is almost entirely drawn into the cylinder, improving the air-fuel ratio and all related aspects.
The process of replacing fuel injectors in a multi-port fuel injection system involves several steps. First, the engine must be cold enough to touch, and the battery should be disconnected. The plastic engine covers are then removed, and the electrical connector on each injector is disconnected using pliers. The fuel rail, which is the metal rod over the fuel injectors, is lifted off the intake manifold, bringing the injectors with it. This requires a good amount of force as the injectors are attached snugly to the rail and the intake manifold.
Before installing new fuel injectors, it is important to dip the injector tip into engine oil to wet the seals and prevent leaks. The injector is then pressed into the rail, and the metal clip is attached if present. Reattaching the fuel rail involves lining up the injectors with their respective holes and pressing them into place before bolting down the rail and reconnecting the fuel line. Finally, the battery is reconnected, and the engine is turned on to allow the fuel pump to refill the lines and rails.
Know Your Car's Fuel Type: A Quick Guide to Checking
You may want to see also
Explore related products
Fuel injection systems are promising, with advancements enhancing capabilities
Fuel injection systems are an essential component of modern vehicles, and advancements in this technology hold great promise for the future of the automotive industry. The fundamental principle of fuel injection is to introduce fuel into an internal combustion engine through a fuel injector. The primary advantage of fuel injection over its predecessor, the carburetor, lies in its ability to more accurately regulate the air-fuel ratio, resulting in enhanced efficiency and performance.
The evolution of fuel injection systems can be traced back to the introduction of mechanical fuel injection, which offered an alternative to carburetors in the late 1960s. This was followed by the development of electronic fuel injection, which is now commonly found in most modern cars. Electronic fuel injection is managed by the powertrain control module (PCM) or the engine control unit (ECU), which calculates the precise amount of fuel required by the engine to maintain the optimal air-fuel ratio.
The Bosch K-Jetronic system, introduced in 1974, represented an early example of a continuous injection system, where fuel flows at variable rates from the fuel injectors. Subsequently, in 1979, the Bosch Motronic multi-point fuel injection system pioneered the use of digital electronics in fuel injection, marking a significant advancement in technology. The 1980s witnessed the emergence of electronic manifold injection systems, which gradually replaced carburetors in most new petrol-engined cars by the early 1990s.
Today, fuel injection systems continue to evolve, driven by the global imperative to address climate change and improve engine efficiency. Manufacturers are under pressure to reduce carbon intensity and emissions while enhancing performance. Common rail fuel systems, where fuel is shared between injectors in a "common rail," have gained popularity among modern-day manufacturers. This design enables multiple injections per combustion, improving fuel efficiency.
Looking ahead, the future of fuel injection systems is indeed promising. Innovations on the horizon include higher-pressure injection systems, more precise control algorithms, and integration with electric propulsion systems. These advancements are expected to deliver greater efficiency, reduced emissions, and enhanced performance, contributing to a more sustainable and technologically advanced automotive industry.
Fuel Injectors in Diesel Cars: What You Need to Know
You may want to see also
Frequently asked questions
Fuel injection replaced the carburetor.
Carburetors rely on suction created by intake air to control the air-fuel ratio, whereas fuel injection atomizes the fuel through a small nozzle under high pressure, allowing for more accurate fuel metering.
Fuel injection was introduced in the early 1950s and gradually gained prevalence until it had largely replaced carburetors by the early 1990s.
Fuel injection provides more accurate fuel metering, quicker response, and better fuel efficiency, helping to reduce vehicle emissions.
Here are the basic steps to replace fuel injectors:
- Disconnect the battery and remove engine covers.
- Use pliers to disconnect the electrical connector on each injector.
- Remove the fuel rail and lift it off the intake manifold, bringing the injectors with it.
- Examine and remove the old injector, then dip the tip of the new injector into engine oil to prevent leaks.
- Press the new injector into the fuel rail and reattach the rail and fuel line.
- Reconnect the battery and turn the key to the "on" position for 10 seconds before starting the engine.
- Check for fuel leaks with a flashlight.
