Katerina Swanson

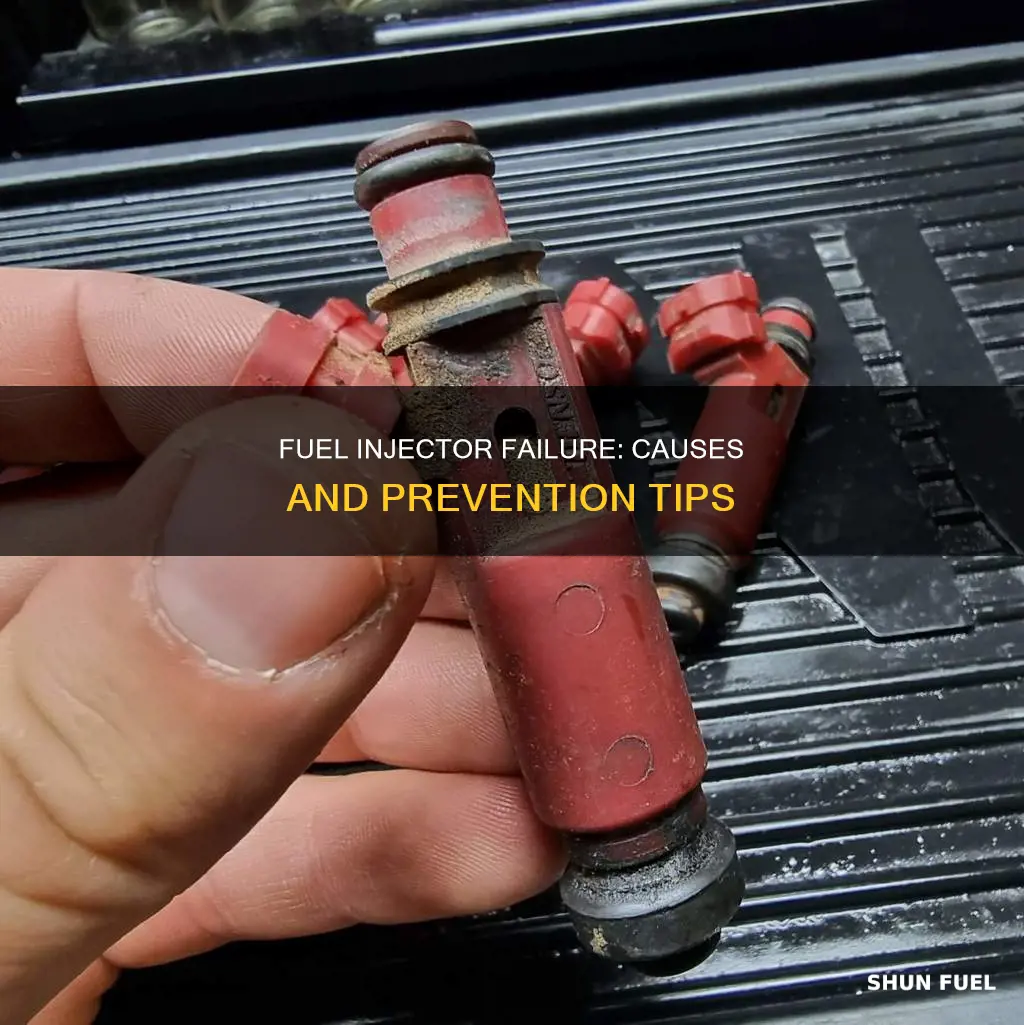

Fuel injectors are a vital component of any modern vehicle's fuel management system, delivering fuel to the cylinders. However, they are susceptible to various issues that can cause them to malfunction. Poor fuel quality is the most common cause of fuel injector problems, with impurities leading to clogged injectors. Other causes include heat soak, where fuel residue evaporates and forms clogging deposits, and solenoid failure, which can cause power issues and eventual burnout. Restricted injectors can also lead to reduced fuel flow and adverse spray patterns, resulting in high emissions and poor engine performance. Internal o-ring failure can cause fuel leaks, and a faulty ECU (engine control unit) can lead to incorrect air-fuel mixtures. With regular maintenance, cleaning, and the use of fuel cleaning systems, some of these issues can be prevented.
| Characteristics | Values |
|---|---|
| Loss of engine power | Fuel injectors deliver the air and fuel mixture to the engine for combustion. If the fuel injector cannot deliver the right mix, there will be a loss of engine power. |
| Fuel injector misfire | If the fuel injector misses the engine, it will result in a misfire, which can lead to knocking, overheating, and other engine issues. |
| Problems when idling | Issues with the fuel injectors may be noticeable even when the engine is idling. |
| Broken or leaking fuel injector | A fault in the integrity of the fuel injector will result in a failure to deliver the proper mix of air and fuel to the engine, leading to poor performance. |
| Faulty ECU | The ECU (engine control unit) runs the combustion system. A problem with the ECU may result in bad performance, even if the fuel injectors are intact. |
| Heat soak | Heat soak occurs when fuel residue evaporates in the nozzles of the injectors after the engine is shut off, eventually hardening into clogging deposits. |
| Solenoid failure | Solenoids create a magnetic field to pull up the fuel injector pintle. If there is a short or open in the injector solenoid, the injector may fail. |
| Engine blow-by | Engine blow-by refers to fuel and oil residue that blows past the pistons into the crankshaft during compression. |
| Poor fuel quality | Contamination or impurities in the fuel can cause fuel injectors to malfunction or become clogged. |
| Restricted injectors | Restricted injectors reduce fuel flow, leading to high emissions, poor fuel economy, and poor performance. It also affects the spray pattern, resulting in poor atomization of fuel. |
| Faulty O-rings | Internal O-rings prevent fuel from leaking out of the injector. If these O-rings fail, the injector will leak fuel externally, usually near the plastic connector. |
Explore related products
Poor fuel quality
Another problem that can occur with poor fuel quality is fuel contamination, which is a likely cause of premature injector failure. In addition, poor fuel quality can cause internal o-rings within the injectors to fail, resulting in external fuel leaks. These leaks may be small and cause no noticeable symptoms, but they can lead to fuel odours during start-up or after the vehicle has been sitting for a while.
It is important to be mindful of where you purchase your fuel and to perform regular maintenance on your fuel injectors to prevent issues caused by poor fuel quality. Regular cleaning of the injectors can help to remove impurities and keep them functioning properly.
Diagnosing Fuel Injector Issues: Finding the Fuel-Dumping Culprit
You may want to see also
Explore related products
Fuel contamination
Fuel injectors are responsible for delivering the precise amount of air and fuel mixture to the engine for combustion. When injectors become clogged or restricted, they cannot deliver the right mix, leading to poor engine performance, increased fuel consumption, and potential engine damage. This clogging is often caused by fuel contamination in the form of carbon build-up or heat soak.
Heat soak occurs when fuel residue evaporates and forms waxy olefins in the injector nozzles after the engine is shut off. Over time, with the engine idle, the heat hardens these olefins into clogging deposits. While gasoline detergents are designed to remove these deposits, taking frequent short trips may not provide enough time for the engine to wash them away, leading to clogged injectors.
Additionally, fuel contamination can cause internal damage to the injector's mechanical and electrical components. The electrical portions of the injector are particularly vulnerable to age, heat, and moisture damage. This can lead to electrical failures, such as solenoid failure, where the injector cannot generate the necessary magnetic field to function properly.
Troubleshooting Guide: Stuck Fuel Injector Open Issues
You may want to see also
Explore related products
Heat soak
The issue of heat soak is not unique to fuel injectors but is a broader term referring to excessive engine heat that the car's systems cannot manage. This includes insufficient external cooling air passing through the radiator and internal thermal runaway, a term borrowed from astrophysics and engineering. Thermal runaway describes a feedback loop where high heat generates higher resistance, resulting in even more heat.
Direct-injection injectors, located within the combustion chamber, are particularly vulnerable to heat soak due to their placement and the presence of unburned fuel that can evaporate under high temperatures. When fuel injectors are placed in the combustion chamber (direct injection), they become more susceptible to heat soak issues, even though they are made of more durable and expensive materials.
To mitigate heat soak, some drivers have found success in using E85 ethanol, which is believed to reduce heat soak issues. Additionally, it is recommended to allow the car to cool down at lower speeds before turning off the engine and avoiding situations like traffic jams where the engine may idle for extended periods. While these measures can help, it is inevitable that injectors will experience some level of heat soak over time, leading to the need for injector replacement.
Some vehicles are more susceptible to heat soak than others. For example, Jeep models with inline 6 engines (1997-2004) are known to experience heat soak issues, and DEI offers a heat protection kit to reduce heat soak on the fuel rail and injectors. Overall, heat soak is a common issue with fuel injectors, and while there are ways to manage it, prevention and regular maintenance are key to maintaining optimal injector performance.
Timing Fuel Injector Pumps: A Step-by-Step Guide
You may want to see also
Explore related products
ECU failure
ECU stands for Engine Control Unit, and it is the component that runs a vehicle's combustion system. When the ECU fails, it can no longer communicate with the fuel injectors to ensure the proper mixture and delivery of air and fuel to the combustion chambers. This can result in poor engine performance, even if the fuel injectors themselves are intact and functioning correctly.
The ECU plays a crucial role in ensuring the precise metering of fuel during each injection event. Over time, the electromagnet used to control the opening and closing of the nozzle can wear out, causing the solenoid to receive power for longer than intended. This can lead to a breakdown, resulting in the loss of magnetism in the electromagnet and subsequent failure of the nozzle to open and inject fuel properly.
Additionally, ECU failure can impact the spray pattern of the fuel injectors, leading to poor atomization. On a multi-port system, each cylinder may exhibit different atomization properties, resulting in high emissions, poor fuel economy, and reduced engine performance. Restricted injectors, which are often challenging to diagnose, can also contribute to these issues.
It is worth noting that while ECU failure can cause fuel injector problems, there are also other factors to consider. For instance, fuel injectors themselves may become clogged, cracked, or leaky, leading to similar performance issues. Heat soak, solenoid failure, and engine blow-by are other potential causes of fuel injector malfunctions. Regular cleaning and maintenance of fuel injectors are recommended to help prevent issues and ensure the longevity of this critical engine component.
Fuel Injectors in Honda CRV: 2003 Model Insights
You may want to see also
Explore related products
Restricted injectors
Other common causes of fuel injector failure include poor fuel quality, fuel contamination, and solenoid failure. Fuel injectors can also fail due to mechanical issues, such as broken or leaking injectors, or electrical issues. Regular maintenance and cleaning of the injectors can help prevent these issues.
It is important to note that diagnosing restricted injectors can be tricky, and many technicians may perform on-car cleaning without knowing the exact condition of the injectors. Therefore, it is essential to be aware of the signs of a bad injector, such as engine misfires, rough idling, and inconsistent performance, to identify when the injectors need to be looked at.
How to Clean Fuel Injectors: Rag Wipe Method
You may want to see also
Frequently asked questions
Some common signs of a bad fuel injector are loss of engine power, engine misfire, and problems when idling.
Poor fuel quality is the most common reason for fuel injector problems. Other causes include a faulty ECU (engine control unit), fuel contamination, and fuel residue.
Regular maintenance is key to keeping fuel injectors in good condition. Use a fuel cleaning system to prevent clogging by impurities and buy high-quality injectors from reputable sources.
If you suspect a faulty fuel injector, it is recommended to consult a mechanic. They can perform diagnostic tests to identify the issue and suggest appropriate solutions.
