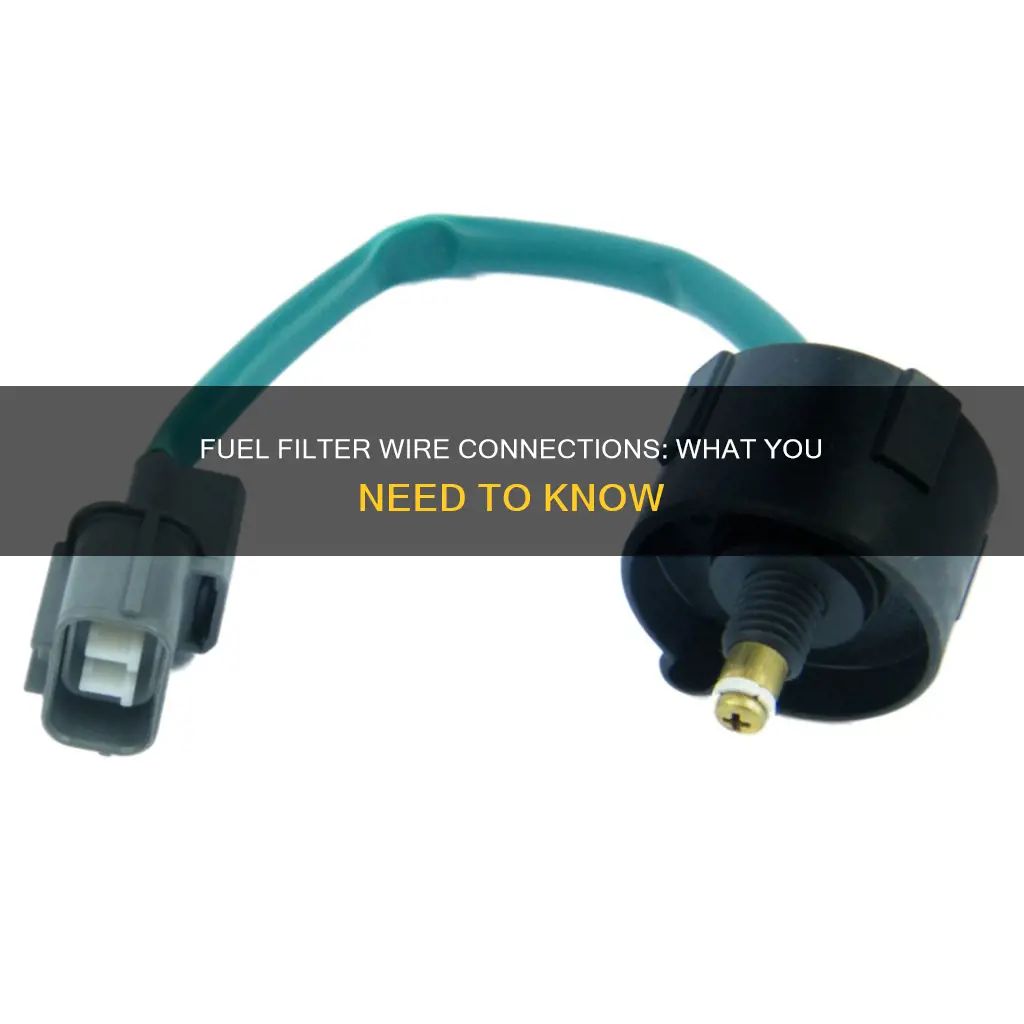

Fuel filters are essential components of a car's fuel system, ensuring efficient engine performance by preventing contaminants from entering the fuel supply. In terms of connections, the fuel filter typically has three lines combined in one area. These include the supply hose, which delivers fuel from the tank to the filter, the return hose, and the vapour return hose connected to the charcoal canister. Additionally, there are wire connections at the top of the fuel filter, such as the one for the fuel heater, which is crucial in cold climates. The vacuum switch, connected to the water in the fuel light, is another essential wire connection associated with the fuel filter.
Explore related products
What You'll Learn
The fuel feed from the fuel tank
The fuel feed line originates from the fuel tank and connects to the fuel filter. This line carries the fuel from the tank to the filter, where impurities and debris are removed before the fuel enters the engine. This process is crucial to ensure the engine receives clean fuel, preventing damage and ensuring efficient combustion.
The connection between the fuel tank and the fuel filter is typically made through a supply hose or fuel pipe. This hose or pipe is connected to the inlet port on the fuel filter. In some vehicles, the fuel tank may have a built-in fuel pump that helps push the fuel through the feed line to the filter. However, not all engines have an in-tank fuel pump, and in those cases, the fuel is drawn through the fuel filter using a transfer pump or a lift pump.
It is important to ensure that the fuel feed line is properly connected and free from leaks. Any damage to this line can result in fuel leakage, which poses a safety hazard and can lead to fuel loss. Additionally, a clogged fuel filter can restrict the flow of fuel through the feed line, causing the fuel pump to work harder and potentially leading to breakdowns. Therefore, regular maintenance and replacement of the fuel filter are necessary to maintain the fuel feed from the fuel tank in optimal condition.
Installing Furnace Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
The feed from the fuel filter to the fuel pump
The fuel filter plays a crucial role in ensuring the optimal performance of your vehicle's engine. One of the connections on a fuel filter is the fuel feed from the fuel tank to the fuel pump. This connection is vital as it supplies the fuel pump with the necessary fuel for the engine's operation.
The fuel filter is an essential component in this process as it helps to remove impurities and debris from the fuel. Over time, debris and contaminants can accumulate in the fuel, and if not filtered, can cause issues such as clogged fuel injectors and reduced engine performance. A clean fuel filter ensures that the fuel entering the pump and, subsequently, the engine is free of these harmful particles.
In some vehicles, the fuel filter may have multiple connections, including inlet and outlet ports. These connections facilitate the flow of fuel into and out of the filter, ensuring a continuous supply of clean fuel to the pump. It is important to ensure that these connections are properly secured and maintained to prevent leaks and ensure optimal fuel flow.
Changing Fuel Filter: 1995 Escort Guide
You may want to see also
Explore related products
The return hose is connected to the top of the fuel tank
A fuel filter is a device that sits on the fuel supply line and prevents debris from entering the engine. The two wires at the fuel filter are the fuel heater wire and the vacuum switch wire. The fuel heater is unnecessary except in extreme cold climates and is a common source of fuel and air leaks. The vacuum switch, on the other hand, is a useful troubleshooting tool that alerts you when the fuel filter is clogged or when the fuel lines are blocked.
Now, let's discuss the return hose connected to the top of the fuel tank in more detail. The return hose is one of three lines connected to the inline fuel filter. The other two lines are the supply hose, which delivers fuel to the filter, and the vapour return hose, which is connected to the charcoal canister. The return hose returns excess fuel from the engine to the fuel tank. This recirculation of fuel helps to regulate the temperature of the fuel, ensuring it is warm but not too hot for optimal combustion.
The process of returning fuel to the tank also involves a "T" piece, which allows warm fuel from the engine to be recirculated back through the fuel filter. This recirculation ensures that the fuel is atomized for better combustion. Once the fuel reaches the optimal temperature, it is returned to the tank instead of being recirculated through the filter. This "T" piece is typically identified by its red connector, while the feed pipes usually have black or white connectors.
It is important to note that the locations of the return hose and the vapour return hose may be switched in some vehicle models. Therefore, if you are troubleshooting or repairing the fuel system, it is advisable to follow the hose that is damaged to determine whether it is the return hose or the vapour return hose. Additionally, always refer to the vehicle's manual for specific information regarding the fuel filter connections and seek professional assistance if needed.
In summary, the return hose plays a crucial role in maintaining the optimal temperature of the fuel and ensuring efficient combustion. By recirculating warm fuel through the fuel filter and returning it to the tank, the return hose helps to regulate fuel temperature and prevent blockages in the fuel filter. Understanding the function and connection of the return hose is essential for proper fuel system maintenance and troubleshooting.
Changing the Paccar Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
The fuel heater wire
To identify the fuel heater wire, turn the key on (engine off). At some temperature, the fuel heater wire should show 12 Volts. If you take the other two wires at 4 o'clock and 9 o'clock and connect one to a ground, either the fuel filter light or water in the fuel light on the dashboard should turn on. This will help identify which wire is the fuel heater wire.
The fuel heater assembly can be removed and the o-rings can be replaced. The fuel filter header needs to be taken out first. A large nut holds the fuel heater in place, and by removing the nut, the connection can be pressed down out of the header, and the o-rings can be replaced.
Fuel Filter Woes: Surging Issues and Solutions
You may want to see also
Explore related products
The vacuum switch for the water in fuel light
The vacuum switch, also known as the "water in fuel" sensor, is an important component of a vehicle's fuel system. It is located at the bottom of the fuel filter housing and is responsible for monitoring the presence of water in the fuel. When water is detected, the switch activates a warning light on the dashboard, indicating that the filter may need to be changed. This light is separate from the "water-fuel" light that comes on briefly during engine startup.
The vacuum switch also plays a role in maintaining the fuel system's integrity by vacuuming any air from the fuel lines. This function is particularly important when the fuel system is accessed, such as during a filter change or when opening a line, as it helps prevent air from entering the system.
Some people choose to unplug the vacuum switch, especially if it starts leaking, which can be a common issue. However, doing so may not always turn off the "water in fuel" light, as other sensors may still be active. Additionally, while the fuel heater connection at the top of the filter is considered unnecessary by some and often plugged, it should not be confused with the vacuum switch.
The vacuum switch is a crucial safety feature, alerting drivers to potential issues with their fuel system. While it may be tempting to simply plug the switch, especially in the case of leaks, it is important to address the root cause and ensure the sensor is functioning properly to maintain the vehicle's performance and safety.
Sprinter Fuel Filter Facts: How Many Does It Need?
You may want to see also
Frequently asked questions
The two wire connections on a fuel filter are the fuel feed from the fuel tank and the feed from the fuel filter to the fuel pump.
There may be a third connection, the return hose to the fuel tank. Some fuel filters have a fourth connection, the vapor return hose, which is connected to the charcoal canister.
The return hose is used to recirculate warm fuel from the engine back through the fuel filter for better combustion. Once the fuel is warm enough, it is returned to the tank.
The vapor return hose is connected to the charcoal canister to collect vapors from the fuel tank and prevent them from escaping into the atmosphere.
You can use a multimeter to test the wires and identify their functions based on their voltage readings and behavior when the engine is running.
