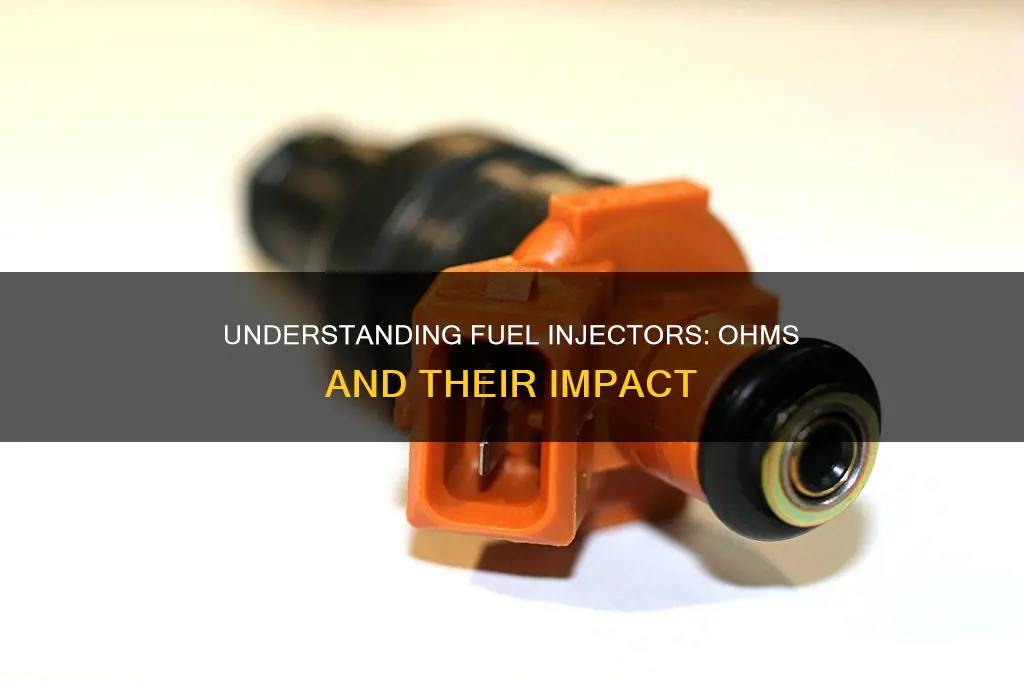

Fuel injectors are a simple device, consisting of a coil of wire, a spring, and a pintle valve. The ohm, or electrical resistance, of a fuel injector is an important metric that can be used to determine whether or not it is functioning properly. Ohm readings will vary depending on the vehicle and the type of injector, but a reading of 0 ohms indicates a faulty injector. High-impedance injectors usually range from 11 to 16 ohms, while low-impedance injectors usually range from 0.7 to 5 ohms.
| Characteristics | Values |
|---|---|
| Fuel injector resistance | 10 ohms or more |
| Fuel injector type | High-impedance (saturated) or low-impedance (peak and hold) |
| High-impedance injector range | 11 to 16 ohms |
| Low-impedance injector range | 0.7 to 5 ohms |
| Bosch injector range | 12-18 ohms |
Explore related products
What You'll Learn
Fuel injectors with no resistance reading
Fuel injectors are a simple device consisting of a coil of wire, a spring, and a pintle valve. The acceptable range for a Bosch injector is typically 12-18 ohms, with the most common value being 16 ohms. If the resistance is much below 12 ohms, the injectors may be losing insulation. While injectors at the low resistance limits might still operate, they may not be electrically as healthy as they once were.
If you are getting a reading of 0 ohms, chances are the injector is bad. However, this may also be because the resistance reading is out of range of the selected range on your device. If you are getting no reading at all, it may be because your injector is clogged with government-mandated additives in gasoline, especially in California.
If you are getting no reading at all, it may also be because of dirty pins on the injector. In this case, you should clean the pins with a precision screwdriver and scrape the corrosion away. If the injector is completely dead, you can determine this with an ohmmeter. If you suspect a flow imbalance, sticky pintle, or spray pattern degrading, you are wasting your time with an ohmmeter.
Resistance measurements can only show gross failures of the coil in the injector. A much more conclusive test is to measure the inductance and coil "Q" with an impedance bridge.
Are Reconditioned Fuel Injectors Reliable for Your Car?
You may want to see also
Explore related products
How to test fuel injectors
Fuel injectors are a simple device, consisting of a coil of wire, a spring, and a pintle valve. They can sometimes short or develop shorted turns, or an open circuit. In any of these cases, the injector will need to be replaced.
To test fuel injectors, you can check their resistance with an ohmmeter. The acceptable range for a Bosch injector is 12-18 ohms, with typical values being 16 ohms. If the resistance is much below 12 ohms, the injectors are probably losing insulation. Injectors at the low resistance limits might still operate, but they may not be electrically as healthy as they once were.
It's important to note that the resistance of the coils should be within about plus or minus 10% of each other. For example, if one vehicle's injectors measure about 12 ohms, and another measures 8 ohms, the latter likely has shorted turns and needs replacement. The exact numbers will vary with the vehicle.
An injector balance test can be used by a technician to determine if all the injectors are delivering approximately equal amounts of fuel. If not, they may need cleaning or replacement.
Another way to test fuel injectors is to activate the pulser for a set time, such as 5 or 10 seconds, and then calculate the flow rate. While the injector is pulsing, you can observe the pattern and atomization to determine if it's functioning correctly. The pattern is important because the more atomized the fuel is, the better it will mix with the air and ignite evenly.
It's worth noting that the flow rate is a critical item with injectors. The ECU is programmed to operate with known values of the components. If you replace a stock injector with one that has a different flow rate, it may exceed the ECU's range of adjustment, causing the engine to not run properly.
Ram Fuel Injectors: Are They Covered Under Warranty?
You may want to see also
Explore related products
Acceptable ohm range for fuel injectors
The acceptable ohm range for fuel injectors depends on the vehicle and the type of injector. For example, the acceptable range for a Bosch injector is 12-18 ohms, with typical values being around 16 ohms. If the resistance falls much below 12 ohms, it indicates that the injectors may be losing insulation. While injectors at the low end of the resistance range may still function, they may not be electrically as healthy as those with higher resistance.
It is important to note that the resistance of fuel injectors can change during use, and they may have different resistance when warm. Therefore, it is recommended to take impedance readings when the engine is at operating temperature. Readings of 16 ohms are considered acceptable, and values below the teens indicate the need for replacement or reconditioning.
Some sources suggest that fuel injectors should have a resistance of at least 10 ohms, while others recommend staying above 13.5 ohms. It is worth noting that a reading of 0 ohms usually indicates a failed injector. Additionally, the resistance of the coils in the injectors should ideally be within about plus or minus 10% of each other to ensure proper functioning.
It is important to consult a professional technician or refer to manufacturer specifications for specific information regarding the acceptable ohm range for fuel injectors in a particular vehicle.
Fuel Injector Cleaner: How Long Until It Works?
You may want to see also
Explore related products
High-impedance vs. low-impedance injectors
Fuel injectors are a simple device consisting of a coil of wire, a spring, and a pintle valve. The resistance of the coils should be within about plus or minus 10% of each other. For example, several injectors measured about 12 ohms, while one that measured 8 ohms probably has shorted turns and needs replacement. The acceptable range for a Bosch injector is 12-18 ohms, with typical values of 16 ohms.
Now, onto the differences between high-impedance and low-impedance fuel injectors. Impedance is a measure of opposition to the flow of an electrical current, or how much a material resists the flow of electricity. The higher the impedance, the more the material resists the flow of electricity. High-impedance fuel injectors are better for moderate applications where a smaller amount of fuel is sufficient, while low-impedance fuel injectors are better for high-performance applications where a large amount of fuel is needed. High-impedance injectors are also called saturated fuel injectors and are sent an 11.5-amp current signal to open, and this current stays on until the injector closes. This low-amp current keeps the injector temperature lower, making it more reliable and common for OEM applications. On the other hand, low-impedance injectors, also called peak-and-hold injectors, are sent a more powerful electrical signal, usually around 56 amps, to open. Once open, the signal drops to 23 amps. This design opens and closes more quickly but runs hotter.
High-impedance injectors have a coil resistance from 8-16 ohms and are more widely used than any other injector type due to their straightforward drive circuitry. Low-impedance injectors, on the other hand, have a coil resistance of 4 ohms or lower and are typically used in high-performance or large-sized injectors. Low-impedance injectors allow for faster opening and closing times, making tuning large-sized injectors easier.
Removing Electric Fuel Injectors from Audi A8 97: Step-by-Step Guide
You may want to see also
Explore related products
How to fix a faulty fuel injector
Fuel injectors deliver fuel into the engine's combustion chamber. They spray a fine mist of fuel to ensure the engine has the right mix to ignite and power your vehicle. When they start malfunctioning, it can lead to several issues. Here are some common signs of a faulty fuel injector:
- Engine stalling or misfiring: When the fuel injector isn't delivering an adequate fuel supply to a cylinder, it disrupts the combustion process, which can cause the engine to misfire or stall.
- Engine not starting: In rare cases, fuel injector issues can lead to engine failure that prevents your car from starting.
- Poor fuel economy: When a fuel injector is faulty, it may not deliver fuel efficiently, either by spraying too much or not enough. This inefficiency can lead to poor fuel economy as your engine may consume more fuel than necessary.
- RPM needle moves erratically: A well-functioning set of fuel injectors should deliver a steady fuel flow, keeping your engine speed smooth and stable. However, if an injector fails, it can send inconsistent amounts of fuel to the cylinder, causing your engine speed to fluctuate unexpectedly.
- Rough idling: When your vehicle is idling, it should feel smooth and steady. If a fuel injector is clogged, leaking, or malfunctioning, a cylinder may receive too much or too little fuel, resulting in uneven engine speed.
If you notice any of these issues, it's important to address them promptly to maintain your vehicle's performance and avoid more serious problems. Here are some steps you can take to fix a faulty fuel injector:
- Visit a professional for a fuel injection cleaning service: This service involves flushing out the fuel injectors to remove debris, buildup, and clogs, restoring them to their optimal function.
- Check the resistance of the fuel injectors: Use a multimeter to test the resistance of the fuel injectors. The acceptable range for a Bosch injector is typically 12-18 ohms, with 16 ohms being a common value. If the resistance is much below 12 ohms, the injectors may be losing insulation.
- Consider replacement: If the fuel injectors are severely clogged or damaged, they may need to be replaced. Injectors sometimes short or develop shorted turns, or an open circuit, in which case replacement is necessary.
- Consult a technician: A technician can perform an injector balance test to determine if all the injectors are delivering approximately equal amounts of fuel. If not, they may need cleaning or replacement.
Cleaning Fuel Injectors: Does It Clean the EGR Valve Too?
You may want to see also
Frequently asked questions
The acceptable range for a Bosch injector is 12-18 ohms. Typical values are 16 ohms. High-impedance injectors usually range from 11 to 16 ohms, while low-impedance injectors usually range from 0.7 to 5 ohms.
You can use an ohmmeter to check the resistance of your fuel injectors. Disconnect the injector and put an ohmmeter's two prongs to each prong of the injector you are testing.
A reading of 0 ohms means that the injector is bad or dead.
Impedance is the electrical resistance of the electromagnetic coil inside the injector. This is measured in ohms and can be determined with an ohmmeter.
