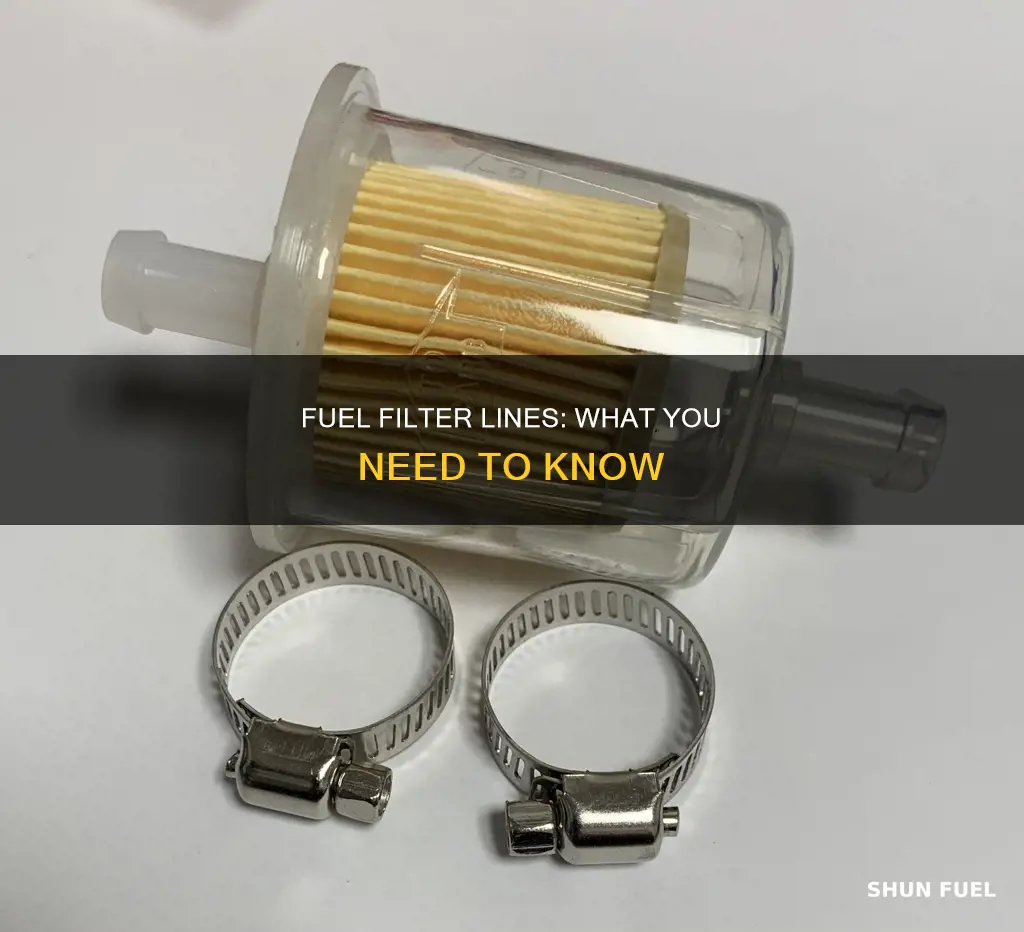

Fuel Filter Lines: Understanding The Connections And Their Roles

When it comes to understanding the intricate network of lines in a vehicle's fuel system, it's essential to recognize that the fuel filter plays a pivotal role in maintaining engine performance and longevity. The lines connected to the fuel filter are integral to the process of delivering clean, filtered fuel from the fuel tank to the engine. These lines, often referred to as the fuel lines, are responsible for transporting the fuel under pressure, ensuring a steady and reliable supply to the engine's carburetor or fuel injectors. Understanding the layout and function of these lines is crucial for any vehicle owner or mechanic, as it can help in diagnosing and addressing issues related to fuel delivery, such as leaks, clogs, or pressure drops, which can significantly impact engine operation and overall vehicle performance.

Fuel Filter Location: Identify the specific engine compartment area where the fuel filter is mounted

The fuel filter is a crucial component in your vehicle's fuel system, responsible for removing contaminants from the fuel before it reaches the engine. Identifying its location is essential for routine maintenance and troubleshooting. Here's a guide to help you locate the fuel filter in your engine compartment:

In most vehicles, the fuel filter is typically mounted in the engine compartment, close to the engine. It is usually positioned along the fuel supply line, which runs from the fuel tank to the engine. This strategic placement allows the filter to effectively trap contaminants and ensure clean fuel delivery. When inspecting the engine compartment, look for a cylindrical or canister-shaped component that is often black or dark in color. It may be attached to the fuel rail, which is a metal bracket that holds the injectors in place, or it could be mounted directly on the engine block.

The fuel filter's location can vary depending on the vehicle make and model. Some cars may have the filter positioned near the front of the engine compartment, while others might place it towards the rear. It is often found in a location that provides easy access for maintenance and replacement. For instance, in some vehicles, the fuel filter is mounted on the driver's side of the engine, making it accessible without removing any major components.

To identify the fuel filter, you can refer to your vehicle's owner's manual, which provides detailed diagrams and illustrations of the engine compartment. The manual will highlight the exact position of the fuel filter, ensuring you can locate it without any confusion. Additionally, the manual will guide you through the process of replacing the filter if needed, providing step-by-step instructions tailored to your specific vehicle.

In some cases, the fuel filter might be integrated into a larger assembly, such as a fuel module or a high-pressure fuel pump module. These assemblies combine multiple fuel system components, including the filter, into a single unit. If your vehicle has such an assembly, it will be mounted in a specific location, often near the front or side of the engine compartment. Identifying these assemblies can be crucial for proper maintenance and diagnosis.

Remember, regular maintenance, including checking and replacing the fuel filter when recommended by the manufacturer, is essential to ensure optimal engine performance and longevity. Knowing the location of the fuel filter allows you to perform these tasks efficiently and effectively.

Fuel Filter Type: Understand the type of fuel filter used (e.g., in-line, external)

When it comes to understanding the fuel filter in your vehicle, it's essential to know the type of fuel filter used, as this can impact the maintenance and troubleshooting process. The two primary types of fuel filters are in-line and external.

In-line fuel filters are typically integrated into the fuel system, often located between the fuel tank and the engine. This type of filter is designed to be part of the fuel line, providing a continuous flow of clean fuel to the engine. In-line filters are usually made of a cylindrical housing with a filter element inside, which traps contaminants as the fuel passes through. These filters are often designed to handle high-pressure fuel systems and are commonly used in vehicles with electronic fuel injection systems.

On the other hand, external fuel filters are separate components that are installed directly on the fuel tank or in close proximity to it. These filters are easily accessible and can be removed for cleaning or replacement without removing the entire fuel line. External filters are often used in older vehicles or those with less complex fuel systems. They provide a simple and effective way to ensure clean fuel reaches the engine, reducing the risk of engine damage caused by contaminated fuel.

Understanding the type of fuel filter in your vehicle is crucial for several reasons. Firstly, it helps in identifying the correct replacement filter when maintenance is due. Different types of filters may have specific requirements for replacement intervals or maintenance procedures. Secondly, knowing the filter type can assist in diagnosing fuel-related issues. For example, if an in-line filter clogs, it may cause fuel pressure issues or engine misfires, while an external filter might indicate a problem with the fuel pump or injectors.

In summary, recognizing whether your vehicle uses an in-line or external fuel filter is essential for proper maintenance and troubleshooting. Each type has its advantages and considerations, and understanding these can help ensure your vehicle's fuel system operates efficiently and reliably.

Fuel Filter Function: Explain how the filter removes contaminants from the fuel supply

The fuel filter is a crucial component in any vehicle's fuel system, serving as a barrier between the fuel supply and the engine. Its primary function is to remove contaminants and impurities from the fuel, ensuring that only clean, high-quality fuel reaches the engine. This is essential for maintaining optimal engine performance, longevity, and reliability.

When fuel is supplied to the engine, it often contains various contaminants, including water, dirt, rust, and other impurities. These contaminants can cause significant issues, such as engine misfires, reduced power, and even permanent damage to the engine's internal components. The fuel filter's role is to intercept and trap these unwanted particles, preventing them from entering the engine.

The filter is designed with a series of intricate passages and screens that act as a physical barrier. As fuel flows through the filter, the contaminants are physically separated from the clean fuel. The filter's media, often made of a fine mesh or pleated material, captures the impurities, allowing only the clean fuel to pass through. This process effectively cleans the fuel, ensuring it is free from debris and moisture.

One of the key advantages of a fuel filter is its ability to protect the engine from internal damage. Over time, contaminants can accumulate and cause blockages, leading to restricted fuel flow. This can result in engine performance issues and even premature failure of the fuel system. By regularly replacing the fuel filter, drivers can prevent such problems and maintain the overall health of their vehicle.

In summary, the fuel filter plays a vital role in safeguarding the engine's performance and longevity. Its function is to physically remove contaminants from the fuel, ensuring a clean and reliable fuel supply. By doing so, it prevents potential engine damage and maintains the efficiency of the vehicle's fuel system. Regular maintenance, including filter replacement, is essential to keep the engine running smoothly and avoid costly repairs.

Fuel Filter Maintenance: Provide guidelines for regular fuel filter replacement and cleaning

Fuel filters are an essential component of any vehicle's fuel system, ensuring that the engine receives clean and contaminant-free fuel. Over time, fuel filters can become clogged with dirt, debris, and other contaminants, leading to reduced engine performance, increased fuel consumption, and potential engine damage. Regular maintenance, including fuel filter replacement and cleaning, is crucial to keep your vehicle running smoothly and efficiently. Here's a comprehensive guide to fuel filter maintenance:

Understanding the Fuel Filter's Role: Before delving into maintenance, it's essential to understand the fuel filter's function. The fuel filter is designed to trap contaminants in the fuel before it reaches the engine. These contaminants can include dirt, rust, water, and other particles that may have entered the fuel system during storage or use. A clogged filter can restrict fuel flow, leading to engine misfires, reduced power, and even engine stall.

Regular Replacement Schedule: To ensure optimal performance, it is recommended to replace the fuel filter at regular intervals. The ideal replacement schedule can vary depending on the vehicle make and model, as well as driving conditions. As a general guideline, consider replacing the fuel filter every 30,000 to 50,000 miles or as per the manufacturer's recommended service schedule. Regular replacements help prevent sudden fuel-related issues and ensure consistent engine performance.

Steps for Fuel Filter Replacement: Replacing a fuel filter is a relatively straightforward process, but it requires some mechanical knowledge and the right tools. Here's a step-by-step guide:

• Locate the fuel filter, which is typically positioned along the fuel line, often near the engine or the fuel tank.
• Drain the fuel system by removing the fuel line or using a fuel pump primer bulb to release any pressure.
• Disconnect the fuel filter housing and carefully remove the old filter.
• Inspect the filter for excessive dirt or debris. If it appears clogged, consider cleaning it using a filter cleaning kit.
• Install the new fuel filter, ensuring it is the correct size and orientation.
• Reattach the fuel line and secure the filter housing.
• Refill the fuel tank and start the engine to check for any leaks.

Fuel Filter Cleaning: In some cases, you may not need to replace the fuel filter entirely; it might just require cleaning. Here's how to clean a fuel filter:

• Follow the same initial steps as for replacement, draining the fuel and locating the filter.
• Use a filter cleaning kit, which typically includes a cleaning solvent and a filter element.
• Soak the filter in the solvent to dissolve any built-up contaminants.
• Rinse the filter thoroughly to remove any remaining solvent.
• Replace the cleaned filter, ensuring it is properly installed.

Preventive Measures: To minimize the need for frequent fuel filter maintenance, consider the following preventive measures:

• Use fuel stabilizers when storing vehicles for extended periods to prevent fuel degradation.
• Regularly check for and address any fuel leaks in the system.
• Keep the fuel tank relatively full to minimize the introduction of air, which can carry contaminants.
• Use high-quality fuel and additives to maintain fuel system cleanliness.

By following these guidelines, you can ensure that your fuel filter remains in optimal condition, providing clean fuel to your engine and contributing to overall vehicle reliability and performance. Regular maintenance is key to avoiding unexpected breakdowns and keeping your vehicle's fuel system in excellent shape.

Fuel Filter Diagnostics: Describe common symptoms and diagnostic methods for fuel filter issues

When it comes to diagnosing fuel filter issues, understanding the common symptoms and employing effective diagnostic methods are crucial for timely repairs. Fuel filters play a vital role in ensuring that contaminants are removed from the fuel before it reaches the engine, thus preventing potential damage. Here's an overview of the symptoms and diagnostic techniques associated with fuel filter problems:

Symptoms of Fuel Filter Issues:

• Engine Hardness or Stalling: One of the most noticeable signs of a clogged or failing fuel filter is engine performance degradation. The engine may become difficult to start, stall unexpectedly, or exhibit reduced power. This occurs because the filter's inability to allow clean fuel to pass through can lead to improper combustion, affecting the engine's overall performance.
• Reduced Power and Acceleration: A fuel filter restriction can result in a noticeable decrease in engine power. You might experience a lack of acceleration, especially when the engine is under load. This symptom often prompts vehicle owners to seek professional assistance, as it can indicate a more serious underlying issue.
• Engine Misfire or Backfire: Clogged fuel filters can cause engine misfires, where the engine fails to ignite the air-fuel mixture properly. This may lead to backfires, which are dangerous and can cause damage to the engine over time. Misfires are often accompanied by a loss of power and a rough idle.
• Increased Fuel Consumption: As the fuel filter restricts flow, the engine may compensate by consuming more fuel to maintain power. This can lead to higher fuel costs and a noticeable increase in fuel usage compared to normal driving conditions.
• Engine Sputtering: Sputtering, or a rough idle, can be an early indicator of fuel filter issues. It occurs when the engine struggles to maintain a steady airflow, often due to a partially clogged filter.

Diagnostic Methods:

• Visual Inspection: Start by visually inspecting the fuel filter for any signs of contamination, such as dirt, debris, or moisture. A dirty filter is often a clear indicator of its need for replacement. Look for any visible damage or leaks around the filter connections.
• Fuel Pressure Test: Measuring the fuel pressure can help diagnose issues related to the fuel filter and pump. A low fuel pressure reading may suggest a clogged filter or a problem with the fuel pump. Specialized tools, such as a fuel pressure gauge, are used for this test.
• Engine Code Readers: Modern vehicles often have onboard diagnostic systems (OBD) that can detect various engine issues. Using a code reader, you can retrieve error codes related to fuel system problems, including potential fuel filter issues.
• Fuel Filter Removal and Inspection: Physically removing the fuel filter allows for a thorough inspection. Check for any blockages, such as debris or fuel contaminants, and ensure the filter is not damaged. If the filter is clogged or shows signs of wear, replacement is necessary.
• Pressure Drop Test: This test involves measuring the pressure drop across the fuel filter. A significant pressure drop indicates a restricted filter, suggesting the need for replacement. This method is often used in professional garages for accurate fuel system diagnostics.
