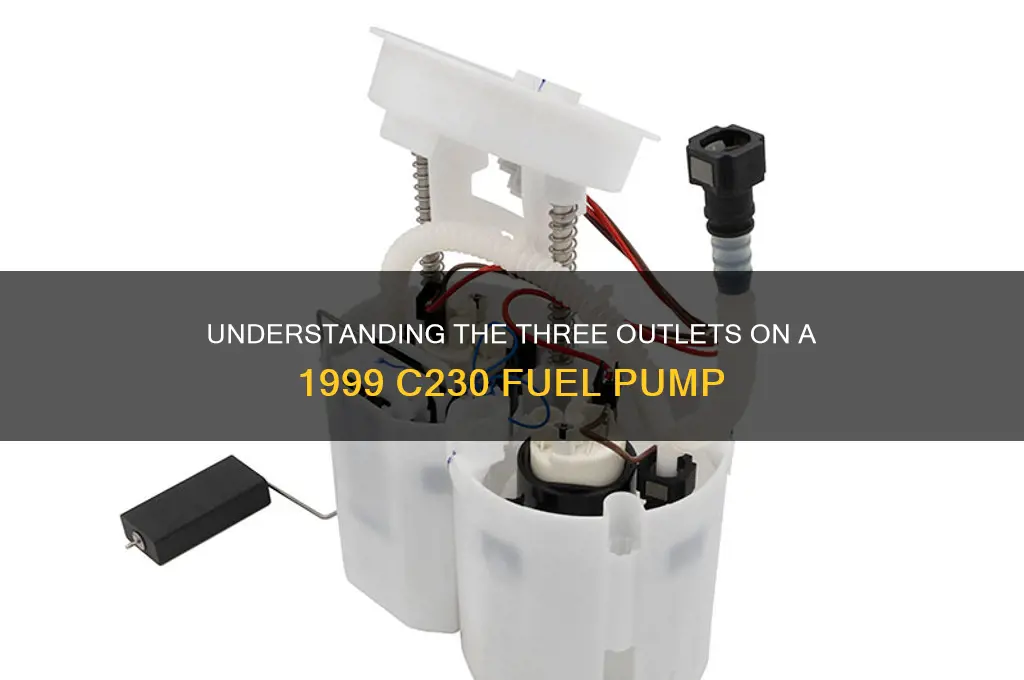

The 1999 Mercedes-Benz C230’s fuel pump assembly features three distinct outlets, each serving a specific function in the vehicle’s fuel delivery system. These outlets are crucial for ensuring proper fuel flow, pressure regulation, and system integrity. Understanding their roles is essential for diagnosing issues, performing maintenance, or replacing the fuel pump. The first outlet typically connects to the fuel line leading to the engine, delivering pressurized fuel for combustion. The second outlet often serves as a return line, allowing excess fuel to circulate back to the tank to maintain optimal pressure. The third outlet may be associated with a pressure regulator or venting system, ensuring the fuel pump operates efficiently and safely. Identifying and maintaining these outlets is key to the longevity and performance of the C230’s fuel system.
| Characteristics | Values |
|---|---|
| Number of Outlets | 3 |
| Outlet 1 | Fuel Supply to Engine (Main Outlet) |
| Outlet 2 | Fuel Return to Tank |
| Outlet 3 | Pressure Regulator (or Pressure Relief) |
| Fuel Pump Type | In-Tank Electric Fuel Pump |
| Fuel Pump Part Number | Varies by manufacturer (e.g., Bosch 0580453496) |
| Fuel Pressure | Typically around 3.5 to 4.5 bar (50 to 65 psi) |
| Fuel Flow Rate | Approximately 250-300 liters per hour (LPH) |
| Compatibility | Specifically designed for 1999 Mercedes-Benz C230 (W202) |
| Material | Typically made of high-grade plastic and metal components |
| Voltage | Operates on 12V DC |
| Connector Type | Specific to Mercedes-Benz fuel pump connectors |
| Mounting Location | Inside the fuel tank |
| Function | Delivers fuel from the tank to the engine under required pressure |
| Common Issues | Fuel pump failure, clogged outlets, or pressure regulator malfunction |
| Replacement Interval | Typically lasts 100,000 to 150,000 miles, but varies based on usage |
Explore related products
What You'll Learn
Fuel Pump Connector Types
The 1999 Mercedes-Benz C230 fuel pump features three distinct outlets, each serving a specific function in the fuel delivery system. Understanding these connector types is crucial for diagnostics, repairs, or upgrades. The first outlet is the fuel feed line, which delivers pressurized fuel from the pump to the engine. This connector is typically larger in diameter to accommodate the high flow rate required for combustion. The second outlet is the return line, responsible for recirculating excess fuel back to the tank to maintain optimal pressure and temperature. This connector is usually smaller and often includes a check valve to prevent backflow. The third outlet is the vent line, which equalizes pressure within the fuel tank and prevents vacuum buildup. This connector is the smallest and often connects to the evaporative emissions system.
Analyzing these connectors reveals their design intent. The fuel feed line prioritizes durability and leak resistance, often featuring metal or reinforced plastic components to withstand high pressure. The return line, while less critical for pressure, must maintain a consistent flow to prevent fuel system overheating. Its connectors are designed for reliability over extended periods. The vent line, though seemingly minor, plays a vital role in fuel system integrity, preventing tank collapse or fuel starvation during operation. Its connectors are engineered for airtight seals to comply with emissions regulations.
For DIY enthusiasts or mechanics, identifying these connectors correctly is essential. Start by locating the fuel pump assembly, typically mounted inside the fuel tank. The fuel feed line is usually the most prominent connector, often marked with a specific color or label for easy identification. The return line is generally adjacent to the feed line but smaller in size. The vent line is the least obvious, often routed separately to connect with the charcoal canister or other emissions components. Always consult the vehicle’s service manual for precise connector locations and torque specifications.
A comparative analysis highlights the importance of compatibility when replacing or repairing these connectors. Aftermarket fuel pumps may use different connector designs, requiring adapters or modifications. For instance, some pumps consolidate the return and vent lines into a single connector, which can complicate installation. OEM (Original Equipment Manufacturer) parts are recommended to ensure seamless integration, but if using aftermarket components, verify connector compatibility and electrical pin configurations. Incorrectly matched connectors can lead to fuel leaks, poor engine performance, or even system failure.
In conclusion, the three outlets on the 1999 C230 fuel pump are not interchangeable and serve distinct purposes. The fuel feed line delivers fuel, the return line recirculates excess, and the vent line maintains tank pressure. Each connector is designed with specific materials and features to meet its functional requirements. Proper identification, compatibility checks, and adherence to manufacturer guidelines are critical for successful repairs or upgrades. Understanding these connector types empowers vehicle owners and technicians to maintain the fuel system’s efficiency and reliability.
Water Pump and Fuel Pump Relay Location: Are They Connected?
You may want to see also
Explore related products
Electrical Wiring Diagram Overview
The 1999 Mercedes-Benz C230 fuel pump features three distinct outlets, each serving a critical function in the vehicle's fuel delivery system. Understanding these outlets requires a foundational grasp of the electrical wiring diagram that governs their operation. This diagram is a visual roadmap, detailing how power, ground, and signal wires interconnect to ensure the fuel pump operates efficiently and safely. By dissecting this diagram, one can identify the roles of each outlet: the power supply, the ground connection, and the fuel pump control signal.
Analyzing the wiring diagram reveals that the first outlet is dedicated to the power supply, typically connected to a fused line from the vehicle’s battery or main relay. This ensures the fuel pump receives the necessary voltage to operate, usually 12 volts in most automotive systems. The second outlet serves as the ground connection, completing the electrical circuit and allowing current to flow back to the battery. Without a proper ground, the fuel pump would fail to function, highlighting the importance of this often-overlooked component. The third outlet is linked to the fuel pump control signal, which is managed by the engine control unit (ECU) or a dedicated fuel pump relay. This signal activates the pump based on engine demand, ensuring fuel is delivered only when needed.
To troubleshoot or repair the fuel pump, start by tracing the wiring diagram to verify each outlet’s integrity. Use a multimeter to check for continuity in the ground connection and voltage at the power supply outlet. If the pump fails to operate, inspect the control signal outlet for a proper signal from the ECU. Common issues include corroded connectors, blown fuses, or a faulty relay, all of which can be diagnosed by cross-referencing the diagram with physical inspections. For safety, always disconnect the battery before working on the fuel pump’s electrical system to prevent short circuits or accidental activation.
Comparing the 1999 C230’s fuel pump wiring to other models reveals similarities in design but differences in component placement and relay logic. For instance, newer models may integrate additional sensors or use a more complex control module, while older models might rely on simpler mechanical relays. This underscores the importance of using a model-specific wiring diagram to avoid misdiagnosis. Additionally, aftermarket fuel pumps may require adapter harnesses to align with the original wiring, emphasizing the need for precision in any modification or repair work.
In conclusion, the electrical wiring diagram for the 1999 C230 fuel pump is an indispensable tool for diagnosing and understanding its three outlets. By methodically examining the power supply, ground, and control signal connections, one can ensure the fuel pump operates reliably. Whether for maintenance, repair, or modification, a clear understanding of this diagram transforms a complex system into manageable components, empowering even novice mechanics to tackle fuel pump-related issues with confidence.
Step-by-Step Guide to Safely Disconnecting Your Vehicle's Fuel Pump
You may want to see also
Explore related products
Fuel Pump Relay Location
The 1999 Mercedes-Benz C230's fuel pump relay is a critical component in the vehicle's fuel delivery system, ensuring the pump operates only when the engine is running or being started. Located in the fuse and relay box, this relay acts as a switch, controlling the high-current flow to the fuel pump. Understanding its location is essential for troubleshooting fuel delivery issues, as a faulty relay can lead to a no-start condition or erratic engine performance.
To locate the fuel pump relay in a 1999 C230, start by identifying the fuse and relay box, typically situated in the engine compartment. This box houses multiple relays and fuses, each labeled for easy identification. The fuel pump relay is often marked with a symbol resembling a fuel pump or labeled "FP" or "FUEL PUMP." Consult the vehicle’s manual for the exact diagram of the fuse box layout, as Mercedes-Benz models may vary slightly in design. Once identified, the relay can be tested or replaced if suspected of failure.
A practical tip for diagnosing relay issues is to swap the fuel pump relay with another relay of the same type in the fuse box, such as the horn relay. If the fuel pump begins to operate or the horn stops functioning, the relay is likely faulty. However, exercise caution when performing this test, as incorrect relay placement can cause electrical issues. Always ensure the ignition is off when handling relays to prevent accidental activation of high-current components.
Comparatively, the fuel pump relay in the 1999 C230 is more accessible than in some other vehicles, where it may be buried deep within the engine bay or integrated into the fuel pump module itself. Its location in the fuse box simplifies diagnostics and replacement, making it a straightforward task for both DIY enthusiasts and professional mechanics. Regular inspection of this relay can prevent unexpected breakdowns, especially in older vehicles where electrical components are more prone to wear.
In conclusion, the fuel pump relay location in the 1999 Mercedes-Benz C230 is a key piece of knowledge for maintaining the vehicle’s fuel system. By familiarizing yourself with its position in the fuse and relay box, you can efficiently address fuel delivery problems, ensuring the car remains reliable and performant. Always refer to the vehicle’s manual for precise details and exercise caution when working with electrical components.
Understanding the Fuel Pump on Your Yamaha Virago 535
You may want to see also
Explore related products
Pressure Regulator Functionality
The 1999 Mercedes-Benz C230’s fuel pump assembly includes a pressure regulator, a critical component often overlooked but essential for engine performance. This regulator ensures fuel pressure remains within optimal limits, typically between 30 and 60 psi, depending on engine load and RPM. Without it, excessive pressure could damage injectors, while insufficient pressure would starve the engine of fuel, leading to misfires or stalling. Understanding its functionality is key to diagnosing issues related to the fuel pump’s three outlets.
One of the three outlets on the fuel pump connects directly to the pressure regulator, which modulates fuel flow returning to the tank. This return line prevents over-pressurization in the fuel rail, maintaining a consistent pressure differential for efficient injection. For DIY enthusiasts, inspecting this outlet for clogs or leaks is a practical first step when troubleshooting fuel system issues. A blocked return line can cause erratic fuel pressure, often misdiagnosed as a failing pump.
Comparatively, modern fuel systems often integrate the pressure regulator into the fuel pump module, but the 1999 C230 retains a separate unit, typically mounted on the fuel rail. This design allows for easier replacement without disassembling the entire pump. However, it also means the regulator is more exposed to heat and contamination, underscoring the importance of regular maintenance. Cleaning the fuel rail and inspecting the regulator diaphragm for cracks can extend its lifespan.
Persuasively, investing time in understanding the pressure regulator’s role can save both money and frustration. Symptoms like hard starting, rough idling, or reduced power often stem from regulator malfunctions rather than the pump itself. A simple pressure test using a gauge connected to the fuel rail can confirm if the regulator is holding pressure correctly. If readings fluctuate, replacing the regulator is more cost-effective than swapping the entire pump assembly.
In conclusion, the pressure regulator’s functionality is integral to the 1999 C230’s fuel system, ensuring precise fuel delivery under varying conditions. By focusing on its role and maintenance, owners can address common issues efficiently, avoiding unnecessary repairs. Whether diagnosing problems or performing routine checks, the regulator’s connection to one of the fuel pump’s outlets makes it a cornerstone of the vehicle’s performance.
Step-by-Step Guide to Wiring a Walbro Fuel Pump Correctly
You may want to see also
Explore related products
Troubleshooting Common Outlet Issues
The 1999 Mercedes-Benz C230 fuel pump features three outlets, each serving a distinct purpose in the fuel delivery system. Understanding their functions is crucial for troubleshooting common issues. The first outlet typically connects to the fuel filter, the second to the fuel pressure regulator, and the third to the fuel injectors. When one of these outlets malfunctions, symptoms like poor engine performance, stalling, or difficulty starting can arise. Diagnosing the problem requires a systematic approach, starting with visual inspection and progressing to more advanced testing.
Visual Inspection and Initial Checks
Begin by inspecting the outlets for physical damage, such as cracks, leaks, or loose connections. Fuel leaks around the outlets indicate a compromised seal or damaged component. Check the fuel lines for signs of corrosion or wear, as these can restrict fuel flow. Ensure all connections are tight and secure, but avoid over-tightening, which can warp the fittings. If the outlets appear intact, proceed to test fuel pressure using a gauge. A reading below the manufacturer’s specified range (typically 30–60 psi for this model) suggests a clogged outlet or failing pump.
Testing and Isolating the Faulty Outlet
To pinpoint the problematic outlet, isolate each one during testing. Start by disconnecting the fuel line from the suspected outlet and cranking the engine to observe fuel flow. Weak or absent flow indicates a blockage or pump issue. For the outlet connected to the fuel pressure regulator, check for signs of fuel dripping from the vacuum hose, which could signal regulator failure. If the outlet leading to the injectors is faulty, perform a resistance test on the injectors using a multimeter (expected range: 12–16 ohms). Mismatched readings suggest an injector or wiring issue tied to the outlet.
Advanced Troubleshooting and Replacement
If initial tests point to a faulty outlet, consider replacing the fuel pump assembly, as individual outlets are often not serviceable separately. Before replacement, verify the fuel pump relay and fuse are functioning, as electrical issues can mimic outlet problems. When installing a new pump, ensure the outlets are properly aligned and sealed to prevent future leaks. Post-installation, clear any error codes using an OBD-II scanner and test drive the vehicle to confirm the issue is resolved. Regular maintenance, such as replacing the fuel filter every 30,000 miles, can prevent outlet-related problems.
Preventive Measures and Long-Term Care
To avoid recurring outlet issues, use high-quality fuel and additives to prevent sediment buildup in the tank, which can clog outlets over time. Inspect fuel lines and connections during routine oil changes to catch potential issues early. For older vehicles like the 1999 C230, consider upgrading to a more durable fuel pump assembly with reinforced outlets. Keep a log of fuel system maintenance to track wear patterns and anticipate replacements. By staying proactive, drivers can minimize downtime and ensure reliable performance from their fuel delivery system.
Understanding Fuel Pump Operation in a 1988 Ford F150: Push or Suck?
You may want to see also
Frequently asked questions
The 3 outlets on the 1999 C230 fuel pump typically include the fuel outlet (supply line to the engine), the return line (to the fuel tank), and a pressure regulator or vent line.
The fuel outlet supplies pressurized fuel from the pump to the fuel injectors in the engine, ensuring proper combustion.
The return line sends excess fuel back to the fuel tank, maintaining proper fuel pressure and preventing over-pressurization in the fuel system.
The pressure regulator or vent line helps regulate fuel pressure in the system, ensuring it remains within the optimal range for engine performance.
Refer to the vehicle's service manual or consult a mechanic. Typically, the fuel outlet is the largest line, the return line is smaller, and the pressure regulator line is the smallest or may have a distinct fitting.
