Wiring a Walbro fuel pump correctly is essential for ensuring optimal performance and reliability in your vehicle's fuel system. This process involves connecting the pump to the power source, ground, and fuel pressure regulator while adhering to the manufacturer's specifications. Key steps include identifying the correct wires for power and ground, using a relay to protect the circuit, and ensuring proper fuse protection to prevent electrical issues. Additionally, understanding the specific model of the Walbro fuel pump and its wiring diagram is crucial, as different models may have varying requirements. Following a systematic approach and double-checking connections will help avoid common pitfalls and ensure a safe, efficient installation.
Explore related products
What You'll Learn

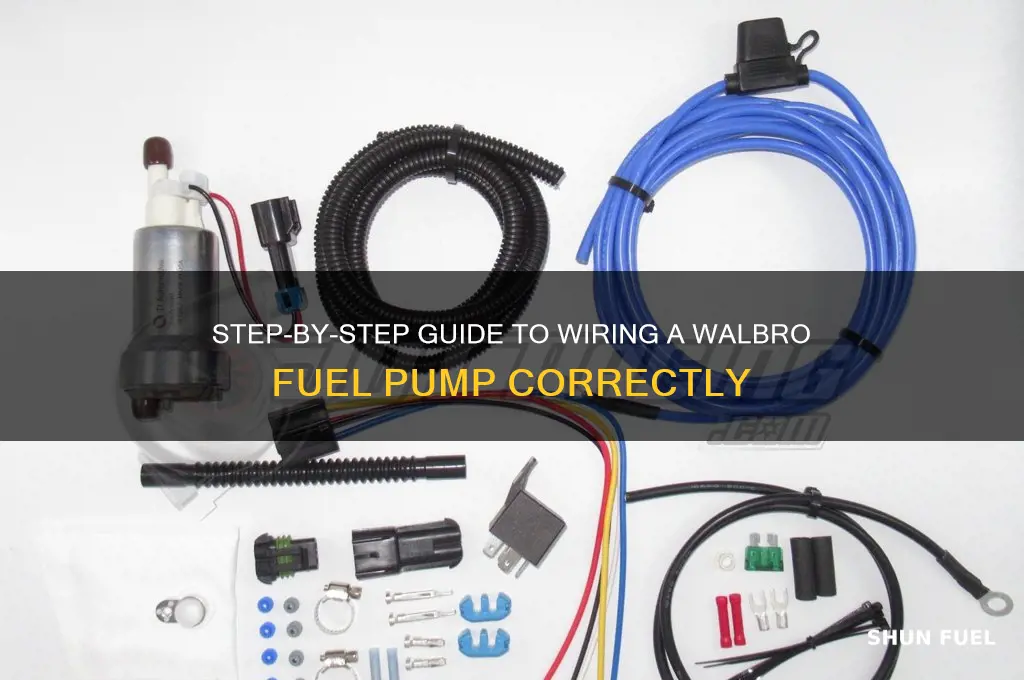

- Gather Tools and Materials: Wire, connectors, relay, fuse, fuel pump, wiring diagram, crimping tool, electrical tape
- Locate Fuel Pump Wiring: Identify pump’s power and ground wires, usually near the tank or trunk area
- Install Relay and Fuse: Connect relay to battery, add inline fuse for safety and proper circuit protection
- Wire Power and Ground: Run power wire from relay to pump, ground wire to chassis or engine block
- Test Fuel Pump Operation: Turn ignition on, listen for pump activation, verify fuel pressure with gauge
Gather Tools and Materials: Wire, connectors, relay, fuse, fuel pump, wiring diagram, crimping tool, electrical tape
Before you embark on wiring a Walbro fuel pump, ensure you have all the necessary tools and materials at hand. This not only streamlines the process but also minimizes the risk of errors or interruptions. Start by gathering high-quality wire, preferably 12 to 14 gauge, to handle the current demands of the fuel pump efficiently. Pair this with reliable connectors, such as weatherproof terminals, to ensure secure and durable connections. A relay is essential to protect your vehicle’s electrical system by isolating the fuel pump’s high current draw from the switch circuit. Don’t forget a fuse—typically a 15 to 20-amp rating—to safeguard against short circuits. The fuel pump itself should be compatible with your vehicle’s specifications, so double-check the model number before proceeding.
A wiring diagram is your roadmap, providing a clear visual guide to connect components correctly. Without it, you risk miswiring, which can lead to malfunctions or damage. Invest in a crimping tool to create strong, professional-grade connections; poorly crimped wires are a common cause of electrical failures. Electrical tape, while seemingly basic, is invaluable for insulating exposed wires and preventing shorts. Each of these materials plays a critical role, and skimping on quality can compromise the entire system.
Consider the environment where the fuel pump will operate. If your vehicle is exposed to moisture or extreme temperatures, opt for marine-grade wire and heat-resistant connectors. For DIY enthusiasts, a kit containing all these components can be a time-saver, though ensure it meets your specific needs. Always prioritize safety—wear insulated gloves and work in a well-ventilated area when handling electrical components.
Finally, take inventory before starting. Missing a single item, like a fuse or connector, can halt progress. Organize your workspace to keep tools and materials within reach, reducing the chance of errors. By meticulously gathering and preparing these essentials, you set the foundation for a successful and reliable fuel pump installation.
Diagnosing Fuel Pump Voltage Overdraw: A Step-by-Step Testing Guide
You may want to see also
Explore related products
Locate Fuel Pump Wiring: Identify pump’s power and ground wires, usually near the tank or trunk area
The fuel pump's wiring is the circulatory system of your vehicle's fuel delivery, and locating its power and ground wires is akin to finding the heart of this system. Typically nestled near the fuel tank or trunk area, these wires are the lifelines that ensure your Walbro fuel pump operates efficiently. Understanding their location is crucial, as it not only aids in installation but also in troubleshooting potential issues. Whether you're upgrading to a high-performance Walbro pump or replacing a faulty one, pinpointing these wires is your first step toward a seamless integration.
To identify the power and ground wires, start by consulting your vehicle’s wiring diagram, which acts as a roadmap for your electrical system. The power wire is usually thicker and often colored red or orange, while the ground wire is black or brown. In most vehicles, these wires are bundled together near the fuel tank or in the trunk, connected to a harness or relay. If your vehicle lacks a diagram, trace the wires from the fuel pump itself, following them outward until you locate the power source and grounding point. A multimeter can be a handy tool here, allowing you to test for continuity and confirm which wire is which.
One practical tip is to look for the fuel pump relay, often found in the engine bay fuse box or under the dashboard. The relay’s wiring typically leads directly to the pump’s power and ground wires, simplifying your search. If you’re working on a newer vehicle, the wires might be integrated into a more complex CAN bus system, requiring a diagnostic tool to identify them accurately. In such cases, patience and methodical tracing are key to avoiding mistakes.
Caution is paramount when dealing with fuel pump wiring. Always disconnect the battery before handling any electrical components to prevent short circuits or accidental activation of the pump. Additionally, ensure the vehicle is on a level surface and the fuel tank is as empty as possible to minimize spillage risks. If you’re unsure about any step, consult a professional or refer to Walbro’s installation guide for model-specific instructions.
In conclusion, locating the fuel pump’s power and ground wires is a blend of detective work and technical precision. By combining visual inspection, wiring diagrams, and testing tools, you can confidently identify these critical components. This foundational step not only ensures a successful Walbro fuel pump installation but also empowers you to maintain and troubleshoot your vehicle’s fuel system with greater ease.
Powering Your 1987 Gimmy's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Install Relay and Fuse: Connect relay to battery, add inline fuse for safety and proper circuit protection
A critical step in wiring a Walbro fuel pump is installing a relay and fuse to ensure safe and reliable operation. The relay acts as a switch, allowing the fuel pump to draw power directly from the battery while protecting the vehicle’s wiring harness from excessive current. Without a relay, the pump’s high amperage draw can overheat factory wiring, leading to potential failures or fires. Pairing the relay with an inline fuse adds an essential layer of circuit protection, safeguarding against short circuits or overloads that could damage the pump or vehicle.
To begin, select a relay rated for the fuel pump’s current draw, typically 30–40 amps for most Walbro pumps. Connect the relay’s power input (pin 30) directly to the battery’s positive terminal using 10–12 gauge wire. This ensures the pump receives uninterrupted power, bypassing the ignition switch and reducing voltage drop. Ground the relay’s chassis (pin 85) to a clean metal surface on the vehicle’s frame. Next, wire the relay’s control input (pin 86) to the fuel pump’s trigger source, such as the fuel pump fuse in the vehicle’s fuse box or an ignition-switched 12V source. This activates the relay when the ignition is turned on.
Adding an inline fuse is non-negotiable for safety. Install a fuse holder with a 20–30 amp fuse between the battery and the relay’s power input (pin 30). This fuse should be as close to the battery as possible to protect the entire circuit. Avoid using higher-rated fuses, as they defeat the purpose of circuit protection. If the fuse blows, inspect the wiring for shorts or the pump for excessive draw before replacing it.
A common mistake is neglecting to use a relay altogether, relying instead on the factory wiring to power the pump. This approach is risky, as most factory circuits are not designed for the high current demands of aftermarket fuel pumps. Another error is placing the fuse after the relay, which leaves the wiring between the battery and relay unprotected. Always prioritize safety by following the proper relay and fuse configuration.
In summary, installing a relay and inline fuse is a straightforward yet vital step in wiring a Walbro fuel pump. It ensures the pump operates efficiently while protecting the vehicle’s electrical system from potential hazards. By following these specific steps and avoiding common pitfalls, you’ll achieve a reliable setup that enhances both performance and safety.
Step-by-Step Guide to Safely Disconnecting Your Vehicle's Fuel Pump
You may want to see also
Explore related products
Wire Power and Ground: Run power wire from relay to pump, ground wire to chassis or engine block
Powering your Walbro fuel pump starts with a dedicated circuit. Run a 10-12 gauge wire directly from the relay's power output terminal to the pump's positive terminal. This wire should be fused within 12 inches of the battery to prevent electrical fires in case of a short circuit. Use a fuse rated for the pump's maximum current draw, typically 15-20 amps for most Walbro models.
Avoid undersized wire, as it can lead to voltage drop and pump performance issues.
Grounding is equally critical. A poor ground connection results in erratic pump operation or complete failure. Securely attach the pump's ground wire to a clean, unpainted metal surface on the chassis or engine block using a ring terminal and bolt. Ensure the connection point is free of rust, paint, or debris for optimal conductivity. For added reliability, consider using a star washer under the bolt to maintain a tight connection.
While it might seem tempting to ground to the fuel tank itself, this can lead to corrosion and potential fuel leaks.
The relay acts as a crucial switch, controlling power delivery to the pump. It's activated by a signal from the ECU or a dedicated fuel pump controller. This prevents the pump from running constantly, conserving energy and reducing wear. Choose a relay with a sufficient amperage rating to handle the pump's draw, typically 30-40 amps. Mount the relay in a protected location away from heat and moisture.
Proper relay selection and placement ensure reliable pump operation and protect your electrical system.
Locating the Fuel Pump on a 1999 Nissan Altima: A Guide
You may want to see also
Explore related products
Test Fuel Pump Operation: Turn ignition on, listen for pump activation, verify fuel pressure with gauge
Testing the operation of a Walbro fuel pump is a critical step in ensuring your vehicle’s fuel system functions correctly. Begin by turning the ignition to the "on" position, but do not start the engine. This activates the fuel pump relay, which should engage the pump for a brief priming cycle, typically lasting 2–3 seconds. Listen carefully for a faint humming or whirring sound near the fuel tank, indicating the pump is running. If no sound is heard, it could signal a wiring issue, faulty relay, or a failed pump, requiring further diagnosis.
The auditory check is a quick initial test, but it’s not definitive. To verify proper operation, connect a fuel pressure gauge to the fuel rail or Schrader valve on the fuel line. With the ignition still on, observe the gauge reading. For most Walbro pumps, the pressure should stabilize between 40–60 PSI, depending on the specific model and application. If the pressure is too low or non-existent, check for clogged fuel filters, faulty pressure regulators, or leaks in the fuel lines. Conversely, excessive pressure may indicate a malfunctioning pressure regulator or pump issue.
A practical tip for this test is to ensure the fuel tank is at least half full, as low fuel levels can affect pump performance and pressure readings. Additionally, if the pump activates but pressure is inconsistent, inspect the fuel lines for kinks or restrictions. For high-performance applications, such as turbocharged or supercharged engines, verify the pump’s flow rate meets the engine’s demands, as insufficient fuel delivery can lead to lean conditions and engine damage.
Comparing the test results to the manufacturer’s specifications is essential. Walbro pumps, like the popular GSL392 or F9000 series, have specific pressure and flow rate requirements. Deviations from these benchmarks may necessitate pump replacement or system adjustments. Always consult the vehicle’s service manual or Walbro’s technical documentation for precise values and troubleshooting steps.
In conclusion, testing fuel pump operation involves a combination of auditory and pressure verification methods. By listening for pump activation and confirming fuel pressure with a gauge, you can diagnose issues early and ensure reliable performance. This process is straightforward but requires attention to detail and adherence to specifications, making it a vital skill for anyone working with Walbro fuel pumps.
Accessing the Fuel Pump in a 2004 Tahoe Z71: Step-by-Step Guide
You may want to see also
Frequently asked questions
Use 12-gauge wire for most Walbro fuel pump applications to ensure sufficient current handling and minimize voltage drop.
Connect the fuel pump’s power wire to the relay’s switched output, run a fused 12V power source to the relay’s input, and ground the pump and relay to the chassis.
Yes, a relay is recommended to prevent voltage drop and ensure the pump receives full power, as well as to protect the wiring and switch from high current.
Ground the fuel pump directly to the vehicle’s chassis or battery negative terminal using a clean, rust-free connection to ensure proper electrical flow.
