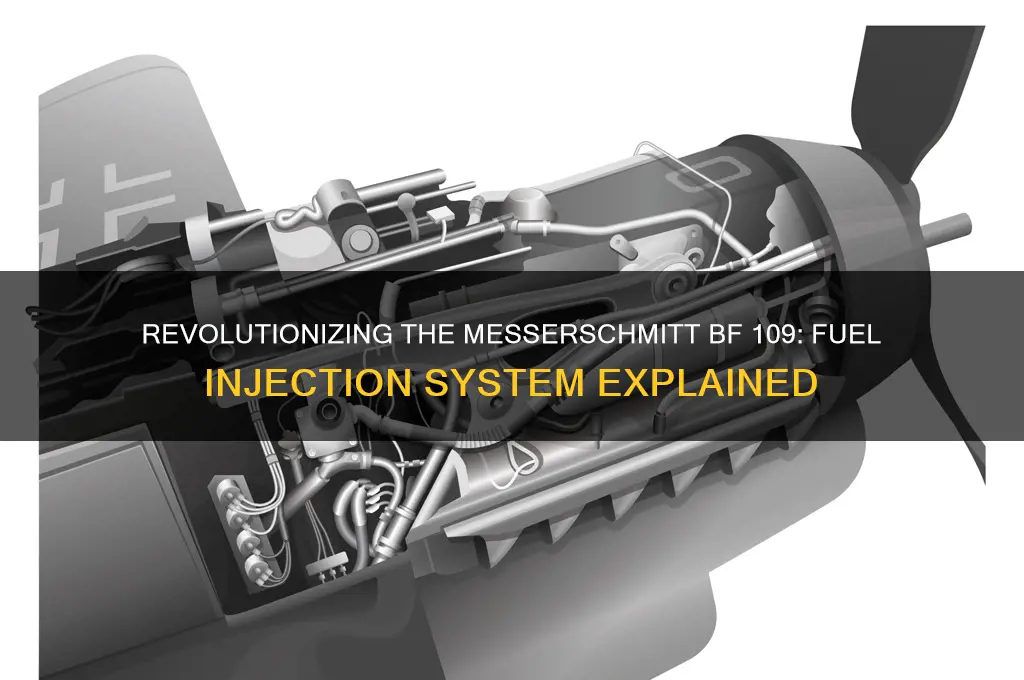

The Messerschmitt Bf 109, a pivotal fighter aircraft of World War II, featured an innovative fuel injection system that significantly enhanced its performance and reliability. Unlike carbureted engines, the Bf 109's fuel injection system, developed by Bosch, allowed for precise fuel delivery under all flight conditions, including high-G maneuvers and inverted flight. This system ensured consistent engine operation, improved throttle response, and eliminated issues like fuel starvation during aerobatic maneuvers. By directly injecting fuel into the cylinders, the system also enabled the aircraft to maintain power at high altitudes and during rapid climbs, giving the Bf 109 a critical edge in aerial combat. This technological advancement not only showcased German engineering prowess but also set a precedent for future aircraft designs, influencing the development of modern fuel injection systems.
Explore related products
![Bosch Fuel Injection & Engine Management: Theory of Operation, Troubleshooting and Service Using Common Tools and Equipment, High Performance Tuning, [BOSCH FUEL INJECTION & ENG -OS]](https://m.media-amazon.com/images/I/51m9vb5PBpL._AC_UY218_.jpg)
What You'll Learn
- Fuel Pump Operation: Mechanically driven pump ensures consistent fuel delivery under all flight conditions
- Injection Nozzles: Precision nozzles atomize fuel for efficient combustion in the engine
- Pressure Regulation: Maintains optimal fuel pressure for reliable engine performance
- Air-Fuel Mixture Control: Adjusts mixture based on throttle position and altitude
- Maintenance and Troubleshooting: Regular checks prevent clogs, leaks, and system failures
Fuel Pump Operation: Mechanically driven pump ensures consistent fuel delivery under all flight conditions
The Messerschmitt Me 109's fuel injection system relies heavily on its mechanically driven fuel pump, a critical component ensuring consistent fuel delivery across all flight conditions. Unlike electrically driven pumps, this mechanical design directly links the pump's operation to the engine's speed, providing a reliable and self-sustaining fuel supply. This direct drive mechanism eliminates the risk of electrical failure, a vital consideration in the high-stress environment of aerial combat.
Operation and Design:
The pump is typically driven by a gear connected to the engine's camshaft or crankshaft, ensuring its speed is proportional to engine RPM. This direct coupling guarantees that fuel delivery increases with engine demand, crucial during high-power maneuvers like climbing, diving, or dogfighting. The pump's design often incorporates a diaphragm or piston mechanism, creating a positive displacement that ensures a consistent flow rate regardless of fuel tank pressure or aircraft attitude.
Advantages Over Carburetors:
Compared to carbureted systems, the Me 109's fuel injection system with its mechanically driven pump offers significant advantages. Carburetors rely on atmospheric pressure and venturi effects, which can be disrupted during high-G maneuvers or inverted flight, leading to fuel starvation. The fuel injection system, however, delivers fuel under pressure directly into the cylinders, ensuring consistent performance even in extreme flight conditions.
Maintenance and Considerations:
While robust, the mechanical fuel pump requires regular maintenance. Inspecting for leaks, ensuring proper lubrication, and replacing worn components are crucial to prevent pump failure. Additionally, the pump's calibration is vital, as incorrect fuel pressure can lead to engine performance issues. Pilots should be aware of the pump's operation and be trained to recognize symptoms of potential problems, such as rough idling or power loss, which may indicate pump malfunction.
