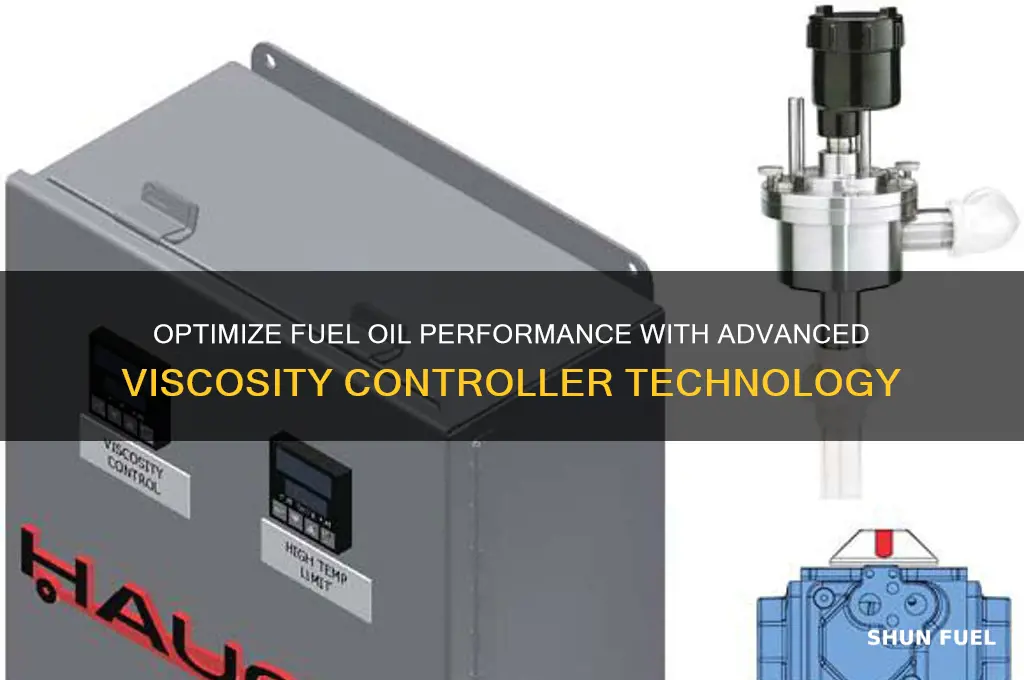

The ME fuel oil viscosity controller is a critical component in marine diesel engines, designed to optimize the combustion process by ensuring the fuel oil is delivered at the correct viscosity. Fuel oil viscosity directly impacts engine performance, efficiency, and emissions, as it affects atomization and combustion quality. The controller works by monitoring the fuel oil’s viscosity in real-time and adjusting its temperature through a heating system to maintain the optimal range. This is particularly important in marine environments, where fuel oil properties can vary significantly due to temperature changes and fuel quality. By precisely managing viscosity, the controller enhances engine reliability, reduces wear and tear, and ensures compliance with stringent environmental regulations, making it an indispensable tool for modern marine propulsion systems.
Explore related products
$194.95
What You'll Learn
- Viscosity Measurement Techniques: Methods for accurate fuel oil viscosity measurement in real-time
- Control Algorithms: Advanced algorithms to maintain optimal viscosity levels efficiently
- Heating Systems: Integration of heating mechanisms to adjust fuel oil viscosity
- Sensor Calibration: Ensuring precision and reliability of viscosity sensors in controllers
- System Maintenance: Routine checks and troubleshooting for viscosity controller longevity
Viscosity Measurement Techniques: Methods for accurate fuel oil viscosity measurement in real-time
Accurate real-time viscosity measurement of fuel oil is critical for optimizing combustion efficiency, reducing emissions, and preventing equipment damage. Traditional offline methods, while reliable, introduce delays and fail to capture dynamic viscosity changes during operation. Real-time measurement, however, enables immediate adjustments to fuel oil temperature and flow rates, ensuring consistent performance in marine engines, power plants, and industrial boilers.
Capacitance-Based Sensors: A Non-Intrusive Approach
Capacitance-based viscosity sensors offer a non-intrusive solution by measuring the dielectric properties of fuel oil flowing through a pipe. These sensors consist of electrodes embedded in the pipe wall, creating an electric field that interacts with the fluid. As viscosity changes, the capacitance value shifts, providing a real-time measurement. This method is particularly advantageous in harsh environments, as it eliminates the need for direct contact with the corrosive or high-temperature fuel. Calibration is key; sensors must be tuned to the specific fuel oil grade (e.g., IFO 180 or IFO 380) to ensure accuracy within ±2% of the actual viscosity value.
Ultrasonic Viscometers: Leveraging Sound Waves
Ultrasonic viscometers measure viscosity by analyzing the propagation of sound waves through the fuel oil. A transducer emits an ultrasonic pulse, and the time taken for the wave to travel a fixed distance is correlated to the fluid’s viscosity. This technique is highly sensitive and can detect viscosity changes as small as 0.1 cSt. However, it requires careful installation to avoid signal interference from air bubbles or particulate matter. Regular maintenance, including transducer cleaning and alignment checks, is essential to maintain precision.
In-Line Vibrating Wire Viscometers: Dynamic Measurement
In-line vibrating wire viscometers operate by measuring the damping effect of fuel oil on a vibrating wire or rod. As viscosity increases, the wire’s oscillation amplitude decreases, providing a real-time viscosity reading. This method is robust and suitable for high-pressure applications, such as in marine fuel systems. However, it is prone to wear due to constant vibration, necessitating periodic replacement of the sensing element. For optimal performance, the wire’s frequency should be matched to the expected viscosity range (e.g., 50–500 cSt for heavy fuel oils).
Practical Considerations and Integration
When selecting a real-time viscosity measurement technique, consider the fuel oil’s operating temperature (typically 100–150°C), pressure (up to 20 bar), and contamination levels. Capacitance sensors excel in high-temperature environments, while ultrasonic viscometers are ideal for clean, low-particulate fuels. Vibrating wire viscometers are best suited for dynamic systems with frequent viscosity fluctuations. Integration with a fuel oil viscosity controller requires a feedback loop that adjusts heating or flow rates based on the measured viscosity, ensuring optimal combustion conditions. For instance, if viscosity exceeds 300 cSt, the controller might increase the fuel oil temperature by 5–10°C to reduce viscosity and improve atomization.
Future Trends: AI and Machine Learning
Emerging technologies, such as AI-driven predictive models, are enhancing real-time viscosity measurement. By analyzing historical viscosity data alongside temperature, pressure, and flow rate trends, these models can anticipate viscosity changes before they occur. This proactive approach minimizes downtime and improves fuel efficiency. For example, a machine learning algorithm trained on six months of operational data can predict viscosity with 95% accuracy, enabling preemptive adjustments to the fuel oil heating system. As these technologies mature, they will become indispensable tools for industries reliant on heavy fuel oils.
