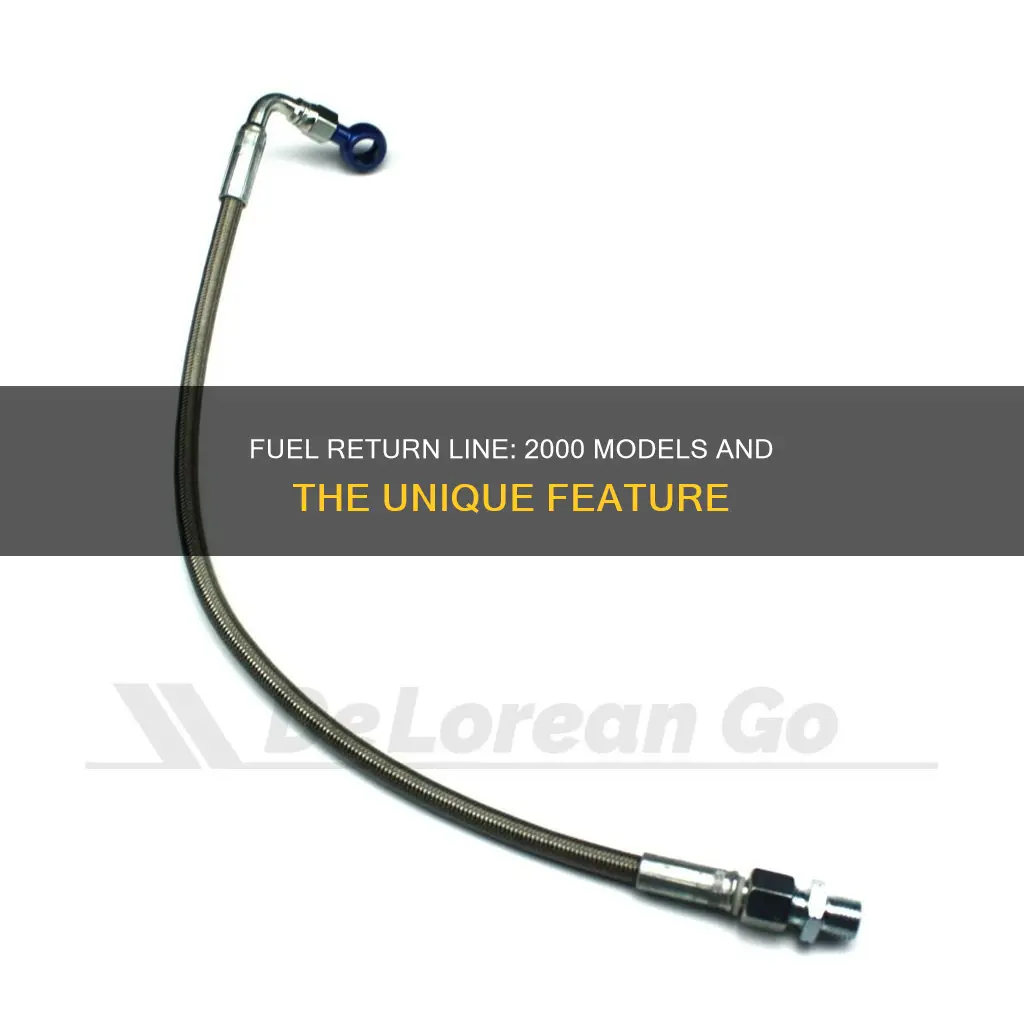

The fuel return line is a hose that routes excess fuel from the engine back to the fuel tank. It is an essential component of a vehicle's fuel system, as it helps maintain optimal fuel pressure and prevents fuel leaks, vapour lock, and poor engine performance. While some modern vehicles may not have a fuel return line, it is still a common feature in many cars, with some models even allowing for the installation of a return line to enhance performance. Understanding the function and potential issues associated with the fuel return line is crucial for vehicle maintenance and ensuring a smooth driving experience.
| Characteristics | Values |
|---|---|
| Purpose | Returns unused or excess fuel from the engine to the tank |
| Function | Provides nearly constant pressure to the injectors regardless of their demand |
| Types | Return line type, returnless type |
| Return line type | Fuel is pumped through the fuel system at a higher rate than needed, keeping the fuel in the fuel lines cool and flushing out any vapour bubbles |
| Returnless type | Regulating valve is relocated to the fuel tank, directly after the pump |
| Return line type drawbacks | Fuel returns to the tank hotter, which can affect combustibility and overall efficiency |
| Returnless type drawbacks | Evaporation control, fuel is heated as it travels to the engine |
| Vapour lock | Can occur when a faulty fuel return line prevents fuel from returning to the fuel tank, causing the fuel to turn into gas due to close exposure to the engine |
| Vapour lock performance problems | Misfires, poor acceleration, reduced fuel efficiency |
| Fuel return line hose material | Steel, braided, aluminium, nylon, rubber |
Explore related products
What You'll Learn
The fuel return line prevents fuel leaks and vapor lock
The fuel return line is a hose that routes excess fuel from the engine back to the tank. It is an important component of the fuel system, ensuring that fuel returns to the tank instead of leaking out.
A faulty fuel return line can cause fuel leaks, which are dangerous and detrimental to the vehicle's performance. Fuel leaks can occur when there is a kink in the hose or when the hose is degraded and unable to withstand the pressure of the fuel. It is crucial to use a hose that is rated for fuel and can handle the pressure, such as EFI-rated hose and clamps.
Additionally, a faulty fuel return line can lead to vapor lock. Vapor lock occurs when fuel turns into gas after heating up due to close exposure to the engine. This can cause performance issues, including misfires, poor acceleration, and reduced fuel efficiency. The fuel return line helps prevent vapor lock by returning excess fuel to the tank, where it can cool down and remain in a liquid state.
Furthermore, the fuel return line plays a role in maintaining the pressure within the fuel system. The return line allows the fuel pump to provide pressure to the injectors without changing the pressure in the fuel tank. This is especially important in closed fuel systems, where there is no opening to the atmosphere, and negative pressure can build up if fuel is only pumped out of the tank.
In summary, the fuel return line is essential for preventing fuel leaks and vapor lock. It ensures that excess fuel is returned to the tank, maintaining the proper pressure in the fuel system and preventing the fuel from turning into gas due to excessive heat. By replacing a faulty fuel return line with a compatible and durable hose, vehicle owners can maintain the performance and safety of their cars.
Tractor Fuel Line: Why Bleeding is Essential
You may want to see also
Explore related products
Fuel injection systems may or may not have return lines
Modern gasoline-powered vehicles are equipped with fuel injection, and these fuel injection systems may or may not have a return line type of fuel system. Vehicles with return-type fuel systems have a drawback over modern returnless fuel delivery systems. After passing through the engine, the fuel returns to the tank at a higher temperature. This can affect the fuel's combustibility and the vehicle's overall efficiency. The continual heating and cooling of the fuel in return systems can also slightly alter the chemical properties of the fuel. Therefore, a returnless system is better. Returnless fuel delivery systems allow fuel to be colder, resulting in better fuel economy and emissions.
Returnless EFI systems typically operate at a higher pressure than return-type systems. This is necessary to reduce the risk of fuel boiling and vapour lock in the injector supply rail during hot weather since there is no recirculation of fuel from the engine back to the tank to keep the fuel supply rail cool. Because of this, a returnless EFI system may not perform well if fuel pressure or flow is less than the specifications.
The fuel return line plays an essential role in engine operation and performance. When it breaks, it can become a safety threat. A faulty fuel return line can cause fuel leaks and poor engine performance. It should be replaced immediately to keep the vehicle running smoothly.
Removing Fuel Line Connectors from Nylon Hoses: A Step-by-Step Guide
You may want to see also
Explore related products
Return-type fuel systems have drawbacks over modern returnless systems
Return-type fuel systems have several drawbacks when compared to modern returnless systems. Firstly, the fuel returning to the tank in a return-type system is hotter, which can raise the temperature of the fuel in the tank. This, in turn, can affect the fuel's combustibility and the vehicle's overall efficiency. The continual heating and cooling of the fuel in return systems can also slightly alter the chemical properties of the fuel over time.
Return-type fuel systems also have a greater potential for negative environmental impacts. They require fuel pumps to work constantly while the engine is running, which can shorten the life of the pump. Additionally, the plumbing system can become more complicated due to the need for a separate return line from the regulator to the tank.
Returnless systems, on the other hand, are designed to use the powertrain control module (PCM) to regulate fuel delivery. They are becoming more common in new vehicles due to tightening federal environmental regulations. Returnless systems help to minimize fuel evaporation by keeping the fuel in the tank cooler. They also reduce vapour emissions, as there is no return of warm fuel to the tank, which can trigger a MIL lamp in OBDII systems.
From a manufacturing standpoint, returnless systems are also preferable as they require one less fuel line, making it easier and cheaper to design and build a car around them. However, retrofitting a returnless system to an older vehicle can be expensive, requiring a new pump, regulator, and plumbing.
Understanding the Fuel Tank Return Line Mechanism
You may want to see also
Explore related products
Returnless systems are better as they minimize evaporation
Returnless fuel systems are designed to address the issues of fuel evaporation and vapor lock. Fuel evaporation is a common problem in conventional fuel systems, where fuel is constantly pumped to the injectors, leading to multiple trips to the engine before being converted to energy. Each trip increases the heat of the fuel, which is then returned to the fuel tank. This results in high in-tank fuel temperatures, creating an ideal environment for fuel evaporation.
Returnless systems, on the other hand, minimize evaporation by reducing the number of tank-to-engine trips to just one. Without a return line, unused fuel is not continuously circulated back to the tank, preventing the buildup of heat and reducing the likelihood of evaporation. This design not only improves fuel efficiency but also helps combat driveability issues caused by vaporized fuel.
Another advantage of returnless systems is their ability to maintain fuel pressure and volume. By eliminating the return line, the pressure regulator in returnless systems can work independently of engine operating conditions. This ensures that the engine receives the precise amount of fuel required, enhancing overall fuel efficiency.
While return-type fuel systems offered the benefit of constant fuel filtering, returnless systems have evolved to include fuel filters as well. The placement of these filters can impact the system's longevity and ease of service and repair. Additionally, returnless systems prioritize fuel cleanliness, ensuring that the fuel remains free of dirt or debris.
In summary, returnless fuel systems offer significant advantages over conventional return-type systems by minimizing evaporation, maintaining fuel pressure, and ensuring fuel cleanliness. These improvements contribute to enhanced fuel efficiency and overall vehicle performance. While there may be variations in specific implementations, the fundamental principle of reducing evaporation in returnless systems remains consistent.
Removing Fuel Line from Corolla Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
The return line provides constant pressure to the injectors
The fuel return line is an important component of a vehicle's fuel system. It is responsible for routing excess fuel from the engine back to the fuel tank, ensuring that the fuel pump can maintain constant pressure to the injectors. This constant pressure is crucial for the efficient and proper functioning of the injectors.
In a return-type fuel system, the fuel return line plays a vital role in preventing negative pressure in the fuel tank. Without a return line, simply pumping fuel out of the tank and into the injectors would create negative pressure, affecting the performance of the fuel system. By returning excess fuel, the return line helps to regulate the pressure, ensuring that the injectors receive a consistent and adequate supply of fuel.
The return line also contributes to the overall efficiency of the fuel system. By returning excess fuel to the tank, the return line helps to prevent fuel leaks and vapor lock, a condition where heated fuel turns into gas, leading to performance issues such as misfires, poor acceleration, and reduced fuel efficiency. Additionally, the return line helps to cool the pump, further enhancing the system's efficiency.
It is worth noting that not all fuel injection systems have return lines. Modern gasoline-powered vehicles with fuel injection may have return-type or returnless fuel systems. Return-type systems have the drawback of returning hotter fuel to the tank, which can impact the fuel's combustibility and the vehicle's overall efficiency. On the other hand, returnless systems minimize evaporation by keeping the fuel in the tank cooler.
In conclusion, the fuel return line plays a critical role in providing constant pressure to the injectors in a return-type fuel system. By returning excess fuel to the tank, it maintains the necessary pressure, prevents negative pressure, and enhances the efficiency of the fuel system as a whole. However, the presence or absence of a return line varies depending on the vehicle's fuel injection system and other factors.
Testing Fuel Lines: Old Car, New Tricks
You may want to see also
Frequently asked questions
The fuel return line is a hose that routes excess fuel from the engine back to the tank.
A faulty fuel return line can cause fuel leaks, poor engine performance, and vapor lock.
Most carburetor vehicles don't have fuel return lines unless the carburetor is fed by an electric fuel pump. Mechanical diesel fuel systems with an injector pump always have a return line. Electronic diesels, modern gasoline-powered vehicles, and some older cars may or may not have a fuel return line.
A fuel return line helps to maintain pressure in the fuel tank and cool the pump. It also helps to rid the system of air and support more horsepower.
