The 2003 Ford F150, a popular and reliable pickup truck, often raises questions among owners regarding its fuel system components. One common inquiry is whether this model is equipped with a fuel pump relay. Understanding the presence and function of a fuel pump relay is crucial for troubleshooting fuel delivery issues and ensuring optimal engine performance. In the case of the 2003 Ford F150, the fuel pump relay plays a vital role in controlling the fuel pump's operation, and its location and functionality are essential knowledge for both DIY enthusiasts and professional mechanics alike.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Ford F150 |
| Fuel Pump Relay Presence | Yes |
| Relay Location | In the power distribution box (under the hood, driver-side fender well) |
| Relay Name | Fuel Pump Relay (also known as "Fuel Pump Driver Module" in some manuals) |
| Function | Controls power to the fuel pump to ensure proper fuel delivery |
| Symptoms of Failure | No start, engine stalls, or difficulty starting |
| Replacement Part Number | Varies by manufacturer (e.g., Ford part number: F85B-9394-AA) |
| Compatibility | Specific to 2003 Ford F150 models with certain engine configurations |
| Diagnostic Method | Check for power at the fuel pump connector or use a multimeter to test relay |
| Common Issues | Relay contacts may burn out or fail due to age or electrical overload |
| Replacement Difficulty | Moderate (requires locating the relay and swapping it out) |
Explore related products
What You'll Learn

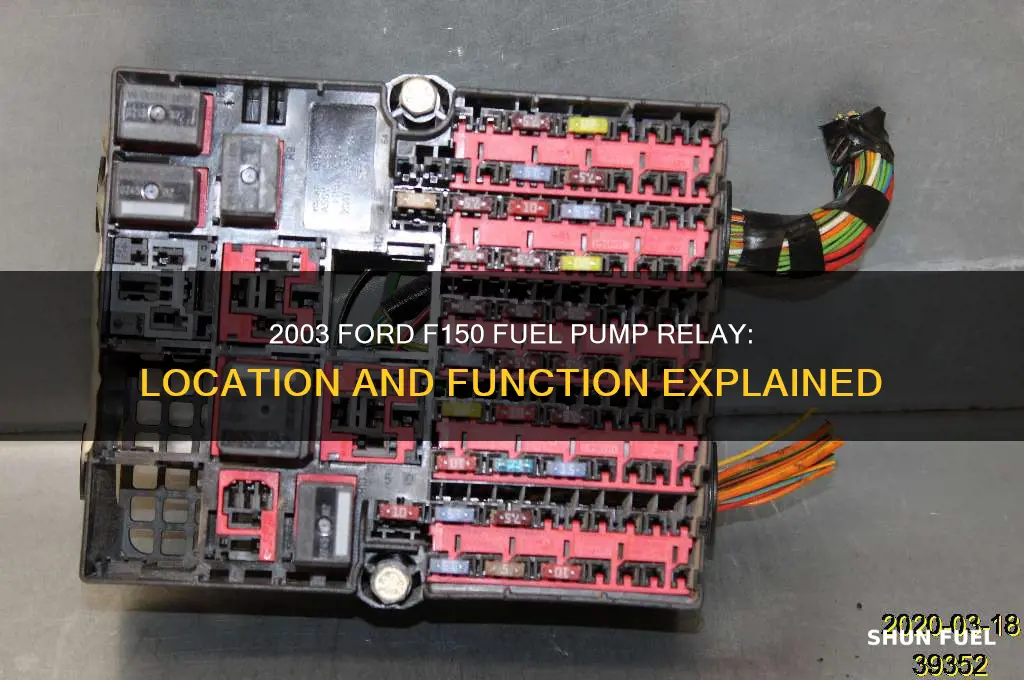

Location of Fuel Pump Relay
The 2003 Ford F150's fuel pump relay is a critical component in the vehicle's fuel system, responsible for controlling the flow of power to the fuel pump. Locating this relay is essential for troubleshooting fuel-related issues, such as a no-start condition or poor engine performance. To find the fuel pump relay, start by identifying the central junction box (CJB) located under the hood on the driver's side. This box houses various relays and fuses, making it a central hub for electrical diagnostics.
Upon opening the CJB, you'll notice a diagram on the underside of the lid, which labels each relay and fuse. The fuel pump relay is typically labeled as "Fuel Pump" or "FP Relay" and is often found in the lower right-hand corner of the box. It's a small, rectangular component with four or five pins, depending on the specific model. To access the relay, gently pry open the CJB lid and locate the designated slot. Keep in mind that relay locations may vary slightly between F150 trims and engine options, so consulting the owner's manual or a repair guide is recommended for precise identification.
When working with the fuel pump relay, it's essential to exercise caution to avoid electrical mishaps. Before handling any components, disconnect the battery to prevent accidental short circuits. Once the relay is located, you can test its functionality using a multimeter or swap it with a known-good relay to determine if it's faulty. If the relay is indeed defective, replacement is a straightforward process, requiring only basic hand tools. However, if the issue persists after replacing the relay, further diagnosis of the fuel pump, wiring, or other related components may be necessary.
In comparison to other vehicle systems, the fuel pump relay's location in the 2003 Ford F150 is relatively accessible, making it an ideal starting point for DIY diagnostics. By familiarizing yourself with the CJB layout and relay identification, you can save time and money on professional repairs. Additionally, understanding the fuel pump relay's role in the overall fuel system can help you make informed decisions when addressing performance issues. For instance, if you notice a whining noise from the fuel tank or experience difficulty starting the engine, the fuel pump relay should be one of the first components to inspect.
To ensure a successful diagnosis and repair, consider the following practical tips: always work with a clean, dry CJB to prevent debris from interfering with electrical connections; use a relay puller tool to safely remove the fuel pump relay without damaging surrounding components; and keep a record of any error codes or symptoms to aid in pinpointing the root cause of the issue. By combining these tips with a thorough understanding of the fuel pump relay's location and function, you'll be well-equipped to tackle fuel system problems in your 2003 Ford F150. Remember, a systematic approach to diagnostics, starting with the fuel pump relay, can often lead to a quicker and more accurate resolution.
Exploring the Inner Workings of a Mechanical Fuel Pump
You may want to see also
Explore related products
Symptoms of a Faulty Relay
A faulty fuel pump relay in a 2003 Ford F150 can manifest in several ways, often mimicking symptoms of other fuel system issues. One of the most common signs is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the system with fuel. If the engine cranks but doesn’t start, or if it starts briefly before stalling, the relay may be at fault.
Another symptom is inconsistent engine performance, such as sputtering or hesitation during acceleration. This happens when the relay intermittently fails to maintain a steady power supply to the fuel pump, causing fluctuations in fuel pressure. Drivers may notice the vehicle losing power at higher speeds or under load, which can be both frustrating and dangerous.
A less obvious but equally important indicator is an illuminated check engine light. While this light can signal numerous issues, a faulty relay often triggers codes related to fuel system malfunctions. Using an OBD-II scanner to read these codes can help narrow down the problem, though further diagnosis is typically required to confirm the relay as the culprit.
To test the relay, locate it in the fuse box (often under the hood) and swap it with a relay of the same type from another circuit, such as the horn or cooling fan. If the fuel pump begins functioning properly after the swap, the original relay is likely defective. Always consult the vehicle’s manual or a wiring diagram to ensure compatibility and avoid damaging other components.
Preventive maintenance, such as regularly inspecting the relay for corrosion or damage, can extend its lifespan. However, relays are wear items and may fail over time, especially in older vehicles like the 2003 Ford F150. Replacing a faulty relay is a straightforward and cost-effective repair compared to ignoring the issue, which could lead to more severe fuel system damage or leave you stranded.
DIY Guide: Replacing Fuel Pump in 2009 Dodge Ram 1500
You may want to see also
Explore related products
How to Test the Relay
The 2003 Ford F-150 does indeed have a fuel pump relay, a critical component in the vehicle's fuel system. Located in the under-hood fuse/relay box, this relay ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. Testing this relay is a straightforward process that can help diagnose fuel delivery issues, saving time and money on potential misdiagnoses.
Understanding the Relay’s Role
Before testing, it’s essential to grasp the relay’s function. The fuel pump relay acts as a switch, allowing high-amperage current to flow to the fuel pump while protecting the ignition switch from excessive load. A faulty relay can cause the pump to run continuously, fail to activate, or operate intermittently. Symptoms of a bad relay include a no-start condition, stalling, or a whining noise from the fuel tank.
Steps to Test the Fuel Pump Relay
Begin by locating the relay in the under-hood fuse/relay box. Consult the owner’s manual for the exact position, typically labeled as “Fuel Pump Relay.” With the ignition off, remove the relay and inspect it for physical damage, such as burnt pins or a cracked casing. Next, use a multimeter to test continuity across the relay’s terminals. Set the multimeter to the ohms setting and place the probes on the coil terminals (usually pins 85 and 86). A reading of 50 to 120 ohms indicates a functional coil.
Simulating Operation for Further Testing
To test the relay’s switching function, apply 12 volts to the coil terminals (pins 85 and 86) using a battery or jumper wires. Simultaneously, check for continuity between the common terminal (pin 30) and the normally open terminal (pin 87). If the relay is working, the circuit should close, showing continuity. Repeat this test with the ignition in the “on” position to ensure the relay activates as expected.
Practical Tips and Cautions
Always disconnect the battery before handling electrical components to prevent short circuits. If the relay tests bad, replace it with a known-good unit of the same specifications. However, a failed relay test doesn’t always confirm the relay is the culprit—issues with the fuel pump, wiring, or ECU could also cause symptoms. For a comprehensive diagnosis, test the fuel pump’s resistance and voltage at the pump connector.
By systematically testing the fuel pump relay, you can pinpoint whether it’s the source of your 2003 Ford F-150’s fuel delivery problems. This process not only saves on unnecessary part replacements but also ensures your vehicle’s fuel system operates reliably.
Burnt Fuel Pump Wires: Causes and Prevention Tips Explained
You may want to see also
Explore related products
Replacement Steps and Tools
The 2003 Ford F150 does indeed have a fuel pump relay, a critical component in the vehicle's fuel system that ensures the fuel pump operates only when the engine is running or being started. Located in the under-hood fuse/relay box, this relay can fail over time, leading to symptoms like a no-start condition or intermittent stalling. Replacing it requires a systematic approach and the right tools to ensure a smooth and safe process.
Steps for Replacement:
- Locate the Relay Box: Open the hood and identify the fuse/relay box, typically found near the battery. Consult the owner’s manual or a diagram on the box lid to pinpoint the fuel pump relay.
- Disconnect the Battery: Safety first—disconnect the negative battery terminal to prevent electrical mishaps during the replacement.
- Remove the Relay: Press the release tabs on the relay box cover to open it. Carefully pull out the fuel pump relay, noting its orientation for proper reinstallation of the new one.
- Install the New Relay: Insert the replacement relay into the same slot, ensuring it clicks securely into place. Reattach the relay box cover.
- Reconnect the Battery: Reattach the negative battery terminal and test the vehicle to confirm the issue is resolved.
Tools Required:
- Flathead or Phillips screwdriver (for prying open the relay box if needed)
- Pliers (optional, for removing a stubborn relay)
- Replacement fuel pump relay (ensure compatibility with the 2003 Ford F150)
- Owner’s manual or relay diagram (for accurate identification)
Cautions:
Avoid forcing the relay out of its slot, as this can damage the relay box. Always double-check the part number of the replacement relay to ensure compatibility. If the issue persists after replacement, consider testing the fuel pump itself or checking for wiring faults.
Replacing the fuel pump relay on a 2003 Ford F150 is a straightforward task that can save time and money compared to a professional repair. With the right tools and a methodical approach, even a novice can tackle this job confidently. Always prioritize safety and accuracy to ensure the vehicle operates reliably post-replacement.
Understanding Computer Code Components for Fuel Pump Systems
You may want to see also
Explore related products
Common Issues and Fixes
The 2003 Ford F-150 relies on a fuel pump relay to manage power delivery to the fuel pump, ensuring efficient engine operation. However, this component can fail over time, leading to common issues such as hard starting, stalling, or no-start conditions. Diagnosing a faulty relay involves checking for continuity with a multimeter or swapping it with a known-good relay from another circuit, like the horn or headlights. If the issue resolves, the relay is likely the culprit. Always consult the vehicle’s manual for the exact location of the fuel pump relay, typically found in the under-hood fuse box.
One frequent problem is corrosion or loose connections at the relay socket, which can disrupt the electrical signal. To address this, inspect the socket for signs of damage or oxidation and clean it with electrical contact cleaner. If the socket is severely corroded, replacement may be necessary. Additionally, ensure the relay’s pins are securely seated by gently pressing them into place. For preventive maintenance, periodically check the fuse box for moisture or debris, as these can accelerate wear on the relay and its connections.
Another issue arises when the fuel pump relay fails to engage, often due to a malfunctioning fuel pump driver module (FPDM). The FPDM controls the relay and can short out, causing the relay to remain inactive. Testing the FPDM requires a scan tool to check for diagnostic trouble codes (DTCs) related to the fuel pump circuit. If the FPDM is faulty, it must be replaced, and the new unit should be programmed to the vehicle’s specifications. This fix is more complex and may require professional assistance.
In some cases, the fuel pump relay may appear functional but fails under load, such as during acceleration or high-demand conditions. This intermittent failure can be challenging to diagnose. A practical approach is to monitor the relay’s operation while driving, using a test light or multimeter to observe voltage drops. If the relay fails under load, replace it with a higher-quality unit or consider upgrading to a relay with a higher amperage rating to handle increased electrical demands.
Lastly, a common oversight is neglecting the fuel pump inertia switch, often mistaken for the relay. The inertia switch, designed to cut power to the fuel pump during a collision, can trip accidentally, mimicking relay failure. Locate the switch (typically near the driver’s side kick panel) and press the reset button if it’s activated. This simple step can save time and prevent unnecessary relay replacement. Always verify the inertia switch status before proceeding with relay diagnostics.
Locating the Fuel Pump in a 1999 Mazda Miata: A Guide
You may want to see also
Frequently asked questions
Yes, the 2003 Ford F150 is equipped with a fuel pump relay. It is typically located in the underhood fuse/relay box.
The fuel pump relay on a 2003 Ford F150 is usually found in the power distribution box under the hood. It is often labeled as "FUEL PUMP" or "FP."
Symptoms of a faulty fuel pump relay include the engine not starting, stalling, or difficulty starting. You may also notice a lack of power or the fuel pump not priming when the key is turned to the "ON" position.
