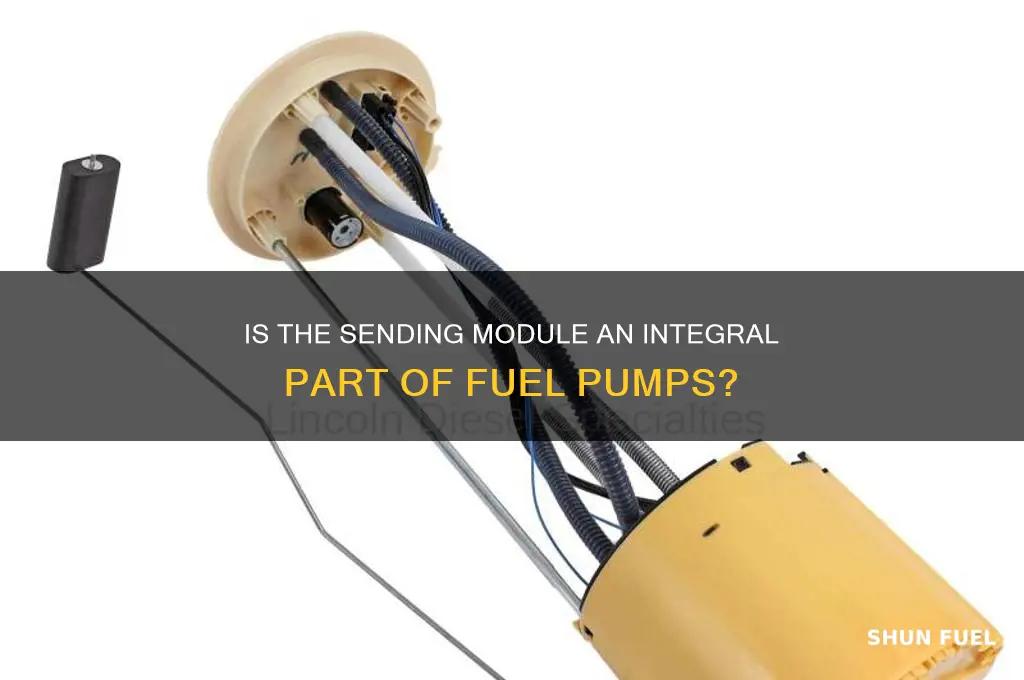

The question of whether a sending module is part of a fuel pump is a common inquiry in automotive systems. A sending module, also known as a fuel level sensor, is a critical component that measures the amount of fuel in a vehicle's tank and transmits this information to the fuel gauge on the dashboard. While it is closely associated with the fuel tank, the sending module is not inherently part of the fuel pump itself. The fuel pump is responsible for delivering fuel from the tank to the engine, whereas the sending module focuses on monitoring and reporting fuel levels. However, in many modern vehicles, these components are often integrated into a single unit, known as a fuel pump module, which combines the pump, sending unit, and sometimes other components for efficiency and ease of installation. Understanding this distinction is essential for diagnosing and maintaining fuel system issues in vehicles.
Explore related products
What You'll Learn
- Module Functionality: Role of sending module in fuel pump operation and fuel level monitoring
- Compatibility Issues: Ensuring sending module compatibility with different fuel pump models and systems
- Installation Process: Steps for correctly installing a sending module in a fuel pump assembly
- Common Failures: Typical issues with sending modules and their impact on fuel pump performance
- Replacement Guide: How to replace a faulty sending module in a fuel pump system
Module Functionality: Role of sending module in fuel pump operation and fuel level monitoring
The sending module, often referred to as the fuel level sensor or sender unit, is an integral component of modern fuel pump systems. Its primary function is to monitor the fuel level within the tank and relay this information to the vehicle's dashboard, ensuring drivers are aware of their fuel status. This real-time data is crucial for preventing unexpected fuel depletion, which could lead to vehicle breakdowns in inconvenient or dangerous locations.
Understanding the Mechanism
The sending module operates through a float mechanism connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance in the circuit. This variation in resistance is interpreted by the vehicle’s fuel gauge, translating it into a visual representation of the fuel level. For instance, in a typical 16-gallon tank, the sending module might send a signal corresponding to a quarter tank when the fuel level drops to 4 gallons, triggering the low fuel warning light at 2 gallons.
Integration with Fuel Pump Operation
While the sending module is not directly responsible for pumping fuel, it plays a critical role in the overall fuel system efficiency. Some advanced fuel pumps incorporate the sending module into a single assembly, streamlining installation and reducing potential points of failure. This integration ensures that the fuel pump delivers the correct amount of fuel to the engine based on the tank’s level, optimizing performance and fuel economy. For example, in vehicles with in-tank fuel pumps, the sending module’s accuracy is vital to prevent the pump from running dry, which can cause overheating and premature wear.
Practical Tips for Maintenance
Regular maintenance of the sending module is essential to avoid inaccurate fuel readings. Symptoms of a failing sender include a fuel gauge that fluctuates erratically or remains stuck at full or empty. To diagnose issues, use a multimeter to test the module’s resistance range—typically 0 to 90 ohms for most vehicles. If the readings are inconsistent, replace the sending module promptly. Additionally, ensure the fuel tank is clean during installation, as debris can interfere with the float’s movement.
Comparative Analysis: Analog vs. Digital Sending Modules
Traditional analog sending modules are cost-effective and widely used, but they may wear out over time due to mechanical components. In contrast, digital sending modules, found in newer vehicles, offer greater precision and durability by using electronic sensors. While digital modules are more expensive, they provide more accurate fuel level readings and are less prone to failure. For instance, a digital sender in a 2023 sedan might offer fuel level updates in 1% increments, compared to 5% increments in an analog system, enhancing driver awareness and planning.
By understanding the sending module’s functionality and its interplay with the fuel pump, vehicle owners can ensure reliable fuel monitoring and system longevity. Whether analog or digital, this component remains a cornerstone of modern automotive fuel management.
Fuel Pump Noise Without Function: Causes and Troubleshooting Tips
You may want to see also
Explore related products
Compatibility Issues: Ensuring sending module compatibility with different fuel pump models and systems
The sending module, a critical component in fuel pump systems, serves as the communication link between the fuel tank and the vehicle's dashboard, providing real-time data on fuel levels. However, its compatibility with various fuel pump models and systems is often overlooked, leading to potential malfunctions or inaccurate readings. Ensuring seamless integration requires a meticulous approach, considering factors such as voltage requirements, connector types, and fuel tank geometries. For instance, a sending module designed for a 12V system may not function optimally in a 24V environment, necessitating voltage regulators or alternative solutions.
Instructive guidance on compatibility begins with identifying the fuel pump’s specifications, including its electrical system, fuel type, and tank design. Cross-referencing these details with the sending module’s compatibility chart is essential. For example, ethanol-blended fuels may require corrosion-resistant materials in the sending module to prevent degradation. Additionally, tank shape and depth influence float arm length and pivot design, ensuring accurate fuel level detection. Manufacturers often provide compatibility lists, but aftermarket solutions may demand manual verification, such as measuring resistance values (e.g., 0–90 ohms) to match the gauge’s requirements.
A comparative analysis highlights the challenges between OEM and aftermarket sending modules. OEM modules are engineered specifically for the vehicle’s fuel system, ensuring plug-and-play compatibility. Aftermarket options, while cost-effective, may require adapters or modifications. For instance, a universal sending module might need a custom wiring harness to align with the vehicle’s electrical system. Moreover, OEM modules often include diagnostics features, such as error codes for faulty sensors, which aftermarket units may lack. Balancing cost and functionality, vehicle owners must weigh these trade-offs carefully.
Persuasively, investing in a compatible sending module is not just about functionality but also safety and longevity. Incompatible modules can lead to erratic gauge readings, potentially causing drivers to run out of fuel unexpectedly or overfill the tank, risking spills. Long-term, mismatched components accelerate wear on the fuel pump system, increasing maintenance costs. For example, a sending module with an ill-fitting float can cause premature failure of the fuel pump assembly. By prioritizing compatibility, vehicle owners safeguard both performance and reliability, ensuring the fuel system operates within optimal parameters.
Descriptively, the process of ensuring compatibility involves a series of practical steps. Start by consulting the vehicle’s manual or contacting the manufacturer for precise specifications. Inspect the existing sending module for part numbers or markings, which can aid in identifying suitable replacements. Online forums and automotive databases (e.g., RockAuto or AutoZone) offer compatibility charts and user reviews, providing real-world insights. When installing, verify connections are secure and test the gauge at various fuel levels before finalizing the setup. These meticulous steps transform a potentially complex task into a manageable, error-free process.
Who Manufactures O'Reilly Auto Parts Precision Fuel Pumps?
You may want to see also
Explore related products
Installation Process: Steps for correctly installing a sending module in a fuel pump assembly
The sending module is indeed a critical component of the fuel pump assembly, responsible for monitoring fuel levels and transmitting this data to the vehicle’s gauge. Proper installation ensures accurate readings and prevents malfunctions. Begin by disconnecting the vehicle’s battery to avoid electrical hazards, a step often overlooked but essential for safety. Next, relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a suitable tool. This precaution minimizes the risk of fuel spray during disassembly.
With safety measures in place, remove the fuel tank to access the sending module. This typically involves draining the tank, disconnecting fuel lines, and unbolting the tank from its mounting points. Exercise caution to avoid damaging fuel lines or spilling fuel, as even small spills can pose fire risks. Once the tank is removed, carefully detach the old sending module by unscrewing the locking ring or retaining mechanism, ensuring not to damage the float arm or electrical connections. Clean the tank’s interior to remove debris that could interfere with the new module’s operation.
Installing the new sending module requires precision. Align the module with the tank’s opening and secure it using the locking ring or mechanism provided, tightening it to the manufacturer’s torque specifications. Reattach the electrical connector, ensuring a snug fit to prevent signal loss. Test the module’s functionality before reinstalling the tank by applying a small voltage to verify the float moves freely and the gauge responds accurately. This step is crucial for confirming the module’s integrity before final assembly.
Reinstall the fuel tank, reconnecting fuel lines and securing it with bolts tightened to factory specifications. Reconnect the battery and start the vehicle to ensure the fuel gauge reads correctly. If discrepancies arise, recheck connections and the module’s alignment. Regularly inspect the sending module during routine maintenance to catch wear or corrosion early, extending its lifespan and maintaining fuel system reliability. Proper installation not only ensures accurate fuel readings but also safeguards the vehicle’s performance and safety.
Can Dirty Gas Damage Your Fuel Pump? Essential Facts to Know
You may want to see also
Explore related products
Common Failures: Typical issues with sending modules and their impact on fuel pump performance
The sending module, a critical component of the fuel pump assembly, often goes unnoticed until it fails. This small yet vital part is responsible for transmitting fuel level readings to the vehicle's dashboard, ensuring drivers are aware of their fuel status. However, its location within the fuel tank exposes it to harsh conditions, making it susceptible to various failures that can significantly impact fuel pump performance.
One common issue is the degradation of the sending module's float mechanism. Over time, the float, typically made of foam or plastic, can absorb fuel, become waterlogged, or simply wear out. This degradation leads to inaccurate fuel level readings, causing the fuel gauge to display incorrect information. For instance, a driver might believe they have a quarter tank of fuel left, only to run out unexpectedly due to a faulty sending module. This not only causes inconvenience but can also lead to dangerous situations, especially in remote areas or during long journeys.
Electrical malfunctions are another frequent problem. The sending module relies on a delicate electrical circuit to communicate with the vehicle's computer system. Corrosion, loose connections, or damaged wiring can disrupt this circuit, resulting in erratic fuel gauge behavior. In some cases, the gauge may fluctuate wildly, while in others, it may remain stuck at a certain level, regardless of the actual fuel amount. Such inconsistencies can make it challenging for drivers to plan their refueling stops accurately, potentially leading to fuel starvation and subsequent damage to the fuel pump.
Furthermore, the sending module's failure can indirectly affect the fuel pump's operation. Modern fuel pumps often incorporate safety features that monitor fuel levels to prevent the pump from running dry, which can cause overheating and premature failure. When the sending module malfunctions, these safety mechanisms may not engage properly, increasing the risk of fuel pump damage. For example, if the module falsely indicates a full tank, the pump might continue running even when the tank is empty, leading to excessive wear and potential burnout.
To mitigate these issues, regular maintenance and prompt attention to warning signs are crucial. Drivers should be vigilant about any inconsistencies in their fuel gauge readings and have their sending modules inspected as part of routine vehicle servicing. In cases of suspected failure, replacing the sending module is often a straightforward process, but it should be performed by a qualified technician to ensure proper calibration and functionality. By addressing these common failures, vehicle owners can maintain accurate fuel level monitoring and safeguard the overall health of their fuel pump system.
Unplugging the Fuel Pump Control Module in a 2004 F150
You may want to see also
Explore related products
Replacement Guide: How to replace a faulty sending module in a fuel pump system
The sending module, often integrated into the fuel pump assembly, plays a critical role in monitoring fuel levels and relaying this information to the vehicle’s dashboard. When it fails, drivers may experience inaccurate fuel gauge readings, erratic behavior, or even a complete loss of fuel level indication. Replacing a faulty sending module requires precision and familiarity with your vehicle’s fuel system, but it’s a task many DIY enthusiasts can handle with the right tools and precautions.
Step-by-Step Replacement Process: Begin by disconnecting the vehicle’s battery to prevent electrical mishaps. Locate the fuel tank, typically beneath the rear seat or trunk, and relieve the fuel system pressure using the Schrader valve. Drain the tank partially if necessary, as working on a full tank increases spillage risks. Remove the fuel pump assembly by lowering the tank or accessing it through a dedicated panel, depending on your vehicle’s design. Once exposed, disconnect the electrical connector and fuel lines from the sending module. Carefully detach the module from the pump assembly, noting its orientation for proper reinstallation. Install the new sending module, ensuring it aligns correctly with the float arm and locking mechanism. Reassemble the fuel pump, reconnect all lines and connectors, and reinstall the assembly into the tank.
Cautions and Practical Tips: Fuel systems operate under pressure and contain flammable materials, so work in a well-ventilated area away from open flames. Use non-sparking tools to minimize ignition risks. If the sending module is part of a sealed fuel pump unit, replacement may require changing the entire assembly, which can cost between $200 and $800, depending on the vehicle. For older vehicles with standalone sending modules, replacement parts typically range from $50 to $150. Always consult your vehicle’s service manual for model-specific instructions and torque specifications.
Comparative Analysis: Unlike universal fuel pumps, sending modules vary widely in design and compatibility. Some are integrated into the pump, while others are standalone units. Aftermarket replacements may offer improved durability or digital upgrades, but ensure they match your vehicle’s electrical system voltage (12V or 24V). OEM parts guarantee fitment but come at a premium. For budget-conscious repairs, consider refurbished units, but verify their condition and warranty coverage.
Final Takeaway: Replacing a faulty sending module restores accurate fuel monitoring and prevents potential misdiagnosis of fuel system issues. While the process demands attention to detail, it’s achievable with basic mechanical skills and the right precautions. Always prioritize safety, and if unsure, consult a professional to avoid costly mistakes or hazards. A properly functioning sending module ensures your vehicle’s fuel gauge remains reliable, keeping you informed and on the road.
Does a Fuel Pump Actually Fill Cylinders with Fuel? Explained
You may want to see also
Frequently asked questions
Yes, in many vehicles, the sending module is integrated into the fuel pump assembly, which is located inside the fuel tank.
The sending module measures the fuel level in the tank and sends this information to the fuel gauge on the vehicle’s dashboard.
Yes, the sending module can fail on its own, causing inaccurate fuel gauge readings or other issues, without affecting the fuel pump’s operation.
Common signs of a faulty sending module include an erratic or stuck fuel gauge, the gauge reading empty when the tank is full, or the check engine light coming on.
In some cases, the sending module can be replaced separately, but in many modern vehicles, it is part of the fuel pump assembly and requires replacing the entire unit.
