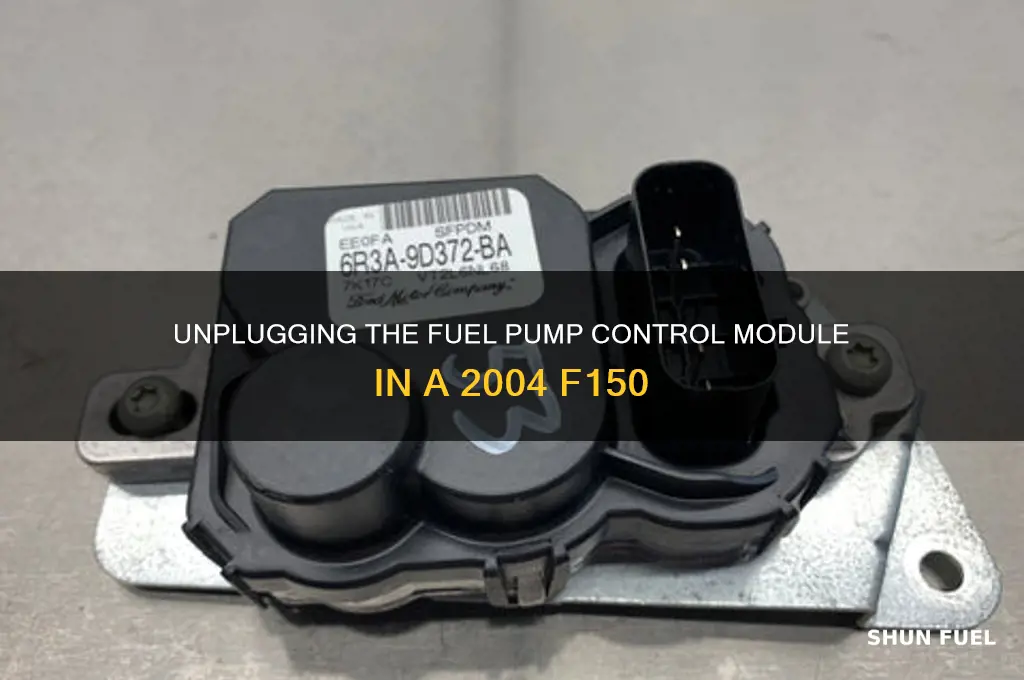

Unplugging the fuel pump control module on a 2004 Ford F150 requires careful attention to safety and procedure. Located near the fuel tank, typically on the driver's side frame rail or inside the rear quarter panel, the module is connected via an electrical connector. Before starting, ensure the vehicle is turned off and the battery is disconnected to prevent electrical hazards. Once located, gently release the locking tab on the connector and pull it straight out to disconnect the module. It’s essential to avoid forcing the connector to prevent damage. After unplugging, inspect the module and wiring for any signs of wear or corrosion. This process is often necessary for diagnostics, replacement, or maintenance of the fuel pump system. Always consult the vehicle’s manual or a professional if unsure about any steps.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2004 Ford F150 |
| Component | Fuel Pump Control Module (FPCM) |
| Location | Driver-side frame rail, near the fuel tank (varies by model) |
| Tools Required | Basic hand tools (e.g., wrench, screwdriver), safety gloves |
| Safety Precautions | Relieve fuel system pressure, disconnect battery negative terminal |
| Steps to Unplug | 1. Locate FPCM. 2. Disconnect electrical connector. 3. Remove mounting bolts. |
| Connector Type | Multi-pin electrical connector |
| Mounting Hardware | Bolts or screws securing the module to the frame |
| Common Issues | Faulty module causing no-start, fuel pump failure |
| Replacement Part | OEM or compatible FPCM for 2004 F150 |
| Diagnostic Codes | P0230, P0231, P0232 (related to fuel pump circuit) |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Estimated Time | 30-60 minutes |
| Additional Notes | Ensure fuel system is depressurized to avoid accidents |
Explore related products
What You'll Learn
Locate the fuel pump control module in the 2004 F150
The fuel pump control module in a 2004 Ford F150 is a critical component that regulates fuel delivery to the engine. Locating it is the first step in any maintenance or diagnostic procedure involving the fuel system. This module is typically housed in the engine bay, but its exact position can vary depending on the specific model and configuration of your F150. Understanding its location not only saves time but also prevents unnecessary disassembly of other components.
To locate the fuel pump control module, start by opening the hood and inspecting the driver’s side of the engine bay. In most 2004 F150 models, the module is mounted near the firewall, often close to the brake booster or master cylinder. It is usually a small, rectangular unit with an electrical connector attached. Look for a label or markings that identify it as the fuel pump control module or "FPCM." If you’re having trouble spotting it, consult your vehicle’s service manual for a diagram specific to your model.
Once you’ve identified the module, take note of its orientation and the surrounding components. The electrical connector is a key feature, as it will need to be disconnected to unplug the module. Be cautious not to confuse it with other similar-looking modules or relays in the engine bay. A practical tip is to use a flashlight to illuminate the area, as the module’s location near the firewall can make it less visible in low light.
For a more precise approach, consider the F150’s trim level and engine type, as these factors can influence the module’s placement. For example, models with the 5.4L Triton V8 engine may have the module positioned slightly differently than those with the 4.6L V8. If you’re still unsure, online forums or video tutorials specific to the 2004 F150 can provide visual guidance tailored to your vehicle’s configuration.
In summary, locating the fuel pump control module in a 2004 F150 requires a systematic approach, starting with a thorough inspection of the driver’s side engine bay. Familiarize yourself with its appearance and typical mounting location near the firewall. Leveraging resources like service manuals or online guides can further ensure accuracy, setting the stage for a successful unplugging or maintenance procedure.
Installing a Mechanical Fuel Pump on Your K-Series Engine: Step-by-Step Guide
You may want to see also
Explore related products
Disconnect the battery to prevent electrical accidents
Before attempting any work on your 2004 F150's fuel pump control module, disconnecting the battery is a critical safety measure. This simple step prevents electrical accidents, which can range from minor shocks to severe injuries or even vehicle damage. The fuel pump control module operates within a high-voltage system, and even a small mistake can have serious consequences. By disconnecting the battery, you eliminate the risk of electrical current flowing through the system while you work, ensuring a safer environment for both you and your vehicle.
The Process of Disconnection
To disconnect the battery, locate it under the hood of your F150. It's typically secured in a bracket on one side of the engine compartment. Using the appropriate size wrench or socket, loosen the nut on the negative battery cable (usually marked with a "-" sign). Once the nut is loose, gently pull the cable away from the battery terminal. Ensure the cable is secured and cannot accidentally come into contact with the terminal while you work. Some technicians recommend covering the disconnected terminal with a non-conductive material, like a piece of electrical tape, as an extra precaution.
Why This Step is Essential
Consider the potential risks of skipping this step. Even with the ignition off, certain components in your F150 may still carry residual electrical charge. Attempting to unplug the fuel pump control module without disconnecting the battery could result in an electrical arc, which can damage sensitive electronic components or cause a short circuit. Moreover, working with live electrical systems increases the risk of personal injury, as even a small shock can be dangerous in certain circumstances. By taking a few moments to disconnect the battery, you're prioritizing safety and minimizing the chances of accidents.
Practical Tips for Safe Disconnection
When disconnecting the battery, wear insulated gloves and eye protection to guard against any potential hazards. If your F150 has a security system or radio with anti-theft features, be aware that disconnecting the battery may require re-entering codes or resetting the system afterward. It's also a good idea to consult your vehicle's manual for any specific recommendations or precautions related to battery disconnection. Remember, this step is not just a formality – it's a vital safety measure that should never be overlooked when working on your vehicle's electrical system. By making battery disconnection a standard part of your maintenance routine, you'll develop a safer and more responsible approach to automotive repairs.
Step-by-Step Guide: Installing a Fuel Pump in a Chevy Cavalier
You may want to see also
Explore related products
Remove the fuel pump driver's module cover
The fuel pump driver module cover on a 2004 Ford F150 is a critical component that protects the module from dust, moisture, and physical damage. Located near the fuel tank, this cover is designed to be durable but can become brittle over time, especially in harsh weather conditions. Before attempting to remove it, ensure you have the right tools, such as a flathead screwdriver or a trim removal tool, to avoid damaging the cover or surrounding components.
Removing the fuel pump driver module cover requires precision and patience. Start by locating the cover, typically found on the driver’s side of the vehicle, near the rear wheel well. Use a trim removal tool or flathead screwdriver to gently pry the edges of the cover. Work your way around the perimeter, applying even pressure to release the clips holding it in place. Be cautious not to force it, as excessive pressure can crack the cover or damage the module beneath.
Once the clips are disengaged, lift the cover straight up to avoid bending or misaligning it. Inspect the underside of the cover and the module for signs of corrosion, debris, or damage. If the cover is cracked or broken, consider replacing it to maintain proper protection for the module. Cleaning the area with a dry cloth or compressed air can also prevent future issues caused by dirt or moisture infiltration.
Reinstalling the cover is straightforward but requires attention to detail. Align the cover with the module, ensuring all tabs and clips are properly seated. Press firmly around the edges to secure it in place. Test the cover by gently tugging to confirm it’s locked. Properly securing the cover is essential to prevent water or debris from reaching the module, which could lead to electrical malfunctions or fuel system issues.
In summary, removing the fuel pump driver module cover on a 2004 F150 is a task that demands care and the right tools. By following these steps, you can safely access the module for inspection or maintenance without causing damage. Always prioritize precision and caution to ensure the cover remains functional and protective, safeguarding the longevity of your vehicle’s fuel system.
Does a Fuel Pump Have a Sensor? Exploring Its Components and Functions
You may want to see also
Explore related products
Unplug the wiring harness from the module
The wiring harness connected to the fuel pump control module in a 2004 Ford F150 is a critical component, but it’s designed for accessibility. Locating it requires familiarity with the vehicle’s underbody layout. The module is typically mounted near the fuel tank, often on the driver’s side frame rail, protected by a plastic or metal shield. Before attempting to unplug the harness, ensure the vehicle is on a level surface, the engine is off, and the ignition is in the "Off" position to prevent accidental activation of the fuel pump.
Unplugging the wiring harness begins with identifying the correct connector. It’s a multi-pin plug, usually secured with a locking tab or clip. Inspect the connector for signs of corrosion, damage, or debris, as these can complicate the process. Gently press the locking tab—often a small, flexible piece of plastic—while pulling the connector straight out. Avoid twisting or tugging at an angle, as this can damage the pins or housing. If the connector feels stuck, recheck for a secondary locking mechanism or consult the vehicle’s service manual for specific details.
A common mistake is underestimating the force required to release the locking tab. While it should disengage with moderate pressure, some connectors may have stiffened over time due to heat or age. Using a small, non-conductive tool like a plastic pry bar can provide leverage, but apply force gradually to avoid breaking the tab. Once the connector is free, inspect the pins for bent or broken components. If damage is evident, the harness may need repair or replacement before proceeding with further work on the module.
After unplugging the harness, secure the connector to prevent accidental reconnection or exposure to the elements. Wrap it in electrical tape or a plastic bag, ensuring no pins are exposed. This step is particularly important if the module is being replaced or diagnosed, as an unsecured connector can lead to short circuits or contamination. Proper handling of the wiring harness not only protects the vehicle’s electrical system but also ensures a safe and efficient repair process.
Finding the Fuel Pump in a 2007 Dodge Caliber
You may want to see also
Explore related products
Reinstall the module cover and reconnect the battery
After carefully removing the fuel pump control module and addressing any necessary repairs or replacements, the final steps are critical to ensure your 2004 F150 operates safely and efficiently. Reinstalling the module cover and reconnecting the battery are straightforward tasks, but attention to detail is essential to avoid future issues.
Begin by aligning the module cover with the mounting points on the fuel pump assembly. Ensure all tabs and clips are properly engaged to secure the cover in place. A snug fit prevents debris from entering the module and causing potential malfunctions. Use a torque wrench to tighten any screws or bolts to the manufacturer’s specifications, typically around 8-10 Nm, to avoid over-tightening, which can damage the plastic components.
Next, reconnect the battery, starting with the positive terminal. Clean both terminals with a wire brush if corrosion is present, and apply a thin layer of dielectric grease to protect against future buildup. Secure the battery cables firmly, ensuring no exposed wires are touching metal surfaces that could cause a short circuit. Once connected, wait 30 seconds to allow the vehicle’s computer to reset before attempting to start the engine.
A common oversight is failing to verify the fuel system’s integrity after reinstallation. Turn the ignition to the "on" position without starting the engine and listen for the fuel pump priming cycle, which should last 2-3 seconds. If the pump doesn’t engage, double-check all connections and fuses related to the fuel system. This step ensures the module is functioning correctly and prevents potential no-start conditions.
Finally, inspect the area around the fuel pump for any signs of fuel leaks or loose components. Start the engine and let it idle for a few minutes, monitoring for unusual noises or vibrations. If everything operates smoothly, take the vehicle for a short test drive to confirm the repair’s success. Properly reinstalling the module cover and reconnecting the battery not only completes the repair but also safeguards the longevity of your F150’s fuel system.
Mercury 4-Stroke 50 HP 2005: Fuel Pump Presence Explained
You may want to see also
Frequently asked questions
The fuel pump control module on a 2004 F150 is typically located near the fuel tank, often mounted on the frame rail or close to the fuel tank itself. It's usually a small, rectangular module with electrical connectors.
To unplug the fuel pump control module, you'll need a few basic tools, including a flathead screwdriver or a trim panel removal tool to gently pry off any covering panels, and possibly a socket set or wrench to remove any bolts securing the module in place.
To safely unplug the fuel pump control module, first disconnect the negative battery terminal to prevent any electrical shorts. Then, locate the module and carefully disconnect the electrical connectors by pressing the release tabs and gently pulling them apart. Avoid pulling on the wires themselves to prevent damage. If the module is bolted in place, remove the bolts before attempting to unplug it.
