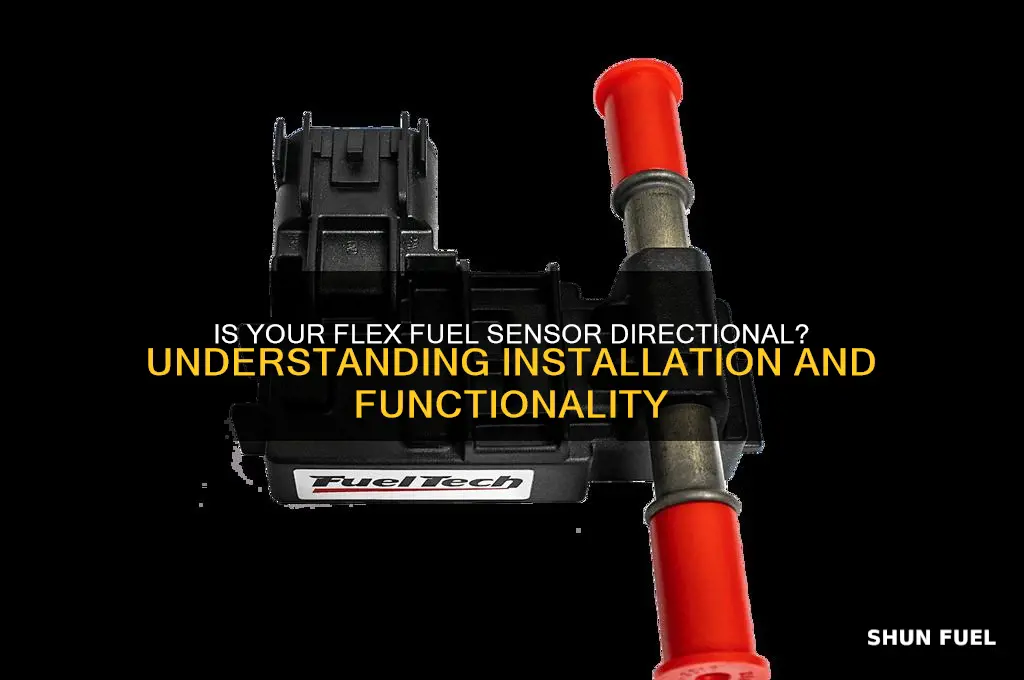

The question of whether a flex fuel sensor is directional is a common concern among vehicle owners and mechanics, particularly those working with ethanol-compatible engines. Flex fuel sensors play a crucial role in detecting the ethanol content in fuel, ensuring the engine management system adjusts for optimal performance. However, confusion arises regarding their installation orientation, as some sensors may have specific directional requirements to function accurately. Understanding whether a flex fuel sensor is directional involves examining its design, manufacturer guidelines, and the potential impact of incorrect installation on fuel mixture readings and engine efficiency. This clarity is essential for maintaining the reliability and performance of flex-fuel vehicles.
| Characteristics | Values |
|---|---|
| Directionality | Yes, flex fuel sensors are directional. |
| Installation Orientation | Must be installed with the arrow or marking pointing towards the fuel tank. |
| Sensor Type | Typically ethanol content sensors using capacitive or resistive technology. |
| Function | Measures the ethanol-to-gasoline ratio in the fuel. |
| Compatibility | Designed for flex-fuel vehicles (FFVs) that can run on gasoline, ethanol, or a mixture. |
| Connector Polarity | Directional installation ensures correct signal transmission to the engine control unit (ECU). |
| Consequences of Incorrect Installation | Inaccurate fuel mixture readings, poor engine performance, or check engine light activation. |
| Common Markings | Arrow, notch, or text indicating the correct orientation. |
| Applications | Automotive fuel systems in FFVs. |
| Maintenance | Regular inspection to ensure proper orientation and functionality. |
Explore related products
$62.99 $67.99
What You'll Learn
Sensor Installation Orientation
Flex fuel sensors are designed to detect the ethanol content in fuel, ensuring optimal engine performance in vehicles capable of running on multiple fuel types. One critical aspect often overlooked is the installation orientation of these sensors. Proper alignment is not just a matter of following instructions; it directly impacts the sensor's accuracy and longevity. Incorrect orientation can lead to faulty readings, which may result in poor fuel efficiency, engine misfires, or even damage to the vehicle's fuel system. Therefore, understanding the directional requirements of a flex fuel sensor is essential for both mechanics and DIY enthusiasts.
From an analytical perspective, the orientation of a flex fuel sensor is dictated by its internal design. Most sensors feature a float mechanism that moves in response to the fuel’s ethanol concentration. This float is often weighted or shaped to ensure it operates correctly only when the sensor is installed in the intended direction. For instance, installing the sensor upside down can cause the float to bind or fail to move freely, leading to inaccurate ethanol content readings. Manufacturers typically include arrows or markings on the sensor body to indicate the correct orientation, but these details are frequently ignored during installation.
To ensure proper installation, follow these steps: first, locate the sensor’s orientation markings, usually an arrow or a "top" label. Align this marking with the fuel line’s flow direction, ensuring the sensor is positioned as intended. Second, secure the sensor tightly but avoid over-tightening, as this can damage the sensor or its housing. Third, double-check the orientation before finalizing the installation. If the sensor lacks visible markings, consult the vehicle’s manual or the manufacturer’s guidelines for specific instructions. Ignoring these steps can void warranties or lead to costly repairs.
A comparative analysis reveals that while some flex fuel sensors are unidirectional, others are designed to be orientation-independent. However, the latter is rare and typically found in high-end or specialized systems. For most vehicles, assuming the sensor is non-directional can be a costly mistake. For example, sensors with integrated heating elements or complex internal mechanisms are highly sensitive to orientation. In contrast, basic sensors might have more flexibility, but even these often require specific positioning for optimal performance. Always err on the side of caution and verify the sensor’s requirements before installation.
Finally, a practical tip for troubleshooting: if you experience issues like inconsistent fuel readings or engine performance problems after installing a flex fuel sensor, recheck its orientation. Even a slight misalignment can cause significant issues. Additionally, ensure the sensor is free from debris or contamination, as this can also affect its functionality. By paying close attention to installation orientation, you can avoid common pitfalls and ensure your flex fuel system operates smoothly. Remember, precision in installation translates to reliability on the road.
