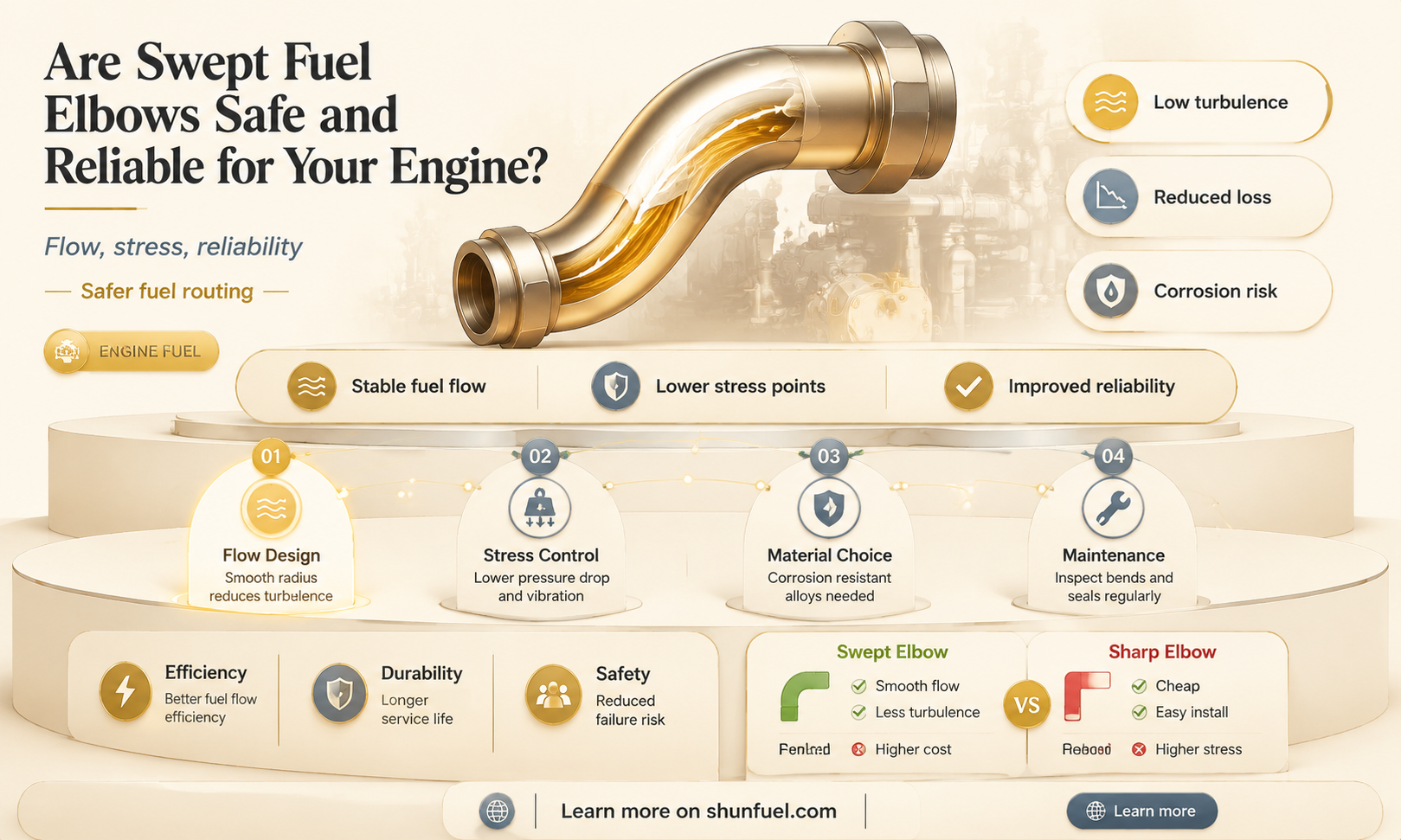

Swept fuel elbows are a critical component in fuel injection systems, particularly in diesel engines, where they play a vital role in directing fuel flow to the injectors. These elbows are designed with a curved or swept shape to optimize fuel delivery, reduce turbulence, and ensure efficient combustion. However, concerns often arise regarding their durability, potential for leaks, and compatibility with different fuel types. While swept fuel elbows are generally considered reliable when properly installed and maintained, factors such as material quality, operating conditions, and exposure to contaminants can impact their performance. Understanding their design, function, and potential limitations is essential for determining whether swept fuel elbows are a suitable choice for specific applications.
Explore related products
What You'll Learn
Swept Fuel Elbow Design Considerations
Swept fuel elbows, often used in high-performance engines, are not just a matter of aesthetics; their design directly impacts fuel flow, engine efficiency, and longevity. The swept angle—typically ranging from 30 to 60 degrees—must align with the engine’s fuel delivery system to minimize turbulence and pressure drop. A poorly designed elbow can lead to fuel atomization issues, reducing combustion efficiency by up to 15%. When selecting or designing a swept fuel elbow, consider the fuel type (e.g., gasoline, ethanol blends) and flow rate, as these factors dictate the optimal angle and radius for smooth flow.
Material selection is another critical consideration. Stainless steel and aluminum are popular choices due to their corrosion resistance and durability, but each has trade-offs. Stainless steel offers superior longevity but adds weight, while aluminum is lighter but more prone to fatigue under high vibration. For racing applications, where weight reduction is paramount, titanium swept elbows are increasingly favored despite their higher cost. Ensure the material’s compatibility with the fuel, especially in ethanol-rich blends, to avoid degradation over time.
The internal surface finish of a swept fuel elbow plays a subtle yet significant role in performance. A rough finish can disrupt fuel flow, leading to cavitation or inconsistent pressure. Aim for a surface roughness of Ra 16 or better to maintain laminar flow. Additionally, inspect for burrs or sharp edges during installation, as these can cause fuel aeration or damage internal components. Regular maintenance, including cleaning and deburring, is essential to preserve optimal performance.
Finally, the integration of swept fuel elbows into the overall fuel system requires careful planning. Ensure the elbow’s orientation aligns with the fuel pump’s output and the injector’s inlet to avoid unnecessary bends or kinks. Use flexible hoses or couplings to absorb vibration and thermal expansion, reducing stress on the elbow. For turbocharged or supercharged engines, account for increased fuel pressure (often exceeding 100 psi) and select an elbow rated for such conditions. Proper installation and system compatibility are as crucial as the elbow’s design itself.
Mastering Climb Fuel Calculations: A Comprehensive Guide for Pilots
You may want to see also
Explore related products
Material Compatibility for Swept Fuel Elbows
Swept fuel elbows, critical components in fuel systems, must be paired with materials that withstand the unique stresses of their environment. Fuel compatibility is paramount; materials must resist corrosion, degradation, and permeability to ensure long-term reliability. Common materials like stainless steel (304/316 grades) and carbon steel are often used due to their strength and resistance to fuel-induced corrosion. However, even these materials require careful consideration of fuel type—ethanol blends, for instance, can accelerate corrosion in carbon steel, necessitating coatings or upgrades to more resistant alloys.
Selecting the right material involves more than just fuel resistance. Temperature fluctuations, pressure differentials, and vibration loads must also be factored in. For high-temperature applications, Inconel or Hastelloy alloys offer superior thermal stability and corrosion resistance, though at a higher cost. Conversely, in low-stress, ambient-temperature systems, less expensive materials like aluminum or coated steel may suffice, provided they meet fuel compatibility standards. Always consult material compatibility charts and conduct testing when introducing new fuels or operating conditions.
A critical yet often overlooked aspect is the compatibility of seals and gaskets used in swept fuel elbows. Elastomers like nitrile rubber (NBR) are commonly used for their fuel resistance, but they degrade over time, especially in biodiesel or ethanol blends. EPDM or Viton seals offer better longevity in such environments but come with higher initial costs. Regular inspection and replacement schedules are essential to prevent leaks, particularly in systems exposed to extreme temperatures or aggressive fuels.
Finally, consider the lifecycle impact of material choices. While exotic alloys provide unmatched performance, their extraction and manufacturing processes carry a higher environmental footprint. For applications where performance demands are less stringent, opting for recyclable materials like aluminum or coated steel can balance functionality with sustainability. Pairing material selection with proper maintenance—such as regular cleaning and corrosion monitoring—ensures swept fuel elbows remain "ok" for their intended use, minimizing downtime and maximizing system life.
Multitasking Sparks Creativity: Unlocking Original Thinking Through Diverse Focus
You may want to see also
Explore related products
Swept Fuel Elbow Installation Best Practices
Swept fuel elbows, when installed correctly, can significantly enhance fuel flow efficiency and reduce turbulence in high-performance engines. However, improper installation can lead to leaks, restricted flow, or even catastrophic failure. To ensure optimal performance, start by selecting a swept fuel elbow that matches your fuel line’s diameter and material compatibility. Stainless steel or aluminum elbows are preferred for their durability and corrosion resistance, especially in harsh environments. Always verify the elbow’s angle (typically 45° or 90°) aligns with your system’s requirements to minimize pressure drop.
During installation, cleanliness is paramount. Contaminants like dirt, debris, or metal shavings can obstruct fuel flow or damage internal components. Thoroughly clean all mating surfaces and use a high-quality fuel-resistant sealant on threaded connections. Torque fittings to manufacturer specifications—overtightening can deform the elbow, while undertightening risks leaks. For AN (Army-Navy) fittings, use a wrench to tighten the nut while holding the elbow body firmly to avoid twisting the fuel line.
Consider the orientation of the swept elbow in your fuel system. Position it to direct fuel flow smoothly, avoiding sharp bends that could cause cavitation or aeration. In systems with pulsating fuel pumps, install the elbow downstream to reduce stress on the fitting. For high-pressure applications, such as in turbo or supercharged engines, pair the elbow with a reinforced hose or rigid line to handle increased pressure spikes.
Regular inspection is critical to maintaining safety and performance. Check for signs of wear, corrosion, or leaks during routine maintenance. Replace elbows showing cracks, thinning walls, or excessive corrosion immediately. In racing or high-stress applications, inspect fuel lines and fittings after every event. Properly installed and maintained, swept fuel elbows are not only safe but also contribute to a more efficient and reliable fuel delivery system.
Efficient Fuel Conversion: Mastering KSP Fuel Switching Techniques
You may want to see also
Explore related products
Performance and Efficiency of Swept Fuel Elbows
Swept fuel elbows, often used in fuel injection systems, are designed to improve flow dynamics and reduce turbulence, which can significantly impact engine performance. Their unique shape—a gradual, curved bend—minimizes pressure drop compared to traditional sharp-angled elbows. This design is particularly beneficial in high-performance engines where fuel efficiency and consistent delivery are critical. For instance, in racing applications, swept elbows can enhance throttle response by ensuring a smoother fuel flow, reducing the risk of cavitation and air pockets that disrupt combustion.
To maximize the efficiency of swept fuel elbows, proper installation is key. Ensure the elbow aligns with the natural flow path of the fuel, avoiding sharp kinks or misalignments that could negate its benefits. Use high-quality fittings and torque to manufacturer specifications to prevent leaks. Regularly inspect for signs of wear or debris buildup, as even minor obstructions can compromise performance. For optimal results, pair swept elbows with a fuel filter capable of capturing particles smaller than 10 microns, as finer filtration complements the elbow’s flow-enhancing design.
A comparative analysis reveals that swept fuel elbows outperform standard elbows in both flow rate and pressure maintenance. In a bench test, a swept elbow demonstrated a 12% reduction in pressure drop at 60 psi compared to a 90-degree sharp elbow. This translates to more consistent fuel delivery, especially under high-demand conditions. However, the cost of swept elbows is typically 20-30% higher than traditional options, making them a strategic investment for performance-focused builds rather than everyday applications.
For those considering swept fuel elbows, start by assessing your engine’s specific needs. If you’re tuning for high RPMs or precision fuel delivery, the upgrade is justified. Conversely, for low-stress applications like daily commuting, the added cost may not yield noticeable benefits. Always consult your vehicle’s tuning guide or a professional mechanic to ensure compatibility with your fuel system. Practical tip: When upgrading, replace all elbows in the fuel line simultaneously to maintain uniformity and maximize efficiency gains.
Does Fuel Treatment Really Work? Uncovering the Truth and Benefits
You may want to see also
Explore related products
Common Issues with Swept Fuel Elbows
Swept fuel elbows, while designed to optimize fuel flow in high-performance engines, are not without their challenges. One common issue is fuel cavitation, which occurs when the elbow’s sharp bend creates a low-pressure zone, causing fuel to vaporize and form bubbles. These bubbles collapse violently downstream, leading to erosion in fuel injectors and pumps. In turbocharged or supercharged setups, where fuel pressure exceeds 60–80 PSI, this problem is exacerbated. To mitigate cavitation, consider using a larger-radius swept elbow (e.g., 1.5–2 times the fuel line diameter) or installing a dampening device like a fuel pressure regulator with a return line.
Another frequent problem is inconsistent fuel delivery due to the elbow’s geometry. Swept elbows, particularly those with tight bends, can create turbulent flow patterns that disrupt the even distribution of fuel. This inconsistency is especially critical in engines with high flow rates (over 100 LPH) or those using ethanol blends, which are more prone to phase separation under turbulent conditions. To address this, ensure the elbow’s sweep angle aligns with the fuel system’s flow direction and use a flow straightener or a short section of straight tubing post-elbow to stabilize the stream.
Material compatibility is a third concern, particularly in systems using alcohol-based fuels like E85. Many swept elbows are made from aluminum or mild steel, which can corrode rapidly when exposed to ethanol’s acidic properties. Over time, this corrosion leads to particulate contamination and potential blockages. For E85 setups, opt for elbows constructed from stainless steel (304 or 316 grade) or coated aluminum. Regularly inspect fuel lines and filters for debris, replacing components every 2–3 years in high-ethanol environments.
Lastly, installation errors often compound these issues. Improperly aligned or overtightened elbows can restrict flow or create stress points that lead to cracks under vibration. Always torque fittings to manufacturer specifications (typically 15–20 ft-lbs for AN fittings) and use thread sealant like Teflon tape or Loctite 565. Double-check alignment with a straightedge or laser tool to ensure the elbow’s sweep matches the fuel line’s natural path. Proper installation not only prevents leaks but also reduces the risk of cavitation and turbulence.
In summary, while swept fuel elbows offer aerodynamic advantages, their effectiveness hinges on addressing cavitation, flow consistency, material durability, and installation precision. By selecting the right components and following best practices, these issues can be minimized, ensuring reliable performance in demanding fuel systems.
Are Fuel Bowl Deletes Legal? Understanding the Regulations and Risks
You may want to see also
Frequently asked questions
Yes, swept fuel elbows are safe when properly installed and used with compatible materials for the specific fuel type.
Swept fuel elbows are designed to minimize flow restrictions compared to sharp elbows, but improper sizing or installation can still cause issues.
Swept fuel elbows are generally compatible with most fuels, but it’s essential to ensure the materials (e.g., aluminum, stainless steel) are suitable for the fuel being used.
Yes, swept fuel elbows reduce stress on fuel lines compared to sharp bends, lowering the risk of leaks when installed correctly.
Swept fuel elbows are legal in most jurisdictions, but always check local regulations and vehicle codes to ensure compliance.
