Installing a fuel gauge involves wiring it correctly to ensure accurate readings of your vehicle's fuel level. The process typically begins with identifying the gauge's sender unit, which is connected to the fuel tank, and the gauge itself, usually mounted on the dashboard. The sender unit measures the fuel level and sends an electrical signal to the gauge, which then displays the information. Wiring involves connecting the sender unit to the gauge using specific wires, often color-coded for ease of installation. It’s crucial to follow the manufacturer’s instructions or a wiring diagram to ensure proper connections, including grounding the gauge and sender unit to avoid inaccurate readings. Proper wiring not only ensures functionality but also prevents electrical issues that could damage the gauge or the vehicle’s electrical system.
| Characteristics | Values |
|---|---|
| Gauge Type | Analog or Digital (ensure compatibility with vehicle system) |
| Wiring Connections | Typically requires 3 wires: Power (12V), Ground, and Sender (from tank) |
| Power Source | 12V DC from vehicle battery or ignition switch |
| Ground Connection | Securely connected to vehicle chassis or ground terminal |
| Sender Unit | Must match gauge resistance range (e.g., 0-90 ohms or 240-33 ohms) |
| Resistance Range | Varies by gauge; common ranges are 0-90 ohms (full to empty) |
| Compatibility | Ensure gauge and sender unit are compatible in resistance and polarity |
| Calibration | May require adjustment for accurate readings (follow manufacturer guide) |
| Wiring Diagram | Refer to vehicle-specific or gauge manufacturer's diagram |
| Safety Precautions | Disconnect battery before wiring; avoid short circuits |
| Tools Required | Wire strippers, crimp connectors, multimeter, screwdriver |
| Testing | Test gauge functionality before securing connections |
| Common Issues | Incorrect sender resistance, loose connections, faulty gauge |
| Additional Components | Fuse (optional), relay (for high-power gauges), resistor (for calibration) |
| Installation Location | Dashboard or custom mount, ensuring visibility and accessibility |
Explore related products
What You'll Learn
- Understanding Fuel Gauge Components: Sender, gauge, wiring, and resistor function in fuel level measurement
- Testing Fuel Gauge Accuracy: Multimeter use to verify sender and gauge readings
- Wiring Diagram Basics: Interpreting diagrams for gauge and sender connections
- Grounding and Power Connections: Ensuring proper grounding and power supply for reliable operation
- Troubleshooting Common Issues: Diagnosing faulty senders, gauges, or wiring problems
Understanding Fuel Gauge Components: Sender, gauge, wiring, and resistor function in fuel level measurement
The fuel gauge in your vehicle is a critical component that relies on a precise interplay of parts to accurately measure and display fuel levels. At the heart of this system are four key components: the sender, the gauge, the wiring, and the resistor. Each plays a distinct role, and understanding their functions is essential for proper installation, troubleshooting, or repair.
Consider the sender unit, typically located inside the fuel tank. This component acts as the system’s eyes, translating the fuel level into an electrical signal. It consists of a float connected to a variable resistor, often called a rheostat. As the fuel level changes, the float moves, adjusting the resistance in the circuit. This variable resistance is proportional to the fuel level, creating a signal that the gauge interprets. For example, a full tank positions the float high, minimizing resistance, while an empty tank lowers the float, maximizing it. This mechanical-to-electrical conversion is the foundation of fuel level measurement.
Next, the wiring acts as the nervous system, transmitting the sender’s signal to the gauge. Proper wiring is critical for accuracy and safety. Most fuel gauge systems use a two-wire setup: one wire connects the sender to the gauge, carrying the variable resistance signal, while the other provides a ground reference. Voltage drop across the circuit, typically 0–10 volts or 0–90 ohms depending on the system, corresponds to the fuel level. Ensure wires are correctly matched to their terminals—reversed connections can lead to inaccurate readings or gauge failure. Additionally, use wiring rated for automotive environments to withstand vibration, heat, and fuel exposure.
The gauge itself is the user interface, converting the electrical signal into a visual representation. Analog gauges use a needle and dial, while digital gauges display numerical values or bars. Inside an analog gauge, a bimetallic strip or a small motor moves the needle based on the current flowing through the circuit. For instance, a full tank sends a high current, positioning the needle near "F," while a low current from an empty tank moves it to "E." Calibration is key here—mismatches between the sender’s resistance range and the gauge’s expected input can result in incorrect readings. Always verify compatibility between the sender and gauge specifications.
Finally, the resistor plays a subtle but vital role, particularly in systems using a fixed-resistance gauge. Some setups require an external resistor in the circuit to adjust the signal range. For example, if the sender’s resistance range is 0–90 ohms but the gauge expects 0–30 ohms, a series resistor can scale the signal appropriately. Calculate the required resistor value using Ohm’s Law: *R = (V / I) - R_sender*, where *V* is the system voltage, *I* is the current, and *R_sender* is the sender’s resistance. Practical tip: use a resistor with a wattage rating higher than the expected power dissipation to prevent overheating.
In summary, wiring a fuel gauge requires understanding the sender’s mechanical-to-electrical conversion, the wiring’s role in signal transmission, the gauge’s interpretation of that signal, and the resistor’s function in calibration. Each component’s proper function ensures accurate fuel level measurement, avoiding the frustration of a malfunctioning gauge or, worse, running out of fuel unexpectedly. Whether installing a new system or diagnosing issues, this knowledge empowers you to tackle the task with confidence.
How Fossil Fuels Form: Uncovering the Ancient Origins of Energy
You may want to see also
Explore related products
Testing Fuel Gauge Accuracy: Multimeter use to verify sender and gauge readings
A fuel gauge that reads inaccurately can lead to unexpected fuel shortages or overfilling, both of which are inconvenient and potentially costly. Verifying the accuracy of your fuel gauge using a multimeter ensures that the sender unit and gauge are functioning correctly, providing reliable readings. This process involves testing the sender unit’s resistance and comparing it to the gauge’s response, a methodical approach that requires precision and attention to detail.
To begin testing, disconnect the fuel gauge sender unit from the gauge and ensure the ignition is off to prevent electrical interference. Set your multimeter to the ohms (resistance) setting and connect the probes to the sender unit’s terminals. Gradually lower the float arm of the sender unit to simulate different fuel levels, noting the resistance values at key points (e.g., empty, quarter tank, half tank, full). Compare these readings to the specifications provided in your vehicle’s manual or the sender unit’s datasheet. For example, a typical sender unit might read 90 ohms when empty and 10 ohms when full. Deviations from these values indicate a faulty sender unit.
Next, test the fuel gauge itself by connecting the multimeter in series between the gauge and the sender unit’s ground. With the ignition on, observe the gauge’s movement as you manually adjust the sender unit’s float arm. The gauge should accurately reflect the resistance changes, moving from empty to full as the resistance decreases. If the gauge fails to respond correctly, the issue may lie in the gauge’s internal components or wiring. For instance, a gauge stuck at full might indicate a short circuit, while one stuck at empty could suggest an open circuit.
Practical tips include using a steady hand when adjusting the float arm to avoid erratic readings and ensuring the multimeter leads are securely connected to prevent inaccurate measurements. Additionally, if your vehicle uses a variable resistor sender unit, test the continuity of the resistor track to rule out cracks or breaks. For digital gauges, consult the manufacturer’s diagnostic procedures, as these often require specific voltage or resistance inputs for testing.
In conclusion, testing fuel gauge accuracy with a multimeter is a straightforward yet essential diagnostic procedure. By systematically verifying the sender unit’s resistance and the gauge’s response, you can pinpoint the source of inaccuracies and take corrective action. This approach not only saves time and money but also ensures your fuel gauge remains a dependable tool for monitoring your vehicle’s fuel levels.
Effective Solutions to Resolve Dirty Fuel Issues and Improve Performance
You may want to see also
Explore related products

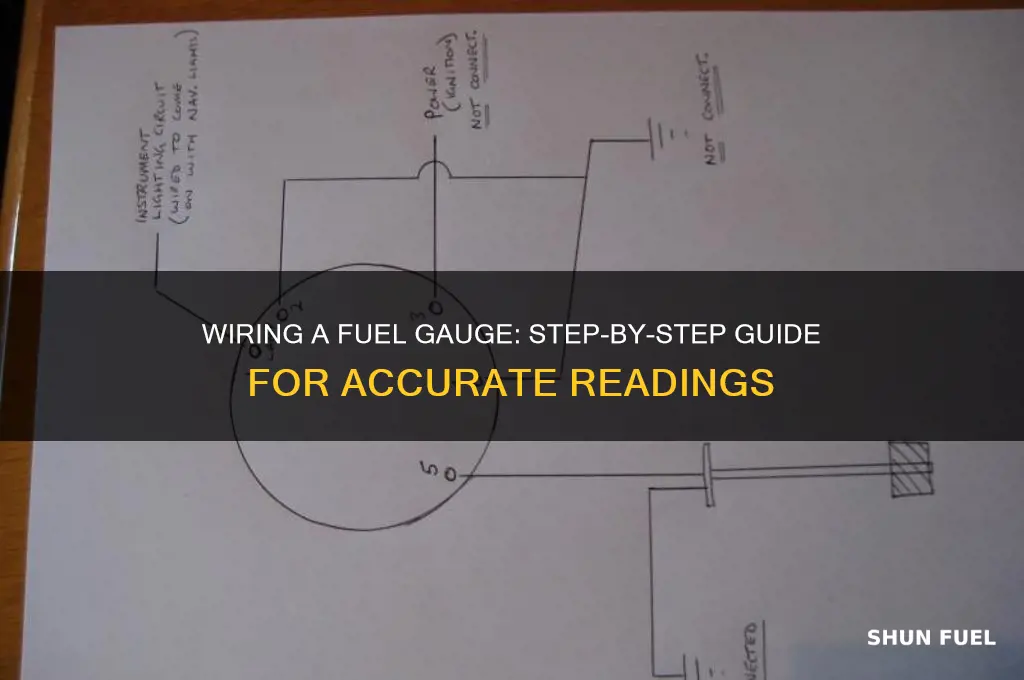

Wiring Diagram Basics: Interpreting diagrams for gauge and sender connections
