Ameer Randolph

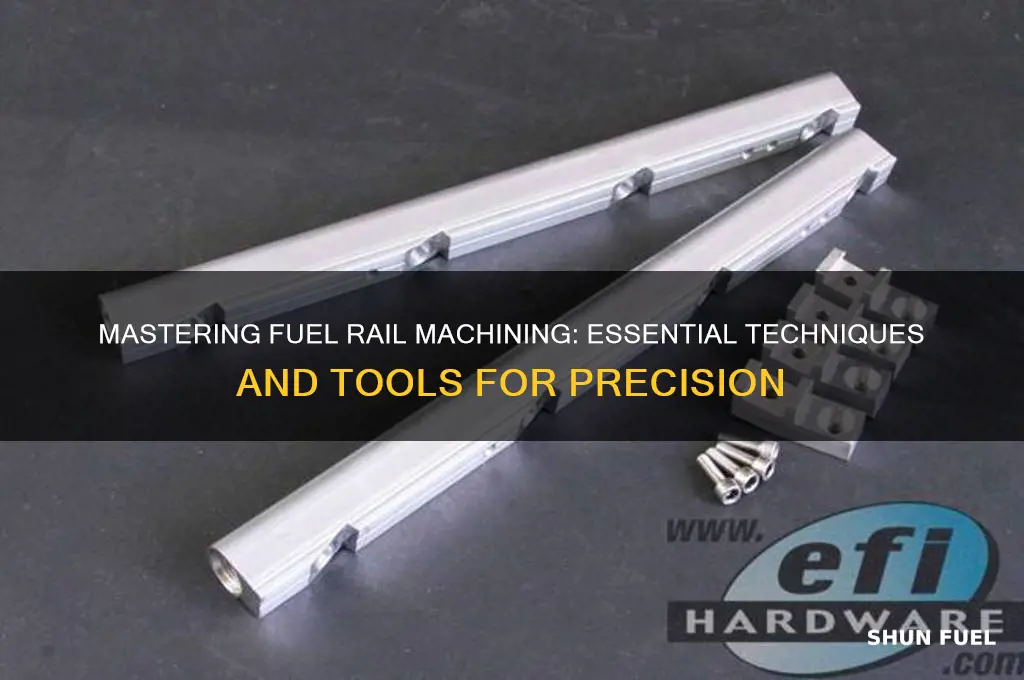

Machining a fuel rail requires precision and attention to detail to ensure optimal performance and safety in an engine system. The process typically begins with selecting the appropriate material, such as high-strength aluminum or stainless steel, which is then carefully measured and marked for cutting. Using CNC machining or manual milling techniques, the fuel rail is shaped to exact specifications, including the placement of injector ports and mounting points. Surface finishing, such as polishing or anodizing, is often applied to enhance durability and corrosion resistance. Throughout the process, strict adherence to tolerances and quality control checks is essential to guarantee proper fuel distribution and prevent leaks, making it a critical component in modern fuel injection systems.
| Characteristics | Values |
|---|---|
| Material | Typically aluminum or steel alloys (e.g., 6061-T6 aluminum, stainless steel) |
| Machining Processes | CNC milling, turning, drilling, tapping, and boring |
| Tolerances | ±0.02 mm (±0.0008 in) for critical dimensions (e.g., injector bores, mounting holes) |
| Surface Finish | Ra 0.8–1.6 μm (32–63 μin) for internal passages; Ra 0.4 μm (16 μin) for sealing surfaces |
| Coatings | Anodizing (aluminum) or zinc plating (steel) for corrosion resistance |
| Pressure Rating | Designed to withstand 50–100 bar (725–1450 psi) fuel pressure |
| Injector Compatibility | Precision-machined bores to match OEM injector diameters (e.g., 12–14 mm) |
| Sealing Mechanism | O-ring grooves with tight tolerances (e.g., ±0.01 mm) for leak-free operation |
| Mounting Features | Threaded holes (M8–M10) and alignment pins for secure engine mounting |
| Weight | 0.5–1.5 kg (1.1–3.3 lbs) depending on material and design |
| Thermal Expansion | Compensated for temperature variations (-40°C to 120°C) |
| Testing Standards | ISO 16750 (road vehicles) or SAE J2267 for fuel system components |
| Lifespan | 150,000–200,000 km (93,000–124,000 miles) under normal operating conditions |
| Cost | $50–$200 USD per unit, depending on material and complexity |
| Environmental Compliance | RoHS and REACH compliant for automotive applications |
Explore related products
What You'll Learn
- Materials Selection: Choose corrosion-resistant materials like stainless steel or aluminum for durability and fuel compatibility
- Design Considerations: Optimize rail design for even fuel distribution and pressure regulation
- Machining Techniques: Use CNC milling and drilling for precision and consistency in rail production
- Surface Finishing: Apply anodizing or coating to enhance resistance to fuel and environmental factors
- Quality Control: Inspect for leaks, dimensional accuracy, and pressure integrity to ensure safety and performance
Materials Selection: Choose corrosion-resistant materials like stainless steel or aluminum for durability and fuel compatibility
Corrosion is the silent killer of fuel rail systems, leading to leaks, reduced performance, and costly repairs. Selecting the right materials is the first line of defense. Stainless steel and aluminum are the champions here, offering exceptional resistance to the corrosive effects of modern fuels, including ethanol blends. Stainless steel, with its chromium oxide layer, provides a passive barrier against rust and chemical attack. Aluminum, while lighter, boasts natural corrosion resistance due to its oxide coating. Both materials ensure the fuel rail's longevity, even in harsh environments.
When machining fuel rails, prioritize materials that can withstand the harsh realities of fuel exposure. Stainless steel, particularly grades like 304 or 316, offers excellent corrosion resistance due to its chromium content, which forms a protective oxide layer. Aluminum, while lighter, is also a viable option, especially when anodized to enhance its natural corrosion resistance. Avoid materials like carbon steel, which are prone to rust and degradation in fuel environments. The choice of material directly impacts the fuel rail's lifespan and performance, making it a critical decision in the machining process.
Consider the fuel type when selecting materials. Ethanol-blended fuels, for instance, are more aggressive and require materials with higher corrosion resistance. Stainless steel, with its ability to withstand both ethanol and gasoline, is often the preferred choice. Aluminum, while lighter and cost-effective, may require additional surface treatments like anodizing to enhance its durability in such environments. The compatibility of the material with the fuel ensures not only longevity but also safety, as corrosion can lead to leaks and potential hazards.
Machining corrosion-resistant materials like stainless steel and aluminum requires specific techniques. Stainless steel, being harder, demands sharp carbide tools and lower cutting speeds to avoid excessive heat buildup, which can lead to tool wear and material hardening. Aluminum, though softer, can cause chip buildup and requires high spindle speeds and proper coolant to ensure smooth cutting. Understanding these material properties ensures precision and efficiency in the machining process, ultimately contributing to the quality and reliability of the fuel rail.
The investment in corrosion-resistant materials pays off in the long run. While stainless steel and aluminum may have higher upfront costs compared to less durable materials, their resistance to corrosion and compatibility with modern fuels reduce maintenance and replacement needs. This not only lowers operational costs but also enhances the overall reliability of the fuel system. By choosing the right materials, you ensure a fuel rail that performs optimally, even in demanding conditions, making it a smart choice for both performance and longevity.
Does Your Fuel Door Really Matter? Exploring Its Importance and Function
You may want to see also
Explore related products
Design Considerations: Optimize rail design for even fuel distribution and pressure regulation
Achieving uniform fuel distribution and precise pressure regulation in a fuel rail design is critical for engine performance and efficiency. The rail's geometry plays a pivotal role in this, as it directly influences the flow dynamics of the fuel. A well-designed fuel rail should minimize pressure drops and ensure consistent fuel delivery to each injector. This involves careful consideration of the rail's internal diameter, length, and the placement of ports. For instance, a larger internal diameter can reduce flow restriction, but it must be balanced with the rail's structural integrity and the available space within the engine bay.
One effective strategy is to incorporate a tapered design, where the rail's diameter gradually increases towards the areas with higher fuel demand. This approach helps maintain a steady pressure gradient along the rail, ensuring that each injector receives the required amount of fuel. Additionally, the use of baffles or internal dividers can further enhance flow uniformity by preventing fuel from accumulating in certain sections. These features are particularly beneficial in high-performance engines where fuel demand varies significantly under different operating conditions.
Material selection is another crucial aspect of optimizing fuel rail design. Lightweight yet durable materials, such as aluminum alloys or stainless steel, are preferred for their ability to withstand high pressures and corrosive fuels. The choice of material also impacts the rail's thermal conductivity, which can affect fuel temperature and, consequently, its vaporization rate. For example, aluminum's high thermal conductivity can help dissipate heat more efficiently, reducing the risk of fuel vapor lock. However, it may require additional coatings to enhance corrosion resistance.
Incorporating pressure regulators and dampeners into the fuel rail design can further refine pressure control. These components work in tandem to absorb pressure fluctuations and maintain a stable fuel supply. Pressure regulators should be calibrated to operate within a specific range, typically between 35 and 60 psi for gasoline engines, to ensure optimal performance. Dampeners, on the other hand, can be designed with specific volumes and spring rates to suit the engine's fuel requirements, providing an additional layer of pressure stabilization.
Finally, the manufacturing process itself can significantly impact the rail's performance. Precision machining techniques, such as CNC milling and drilling, are essential for achieving the tight tolerances required for even fuel distribution. Post-machining treatments, like anodizing or passivation, can enhance the rail's durability and resistance to wear. Regular quality checks, including pressure testing and flow analysis, should be conducted to verify that the rail meets the desired specifications. By integrating these design considerations, engineers can create fuel rails that not only optimize engine performance but also ensure reliability and longevity.
LED Headlights: Fuel Efficiency Benefits and Energy Savings Explained
You may want to see also
Explore related products
Machining Techniques: Use CNC milling and drilling for precision and consistency in rail production
CNC milling and drilling stand as the cornerstone of modern fuel rail production, offering unparalleled precision and consistency that traditional methods cannot match. Fuel rails, critical components in fuel injection systems, demand exacting tolerances to ensure optimal engine performance and safety. CNC machines achieve this by following digitally programmed instructions, eliminating human error and variability. For instance, a typical fuel rail requires ports drilled to within ±0.02 mm of the specified diameter, a task CNC drilling accomplishes with ease. This level of accuracy ensures a tight seal between the rail and injectors, preventing fuel leaks and maintaining system efficiency.
The process begins with selecting the appropriate CNC tools and materials. High-speed steel or carbide end mills are ideal for milling the rail’s body, while precision drill bits handle the injector ports. Aluminum alloys, such as 6061-T6, are commonly used for fuel rails due to their lightweight and corrosion-resistant properties. Once the material is secured in the CNC machine, the milling operation shapes the rail’s exterior profile, creating a smooth, uniform surface. Drilling follows, with the machine executing a series of holes at precise intervals and depths. For example, a 4-cylinder engine’s fuel rail might require four ports spaced 60 mm apart, each drilled to a depth of 25 mm.
One of the key advantages of CNC machining is its ability to maintain consistency across large production runs. Unlike manual methods, CNC machines operate with the same precision from the first rail to the thousandth. This consistency is vital in automotive manufacturing, where even minor deviations can lead to performance issues or recalls. Additionally, CNC machines can be programmed to incorporate design changes rapidly, allowing manufacturers to adapt to evolving engine specifications without significant downtime.
However, achieving optimal results requires careful setup and monitoring. Tool wear, for instance, can introduce inaccuracies over time. Regularly inspecting and replacing cutting tools ensures dimensional integrity. Coolant usage is another critical factor; proper lubrication reduces friction and heat buildup, prolonging tool life and maintaining surface finish quality. Operators should also verify machine calibration before each run, as even minor misalignments can compromise precision.
In conclusion, CNC milling and drilling are indispensable techniques for machining fuel rails, offering the precision and consistency required for high-performance applications. By leveraging advanced tooling, robust materials, and meticulous process control, manufacturers can produce fuel rails that meet stringent automotive standards. Whether for small-scale prototyping or large-scale production, CNC technology remains the gold standard in fuel rail machining.
Nitrile Fuel Resistance: Durability, Applications, and Performance Insights
You may want to see also
Explore related products
Surface Finishing: Apply anodizing or coating to enhance resistance to fuel and environmental factors
Anodizing and coating are critical surface finishing techniques that significantly enhance the durability and performance of fuel rails, especially in harsh environments. These processes create a protective layer that resists corrosion, wear, and chemical degradation from fuel and external elements. Anodizing, for instance, involves electrolytically oxidizing the surface of aluminum fuel rails to form a hard, porous oxide layer. This layer can be further sealed or dyed to improve its resistance to fuels like ethanol and methanol, which are common in modern blends. Coatings, such as Teflon or ceramic, provide an additional barrier against abrasion and temperature fluctuations, ensuring the fuel rail maintains its integrity over time.
When applying anodizing, the process begins with thorough cleaning of the fuel rail to remove oils, grease, and contaminants. The part is then submerged in an acid electrolyte bath and subjected to an electric current, which causes the aluminum surface to oxidize. The thickness of the anodized layer can be controlled by adjusting factors like voltage, current density, and processing time. For fuel rails, a Type III hard anodizing process is often recommended, producing a layer thickness of 25–50 micrometers. This thickness provides optimal resistance to fuel additives and environmental stressors without compromising the part’s dimensional accuracy.
Coatings, on the other hand, offer versatility in material selection and application methods. Powder coating, for example, involves electrostatically applying a dry powder to the fuel rail, followed by curing at temperatures around 200°C. This method creates a uniform, durable finish that resists chipping and cracking. Alternatively, thermal spraying can be used to apply materials like zinc or aluminum, providing excellent corrosion resistance in high-humidity environments. For fuel rails exposed to extreme temperatures, ceramic coatings are ideal due to their thermal stability and low thermal conductivity.
One practical tip is to ensure compatibility between the surface finish and the fuel rail’s material. Aluminum fuel rails, for instance, benefit most from anodizing, while steel or stainless steel rails may require coatings like epoxy or zinc plating. Additionally, post-finishing treatments such as sealing or topcoating can further enhance performance. For example, a nickel acetate sealant can be applied to anodized surfaces to fill pores and improve chemical resistance. Always consult material compatibility charts and conduct testing to verify the finish’s effectiveness in specific fuel and environmental conditions.
In conclusion, surface finishing through anodizing or coating is not just an aesthetic upgrade but a functional necessity for fuel rails. By selecting the appropriate technique and parameters, manufacturers can ensure longevity, reliability, and safety in demanding applications. Whether it’s resisting corrosive fuel blends or withstanding extreme temperatures, the right surface finish transforms a fuel rail from a vulnerable component into a robust, high-performance part.
Unveiling the Sun's Power: The Nuclear Fusion Fueling Our Star
You may want to see also
Explore related products
Quality Control: Inspect for leaks, dimensional accuracy, and pressure integrity to ensure safety and performance
Leak detection is the first line of defense in fuel rail quality control. Even a pinhole-sized breach can lead to fuel loss, performance issues, and safety hazards. Utilize a combination of visual inspection, pressure testing, and dye penetrant methods to identify leaks. For pressure testing, maintain a consistent pressure of 60-80 psi for at least 15 minutes, monitoring for any pressure drop. Dye penetrant testing, using a fluorescent or visible dye, can reveal microscopic cracks or imperfections that might otherwise go unnoticed.
Dimensional accuracy is critical for proper fitment and functionality. Use precision measuring tools such as calipers, micrometers, and coordinate measuring machines (CMMs) to verify that the fuel rail’s dimensions meet the specified tolerances, typically within ±0.002 inches. Pay particular attention to the injector bores, mounting points, and fuel inlet ports, as deviations in these areas can lead to misalignment, leaks, or inefficient fuel delivery. A single out-of-spec dimension can render the entire component unusable, underscoring the need for meticulous measurement.
Pressure integrity ensures the fuel rail can withstand the extreme conditions of modern engines. Subject the component to a hydrostatic pressure test at 1.5 times the maximum operating pressure, typically around 120-150 psi, for a minimum of 30 minutes. Inspect for deformation, cracking, or leakage during and after testing. Additionally, perform a burst test to determine the rail’s failure point, which should exceed the engine’s maximum pressure by a significant margin. This step is non-negotiable, as a compromised fuel rail under pressure can lead to catastrophic engine failure or fire.
Safety and performance are intertwined in fuel rail quality control. A defective rail not only risks engine damage but also poses a fire hazard, especially in high-temperature environments. Implement a multi-stage inspection process: initial visual checks, dimensional verification, pressure testing, and final leak detection. Document all findings and reject any component that fails to meet standards. For manufacturers, investing in automated inspection systems can enhance consistency and reduce human error. For enthusiasts or mechanics, always cross-reference measurements against OEM specifications and use certified testing equipment to ensure reliability.
Practical tips for effective quality control include maintaining a clean inspection environment to prevent contamination, calibrating measuring tools regularly, and training personnel to recognize subtle defects. For pressure testing, use a regulated air or hydraulic system with a pressure gauge accurate to ±1 psi. When inspecting for leaks, apply a soapy water solution to suspected areas; bubbles will indicate escaping gas. Finally, store fuel rails in a controlled environment to prevent corrosion or damage before installation. Rigorous quality control is not just a step—it’s a commitment to safety and performance.
Exploring Alternative Fuel Vehicles: Eco-Friendly Transportation Options for a Greener Future
You may want to see also
Frequently asked questions
A fuel rail is a component in fuel injection systems that distributes fuel to the injectors. Machining a fuel rail is necessary to ensure precise fitment, proper sealing, and optimal fuel flow, especially when customizing or repairing fuel systems.
Machining a fuel rail typically requires tools such as a lathe, milling machine, drill press, and precision measuring instruments like calipers and micrometers. Additionally, cutting fluids and appropriate cutting tools (e.g., carbide inserts) are essential.
Fuel rails are commonly made from aluminum, stainless steel, or mild steel. Aluminum is easier to machine but requires careful attention to avoid overheating. Stainless steel and mild steel are harder and require sharper tools and slower cutting speeds.
Yes, safety precautions include wearing protective gear (e.g., safety glasses, gloves), ensuring proper ventilation to avoid inhaling fumes, and securely clamping the workpiece to prevent accidents. Additionally, avoid sparks near fuel residue, as it can be flammable.
