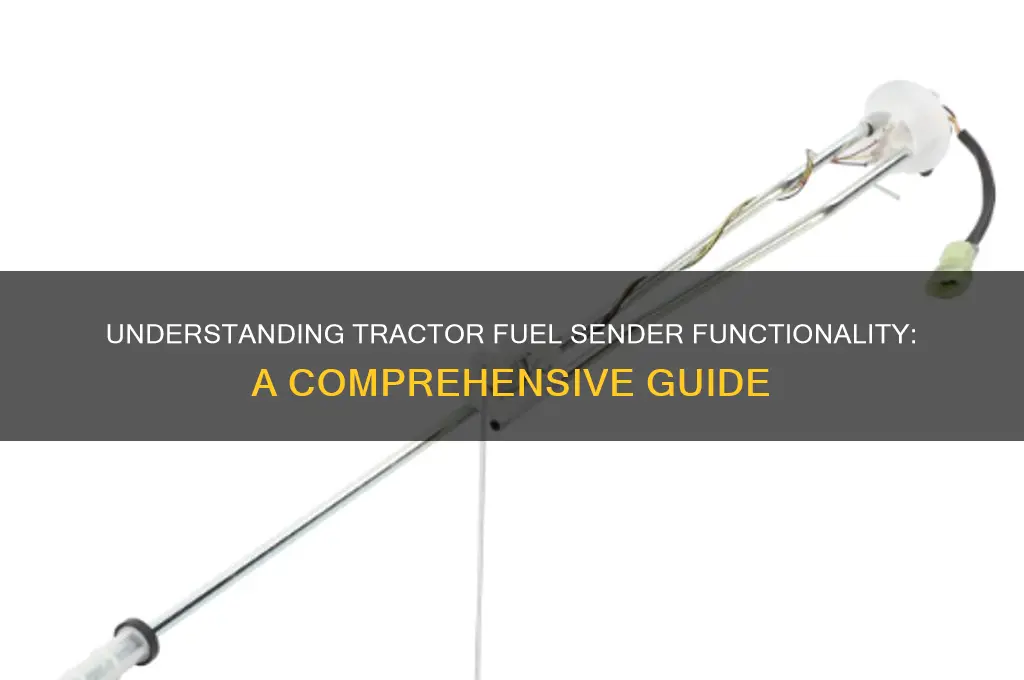

A tractor fuel sender is a crucial component in the fuel system, responsible for accurately measuring and transmitting the fuel level in the tank to the gauge on the dashboard. It typically consists of a float connected to a variable resistor, which moves up and down with the fuel level. As the float rises or falls, it adjusts the resistance in the circuit, sending an electrical signal to the fuel gauge. This signal is then interpreted to display the current fuel level to the operator. Understanding how a tractor fuel sender works is essential for maintaining proper fuel management, ensuring the tractor operates efficiently, and preventing unexpected fuel shortages during operation.
| Characteristics | Values |
|---|---|
| Function | Measures and sends fuel level data to the tractor's gauge or ECU. |
| Components | Float, arm, resistor, wiring harness, and sender unit housing. |
| Operating Principle | The float moves with fuel level, adjusting the resistance in the circuit. |
| Resistance Range | Typically 0–90 ohms (empty to full, varies by model). |
| Power Source | 12V or 24V DC from the tractor's electrical system. |
| Compatibility | Specific to tractor make and model (e.g., John Deere, Massey Ferguson). |
| Material | Durable plastics or metals (e.g., stainless steel) for corrosion resistance. |
| Installation Location | Inside the fuel tank, often accessible via a dedicated sender port. |
| Failure Symptoms | Inaccurate fuel gauge readings, gauge stuck on empty/full, or no reading. |
| Maintenance | Periodic inspection for corrosion, leaks, or damaged wiring. |
| Replacement Interval | As needed, typically when gauge readings become unreliable. |
| Technology | Analog (resistive) or digital (CAN bus in modern tractors). |
| Environmental Considerations | Designed to withstand fuel types (diesel, gasoline) and tank conditions. |
| Cost | $50–$200 USD (varies by brand and complexity). |
Explore related products
What You'll Learn
- Fuel Tank Components: Sender unit, float, arm, resistor, wiring, and gauge connections
- Float Mechanism: Buoyant float adjusts resistance based on fuel level in the tank
- Resistance Variation: Fuel level changes resistance, signaling the gauge for accurate reading
- Electrical Circuit: Sender unit sends variable resistance signal to the fuel gauge
- Gauge Display: Interprets resistance changes to show fuel level on the dashboard
Fuel Tank Components: Sender unit, float, arm, resistor, wiring, and gauge connections
The sender unit is the heart of a tractor's fuel gauge system, a compact assembly mounted inside the fuel tank. It’s a multitasker, combining mechanical and electrical components to translate fuel level into a readable gauge display. At its core, the sender unit houses a float, an arm, and a variable resistor. As fuel levels change, the float rises or falls, pivoting the arm across the resistor. This movement alters the electrical resistance, which the gauge interprets as a specific fuel level. Think of it as a seesaw: one end (the float) responds to fuel, while the other (the resistor) sends a signal to the dashboard.
Consider the float, a buoyant component typically made of foam or plastic, designed to sit atop the fuel surface. Its shape and material are critical—too heavy, and it sinks prematurely; too light, and it’s inaccurate. The arm, often a thin metal rod, connects the float to the resistor. Its length and pivot point ensure precise movement across the resistor’s range. For example, a full tank positions the arm at one end of the resistor, while an empty tank moves it to the other. This mechanical simplicity is key to the system’s reliability, even in harsh agricultural environments.
The resistor is where the magic happens—a variable resistor (rheostat) that changes resistance as the arm moves. When the tank is full, the resistor’s resistance is low, sending a high current to the gauge, which reads "Full." As fuel decreases, resistance increases, reducing current and moving the gauge needle toward "Empty." This analog system is straightforward but requires proper calibration. A misaligned resistor or worn components can lead to inaccurate readings, so periodic inspection is essential.
Wiring connects the sender unit to the fuel gauge, forming a closed circuit. Typically, two wires are involved: one for ground and one for the variable signal. Poor connections or corroded wires are common culprits for gauge malfunctions. For instance, a loose ground wire can cause the gauge to fluctuate or read empty when the tank is full. To troubleshoot, start by checking wire integrity and ensuring clean connections. If the gauge still misbehaves, the sender unit itself may need replacement.
Finally, the gauge on the dashboard is the user interface, translating electrical signals into a visual fuel level. Modern tractors may use digital gauges, but traditional analog gauges remain prevalent. Calibration between the sender unit and gauge is crucial—a mismatch can lead to confusion. For example, if the sender unit’s resistor range doesn’t align with the gauge’s scale, a half-full tank might read as three-quarters. Always consult the tractor’s manual for calibration procedures or seek professional assistance if adjustments are needed. Understanding these components ensures accurate fuel monitoring, preventing unexpected downtime in the field.
Mastering Viecraft Airship Fueling: Essential Tips for Efficient Flight
You may want to see also
Explore related products
Float Mechanism: Buoyant float adjusts resistance based on fuel level in the tank
The float mechanism in a tractor's fuel sender is a marvel of simplicity and reliability, leveraging the principles of buoyancy to accurately measure fuel levels. At its core, the system consists of a buoyant float connected to a variable resistor. As the fuel level rises or falls, the float moves accordingly, altering the resistance in the circuit. This change in resistance is then translated into a fuel gauge reading, providing the operator with real-time information about the tank's contents. The beauty of this design lies in its ability to function without complex electronics, making it durable and cost-effective for agricultural machinery.
To understand how this works in practice, imagine a cylindrical fuel tank with a float mechanism installed at the bottom. The float, typically made of a lightweight material like foam or plastic, is designed to displace a specific volume of fuel. As the tank fills, the float rises, pulling a lever or arm connected to a variable resistor. This resistor is part of an electrical circuit that sends a signal to the fuel gauge. When the tank is full, the float is at its highest point, and the resistance is at its minimum, indicating a full tank. Conversely, when the tank is empty, the float rests at the bottom, maximizing resistance and signaling an empty tank.
One critical aspect of maintaining this system is ensuring the float remains free of debris and fuel contaminants. Over time, sediment or sludge can accumulate in the tank, potentially causing the float to stick or move inaccurately. Regularly cleaning the fuel tank and using a fuel filter can mitigate this issue. Additionally, inspect the float arm for wear or corrosion, as these can lead to false readings. For optimal performance, consider replacing the fuel sender unit every 5–7 years, depending on usage and environmental conditions.
Comparing the float mechanism to modern digital fuel level sensors highlights its strengths and limitations. While digital sensors offer greater precision and can integrate with advanced tractor systems, they are more expensive and prone to electronic failure. The float mechanism, on the other hand, is robust and easy to troubleshoot. For instance, if the fuel gauge reads inaccurately, the issue often lies in the float's movement or the resistor's condition—problems that can be diagnosed with basic tools and minimal technical knowledge.
In conclusion, the float mechanism in a tractor's fuel sender is a testament to the effectiveness of mechanical ingenuity. By relying on buoyancy and a variable resistor, it provides a straightforward yet reliable way to monitor fuel levels. Proper maintenance, such as regular tank cleaning and periodic inspections, ensures its longevity. While newer technologies offer advanced features, the float mechanism remains a trusted solution for farmers and operators who value simplicity and durability in their equipment.
Is Kerosene a Primary Fuel? Exploring Its Role and Uses
You may want to see also
Explore related products
Resistance Variation: Fuel level changes resistance, signaling the gauge for accurate reading
Fuel senders in tractors rely on a simple yet ingenious principle: resistance variation. As the fuel level rises or falls, a float connected to a variable resistor moves accordingly. This resistor, typically a resistive track, alters its resistance based on the float's position. When the tank is full, the float is at its highest point, minimizing the resistance. Conversely, an empty tank positions the float at its lowest, maximizing resistance. This dynamic resistance change is the key to accurate fuel level readings.
Understanding this mechanism is crucial for troubleshooting. If your fuel gauge reads inaccurately, the culprit might be a worn-out resistive track or a malfunctioning float. To diagnose, disconnect the sender and measure the resistance at different float positions using a multimeter. A healthy sender should exhibit a smooth, linear resistance change from near-zero ohms (full) to the specified maximum (empty). For instance, a common tractor sender might range from 0 to 90 ohms. Deviations indicate a need for replacement or recalibration.
From an engineering perspective, the design of the resistive track is a marvel of simplicity. It’s often a printed carbon track on a ceramic substrate, durable enough to withstand fuel exposure and temperature fluctuations. The float, usually made of foam or plastic, is engineered to displace minimal fuel while maintaining buoyancy across varying fuel densities. Together, these components ensure a reliable signal to the gauge, translating physical fuel level into an electrical resistance value.
For tractor owners, knowing how resistance variation works can save time and money. Regularly inspect the sender unit for corrosion or debris, as these can interfere with the resistive track’s performance. If replacing the sender, ensure compatibility with your tractor’s gauge, as mismatched resistance ranges (e.g., 0-30 ohms vs. 0-90 ohms) will result in incorrect readings. Additionally, when installing a new sender, calibrate the gauge by manually adjusting the float arm to match the tank’s physical dimensions for optimal accuracy.
In practice, resistance variation is a silent hero in fuel sender technology. It bridges the physical world of fuel levels with the electrical realm of gauges, providing real-time data without complex electronics. By grasping this concept, tractor operators can better maintain their equipment, ensuring they’re never caught off guard by an empty tank. Whether diagnosing issues or upgrading components, this understanding empowers users to keep their machines running smoothly.
Powering the Stars: Mastering Rocket Fuel for Space Exploration
You may want to see also
Explore related products
Electrical Circuit: Sender unit sends variable resistance signal to the fuel gauge
The fuel sender unit in a tractor is a critical component that communicates the fuel level to the driver via the fuel gauge. At its core, this system relies on a variable resistance signal generated by the sender unit. As the fuel level changes, a float attached to a resistive element moves, altering the electrical resistance in the circuit. This variable resistance is directly proportional to the fuel level, providing a precise measurement that the fuel gauge interprets. Understanding this mechanism is key to diagnosing and maintaining the fuel level indicator system.
To grasp how this works, consider the electrical circuit connecting the sender unit to the fuel gauge. The sender unit typically consists of a resistive track and a wiper arm connected to the float. When the fuel tank is full, the float rises, positioning the wiper arm at the high end of the resistive track, resulting in minimal resistance. As fuel levels drop, the float descends, increasing the resistance in the circuit. This variable resistance signal is sent to the fuel gauge, which translates it into a visual indicator on the dashboard. The simplicity of this design ensures reliability, even in the harsh conditions tractors often operate in.
One practical tip for troubleshooting this system is to measure the resistance across the sender unit’s terminals with a multimeter. With the tank empty, the resistance should be at its maximum (e.g., 240 ohms), and when full, it should drop to its minimum (e.g., 0 ohms). If the readings are inconsistent, the sender unit may be faulty and require replacement. Additionally, ensure the grounding of the sender unit is secure, as poor grounding can lead to inaccurate gauge readings. Regularly inspecting these components can prevent unexpected failures during critical operations.
Comparing this system to modern digital fuel level sensors highlights the elegance of its simplicity. While digital sensors offer higher precision and additional features like fuel consumption tracking, the variable resistance sender unit remains cost-effective and durable. For tractor owners, this means fewer electronic components to fail and easier diagnostics. However, it’s essential to calibrate the fuel gauge periodically, especially after replacing the sender unit, to ensure accurate readings. This balance of simplicity and functionality makes the variable resistance sender unit a staple in tractor fuel systems.
In conclusion, the electrical circuit linking the sender unit to the fuel gauge is a straightforward yet ingenious solution for monitoring fuel levels. By sending a variable resistance signal, the sender unit provides real-time data that the gauge translates into actionable information for the operator. Whether you’re maintaining an older tractor or troubleshooting a modern model, understanding this mechanism empowers you to keep the fuel system operating smoothly. With proper care and occasional checks, this system will continue to serve reliably for years to come.
Is VP Fuel Worth It? Performance, Quality, and User Reviews Explained
You may want to see also
Explore related products
Gauge Display: Interprets resistance changes to show fuel level on the dashboard
The fuel gauge on a tractor's dashboard is a critical component that relies on interpreting resistance changes from the fuel sender to accurately display the fuel level. This process begins with the fuel sender, a device submerged in the fuel tank, which contains a float connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance in the circuit. This variable resistance is the key signal that the gauge uses to determine and display the fuel level.
Understanding how the gauge interprets these resistance changes is essential for troubleshooting and maintenance. The gauge itself is essentially a galvanometer, calibrated to respond to specific resistance ranges. When the fuel tank is full, the float is at its highest position, causing the resistor to have minimal resistance. This sends a high current to the gauge, which displays a full tank. Conversely, when the tank is empty, the float drops, increasing the resistance and reducing the current, which the gauge interprets as an empty tank. The needle on the gauge moves proportionally to the resistance changes, providing a real-time visual representation of the fuel level.
One practical tip for tractor owners is to periodically check the accuracy of the fuel gauge. If the gauge consistently reads incorrectly, it may indicate a problem with the fuel sender or the gauge itself. For instance, if the gauge reads full even when the tank is empty, the float might be stuck, or the resistor could be faulty. To diagnose, disconnect the sender and manually apply known resistance values to the gauge using a multimeter. If the gauge responds accurately, the issue likely lies with the sender; if not, the gauge may need replacement.
Comparing the fuel gauge system in tractors to that in modern vehicles highlights both similarities and differences. While both systems rely on variable resistance, newer vehicles often incorporate digital displays and more sophisticated sensors. Tractors, however, typically use analog gauges due to their simplicity and reliability in rugged environments. This makes them easier to repair and less prone to electronic failures, which is particularly important in agricultural settings where downtime can be costly.
In conclusion, the fuel gauge’s ability to interpret resistance changes from the fuel sender is a straightforward yet ingenious mechanism. By understanding this process, tractor owners can better maintain their equipment and ensure accurate fuel level readings. Regular checks and basic troubleshooting can prevent unexpected breakdowns, keeping operations running smoothly. This system, though simple, remains a vital component of tractor functionality, bridging the gap between mechanical operation and user-friendly display.
How Low Can Fuel Prices Go? Exploring the Future of Cheap Energy
You may want to see also
Frequently asked questions
A tractor fuel sender is a component of the fuel gauge system that measures the amount of fuel in the tank. It consists of a float connected to a variable resistor, which sends an electrical signal to the fuel gauge, indicating the fuel level.
The fuel sender works by using a float that rises and falls with the fuel level in the tank. As the float moves, it adjusts the position of a wiper on a variable resistor, changing the resistance. This change in resistance is converted into an electrical signal that the fuel gauge interprets to display the fuel level.
Common issues include inaccurate fuel readings, a stuck float, or a faulty resistor. These problems can often be fixed by cleaning the sender unit, replacing the float, or installing a new fuel sender assembly if the component is damaged beyond repair.
