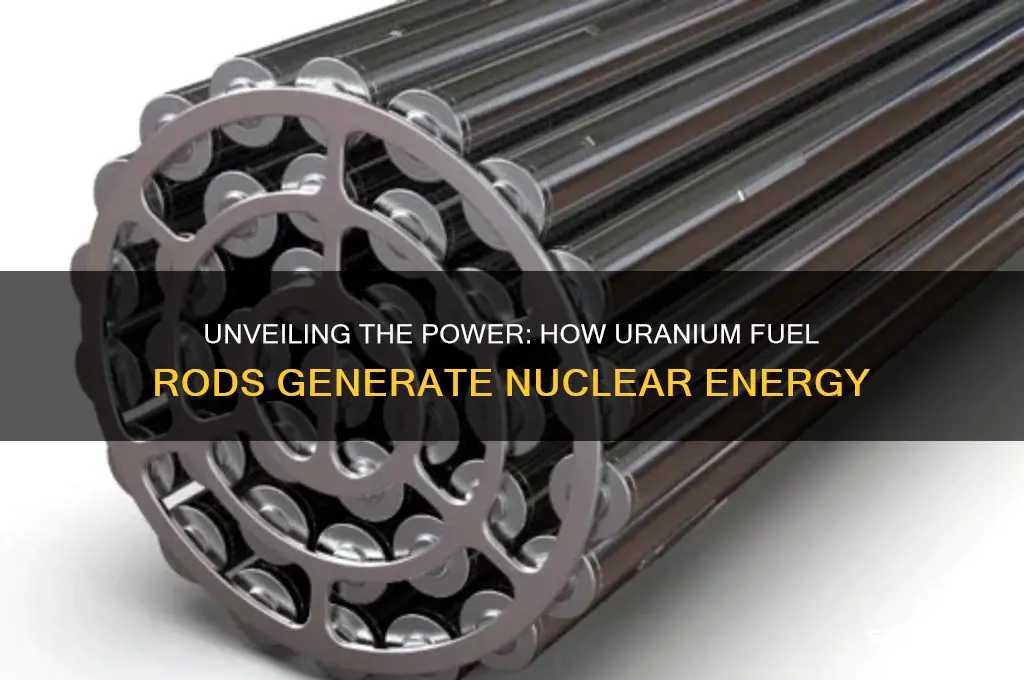

Uranium fuel rods are the backbone of nuclear power generation, serving as the primary source of fuel in nuclear reactors. These slender, cylindrical rods are typically made of a zirconium alloy cladding that houses ceramic pellets of uranium dioxide (UO₂), which contains the fissile isotope uranium-235 (U-235). When neutrons strike the U-235 atoms, they split in a process called nuclear fission, releasing a tremendous amount of energy in the form of heat. This heat is transferred to a coolant, such as water, which then produces steam to drive turbines and generate electricity. The zirconium cladding is crucial as it prevents radioactive materials from escaping while withstanding extreme temperatures and pressures within the reactor core. The efficiency and safety of uranium fuel rods make them a cornerstone of modern nuclear energy production.
Explore related products
What You'll Learn
Uranium Mining and Processing
Uranium mining begins with the extraction of uranium ore from the earth, a process that varies depending on the deposit’s depth and concentration. Open-pit mining is common for shallow, high-grade ores, where large amounts of rock are removed to access the uranium. For deeper deposits, underground mining is used, involving tunnels and shafts to extract the ore. In situ recovery (ISR), a less invasive method, involves injecting a leaching solution into the ore body to dissolve uranium, which is then pumped to the surface. This method accounts for over 50% of global uranium production and is particularly efficient for low-grade deposits. The choice of method depends on environmental impact, cost, and ore characteristics, with ISR being the most cost-effective but limited to specific geological conditions.
Once extracted, the uranium ore undergoes milling to separate the uranium from the rock. This process starts with crushing the ore into fine particles, followed by leaching with sulfuric acid or alkaline solutions to dissolve the uranium. The resulting liquid, known as "pregnant liquor," is then treated with solvents to extract uranium in the form of uranium oxide (U₃O₈), commonly called yellowcake. Milling produces large quantities of radioactive tailings, which must be carefully managed to prevent environmental contamination. Tailings are stored in engineered facilities, often lined with impermeable materials, to minimize leaching into groundwater. The yellowcake is then packaged and transported for further processing, marking the end of the mining and milling phase.
The next step is conversion, where yellowcake is transformed into uranium hexafluoride (UF₆), a gas essential for enrichment. This process involves heating the yellowcake with fluorine gas in a series of chemical reactions. UF₆ is highly corrosive and must be handled in specialized equipment made of nickel or other resistant materials. The gas is then stored in steel cylinders for transport to enrichment facilities. Conversion plants are critical to the nuclear fuel cycle, as they bridge the gap between mining and enrichment, ensuring a consistent supply of feed material for producing reactor-grade uranium.
Enrichment is a complex process that increases the concentration of uranium-235 (U-235), the fissile isotope used in nuclear reactors. Natural uranium contains only 0.7% U-235, insufficient for most reactors. Enrichment facilities use centrifuge or diffusion technologies to separate U-235 from the more abundant U-238. In centrifuge enrichment, UF₆ gas is spun at high speeds, causing the heavier U-238 to move outward, while U-235 concentrates near the center. This process is repeated in a cascade of centrifuges until the desired U-235 concentration, typically 3–5%, is achieved. Enrichment is energy-intensive and requires stringent safety measures to prevent proliferation of nuclear materials.
Finally, the enriched UF₆ is converted into uranium dioxide (UO₂) powder, which is pressed into pellets and sintered at high temperatures to form hard, ceramic-like fuel pellets. These pellets are then loaded into zirconium alloy tubes to create fuel rods, which are bundled into fuel assemblies for use in nuclear reactors. Each step—from mining to fuel rod production—involves precise engineering and strict regulatory oversight to ensure safety, efficiency, and environmental protection. Without this intricate process, the uranium fuel rods that power nuclear reactors worldwide would not exist.
Maximize Your Miles: Proven Strategies to Boost Fuel Economy
You may want to see also
Explore related products
Fuel Pellet Fabrication and Assembly
The process of transforming uranium into a usable fuel for nuclear reactors begins with the creation of small, cylindrical pellets, each about the size of a fingertip. These pellets are the building blocks of fuel rods and are engineered to withstand extreme conditions within a reactor core. The fabrication starts with uranium dioxide (UO₂) powder, which is compacted under high pressure to form the initial pellet shape. This green compact, as it's called, is then sintered at temperatures exceeding 1,400°C (2,552°F) to achieve the necessary density and hardness. The resulting pellets must meet stringent quality standards, including a density of at least 95% of the theoretical maximum to ensure optimal performance and longevity in the reactor.
Once fabricated, the pellets undergo a meticulous assembly process to form the fuel rods. Each rod typically contains a stack of around 200 to 300 pellets, depending on the reactor design. The pellets are carefully loaded into a zirconium alloy tube, which acts as a protective cladding. This cladding is crucial, as it prevents the release of radioactive materials while allowing the transfer of heat generated by fission. The assembly is completed by sealing the tube ends, often using a welding process that ensures a hermetic seal. Precision is paramount here, as any defect in the cladding or seal can compromise the safety and efficiency of the fuel rod.
A critical aspect of fuel pellet fabrication and assembly is the control of impurities. Even trace amounts of contaminants, such as silicon or carbon, can significantly impact the performance and stability of the fuel. For instance, silicon can react with zirconium to form embrittling phases, reducing the cladding's ability to withstand high temperatures and pressures. To mitigate this, manufacturers employ advanced purification techniques, such as solvent extraction and precipitation, to achieve UO₂ powder with impurity levels below 50 parts per million. Similarly, the assembly environment is maintained under cleanroom conditions to prevent particulate contamination.
Comparing this process to other industrial manufacturing, the fabrication and assembly of fuel pellets stand out for their extreme precision and safety requirements. Unlike typical ceramic production, where minor defects might be acceptable, fuel pellets demand near-perfection. For example, a single cracked pellet can lead to a phenomenon known as "pellet-clad interaction," where the pellet expands and stresses the cladding, potentially causing failure. This underscores the need for rigorous quality control, including non-destructive testing methods like ultrasonic inspection and gamma scanning, to ensure every pellet and rod meets the exacting standards of nuclear fuel.
In practice, the success of fuel pellet fabrication and assembly directly influences the overall efficiency and safety of nuclear power generation. Well-manufactured fuel rods can operate reliably for up to 6 years, generating approximately 200,000 kWh of electricity per kilogram of uranium. This efficiency is a testament to the meticulous engineering behind each pellet and rod. For operators and engineers, understanding this process is essential for optimizing reactor performance and ensuring the safe, sustainable production of nuclear energy. By focusing on precision, purity, and quality control, the fuel pellet fabrication and assembly process exemplifies the intersection of advanced materials science and nuclear engineering.
Sustaining Energy: Understanding the Fuel for Low-Intensity Activities
You may want to see also
Explore related products
Nuclear Fission Reaction Mechanism
Uranium fuel rods are the backbone of nuclear power generation, harnessing the energy released from the nuclear fission of uranium-235 (U-235). At the heart of this process lies the nuclear fission reaction mechanism, a complex yet elegant sequence of events that converts nuclear binding energy into usable heat. When a neutron strikes the nucleus of a U-235 atom, it becomes unstable and splits into two smaller nuclei, typically barium and krypton, releasing additional neutrons and a significant amount of energy. This energy is emitted in the form of kinetic energy, gamma radiation, and neutrinos, with the kinetic energy of the fission fragments heating the surrounding fuel and coolant.
To initiate and sustain this chain reaction, fuel rods are carefully designed with specific enrichments of U-235, typically around 3–5%, ensuring a critical mass without becoming uncontrollable. The neutrons released during fission must be moderated to lower speeds using materials like water or graphite, increasing the likelihood of inducing further fissions. This moderation is crucial because fast-moving neutrons are less likely to be captured by U-235 nuclei. Control rods made of neutron-absorbing materials, such as cadmium or boron, are inserted or withdrawn to regulate the reaction rate, preventing overheating or runaway reactions.
A key challenge in the fission mechanism is managing the immense heat generated. Each fission event releases approximately 200 MeV (million electron volts) of energy, which is millions of times greater than the energy released in chemical reactions like combustion. This heat is transferred to a coolant, often water, which circulates through the reactor core. The heated coolant then produces steam, driving turbines to generate electricity. Efficient heat transfer is critical, as fuel rods can reach temperatures of 300–400°C during operation, with cladding materials like zirconium alloy providing structural integrity and containment.
Comparing nuclear fission to other energy sources highlights its efficiency and environmental trade-offs. While a single uranium fuel pellet (about the size of a fingertip) can produce as much energy as a ton of coal, the process generates radioactive waste that remains hazardous for thousands of years. The fission mechanism itself is inherently clean in terms of greenhouse gas emissions, but the long-term storage and disposal of spent fuel pose significant challenges. Innovations like breeder reactors and advanced cooling systems aim to enhance safety and sustainability, but the core fission mechanism remains the same: a delicate balance of neutron capture, nucleus splitting, and energy release.
In practical terms, understanding the fission reaction mechanism is essential for optimizing reactor performance and safety. Operators must monitor neutron flux, fuel temperature, and coolant pressure to prevent accidents like meltdowns. For instance, the Chernobyl disaster occurred when control rods were improperly removed, leading to an uncontrollable power surge. Modern reactors incorporate redundant safety systems, such as emergency shutdown protocols and passive cooling mechanisms, to mitigate risks. By mastering the intricacies of nuclear fission, engineers can harness its power responsibly, ensuring a reliable energy source for the future.
Efficiently Fueling Your SR22: Tips for Optimal Performance and Savings
You may want to see also
Explore related products
Heat Transfer in Reactor Core
Nuclear reactors harness the energy released from uranium fuel rods through a meticulously controlled fission process, but this power generation is inseparable from the challenge of heat transfer within the reactor core. As uranium atoms split, they release a tremendous amount of thermal energy, which must be efficiently removed to prevent overheating and ensure the reactor’s safety and efficiency. This heat is transferred primarily through the coolant, which circulates around the fuel rods, absorbing thermal energy and carrying it away to generate steam for electricity production. The effectiveness of this heat transfer process is critical, as even minor inefficiencies can lead to localized hot spots, potentially damaging the fuel rods or compromising the reactor’s structural integrity.
Consider the coolant’s role as a thermal mediator: in pressurized water reactors (PWRs), water under high pressure flows through the core, absorbing heat at temperatures exceeding 300°C without boiling due to the elevated pressure. This heated water then transfers its thermal energy to a secondary water loop, which converts into steam to drive turbines. In contrast, boiling water reactors (BWRs) allow the coolant to boil directly in the core, producing steam that is separated and used to generate electricity. Each design optimizes heat transfer but requires precise engineering to manage the coolant’s thermal properties, flow rates, and pressure. For instance, PWRs typically operate with a coolant flow rate of 20,000 liters per minute per reactor, ensuring rapid heat removal.
The fuel rods themselves are engineered to facilitate heat transfer, with zirconium alloy cladding encasing ceramic uranium dioxide pellets. This cladding must withstand extreme temperatures, corrosion, and neutron irradiation while maintaining a low thermal resistance to allow heat to pass into the coolant. The gap between the pellets and cladding is minimized to enhance conductivity, but not so much as to risk mechanical failure under thermal expansion. Additionally, the rods are arranged in bundles with carefully calculated spacing to optimize coolant flow and heat dissipation, balancing the need for efficient cooling with structural stability.
Practical challenges in heat transfer include managing thermal gradients within the core, which can arise from uneven fuel burnup or variations in coolant flow. Operators use control rods and adjustable coolant pumps to modulate reactivity and flow rates, ensuring uniform heat removal. For example, advanced reactors incorporate helical fuel rod designs or mixed-oxide fuels to improve thermal conductivity and reduce hot spots. Regular inspections and maintenance, such as replacing aged cladding or adjusting coolant chemistry, are essential to prevent degradation that could impair heat transfer.
In summary, heat transfer in the reactor core is a complex interplay of physics, materials science, and engineering, demanding precision and foresight. From coolant selection and flow dynamics to fuel rod design and operational adjustments, every element is optimized to manage the intense heat generated by uranium fission. By understanding and addressing these specifics, reactor designers and operators can ensure safe, efficient, and sustainable nuclear power generation.
Does All Fuel Contain Ethanol? Unraveling the Truth Behind Gasoline Blends
You may want to see also
Explore related products
Spent Fuel Rod Handling and Storage
Spent fuel rods, after powering nuclear reactors for several years, retain up to 95% of their original uranium-238, along with highly radioactive fission products like cesium-137 and strontium-90. Their handling and storage demand precision due to the intense heat and radiation they emit—up to 1,000°C and lethal doses within minutes of exposure. Immediate transfer to water-filled spent fuel pools is critical to cool the rods and shield workers, as air exposure can lead to oxidation and potential combustion of zirconium cladding.
Once cooled in pools for 5–10 years, spent fuel rods are either reprocessed or prepared for long-term storage. Reprocessing, practiced in countries like France and Russia, extracts reusable uranium and plutonium but generates liquid waste requiring vitrification. Alternatively, dry cask storage offers a passive, cost-effective solution. Rods are sealed in steel-and-concrete casks designed to withstand extreme conditions, including earthquakes and fires, for up to 100 years. These casks are stored on-site at nuclear plants, occupying minimal space but raising concerns about security and long-term degradation.
The debate over permanent disposal highlights the challenges of spent fuel storage. Deep geological repositories, like Finland’s Onkalo facility, aim to isolate waste in stable rock formations for millennia. However, public opposition and regulatory hurdles have delayed projects in the U.S. and elsewhere. Interim solutions, such as centralized storage facilities, are proposed but face similar resistance. Until a global consensus is reached, spent fuel remains a legacy of nuclear power, requiring vigilant management to prevent environmental and security risks.
Practical tips for handling spent fuel emphasize remote operations and layered shielding. Workers use robotic arms and lead-lined containers to minimize exposure, while dosimeters monitor radiation levels. For individuals near storage sites, understanding emergency protocols—such as evacuation routes and potassium iodide distribution—is essential. While spent fuel rods are a byproduct of clean energy, their management underscores the complexity of balancing technological advancement with long-term responsibility.
Are Fuel Surcharges Legal? Understanding Your Rights and Regulations
You may want to see also
Frequently asked questions
A uranium fuel rod is a long, slender tube containing pellets of enriched uranium dioxide (UO₂). Its purpose is to serve as the primary source of fuel in nuclear reactors, where the uranium undergoes fission to generate heat, which is then converted into electricity.
Uranium fission occurs when the nucleus of a uranium-235 atom absorbs a neutron, splits into smaller nuclei, and releases energy and additional neutrons. These neutrons sustain a chain reaction, producing heat that is transferred to a coolant, which drives turbines to generate electricity.
The uranium pellets are encased in a zirconium alloy tube, which is highly corrosion-resistant and allows for efficient heat transfer. This cladding also prevents the release of radioactive materials into the reactor coolant.
A uranium fuel rod typically lasts 3 to 6 years in a reactor, depending on the reactor design and operational conditions. Once the uranium is partially spent and no longer sustains an efficient reaction, the rod is removed and replaced with a fresh one.
Spent fuel rods are highly radioactive and must be stored safely. They are initially placed in water-filled spent fuel pools to cool and reduce radioactivity. Later, they may be transferred to dry cask storage or reprocessed to recover usable materials, depending on the country's nuclear waste management policies.
